TS T21 Mechanical Seals for Pumps Pusher Seals

Share to:

TS T21 Mechanical Seals for Pumps Pusher Seals

Customization:	Available
Structure:	Single End
Pressure:	≤1, 0 MPa

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

TS T21

Speed

Ultra-High-Speed Mechanical Seal

Temperature

Temperature Mechanical Seal

Performance

Corrosion

Standard

Type

Customization, TS

Balance

Balanced

Transport Mode

International Express, by Air, by Sea, by Train

Replacement to

Burman Seal

Payment Method

T/T, Western Union, L/C etc

Transport Package

Carton

Specification

Diameter 10mm-100mm

Trademark

TS

Origin

China

HS Code

8484200090

Production Capacity

1000000PCS/Year

Packaging & Delivery

Package Size

38.00cm * 38.00cm * 32.00cm

Package Gross Weight

22.000kg

Product Description

Materials

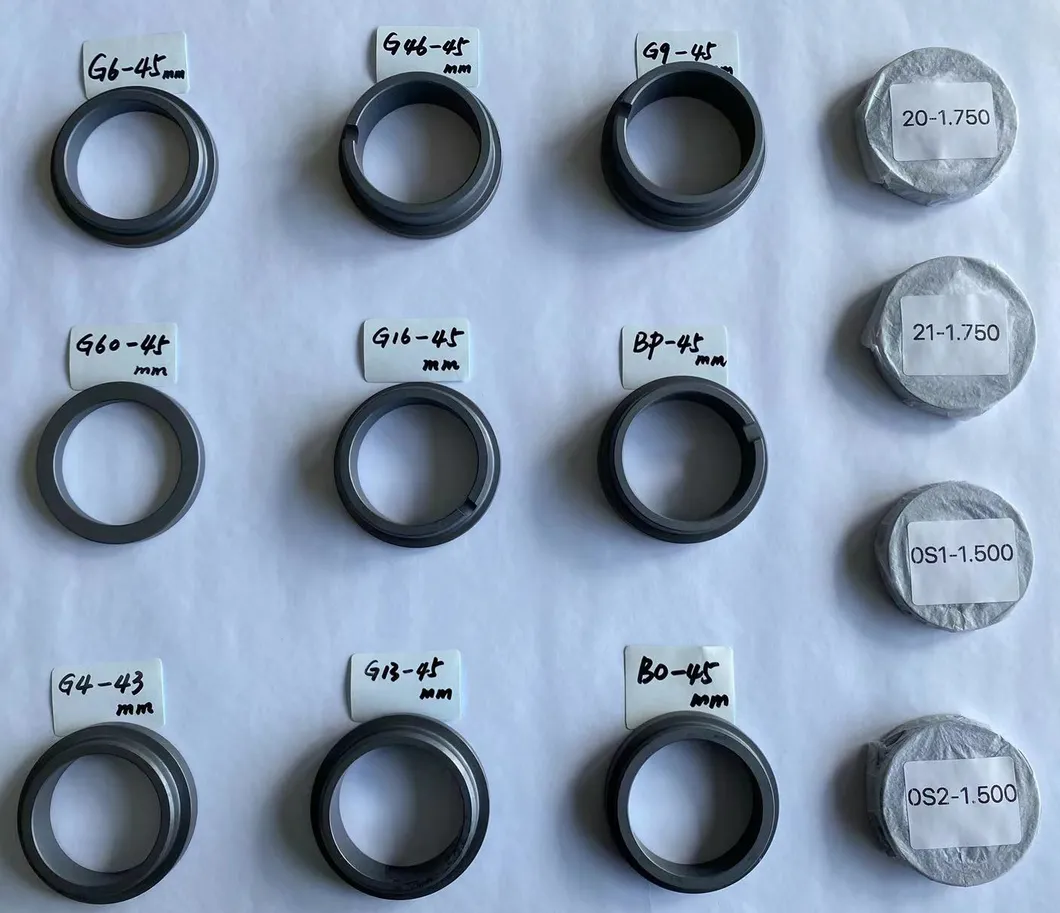

Stationary Ring: Ceramic/Sic/TC/SUS304
Secondary Seal: NBR/EPDM/Viton

D1(mm)	Size Code	D1(inch)	Size Code	D7(T31)	L4(T31)	D7(T21)	L4(T21)
		0.375	0095	22.22	7.95	24.60	8.70
10	0101			22.22	7.95	24.60	8.70
12	0120			25.40	7.95	27.79	8.70
		0.500	0127	25.40	7.95	27.79	8.70
13	0130			25.40	7.95	27.79	8.70
14	0140			31.75	10.30	30.95	10.30
15	0150			31.75	10.30	30.95	10.30
		0.625	0158	31.75	10.30	30.95	10.30
16	0160			31.75	10.30	30.95	10.30
18	0180			34.93	10.30	34.15	10.30
		0.750	0191	34.93	10.30	34.15	10.30
20	0200			38.10	10.30	35.70	10.30
22	0220			38.10	10.30	37.30	10.30
		0.875'	0222	38.10	10.30	37.30	10.30
24	0240			41.28	11.10	40.50	10.30
25	0250			41.28	11.10	40.50	10.30
		1.000	0254	41.28	11.10	40.50	10.30
28	0280			44.44	11.10	47.63	11.90
		1.125	0286	44.44	11.10	47.63	11.90
30	0300			47.63	11.10	50.80	11.90
		1.250	0317	47.63	11.10	50.80	11.90
33	0330			50.80	11.10	53.98	11.90
		1.375	0349	50.80	11.10	53.98	11.90
35	0350			50.80	11.10	53.98	11.90
38	0380			53.98	11.10	57.15	11.90
		1.500	0381	53.98	11.10	57.15	11.90
40	0400			60.35	12.70	60.35	11.90
		1.625	0412	60.33	12.70	60.35	11.90
42	0420			63.50	12.70	63.50	11.90
43	0430			63.50	12.70	63.50	11.90
45	0450			63.50	12.70	63.50	11.90
		1.875	0476	66.68	12.70	66.70	11.90
48	0480			69.85	12.70	66.70	11.90
50	0500			69.85	12.70	69.85	13.50
		2.000	0508	69.85	12.70	69.85	13.50
53	0530			76.20	14.30	73.05	13.50
		2.125	0539	76.20	14.30	73.05	13.50
55	0550			79.38	14.30	76.20	13.50
		2.250	0571	79.30	14.30	76.20	13.50
58	0580			82.55	14.30	79.40	13.50
60	0600			82.55	14.30	79.40	13.50
		2.375	0603	82.55	14.30	79.40	13.50
63	0630			85.73	14.30	82.55	13.50
		2.500	0635	85.73	14.30	82.55	13.50
65	0650			85.73	15.90	92.10	15.90
		2.625	0666	85.73	15.90	92.10	15.90
		2.750	0698	88.90	15.90	95.25	15.90
70	0700			88.90	15.90	95.25	15.90
		2.875	0730	92.25	15.90	98.45	15.90
75	0750			98.43	15.90	101.65	15.90
		3.000	0762	98.43	15.90	101.65	15.90
80	0800			101.60	19.88	111.15	19.90
90	0900			111.13	19.88	120.65	19.90
100	1000			123.83	19.88	133.35	19.90

We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

Question3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

Question4: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
