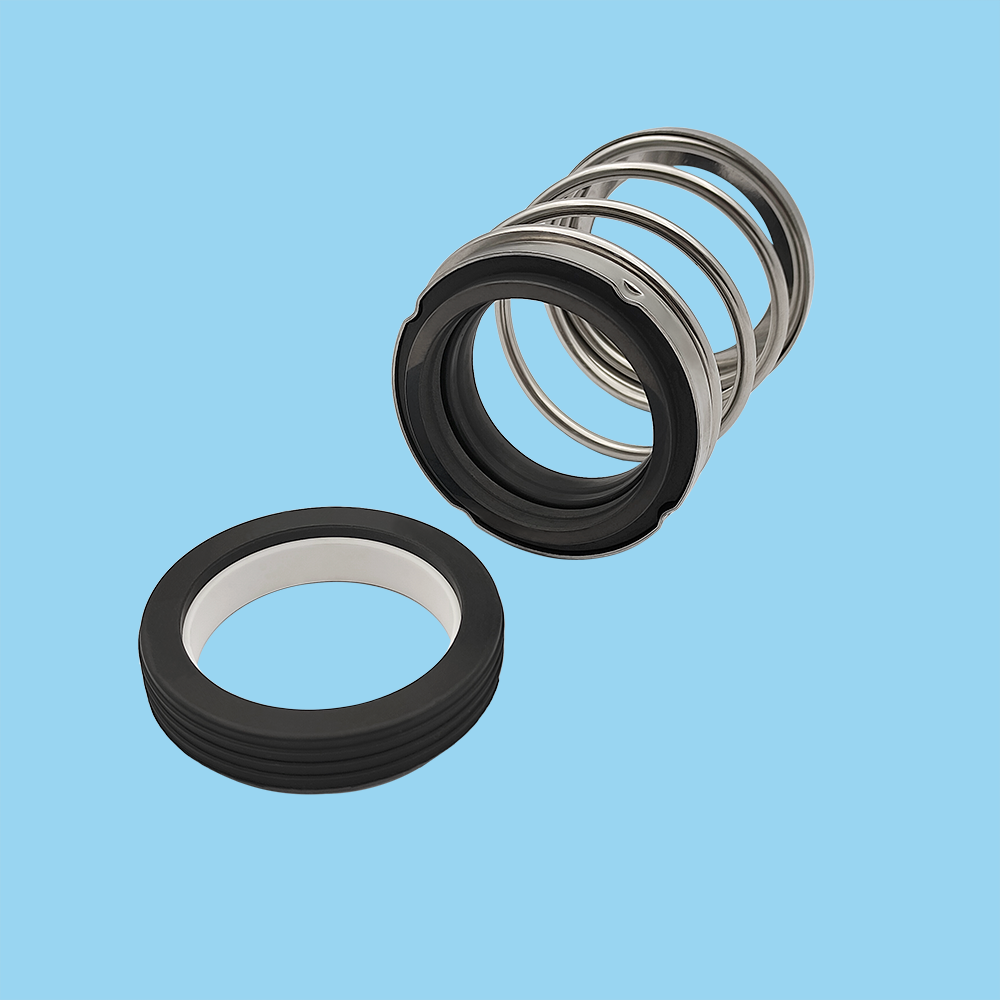

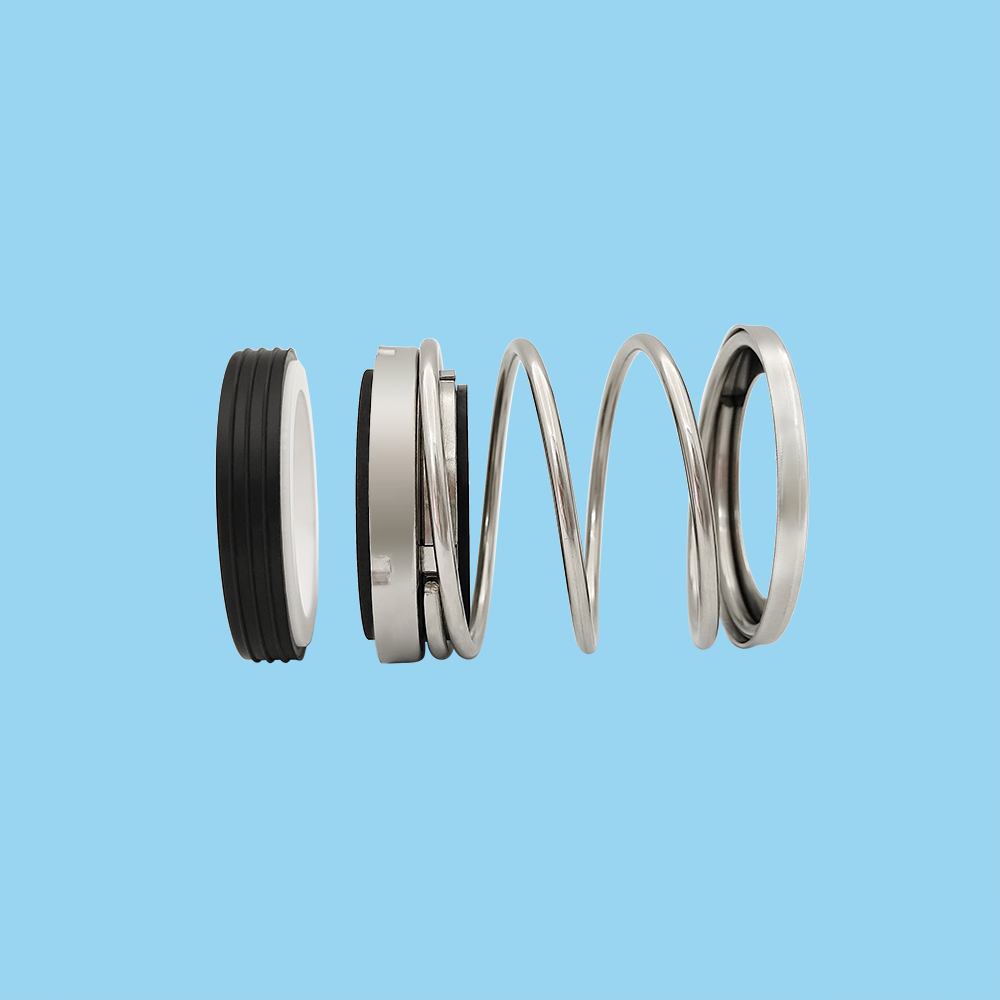

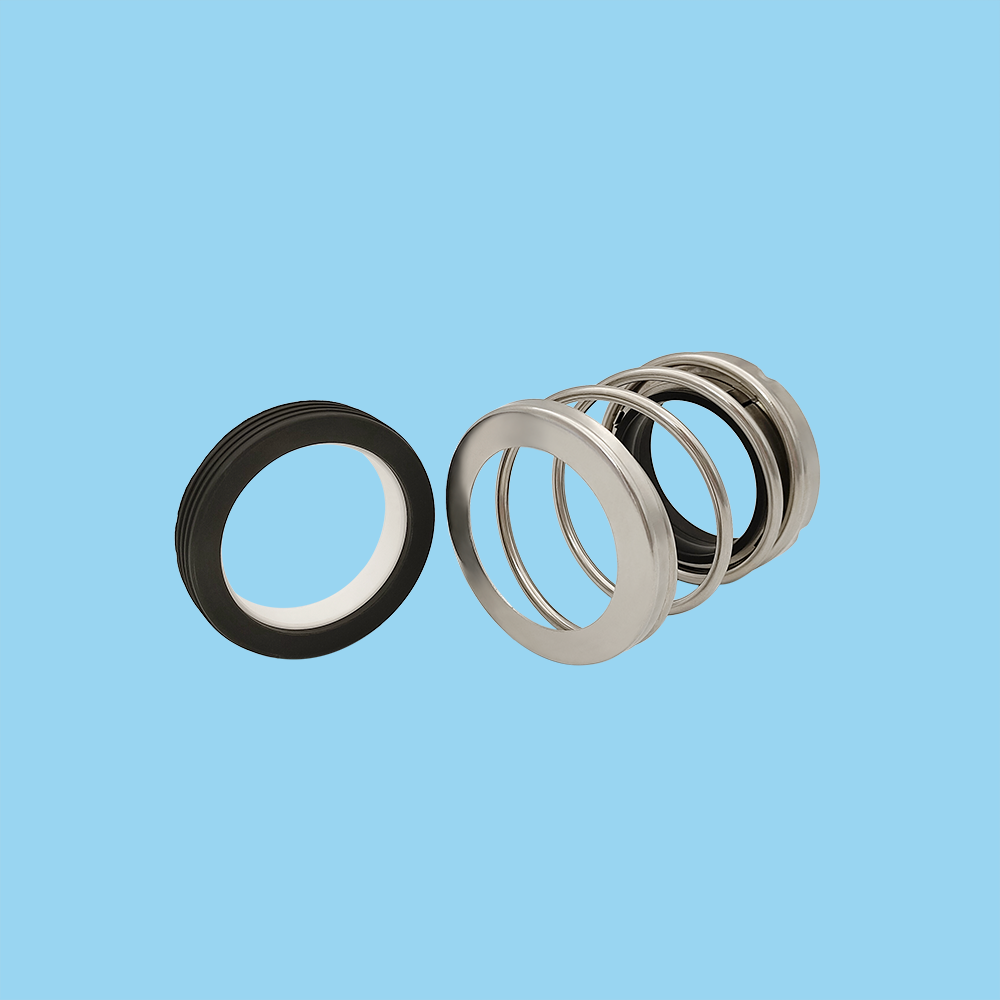

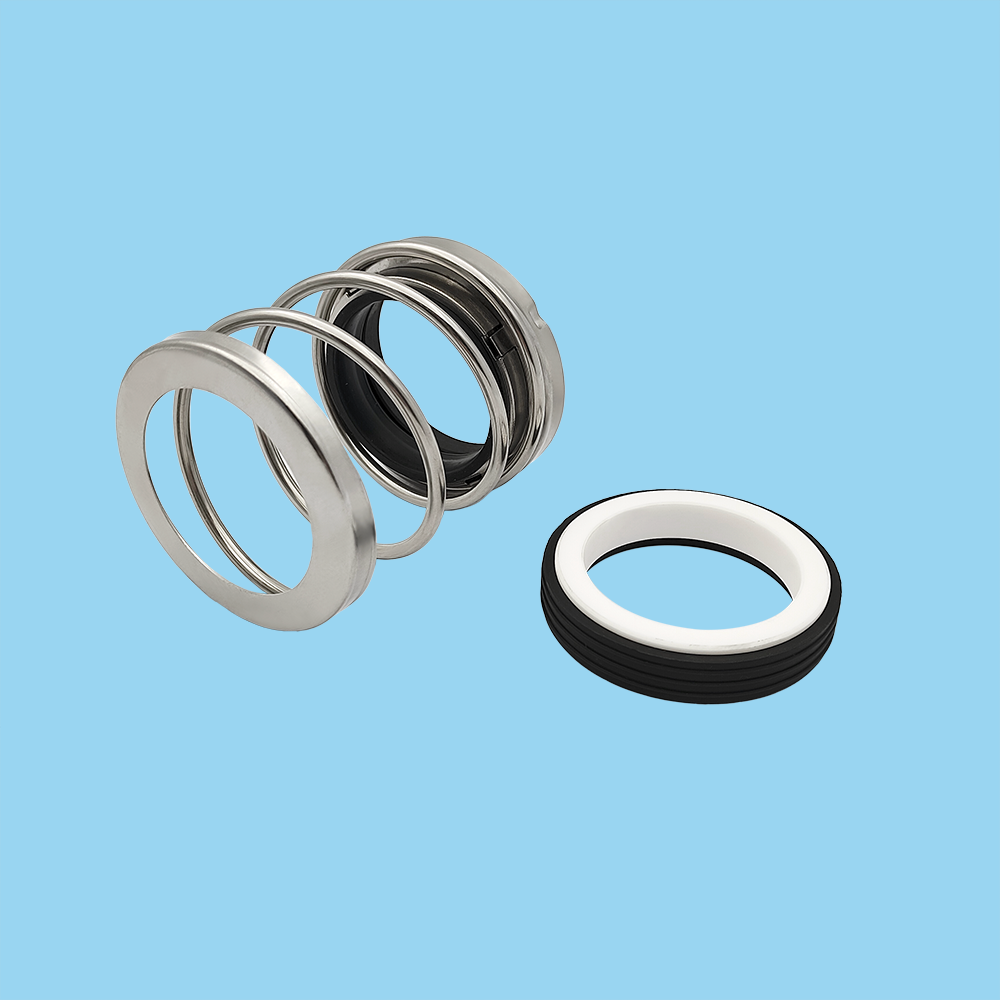

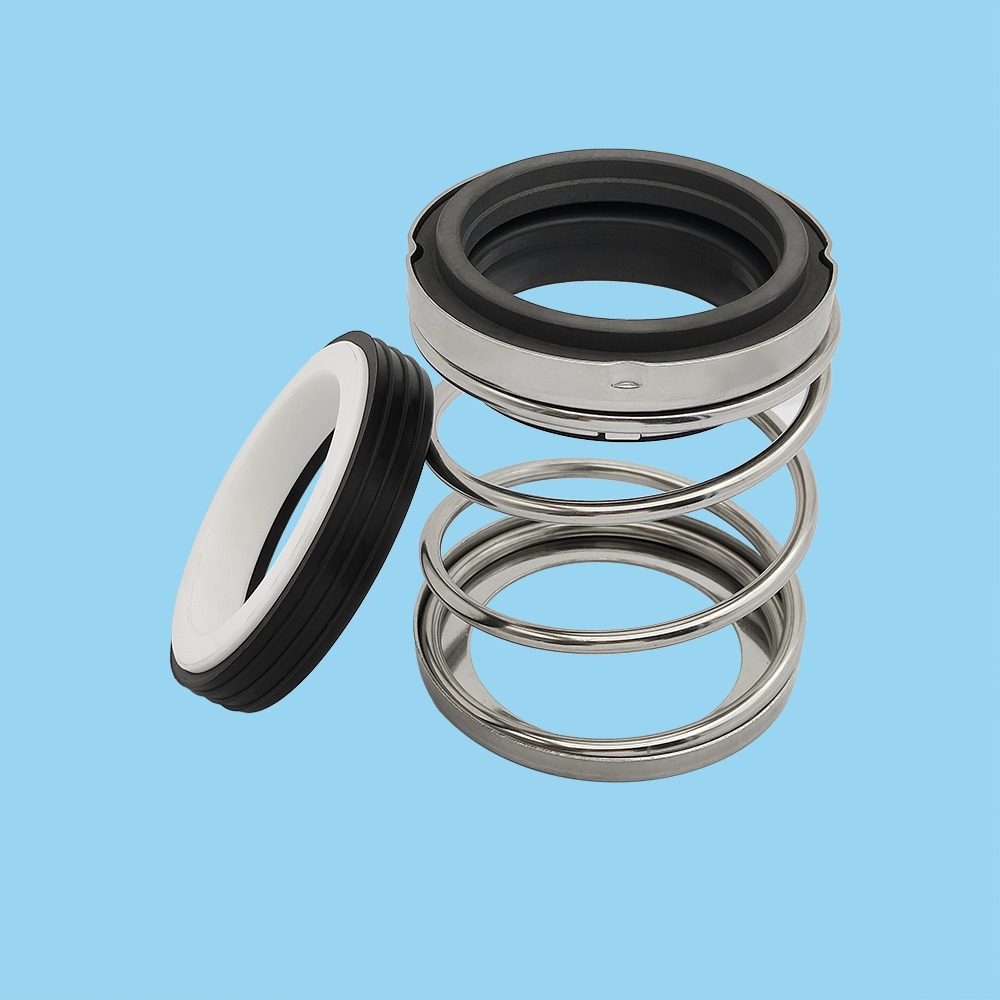

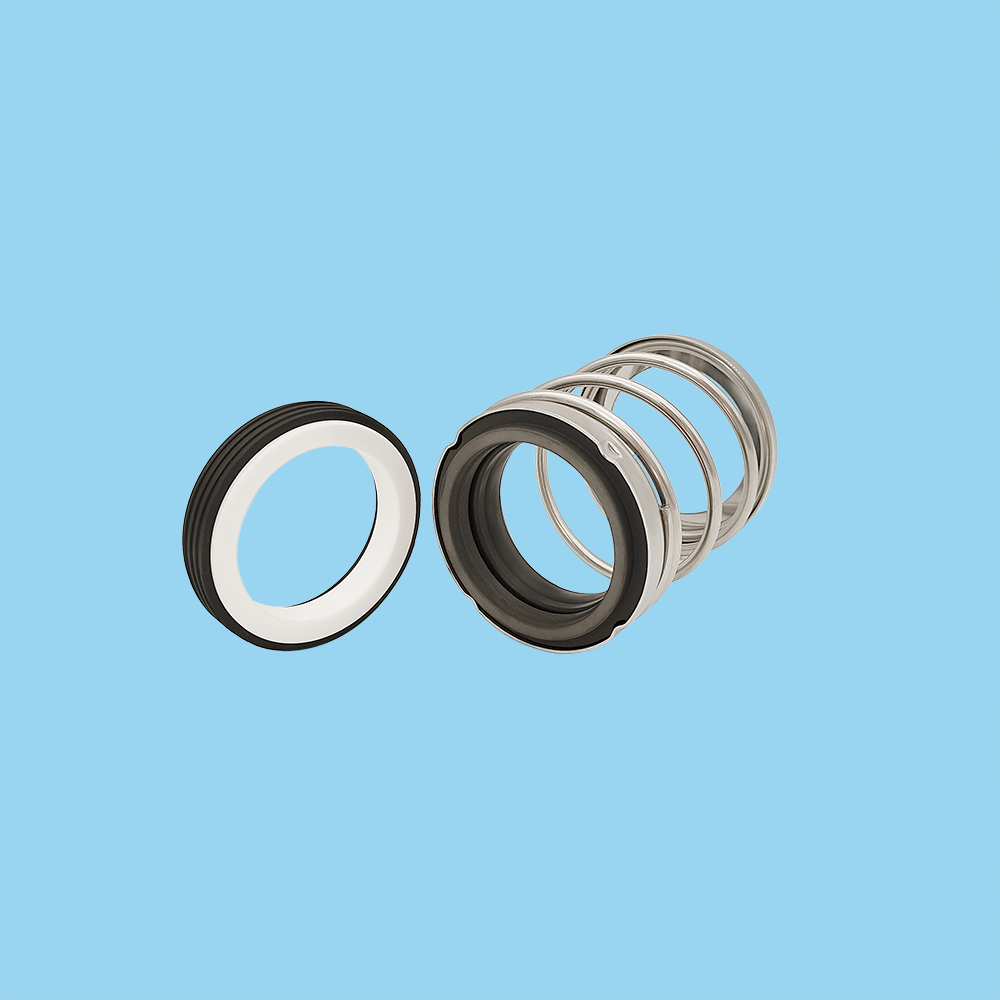

JC 220 Type Mechanical Seals for All Kinds of Pump Seals

Share to:

JC 220 Type Mechanical Seals for All Kinds of Pump Seals

Customization:	Available
Structure:	Single End
Pressure:	≤1.2 MPa

Availability:

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

TS 220

Speed

Ultra-High-Speed Mechanical Seal

Temperature

Temperature Mechanical Seal

Performance

Corrosion

Standard

Type

Customization, TS

Balance

Unbalanced

Transport Mode

International Express, by Air, by Sea, by Train

Replacement to

MG901

Payment Method

T/T, Western Union, L/C etc

Mini quantity

5 Pcs

Transport Package

Carton

Specification

Diameter 0.500"-3.000"

Trademark

TS

Origin

China

HS Code

8484200090

Production Capacity

1000000PCS/Year

Packaging & Delivery

Package Size

38.00cm * 38.00cm * 32.00cm

Package Gross Weight

22.000kg

Product Description

Working Conditions:
Mediums: Water, oil, weak acids, weak bases
and other general corrosive chemical media.
Temperature: -20ºC to 120ºC
Pressure: ≤ 1.2 Mpa
Rotate speed: ≤12m/s

Materials:
Stationary Ring : Ceramic / Sic / TC
Rotary Ring : Carbon / Sic / TC /SUS304
Secondary Seal : NBR / EPDM / Viton
Spring and Metal Part: Stainless Steel

D1(inch)	Size Code	D3	D7	L4	L1	L11
0.500'	0127	23.90	25.40	7.93	20.62	31.75
0.625'	0158	26.70	31.75	10.28	22.22	34.93
0.750'	0191	31.10	34.93	10.28	22.22	34.93
0.875'	0222	33.40	38.10	10.28	23.80	36.50
1.000'	0254	43.20	41.28	11.10	25.40	41.28
1.125'	0286	46.30	44.44	11.10	26.97	42.85
1.250'	0317	49.40	47.63	11.10	26.97	42.85
1.375'	0349	52.60	50.80	11.10	28.58	42.85
1.500'	0381	55.80	53.98	11.10	28.58	42.85
1.625'	0412	62.20	60.33	12.70	34.93	50.80
1.750'	0444	66.00	63.50	12.70	34.93	50.80
1.875'	0476	66.60	66.68	12.70	38.10	53.98
2.000'	0508	73.00	69.85	12.70	38.10	53.98
2.125'	0539	73.30	76.20	14.28	42.88	60.32
2.250'	0571	78.40	79.38	14.28	42.88	60.32
2.375'	0603	82.00	82.55	14.28	46.02	63.50
2.500'	0635	84.90	85.73	14.28	46.02	63.50
2.625'	0666	88.40	85.73	15.90	49.20	69.85
2.750'	0698	92.60	88.90	15.90	49.20	69.85
2.875'	0730	94.85	95.25	15.90	52.37	73.03
3.000'	0762	101.90	98.43	15.90	52.37	73.03

We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

Question3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

Question4: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
