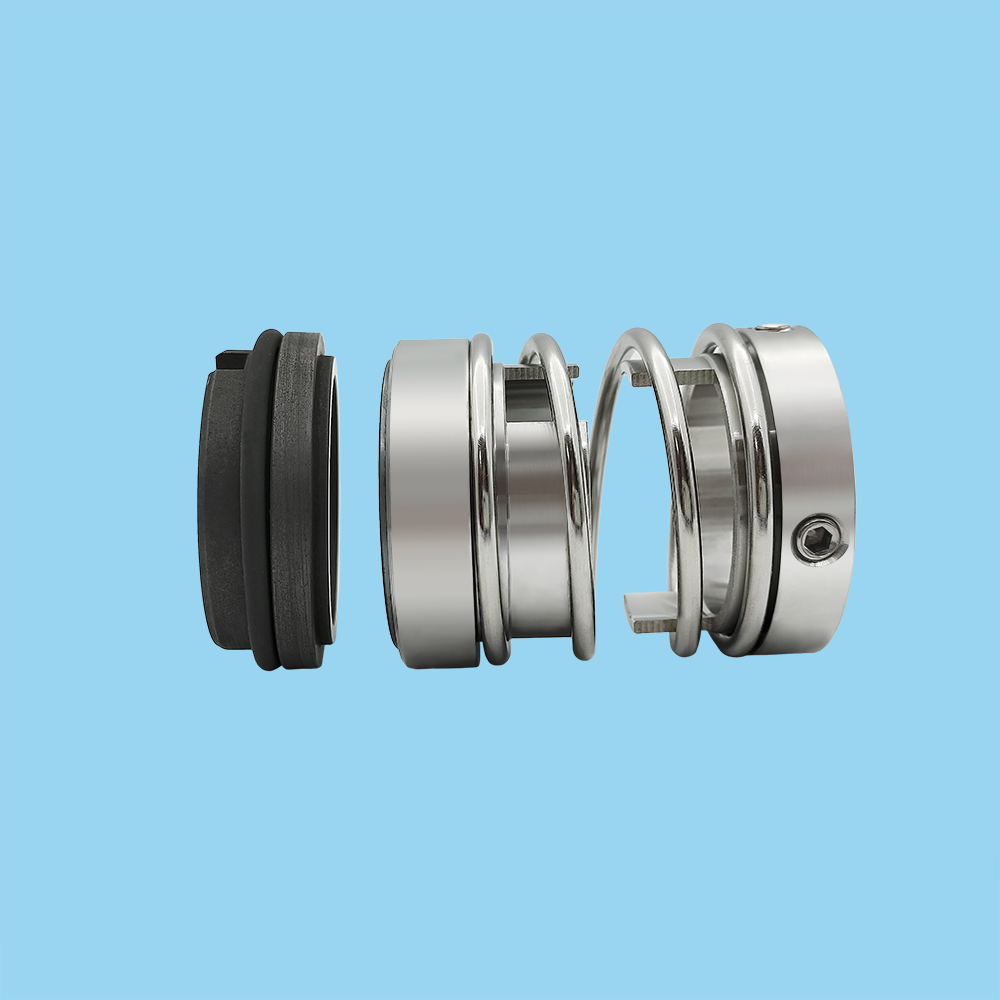

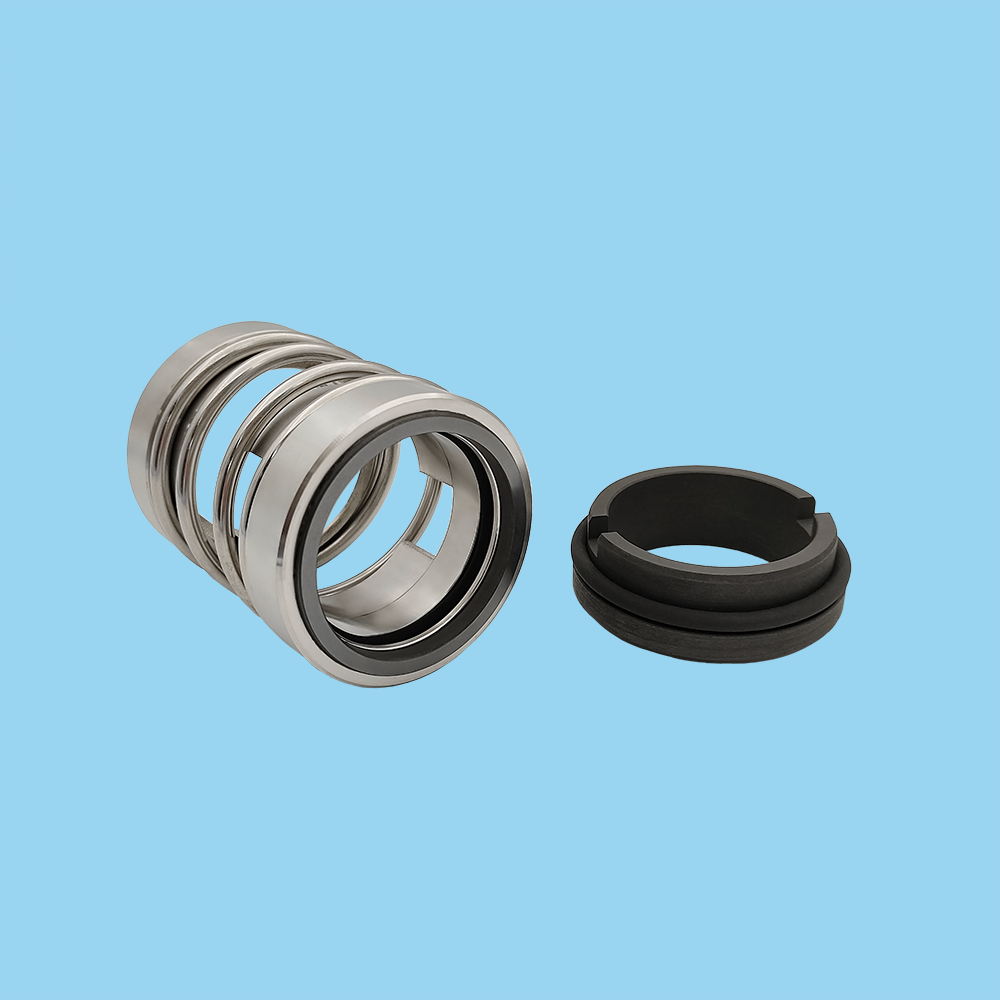

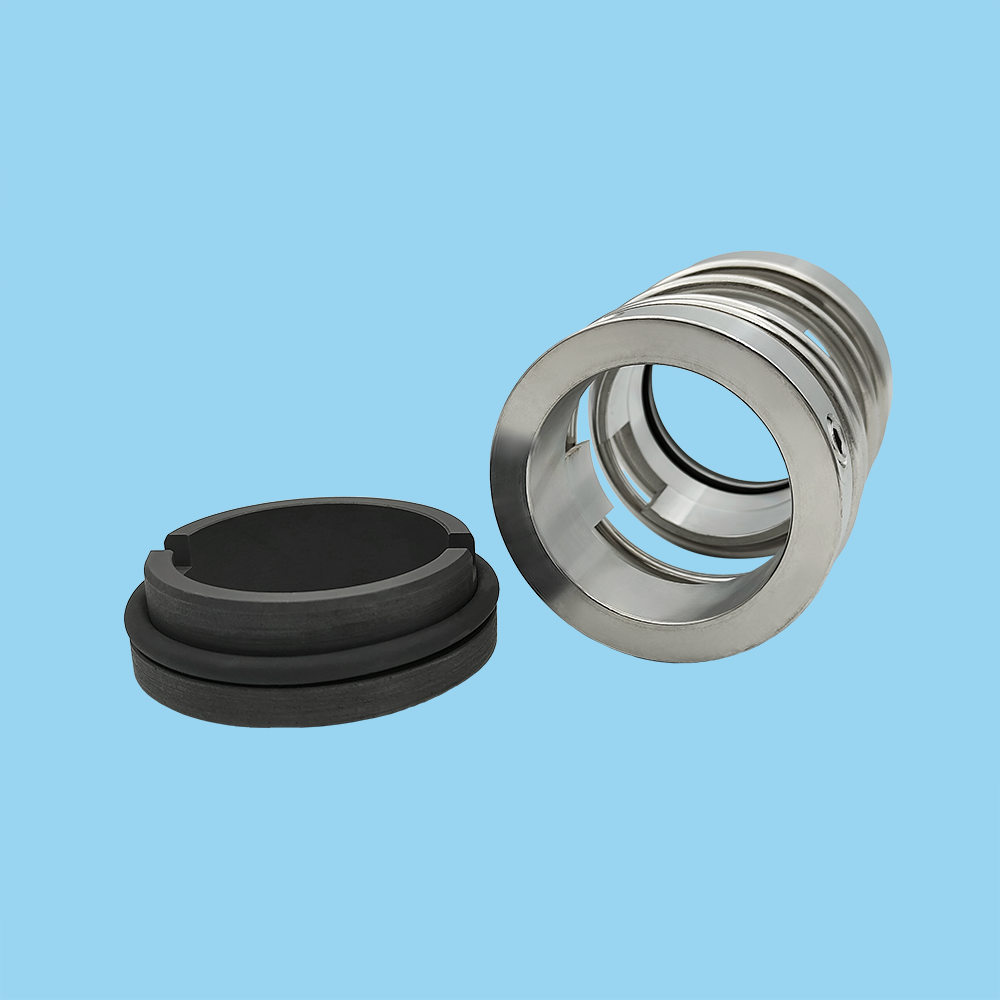

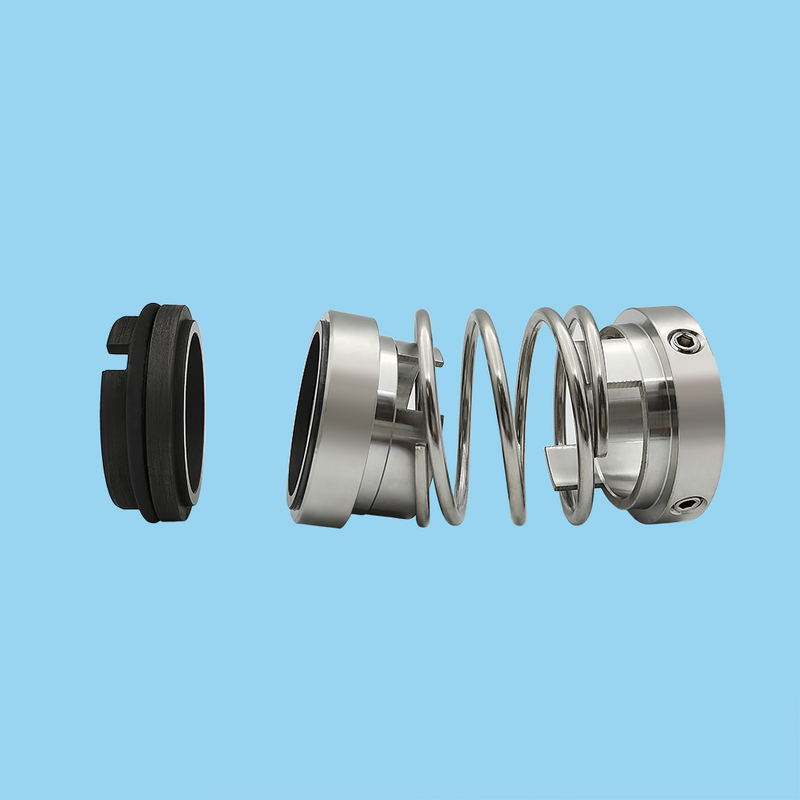

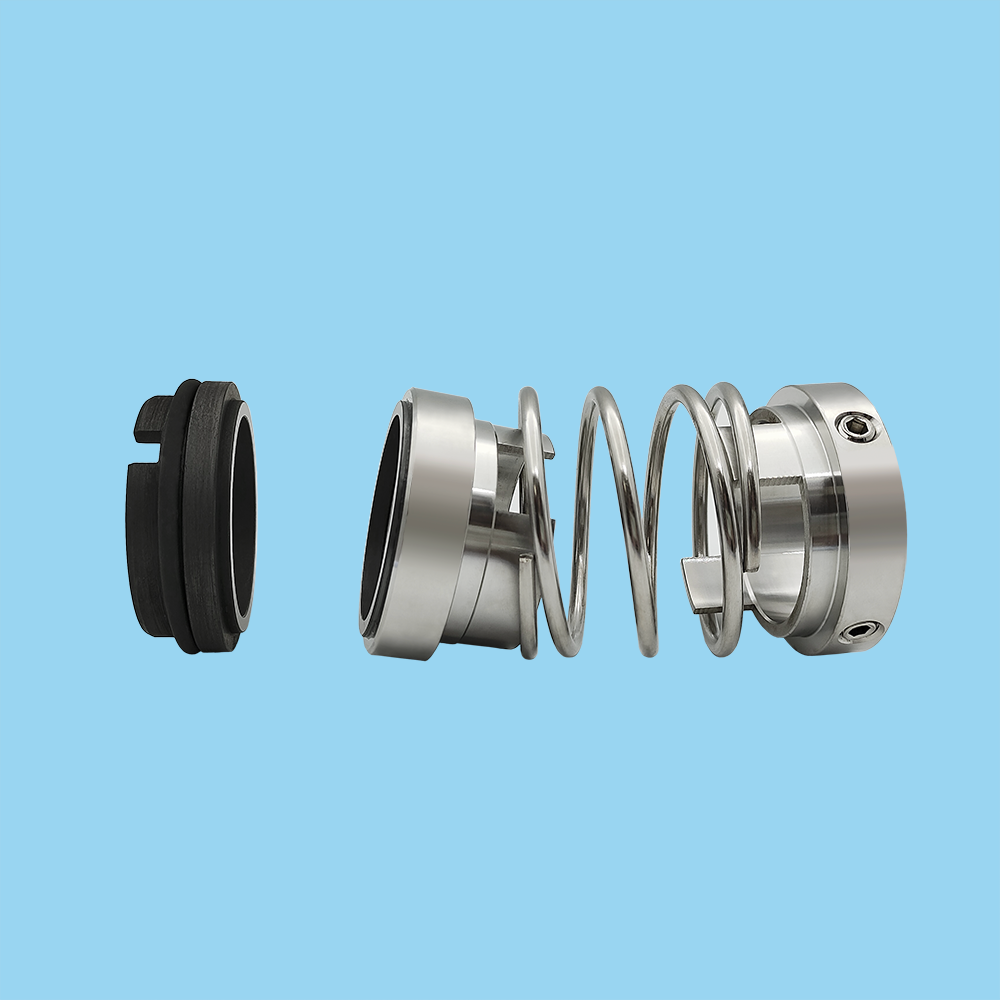

Single Spring Mechanical Seals TS250

Customization:	Available
Structure:	Single End
Pressure:	≤1.2 MPa

Availability:

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

TS 250

Speed

Ultra-High-Speed Mechanical Seal

Temperature

Temperature Mechanical Seal

Performance

Corrosion

Standard

Type

Customization, TS

Balance

Unbalanced

Transport Mode

International Express, by Air, by Sea, by Train

Replacement to

Burman Seal

Payment Method

T/T, Western Union, L/C etc

Mini Quantity

5 PCS

Brand Label

Neutral white box packaging

Transport Package

Carton

Specification

Diameter 10-100mm

Trademark

TS

Origin

China

HS Code

8484200090

Production Capacity

1000000PCS/Year

Packaging & Delivery

Package Size

38.00cm * 38.00cm * 32.00cm

Package Gross Weight

22.000kg

Product Description

Working Conditions:
Mediums: Water, oil, weak acids, weak bases
and other general corrosive chemical media.
Temperature: -20ºC to 180ºC
Pressure: ≤ 1.2 Mpa
Rotate speed: ≤18m/s

Materials:
Stationary Ring : Carton / Ceramic / Sic / TC
Rotary Ring : Carbon / Sic / TC /SUS304
Secondary Seal : NBR / EPDM / Viton
Spring and Metal Part: Stainless Steel

Mechanical Shaft Size D1	Size Code	D3	L1	D7	L4
20	0200	34	41	35	13
22	0220	36	41	37	13
24	0240	38	43	39	13
25	0250	39	43	40	13
28	0280	42	45	43	13
30	0300	44	45	45	13
33	0330	47	45	48	13
35	0350	49	49	50	13
38	0380	54	53	56	13
40	0400	56	55	58	13
43	0430	59	55	61	13
45	0450	61	55	63	13
48	0480	64	55	66	13
50	0500	66	60	68	13
53	0530	69	61	71	13
55	0550	71	61	73	13
58	0580	76	63	79	16
60	0600	78	63	81	16
63	0630	81	63	84	16
65	0650	83	67	86	16
70	0700	90	68	92	16
75	0750	95	72	97	16
80	0800	100	72	105	16
85	0850	105	77	110	16
90	0900	112	77	115	16
95	0950	119	82	120	16
100	1000	124	82	125	16

We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

Question3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

Question4: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
