| Customization: | Available |
|---|---|
| Structure: | Single End |
| Pressure: | ≤1.2 MPa |
| Quantity: | |
|---|---|
Working Conditions
Mediums: Water, oil and weakly-corrosive mediums
Temperature: -20ºC to 120ºC
Pressure: ≤1.0MPa
Speed: ≤15m/s

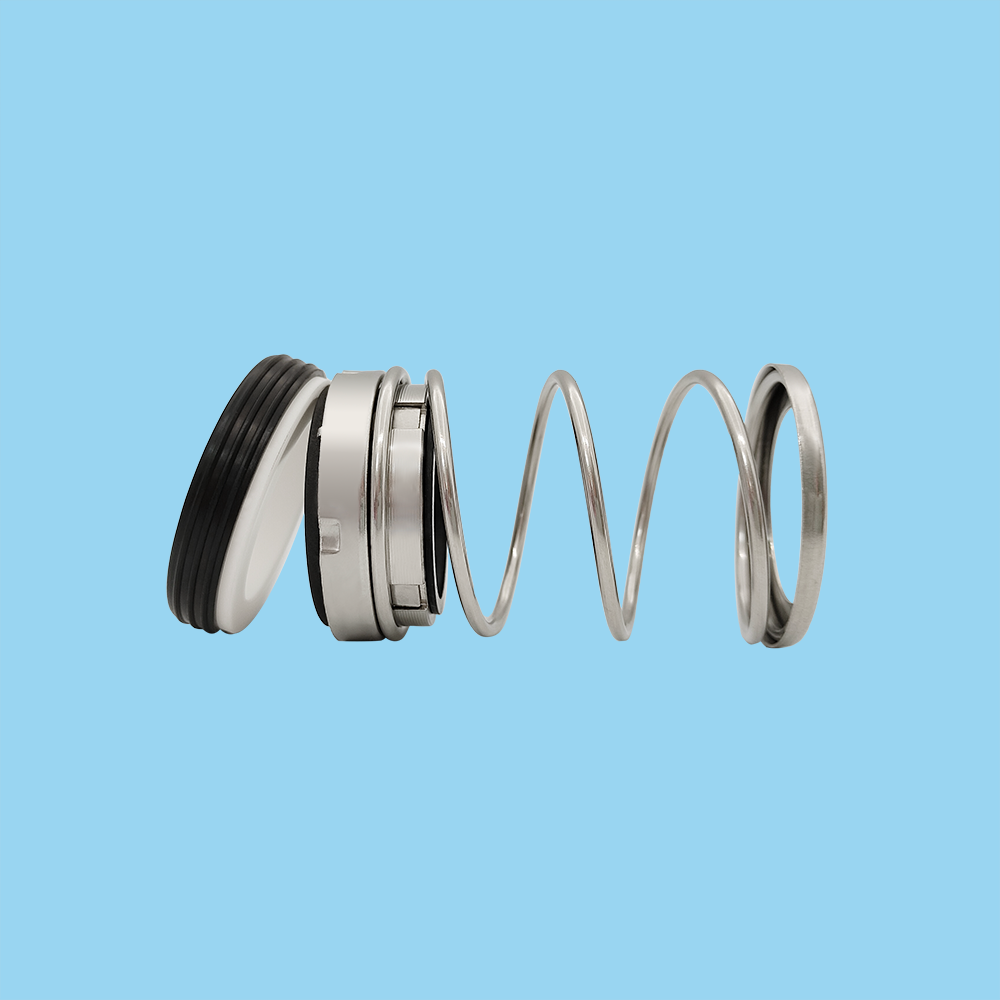

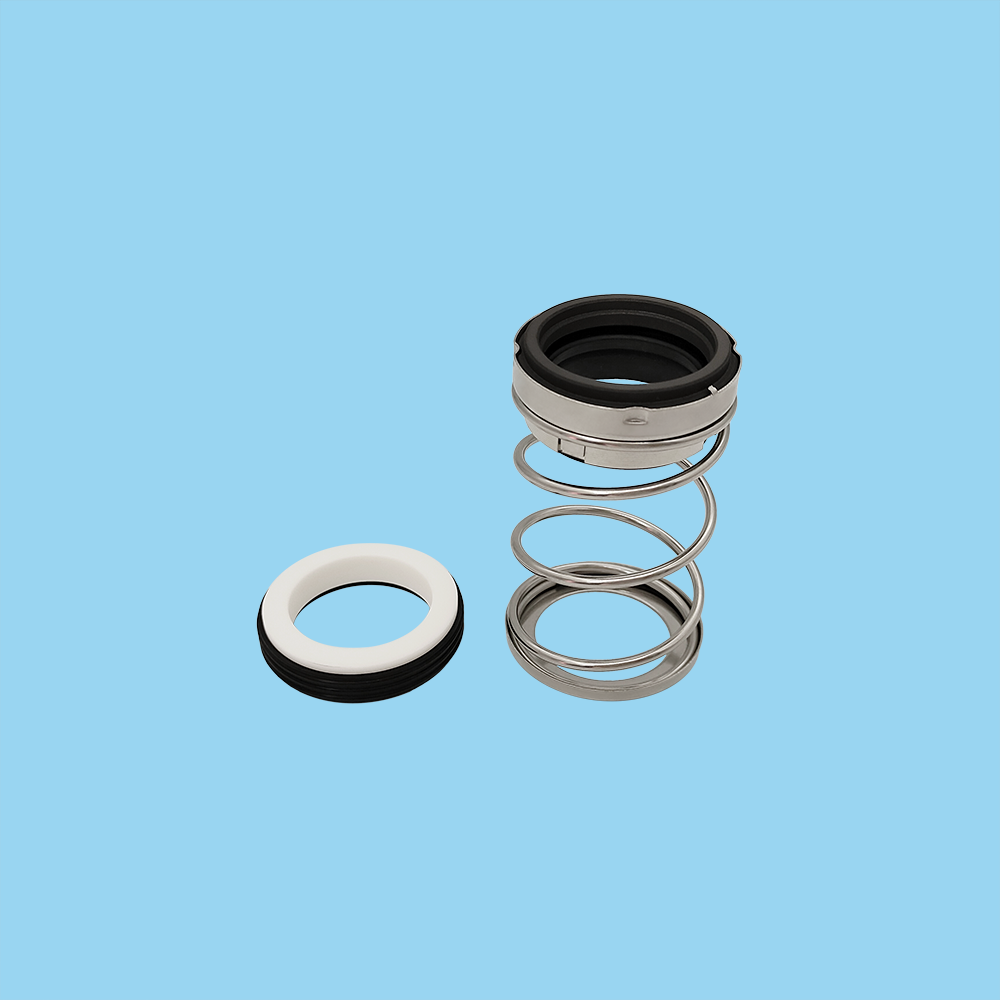

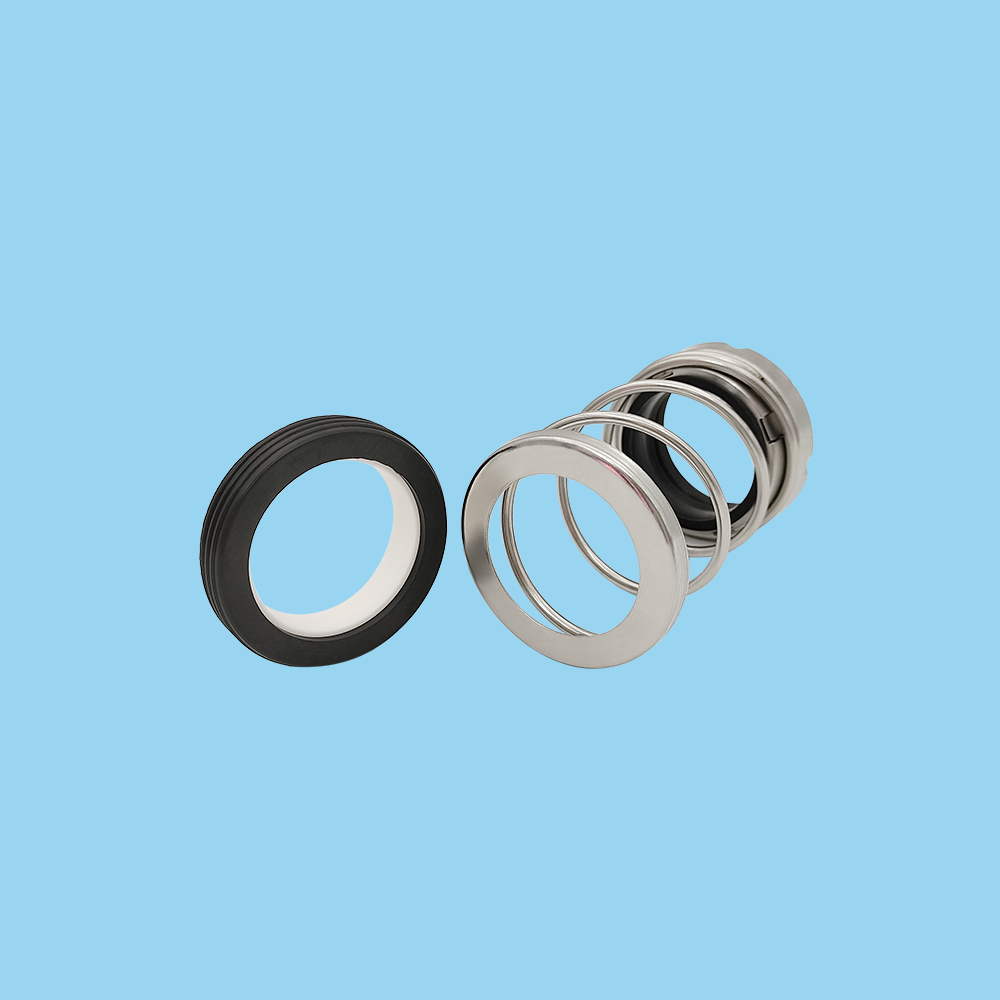

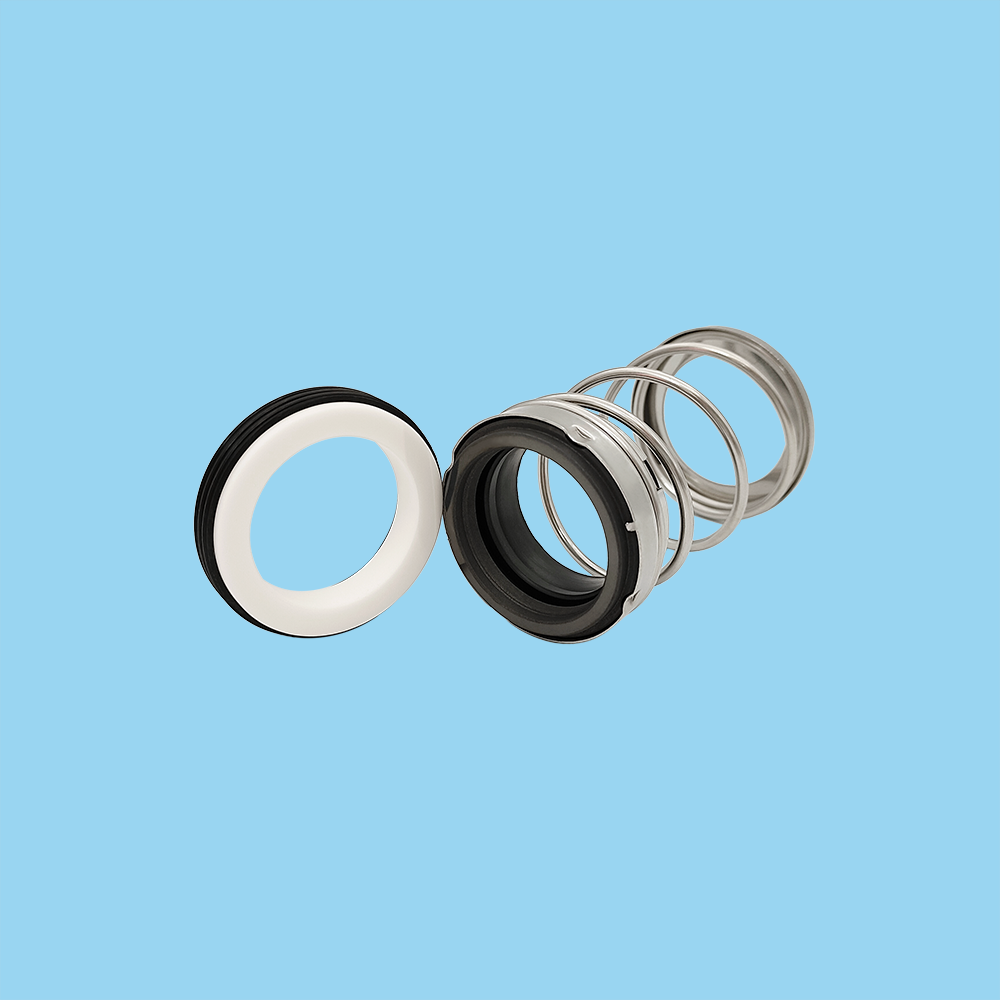

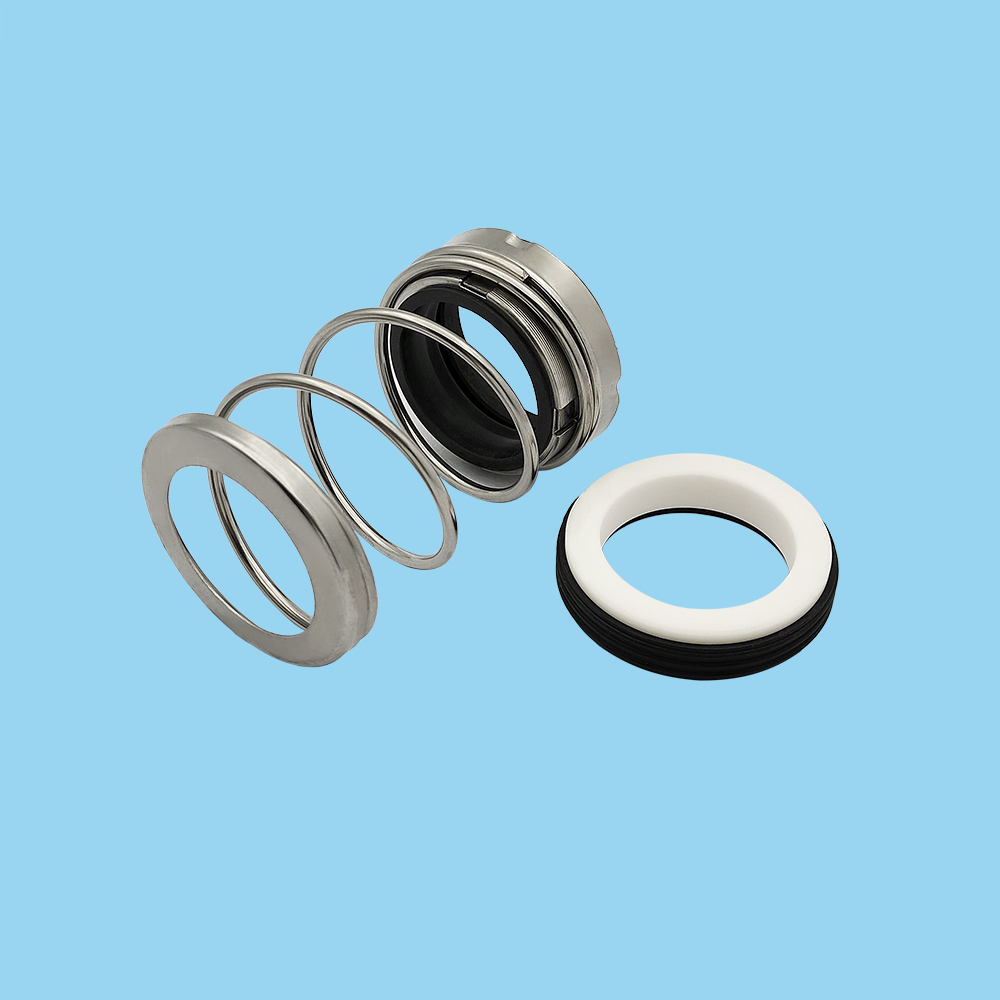

Materials
Stationary Ring: Ceramic/Sic/TC
Rotary Ring: Carbon/Sic/TC
Secondary Seal: NBR/EPDM/Viton
Spring and Metal Part: Stainless Steel
| D1(mm) | Size Code | D3 | D7 | L1 | L4 |
| 12 | 0120 | 21.70 | 23.00 | 24.10 | 8.60 |
| 14 | 0140 | 24.50 | 25.00 | 26.60 | 8.60 |
| 16 | 0160 | 26.65 | 27.00 | 26.60 | 8.60 |
| 18 | 0180 | 30.35 | 33.00 | 27.70 | 10.00 |
| 20 | 0200 | 33.40 | 35.00 | 27.70 | 10.00 |
| 22 | 0220 | 33.55 | 37.00 | 27.70 | 10.00 |
| 24 | 0240 | 38.30 | 39.00 | 30.20 | 10.00 |
| 25 | 0250 | 39.30 | 40.00 | 30.20 | 10.00 |
| 28 | 0280 | 42.20 | 43.00 | 32.70 | 10.00 |
| 30 | 0300 | 43.95 | 45.00 | 32.70 | 10.00 |
| 32 | 0320 | 45.75 | 48.00 | 32.70 | 10.00 |
| 33 | 0330 | 45.85 | 48.00 | 32.70 | 10.00 |
| 35 | 0350 | 19.10 | 50.00 | 32.70 | 10.00 |
| 38 | 0380 | 52.60 | 56.00 | 34.20 | 11.00 |
| 40 | 0400 | 55.70 | 58.00 | 34.20 | 11.00 |
| 43 | 0430 | 58.80 | 61.00 | 34.20 | 11.00 |
| 45 | 0450 | 61.00 | 63.00 | 34.20 | 11.00 |
| 48 | 0480 | 64.20 | 66.00 | 34.20 | 11.00 |
| 50 | 0500 | 66.60 | 70.00 | 34.70 | 13.00 |
| 55 | 0550 | 71.65 | 75.00 | 34.70 | 13.00 |
| 58 | 0580 | 78.40 | 78.00 | 39.70 | 13.00 |
| 60 | 0600 | 78.40 | 80.00 | 39.70 | 13.00 |
| 63 | 0630 | 81.50 | 83.00 | 39.70 | 13.00 |
| 65 | 0650 | 84.30 | 85.00 | 39.70 | 13.00 |
| 68 | 0680 | 89.65 | 90.00 | 37.40 | 15.30 |
| 70 | 0700 | 89.65 | 92.00 | 44.90 | 15.30 |
| 75 | 0750 | 96.80 | 97.00 | 44.90 | 15.30 |
We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.
Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.
Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.
Question3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.
Question4: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.
Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
