TS 2 Mechanical Seals for Pumps Pusher Seals

Share to:

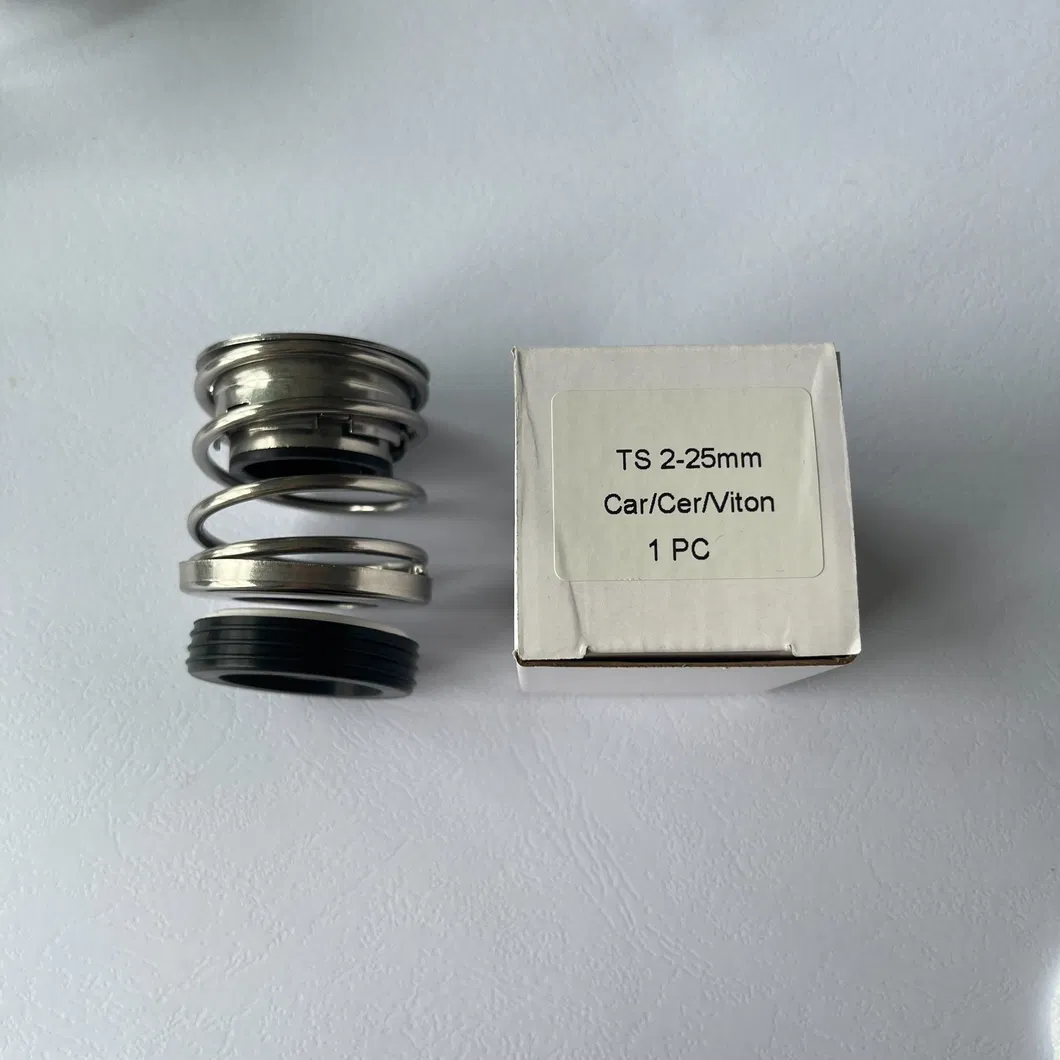

TS 2 Mechanical Seals for Pumps Pusher Seals

Customization:	Available
Structure:	Single End
Pressure:	≤1.2 MPa

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

TS 2

Speed

Ultra-High-Speed Mechanical Seal

Temperature

Temperature Mechanical Seal

Performance

Corrosion

Standard

Type

Customization, TS

Balance

Unbalanced

Transport Mode

International Express, by Air, by Sea, by Train

Payment Method

T/T, Western Union, L/C etc

Stationary Ring

According to customer′s requirements

Transport Package

Carton

Specification

Diameter 0.500inch-3.000inch

Trademark

TS

Origin

China

HS Code

8484200090

Production Capacity

1000000PCS/Year

Packaging & Delivery

Package Size

38.00cm * 38.00cm * 32.00cm

Package Gross Weight

22.000kg

Product Description

Working Conditions
Mediums: Water, oil and weakly-corrosive mediums
Temperature: -20ºC to 120ºC
Pressure: ≤1.4MPa
Speed: ≤15m/s

Materials
Stationary Ring: Ceramic/Sic/TC
Rotary Ring: Carbon/Sic/TC
Secondary Seal: NBR/EPDM/Viton
Spring and Metal Part: Stainless Steel

D1 (inch)	Size Code	D1(mm)	Size Code	D3	D7	L1	L4
0.500	0127	12	0120	30.14	25.40	20.64	7.93
		14	0140	33.32	31.75	22.23	10.30
0.625	0158	16	0160	33.32	31.75	22.23	10.30
0.750	0191	18	0180	36.50	34.93	22.23	10.30
		20	0200	39.67	38.10	23.80	10.30
0.875	0222	22	0220	39.67	38.10	23.80	10.30
		24	0240	45.50	41.28	25.40	11.10
1.000	0254	25	0250	45.50	41.28	25.40	11.10
1.125	0286	28	0280	48.50	44.44	26.97	11.10
		30	0300	52.37	47.63	26.97	11.10
1.250	0317	32	0320	52.37	47.63	26.97	11.10
		33	0330	56.00	50.80	28.58	11.10
1.375	0349	35	0350	56.00	50.80	28.58	11.10
1.500	0381	38	0380	59.20	53.98	28.58	11.10
1.625	0412	40	0400	67.00	60.33	34.93	12.70
		43	0430	69.85	63.50	34.93	12.70
1.750	0444	45	0450	69.85	63.50	34.93	12.70
1.875	0476	48	0480	73.03	66.68	38.10	12.70
2.000	0508	50	0500	76.20	69.85	38.10	12.70
2.125	0539	53	0530	82.55	76.20	42.85	14.28
2.250	0571	55	0550	85.73	79.38	42.85	14.28
2.375	0603	60	0600	88.90	82.55	46.02	14.28
2.500	0635	63	0630	92.08	85.73	46.02	14.28
2.625	0666	65	0650	98.43	85.73	49.20	15.90
2.750	0698	70	0700	101.60	88.90	49.20	15.90
2.875	0730	73	0730	104.78	95.25	52.37	15.90
3.000	0762	75	0750	107.95	98.43	52.37	15.90

We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

Question3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

Question4: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
