TS 100 Mechanical Seals for Pumps Pusher Seals

Customization: Available
Structure: Single End
Pressure: ≤1.2 MPa
Availability:
Quantity:
Overview

Basic Info.

Model NO.
TS 100
Speed
Ultra-High-Speed Mechanical Seal
Temperature
Temperature Mechanical Seal
Performance
Corrosion
Standard
Standard
Type
Customization, TS
Balance
Unbalanced
Transport Mode
International Express, by Air, by Sea, by Train
Payment Method
T/T, Western Union, L/C etc
Stationary Ring
According to customer′s requirements
Transport Package
Carton
Specification
Diameter 10mm-75mm, 0.375inch-3.000inch
Trademark
TS
Origin
China
HS Code
8484200090
Production Capacity
1000000PCS/Year

Packaging & Delivery

Package Size
38.00cm * 38.00cm * 32.00cm
Package Gross Weight
22.000kg

Product Description

Product Description

Working Conditions
Mediums: Water, oil and weakly-corrosive mediums
Temperature: -20ºC to 120ºC
Pressure: ≤1.0MPa
Speed: ≤15m/s

Materials
Stationary Ring: Ceramic/Sic/TC
Rotary Ring: Carbon/Sic/TC
Secondary Seal: NBR/EPDM/Viton
Spring and Metal Part: Stainless Steel

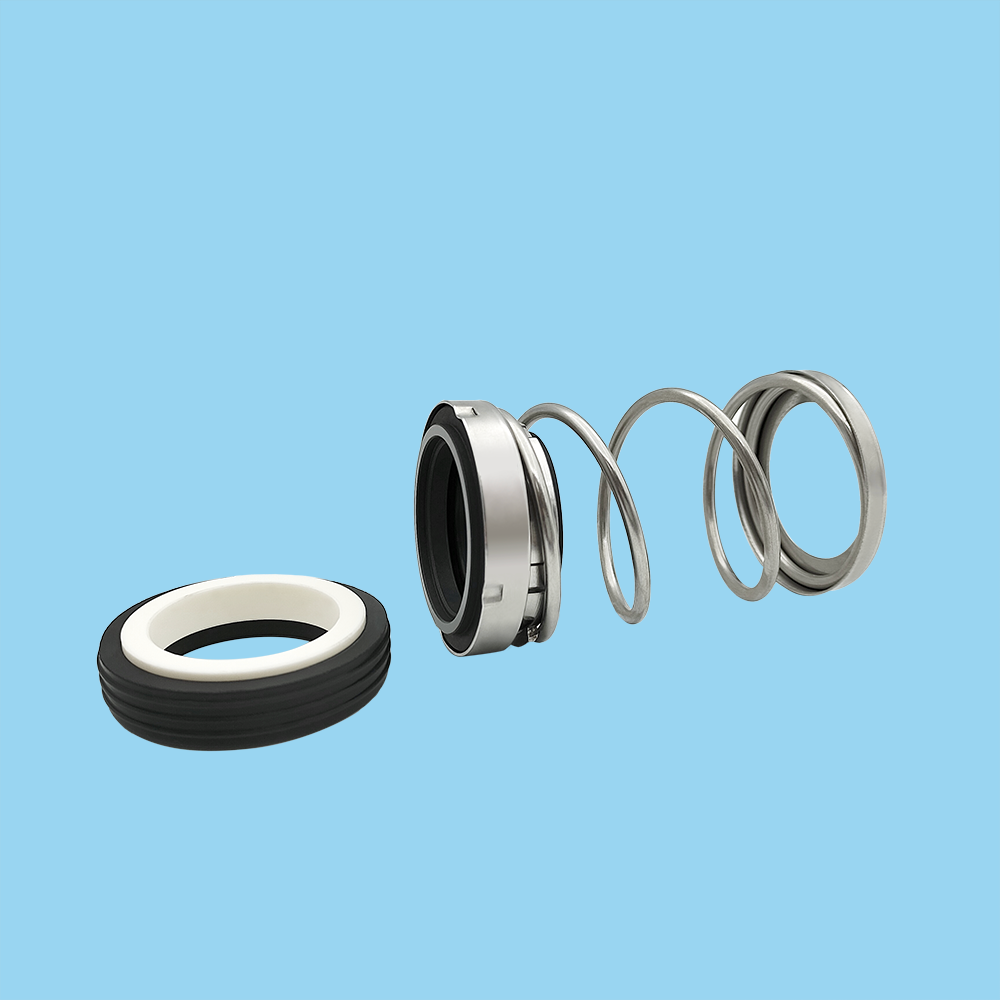

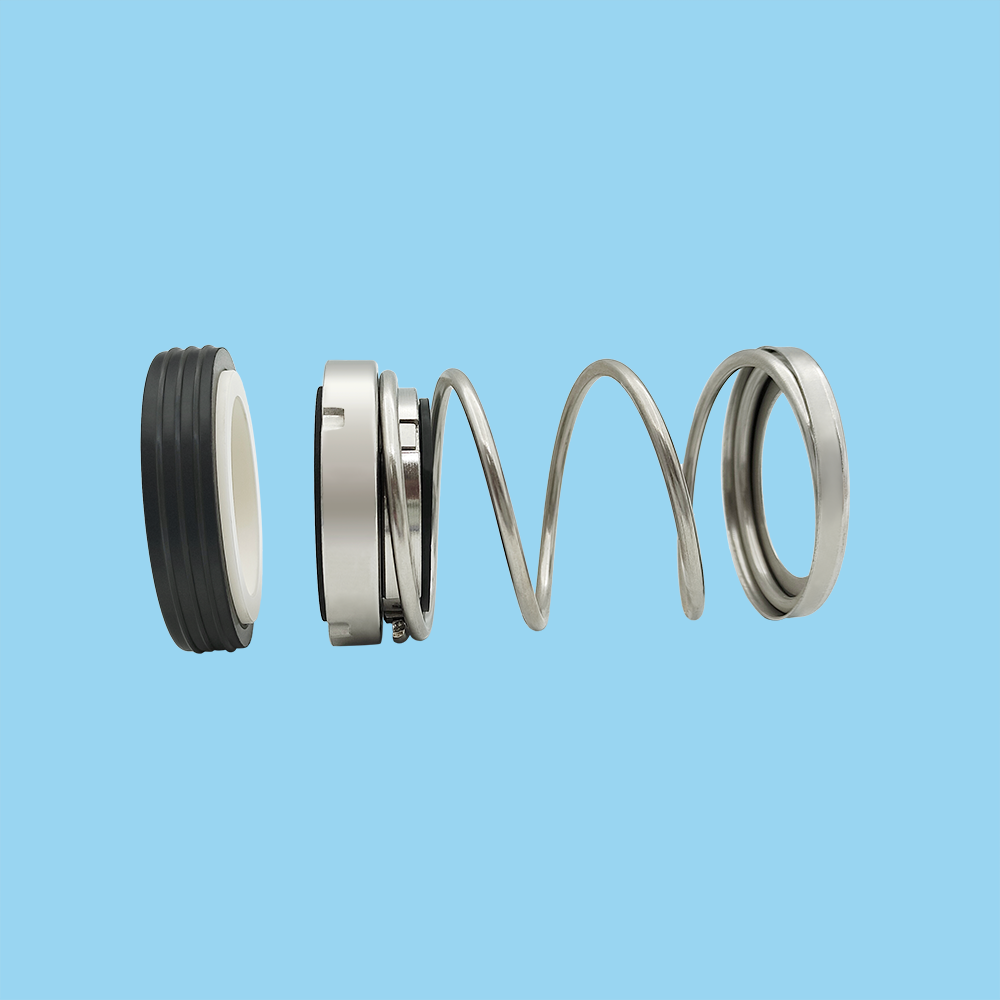

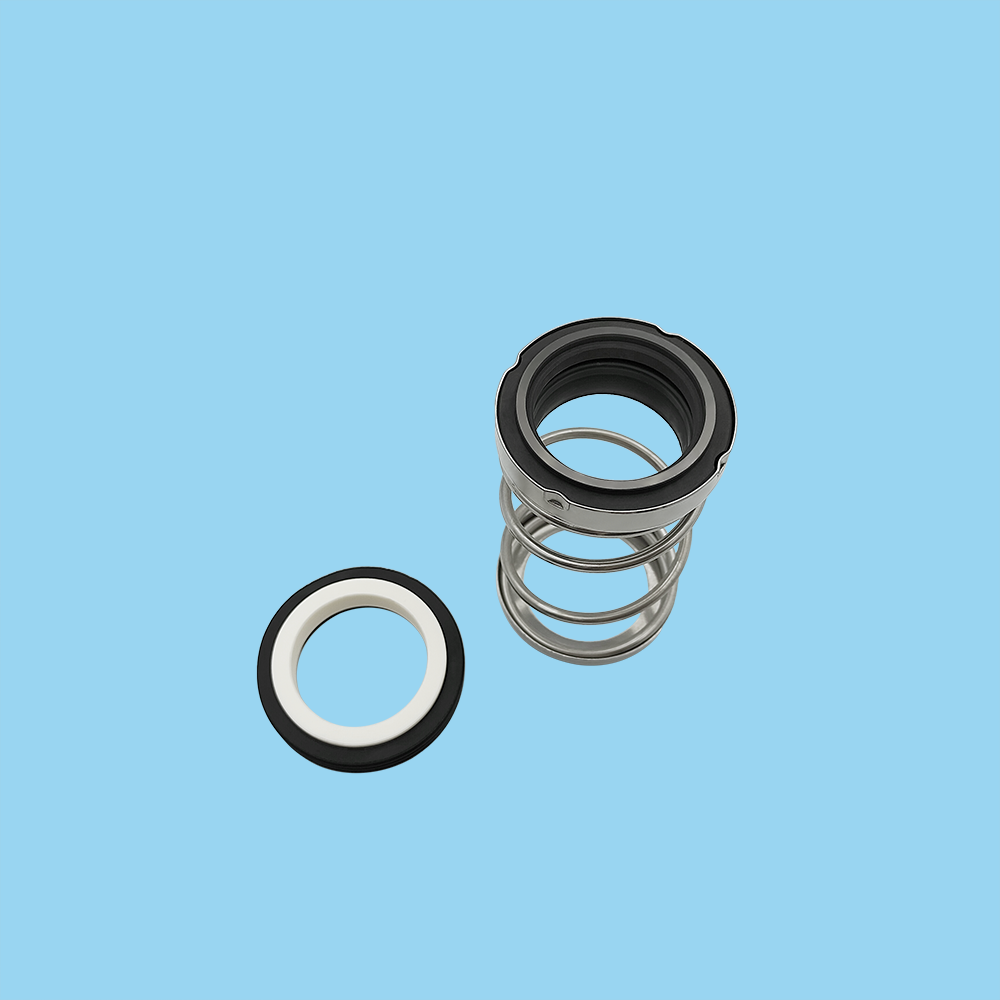

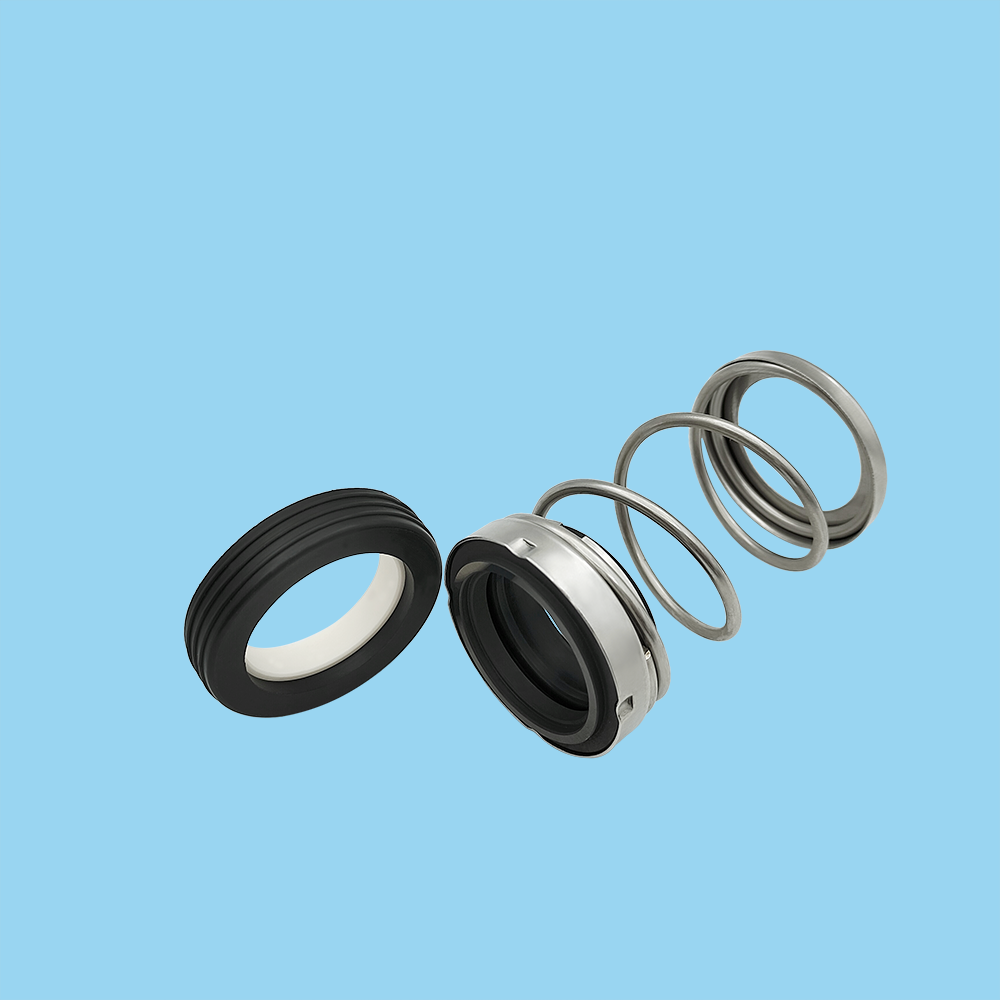

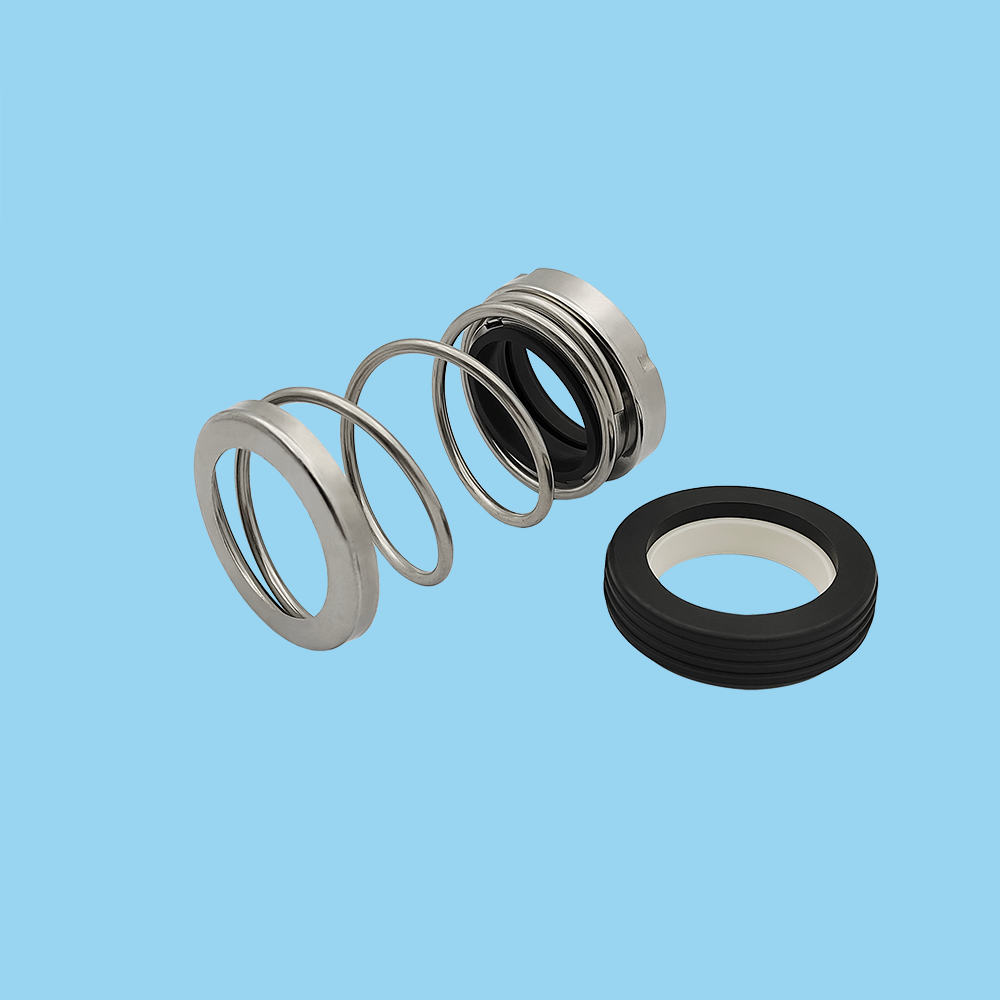

Detailed Photos

TS 100-1

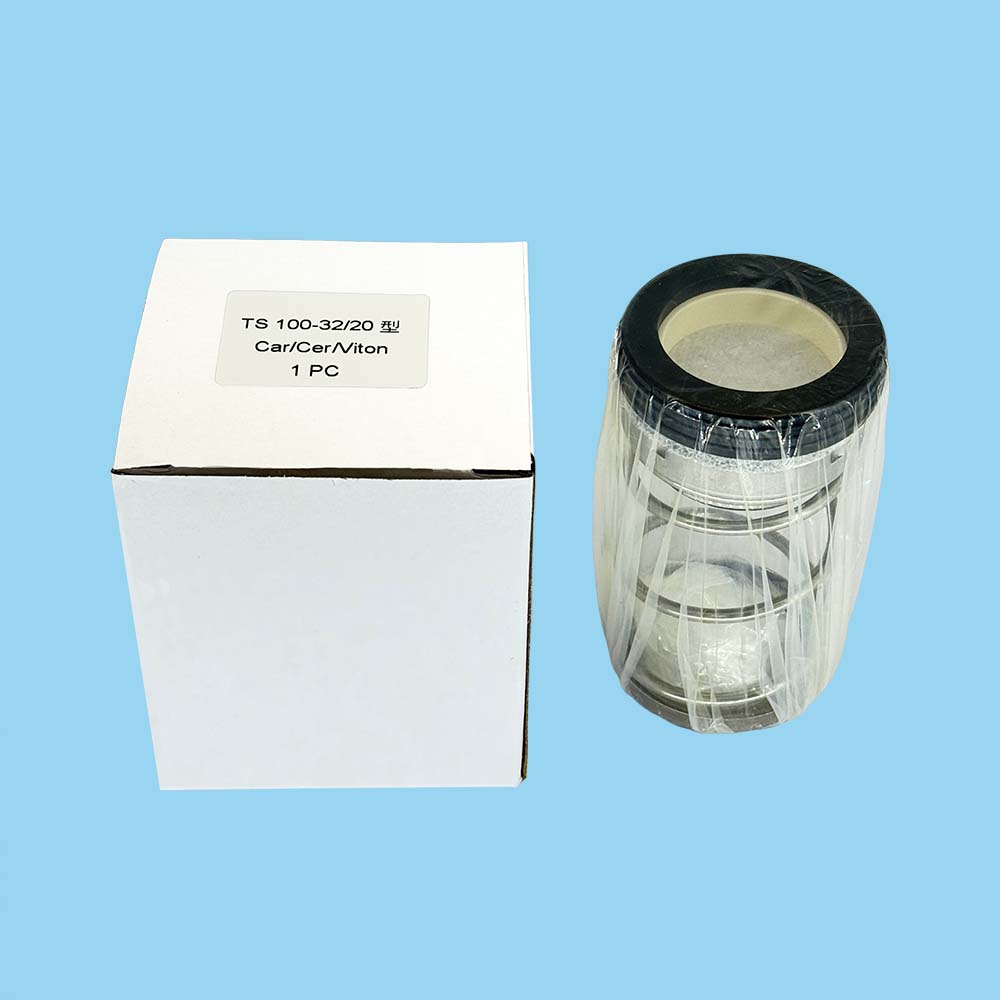

TS 100-32 20型-6b



Product Parameters

D1 Size Code D3 D7 L4 L1 L11
10 0100 22.95 24.60 8.74 43.65 25.40
12 0120 23.90 27.79 8.74 43.65 25.40
13 0130 23.90 27.79 8.74 43.65 25.40
14 0140 26.70 30.95 10.32 43.65 25.40
15 0150 26.70 30.95 10.32 43.65 25.40
16 0160 26.70 30.95 10.32 43.65 25.40
18 0180 31.10 34.15 10.32 43.65 25.40
19 0190 31.10 34.15 10.32 43.65 25.40
20 0200 33.40 35.70 10.32 43.65 25.40
22 0220 33.40 37.30 10.32 43.65 25.40
24 0240 39.20 40.50 10.32 43.65 25.40
25 0250 39.20 40.50 10.32 43.65 25.40
28 0280 46.30 47.63 11.99 60.33 33.34
30 0300 49.40 50.80 11.99 60.33 33.34
32 0320 49.40 50.80 11.99 60.33 33.34
33 0330 52.60 53.98 11.99 60.33 33.34
34 0340 52.60 53.98 11.99 60.33 33.34
35 0350 52.60 53.98 11.99 60.33 33.34
38 0381 55.80 57.15 11.99 60.33 33.34
40 0400 62.20 60.35 11.99 60.33 33.34
42 0420 66.00 63.50 11.99 70.64 40.48
43 0430 66.00 63.50 11.99 70.64 40.48
44 0440 66.00 63.50 11.99 70.64 40.48
45 0450 66.00 63.50 11.99 70.64 40.48
48 0480 66.60 66.70 11.99 70.64 40.48
50 0500 71.65 69.85 11.99 70.64 40.48
53 0530 73.30 73.05 13.50 71.00 41.00
55 0550 78.40 76.20 13.50 71.00 41.00
58 0580 82.00 79.40 13.50 71.00 41.00
60 0600 82.00 79.40 13.50 71.00 41.00
63 0630 84.90 82.55 13.50 71.00 41.00
65 0650 88.40 92.10 15.90 70.00 49.00
70 0700 92.60 95.25 15.90 70.00 49.00
73 0730 94.85 98.45 15.90 73.00 49.00
75 0750 101.90 101.65 15.90 73.00 49.00
D1 Size Code D3 D7 L4 L1 L11
0.375 0095 22.95 24.60 8.74 43.65 25.40
0.500 0127 23.90 27.79 8.74 43.65 25.40
0.625 0158 26.70 30.95 10.32 43.65 25.40
0.750 0191 31.10 34.15 10.32 43.65 25.40
0.875 0222 33.40 37.30 10.32 43.65 25.40
1.000 0254 43.20 40.50 10.32 43.65 25.40
1.125 0286 46.30 47.63 11.99 60.33 33.34
1.250 0317 49.40 50.80 11.99 60.33 33.34
1.375 0349 52.60 53.98 11.99 60.33 33.34
1.500 0381 55.80 57.15 11.99 60.33 33.34
1.625 0412 62.20 60.35 11.99 60.33 33.34
1.750 0444 66.00 63.50 11.99 70.64 40.48
1.875 0476 66.60 66.70 11.99 70.64 40.48
2.000 0508 73.00 69.85 11.99 70.64 40.48
2.125 0539 73.30 73.05 13.50 71.00 41.00
2.250 0571 78.40 76.20 13.50 71.00 41.00
2.375 0603 82.00 79.40 13.50 71.00 41.00
2.500 0635 84.90 82.55 13.50 71.00 41.00
2.625 0666 88.40 92.10 15.90 70.00 49.00
2.750 0698 92.60 95.25 15.90 70.00 49.00
2.875 0730 94.85 98.45 15.90 73.00 49.00
3.000 0762 101.90 101.65 15.90 73.00 49.00

Our Advantages

We have large stock, so our delivery  is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang  Province,China.
Our city has a large port and an airport, so its transportation is very convenient.

Packaging & Shipping


TS 100 Mechanical Seals for Pumps Pusher Seals
TS 100 Mechanical Seals for Pumps Pusher Seals
TS 100 Mechanical Seals for Pumps Pusher Seals
TS 100 Mechanical Seals for Pumps Pusher Seals


FAQ

Question 1: Are you a factory or a trade company?
Answer:  We are a factory and have our top sales for the trade service.

Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

Question3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

Question4: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

Question5: Can I try to get a SAMPLE before the order?
Answer:  Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
