John Crane 5610 M67423 Cartridge Mechanical Seal 1.250" Standard VTP (HSP-39554)

Share to:

John Crane 5610 M67423 Cartridge Mechanical Seal 1.250" Standard VTP (HSP-39554)

Customization:	Available
Structure:	Single End
Pressure:	≤2.5 MPa

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

5610/5610Q

Speed

Ultra-High-Speed Mechanical Seal

Temperature

High Temperature Mechanical Seal

Performance

Corrosion

Standard

Type

Customization, TS

Balance

Balanced

Transport Mode

International Express, by Air, by Sea, by Train

Replacement to

egleBergerman Seal

Payment Method

T/T, Western Union, L/C etc

Mini Quantity

1 pcs

Application

Goulds Pump 3196

Analogue

John crane Crane 5610 AES: ACONII, CURC, SCUSI, SM

Factory-Direct/Manufacturer

Yes

Certificate

ISO9001, ISO14001, etc.

Non-Standard Customization

Support

size

1"-5.5"

Transport Package

Carton

Specification

Diameter 24mm-100mm 1.000inch-4.000inch

Trademark

TS

Origin

China

HS Code

8484200090

Production Capacity

1000000PCS/Year

Packaging & Delivery

Package Size

38.00cm * 38.00cm * 20.00cm

Package Gross Weight

22.000kg

Product Description

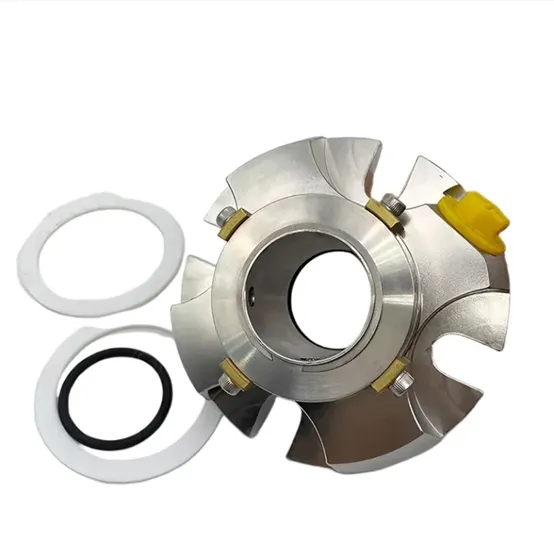

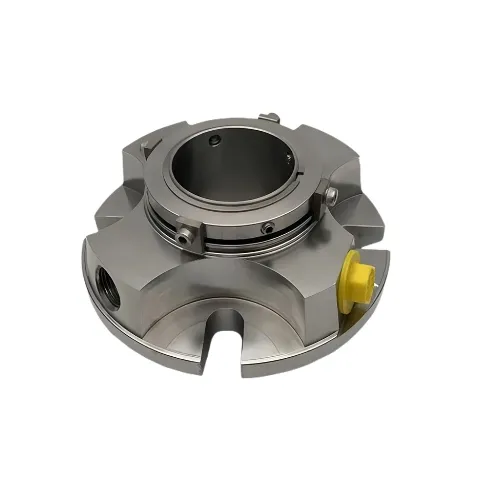

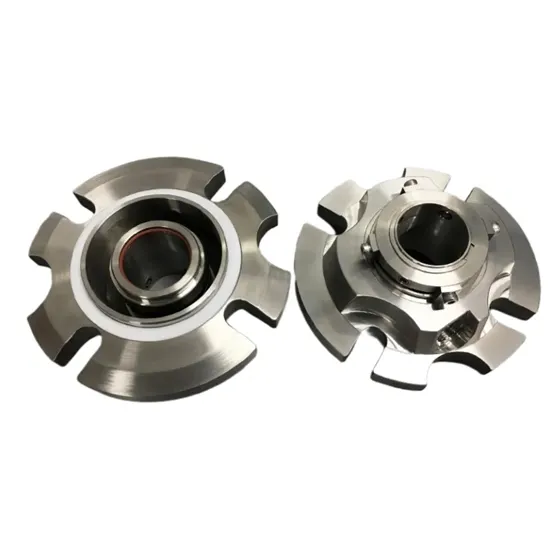

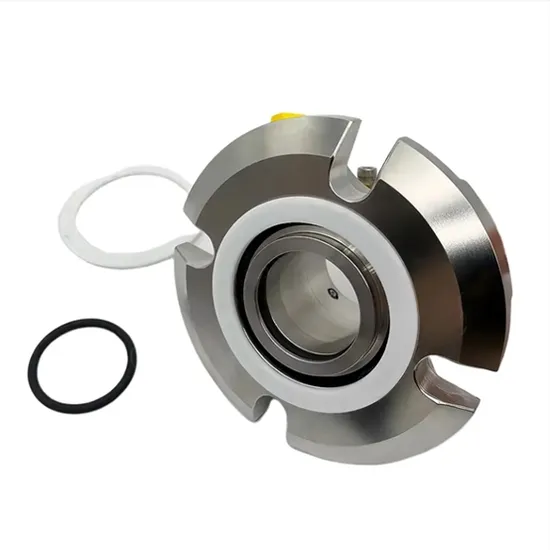

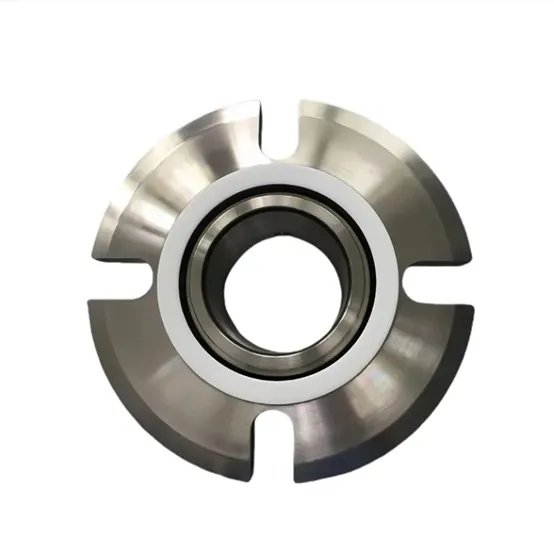

John crane cartridge seal Type 5610

Operating Limits
Temperature:-50---204ºC Speed:23m/s

Pressure:20bar Standard Size:24-140mm or 1″-5.5″

Material:
Seal Ring:Car,Sic,Ssic,TC
Secondary seal:NBR,Viton,EPDM,Kalrez
Spring and metal parts:304,316,HAST.C

Possible Application: Goulds 3196 Pump,

Note: Price $0.25-$0.27 is for G60-12,For complete mechanical seal price, contact us to get it

Type 5610/5610Q Cartridge Drawing Numbers Standard Bore Layouts

Seal Size 5610 5610Q
1.000 H-SP-39543 H-SP-39545
1.125 H-SP-37305 H-SP-37313
1.250 H-SP-39554 H-SP-39556
1.375 H-SP-37306 H-SP-37314
1.500 H-SP-39564 H-SP-39566
1.625 H-SP-39574 H-SP-39576
1.750 H-SP-37307 H-SP-37315
1.875 H-SP-37308 H-SP-37316
2.000 H-SP-39584 H-SP-39586
2.125 H-SP-37309 H-SP-37317
2.250 H-SP-39594 H-SP-39596
2.375 H-SP-39604 H-SP-39606
2.500 H-SP-37310 H-SP-37318
2.625 H-SP-37311 H-SP-37319
2.750 H-SP-37312 H-SP-37320
2.875 H-SP-39614 H-SP-39616

3.000 H-SP-39624 H-SP-39626

3.125 H-SP-41625 H-SP-41626
3.250 H-SP-41630 H-SP-41631
3.375 H-SP-41636 H-SP-41637

3.500 H-SP-41641 H-SP-41642
3.625 H-SP-41646 H-SP-41647
3.750 H-SP-41651 H-SP-41652
3.875 H-SP-41954 H-SP-41955
4.000 H-SP-41656 H-SP-41657
4.125 H-SP-41661 H-SP-41662
4.250 H-SP-41664 H-SP-41666
4.500 H-SP-41668 H-SP-41669
4.750 H-SP-41671 H-SP-41672
5.000 H-SP-41674 H-SP-41675
5.250 H-SP-41677 H-SP-41678
5.500 H-SP-41680 H-SP-41681

Type 5610/5610Q Cartridge Drawing Numbers Oversize Bore Layouts

Seal Size 5610 5610Q
1.375 H-SP-38057 H-SP-38058
1.750 H-SP-38067 H-SP-38068
1.875 H-SP-38077 H-SP-38078
2.125 H-SP-39034 H-SP-39035
2.500 H-SP-39007 H-SP-39008
2.625 H-SP-38087 H-SP-38088
2.750 H-SP-39017 H-SP-39018

Mechanical Seal Listed Below is also available, contact us to get details

John Crane: 5610, 5610Q, 5611, 5611Q, 4610, SB1, B1A, 1648, T5860
Burg-mann: HRC-N, UNITEX, Car-tex, TSK1, Car-tex-QN
Flowserve: ISC1BX, ISC1EX, ISC1PX, D, DP, DQ, DX, DZ, QB, UC
AES: ACONII, CURC, SCUSI, SMSS, CSSN, CSS, CURE
Chesterton: 155, 156, 180, Z-F, S10, 150, 170
Safematic: Safeseal SE2-AP-60-305145, SE2-A-50-QRMG for Sulzer pumps AHLSTAR APP4, APP3

We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

Question3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

Question4: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
