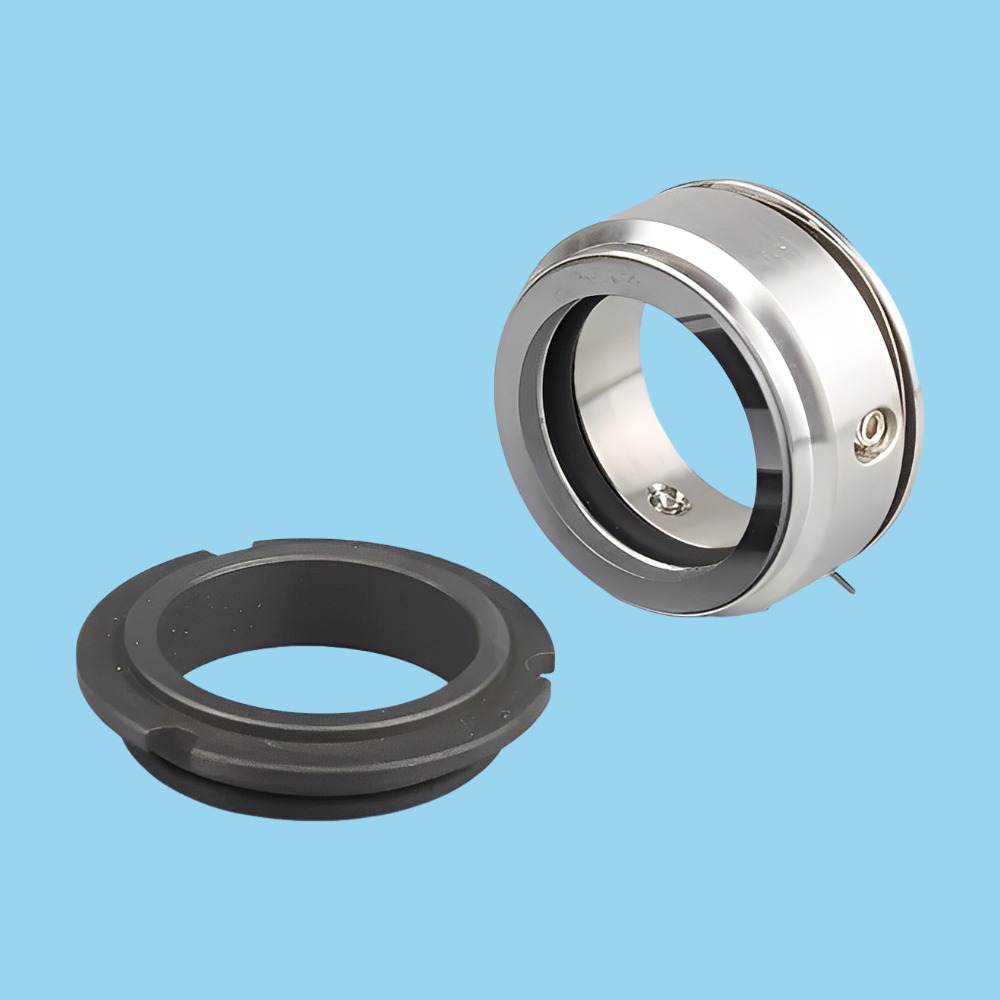

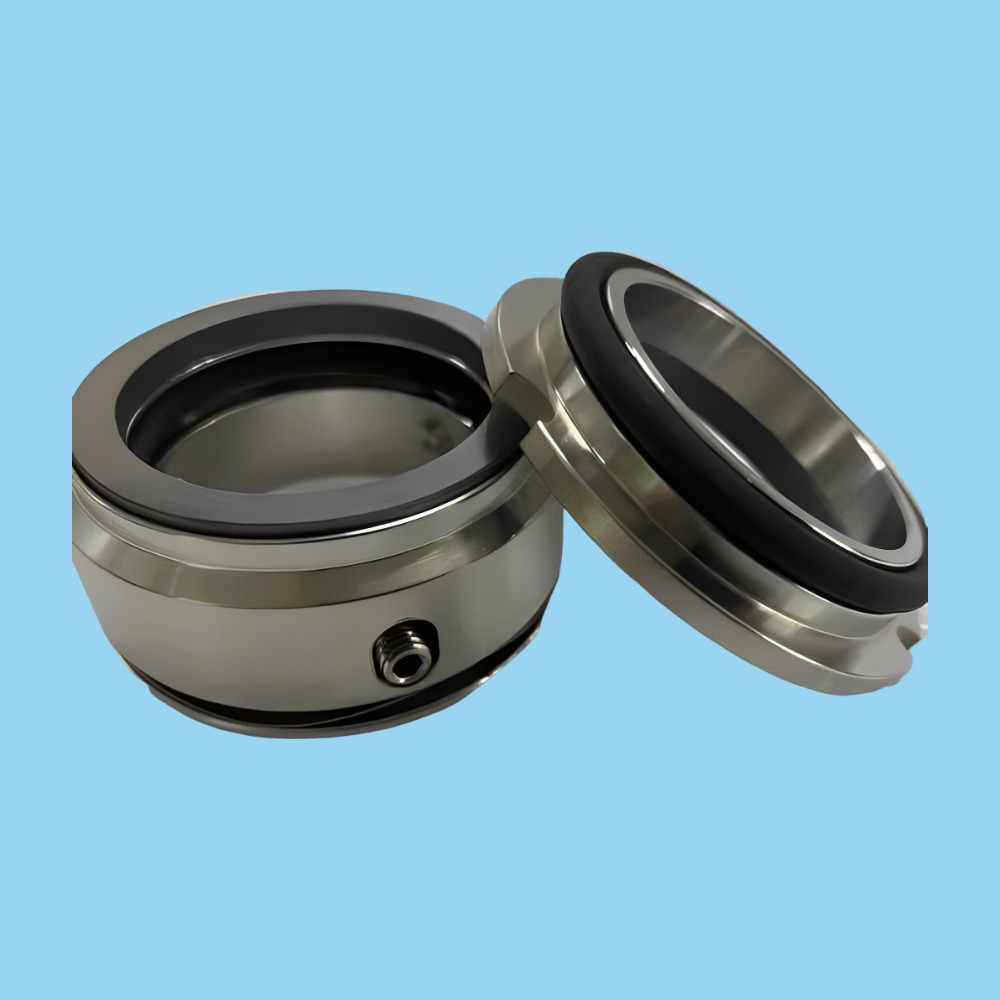

Wave Spring Bellows Mechanical Seal 68D Medium Pump Seal for W03 Seal

High Quality Multiple Spring O-ring Mechanical Seals

Operational Conditions:

John Crane 87 (EI/ EC) seal

Aesseal W03 seal

Temperature: -40ºC to +200ºC

Pressure: ≤0.8MPa

Speed: ≤18m/s

Materials:

Stationary Ring: Ceramic, Silicon Carbide, TC

Rotary Ring: Carbon, Silicon Carbide

Secondary Seal: NBR, EPDM, FKM, PTFE

Spring and Metal Parts: Steel

3. Seat Type:

4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

Performance Capabilities

1.


sulzer pump Aesseal W03 seal   68D mechanical seal rotary seal mixer seal

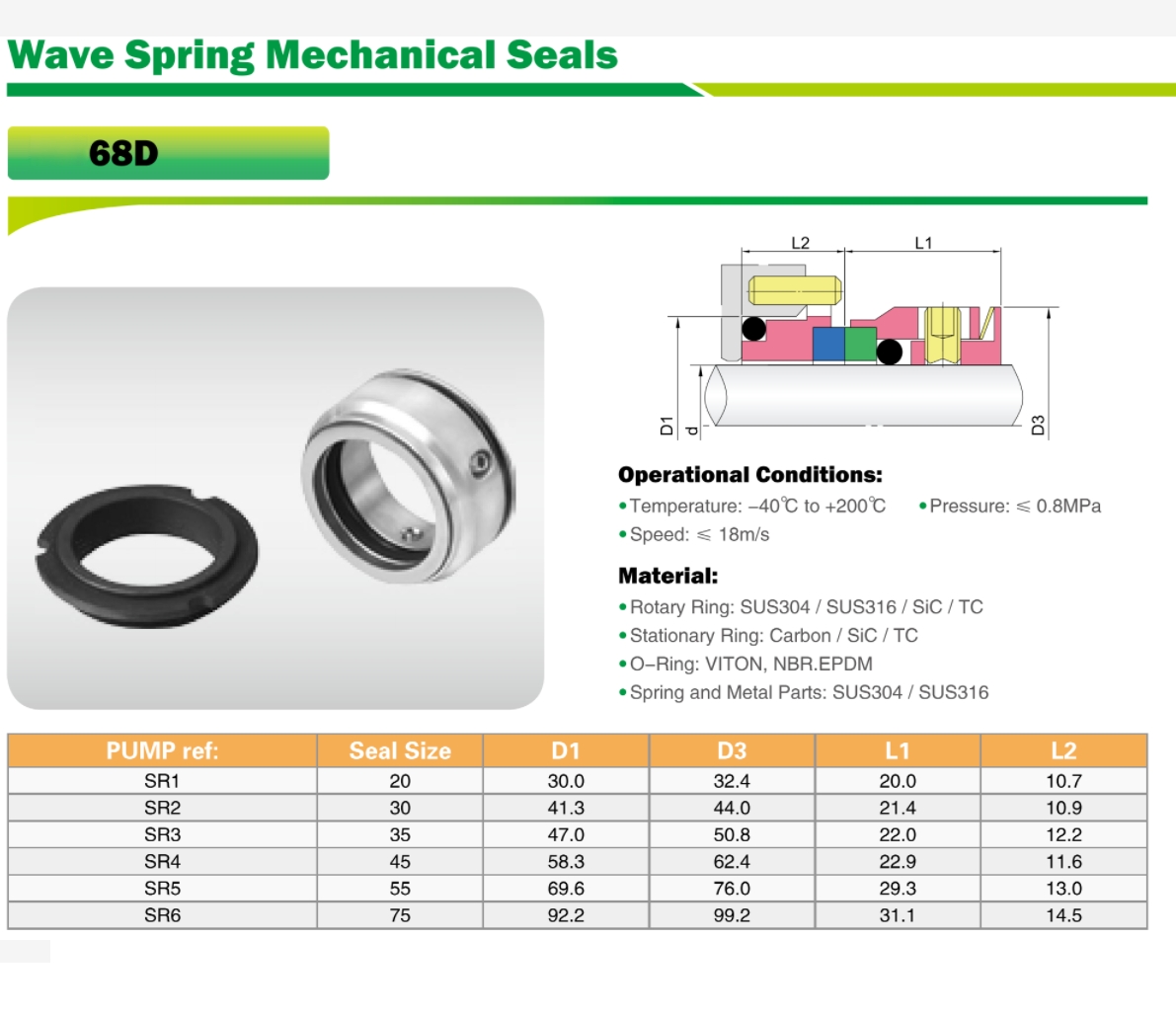

Operational Condtions	Size	Material
Temperature: -40℃ to 200℃ dependent on the elastomer	20mm to 75mm	Face: Carbon, SiC, TC
Pressure:Up to 8 bar		Seat: Ceramic, SiC, TC
Speed:Up to 18 m/s		Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm		Other Metal Part:SS304 SS316

• 1..it is equivalent to

• Roplan RTH87/ R90 seal

• Sterling 280W/ 282 seal

• 2.Our seals can replace the original seals.

• 3.If it is not the one you need ,you can pass us your drawing, material,shaft size for quotation.

• 4.Customized products and OEM is welcomed

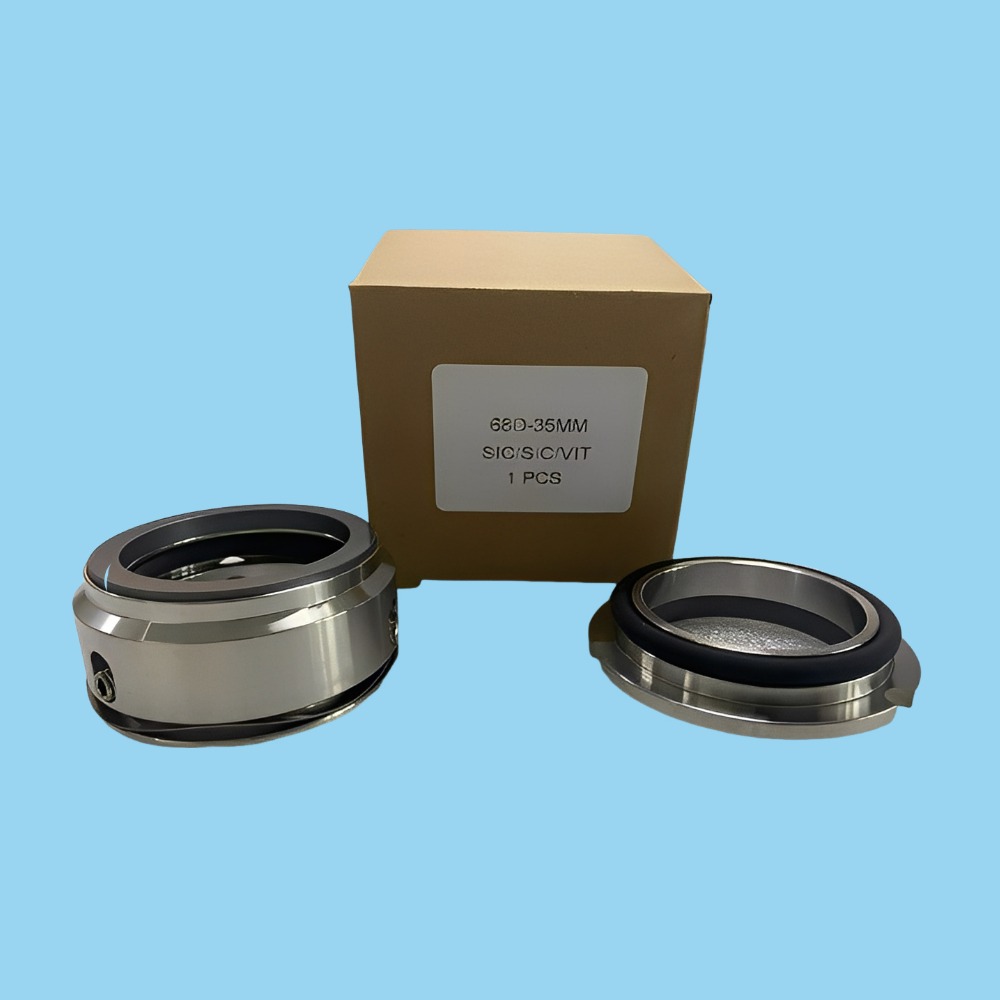

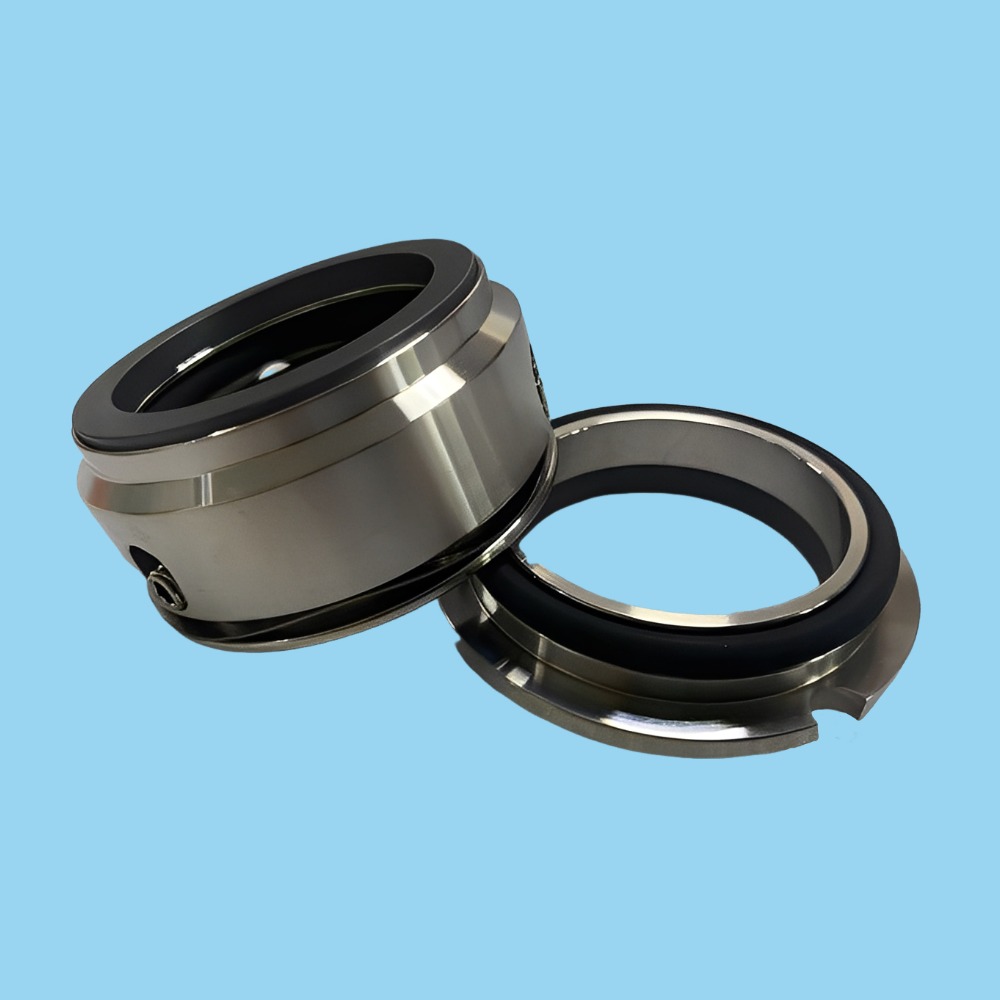

Detailed Photos

We have large stock, so our delivery  is very fast.
   For example,if products are standarded, the delivery time is one week.
   Our company and factory addrss: Ningbo City, Zhejiang  Province,China.
   Our city has a large port and an airport, so its transportation is very convenient.

   Question 1: Are you a factory or a trade company?
   Answer:  We are a factory and have our top sales for the trade service.

   Question 2: What is the minimum order quantity for each order?
   Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

   Question 3: What is your company's service tenet?
   Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

   Question 4: What are the prices of your products?
   Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

   Question 5: Can I try to get a SAMPLE before the order?
   Answer:  Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
