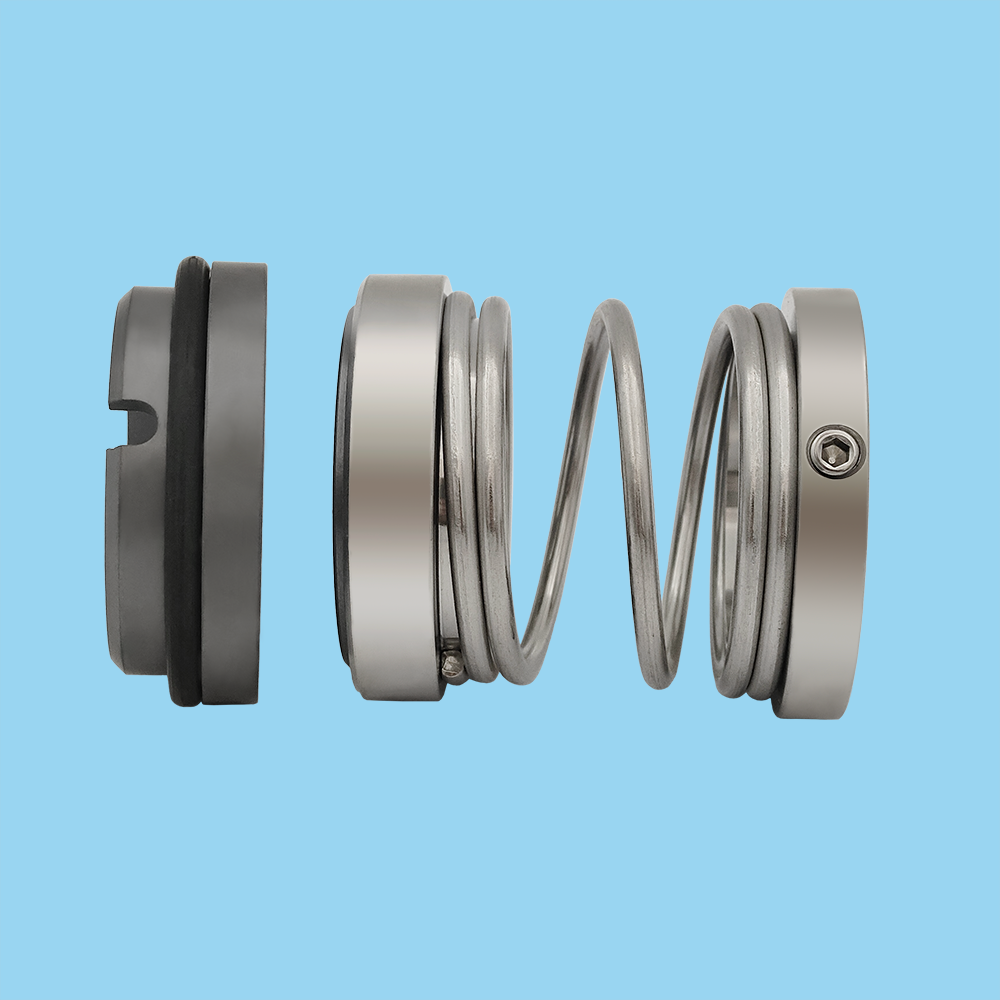

Type 1527 O-Ring Seal Type Mechanical Seal for Water Pump Parts

Share to:

Type 1527 O-Ring Seal Type Mechanical Seal for Water Pump Parts

Customization:	Available
Structure:	Single End
Pressure:	≤1.2 MPa

Availability:

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

T- 1527

Speed

Ultra-High-Speed Mechanical Seal

Temperature

Temperature Mechanical Seal

Performance

Corrosion

Standard

Type

T- 250

Balance

Unbalanced

Transport Mode

International Express, by Air, by Sea, by Train

Replacement to

Burman Seal

Payment Method

T/T, Western Union, L/C etc

Transport Package

Carton

Specification

Diameter 18-100mm

Trademark

Origin

China

HS Code

8484200090

Production Capacity

1000000PCS/Year

Packaging & Delivery

Package Size

38.00cm * 38.00cm * 32.00cm

Package Gross Weight

22.000kg

Product Description

Working Conditions
Mediums:Water,oil,weak acids.weal alkali,etc.
Temperature: -20ºC~180ºC
Pressure: ≤1.6MPa
Speed: ≤15m/Sec
Combined Materials
Stationary Ring (Carbon / Sic / TC)
Rotary Ring (Carbon / Sic / TC/ SUS304)
Secondary Seal (NBR / EPDM / Viton)
Spring and Punched Parts ( Steel )

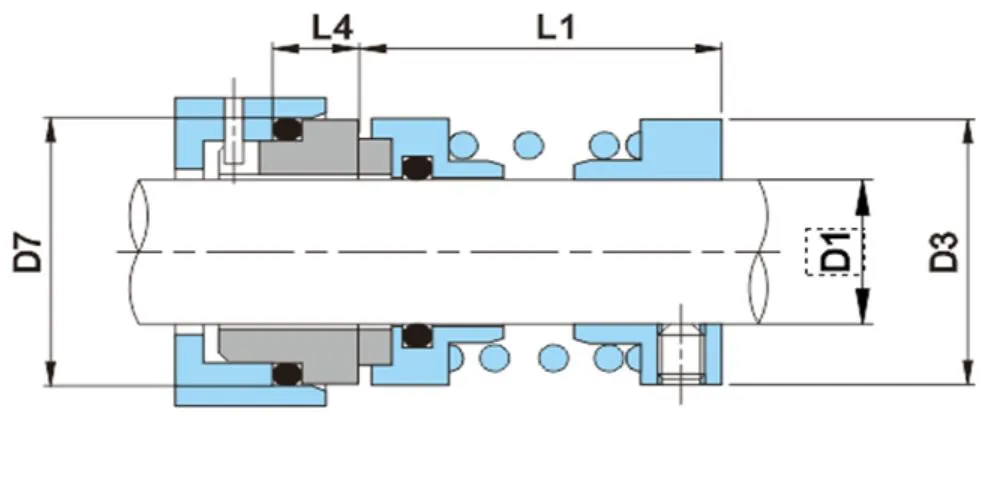

Metric Shaft D1	Size Code	D3	D7	L1	L4
18	0180	32	33	35	10
20	0200	34	35	35	10
22	0220	36	37	35	10
24	0240	38	39	40	10
25	0250	39	40	40	10
28	0280	42	43	40	10
30	0300	44	45	40	10
32	0320	46	48	45	10
33	0330	47	48	45	10
35	0350	49	50	45	10
38	0380	54	56	44	11
40	0400	56	58	44	11
43	0430	59	61	49	11
45	0450	61	63	49	11
48	0480	64	66	49	11
50	0500	66	70	47	13
53	0530	69	73	57	13
55	0550	71	75	57	13
58	0580	78	78	57	13
60	0600	80	80	57	13
63	0630	83	83	57	13
65	0650	85	85	67	13
68	0680	88	90	64.7	15.3
70	0700	90	92	64.7	15.3
75	0750	99	97	64.7	15.3
80	0800	104	105	74.3	15.7
85	0850	109	110	74.3	15.7
90	0900	114	115	74.3	15.7
95	0950	119	120	74.3	15.7
100	1000	124	125	74.3	15.7

We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

Question3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

Question4: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
