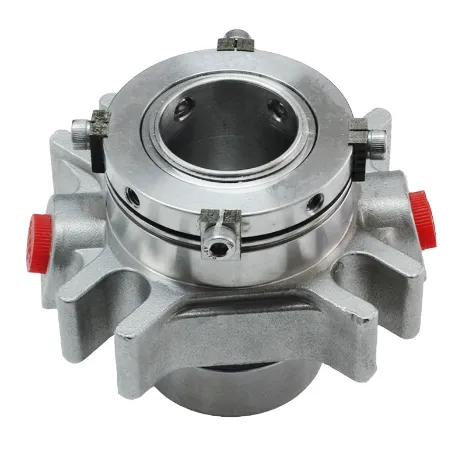

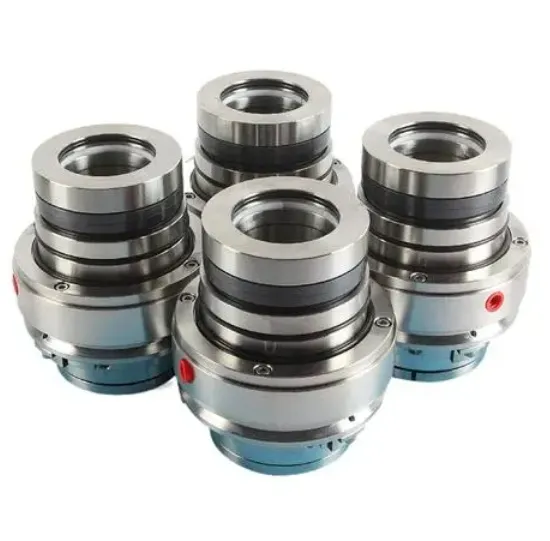

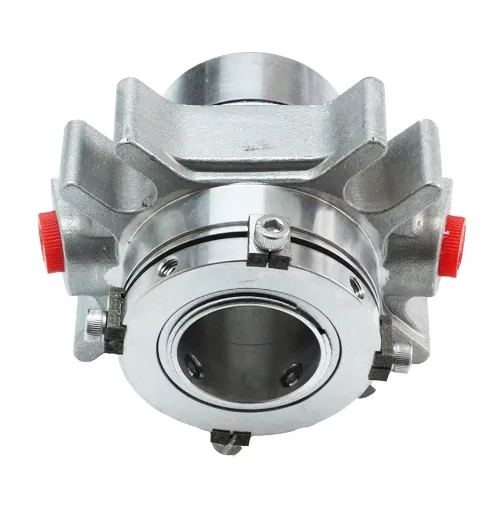

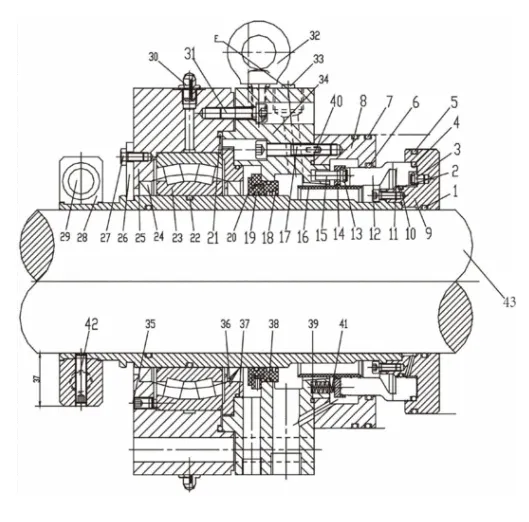

TS 51-MA390 Mechanical Seal

Customization:	Available
Structure:	Single End
Pressure:	≤2.0 MPa

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

TS 51

Speed

Ultra-High-Speed Mechanical Seal

Temperature

High Temperature Mechanical Seal

Performance

Corrosion

Standard

Type

Customization, TS

Balance

Balanced

Transport Mode

International Express, by Air, by Sea, by Train

Replacement to

Bergman Seals

Payment Method

T/T, Western Union, L/C etc

Mini Quantity

5 pcs

Transport Package

Carton

Specification

Diameter 24mm-100mm 1.000inch-4.000inch

Trademark

TS

Origin

China

HS Code

8484200090

Production Capacity

1000000PCS/Year

Packaging & Delivery

Package Size

38.00cm * 38.00cm * 20.00cm

Package Gross Weight

22.000kg

Product Description

Product Parameters:
Temperature: -20ºC~+160ºC
Speed: ≤20m/s
Pressure:≤16bar
Standard Size: 20-100mm

Material:
Seal Ring: Car. Sic. Ssic.TC.
Secondary Seal: NBR, Viton, EPDM, Kalrez
Spring and Metal Parts: 304,316,HAST.C

Size	d	d1min	d1max	d2	d3	L1	L2	L3
20	20	30	51	58	104	42	60	12
24	24	34	51	58	104	42	60	12
25	25	35	51	58	104	42	60	12
28	28	38	54	63	108	42	65	12
30	30	40	56	63	108	42	65	12
32	32	42	56	63	108	42	65	12
33	33	43	66	73	118	42	75	14
35	35	45	66	73	118	42	75	14
38	38	48	66	73	118	42	75	14
40	40	50	66	73	118	42	75	14
43	43	53	71	78	128	42	80	14
45	45	55	71	78	128	42	80	14
48	48	58	81	88	138	44	90	14
50	50	60	81	88	138	44	90	14
53	53	63	81	88	138	44	90	14
55	55	65	81	88	138	44	90	14
58	58	68	96	103	164	46	105	18
60	60	70	96	103	164	46	105	18
63	63	73	96	103	164	46	105	18
65	65	75	96	103	164	46	105	18
70	70	80	102	109	178	46	111	18
75	75	85	114	121	193	49	123	18
80	80	90	114	121	193	49	123	18
85	85	95	124	131	208	49	133	20
90	90	100	124	131	208	49	133	20
95	95	105	134	141	218	49	143	20
100	100	110	134	141	218	49	143	20

We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.

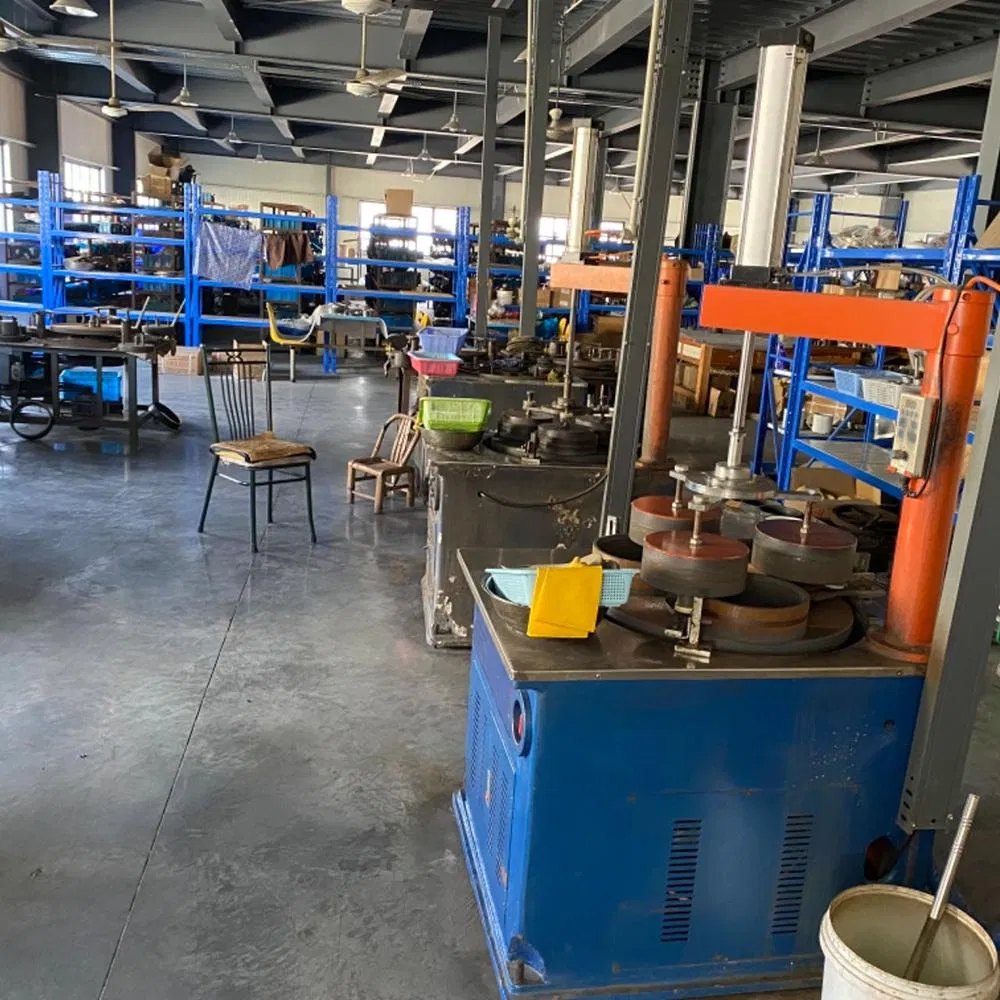

Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

Question3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

Question4: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
