TS 204B Mechanical Seal

Customization: Available
Structure: Single End
Pressure: ≤2.0 MPa
Quantity:
Overview

Basic Info.

Model NO.
TS 204B
Speed
Ultra-High-Speed Mechanical Seal
Temperature
High Temperature Mechanical Seal
Performance
Corrosion
Standard
Standard
Type
Customization, TS
Balance
Balanced
Transport Mode
International Express, by Air, by Sea, by Train
Replacement to
Burman Seal
Payment Method
T/T, Western Union, L/C etc
Mini Quantity
5 pcs
Transport Package
Carton
Specification
Diameter 24mm-100mm 1.000inch-4.000inch
Trademark
TS
Origin
China
HS Code
8484200090
Production Capacity
1000000PCS/Year

Packaging & Delivery

Package Size
38.00cm * 38.00cm * 20.00cm
Package Gross Weight
22.000kg

Product Description

Product Description

Operating Limits:
Temperature:-40ºC+176ºC
Speed: ≤50m's
Pressure:≤60bar
Slandard Size:30-180mm


Material:
Seal Ring: Sic.Ssic
Secondary Seal: Viton,EPDM
Spring and Metal Parts: 301,316,HAST.C

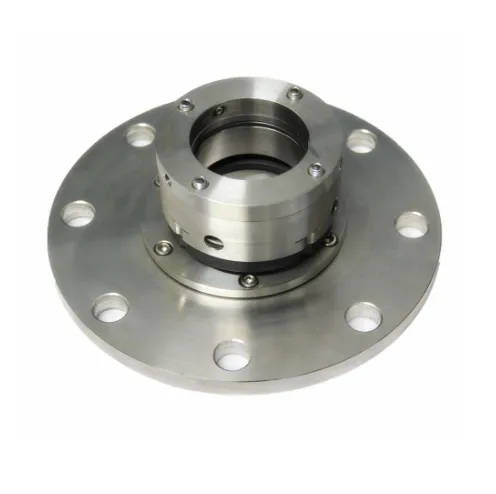

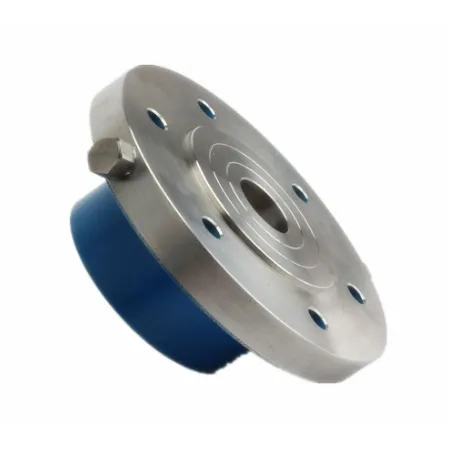

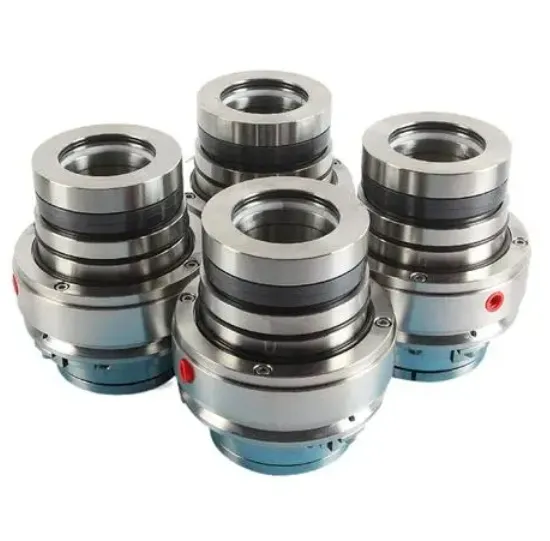

Product Photos

TS 204B Mechanical Seal
TS 204B Mechanical Seal


TS 204B Mechanical Seal
TS 204B Mechanical Seal

Cross Reference Chart

Size d1 D D1 D2 d3 H n-Φ
30 50 185 150 116 67 16 4-Φ18
40 64 205 170 135 77 16 4-Φ18
50 74 235 200 164 87 16 8-Φ18
60 85 235 200 164 98 16 8-Φ18
65 91 260 200 188 103 16 8-Φ18
70 110 290 225 220 118 16 12-Φ18
80 119 315 225 245 128 16 12-Φ18
95 132 315 280 245 138 16 12-Φ18
100 140 315 280 245 148 16 12-Φ18
110 158 315 280 245 158 22 12-Φ18
120 168 315 280 245 168 22 12-Φ18
130 80 315 280 245 178 25 12-Φ18
150 190 360 320 285 188 25 12-Φ18
160 200 360 320 285 198 25 12-Φ18
180 220 360 320 285 218 25 12-Φ18

Our Advantages

We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.

Packaging & Shipping

TS 204B Mechanical Seal
TS 204B Mechanical Seal

FAQ

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

Question3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

Question4: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
