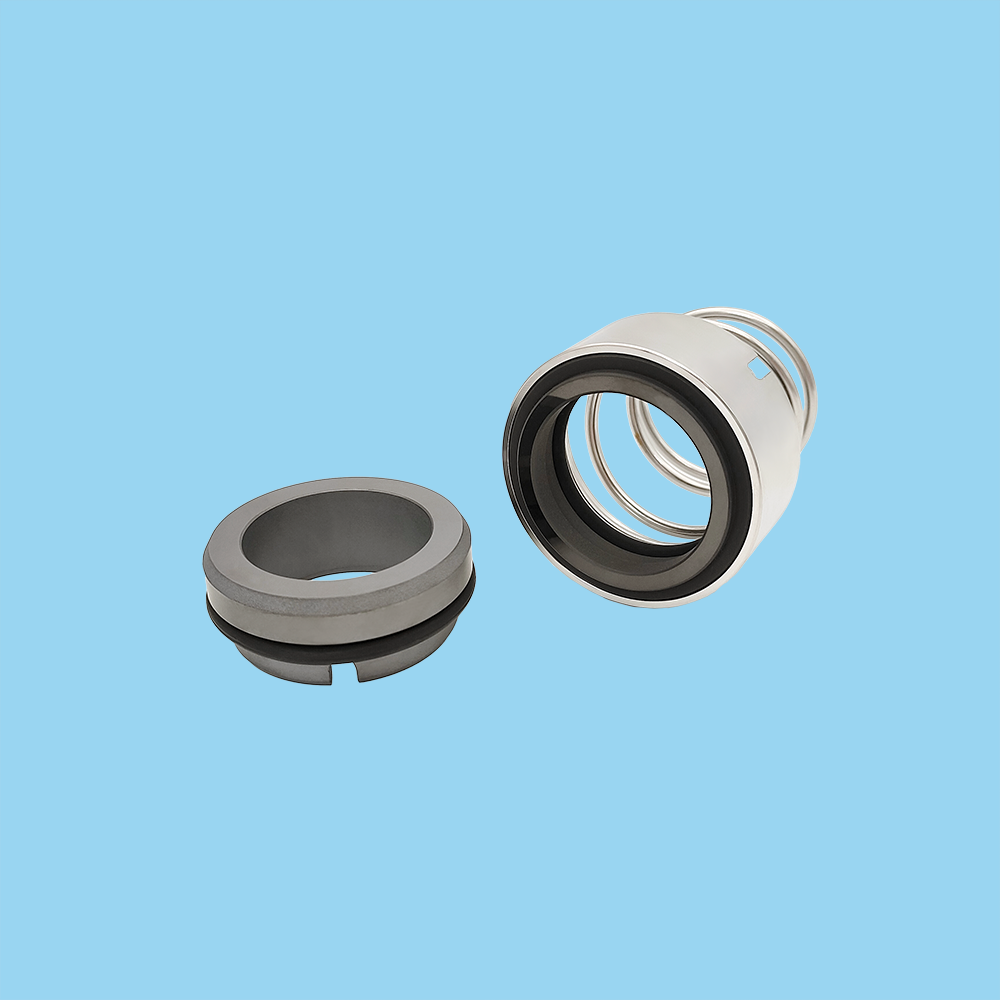

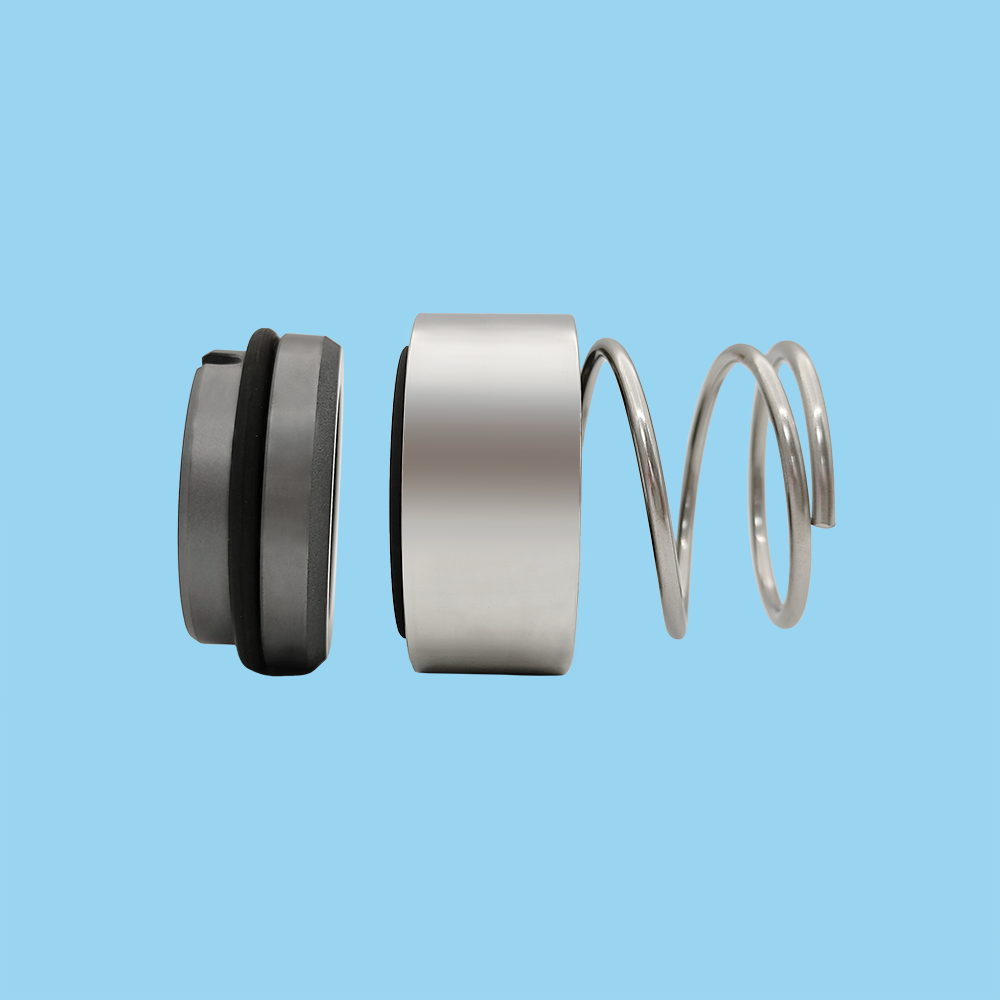

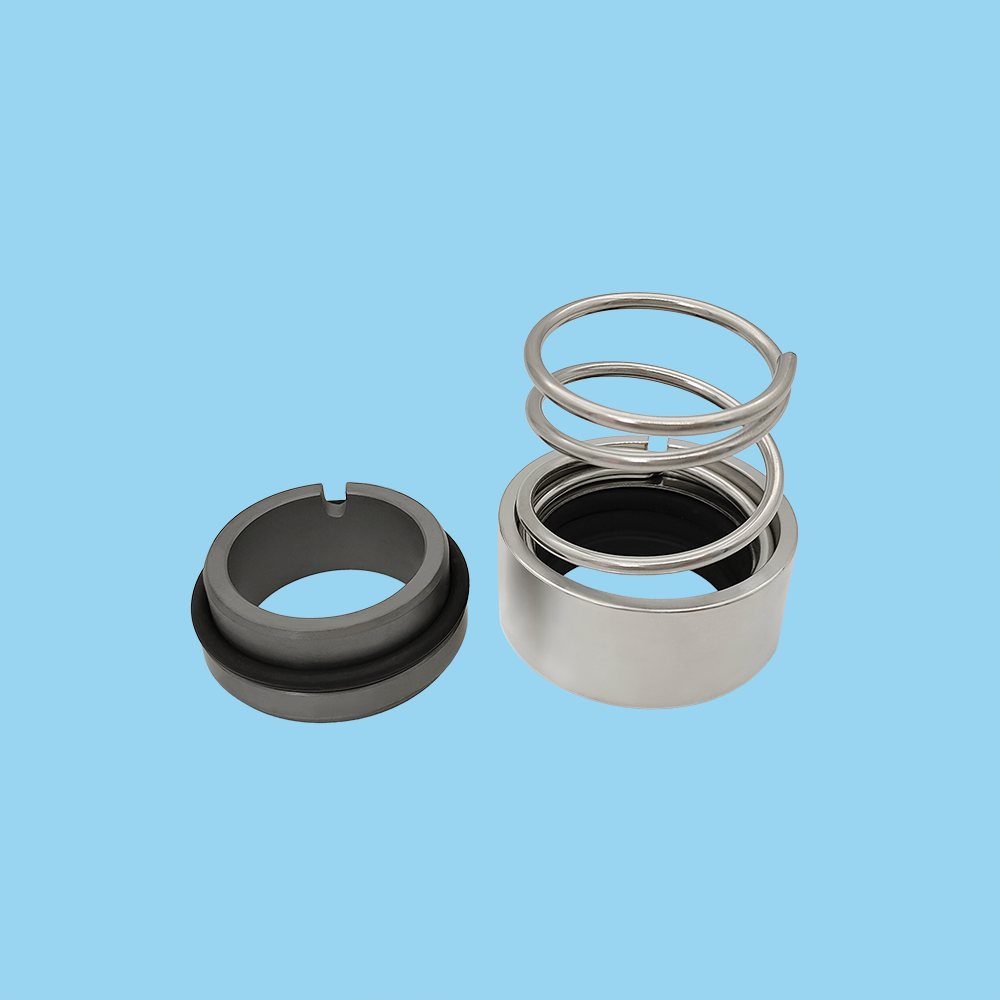

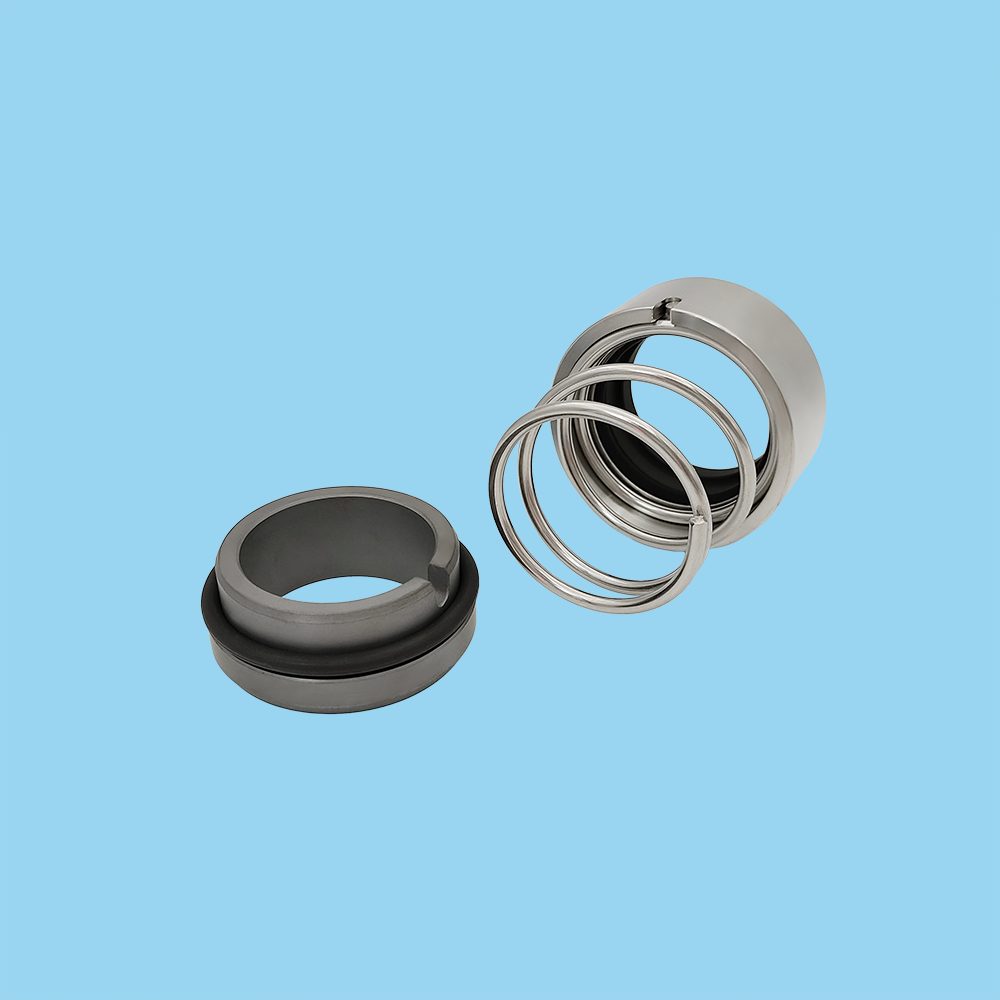

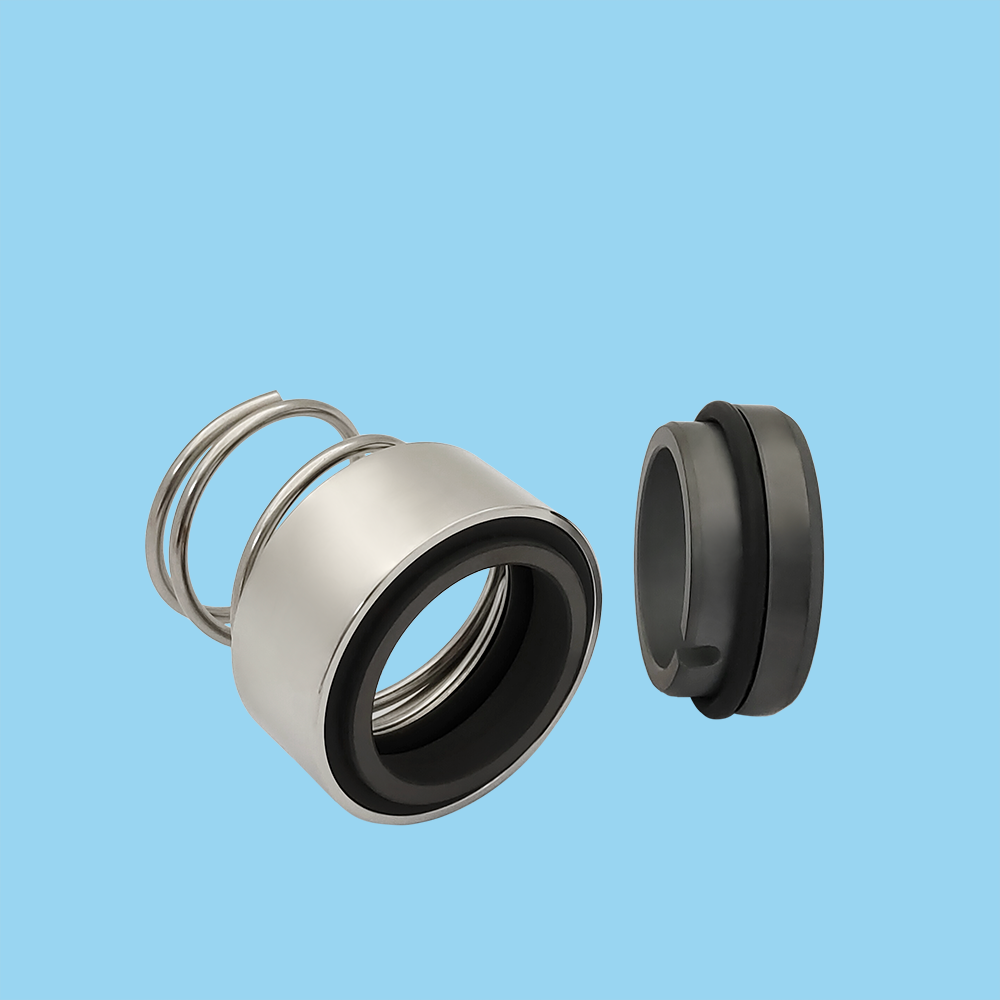

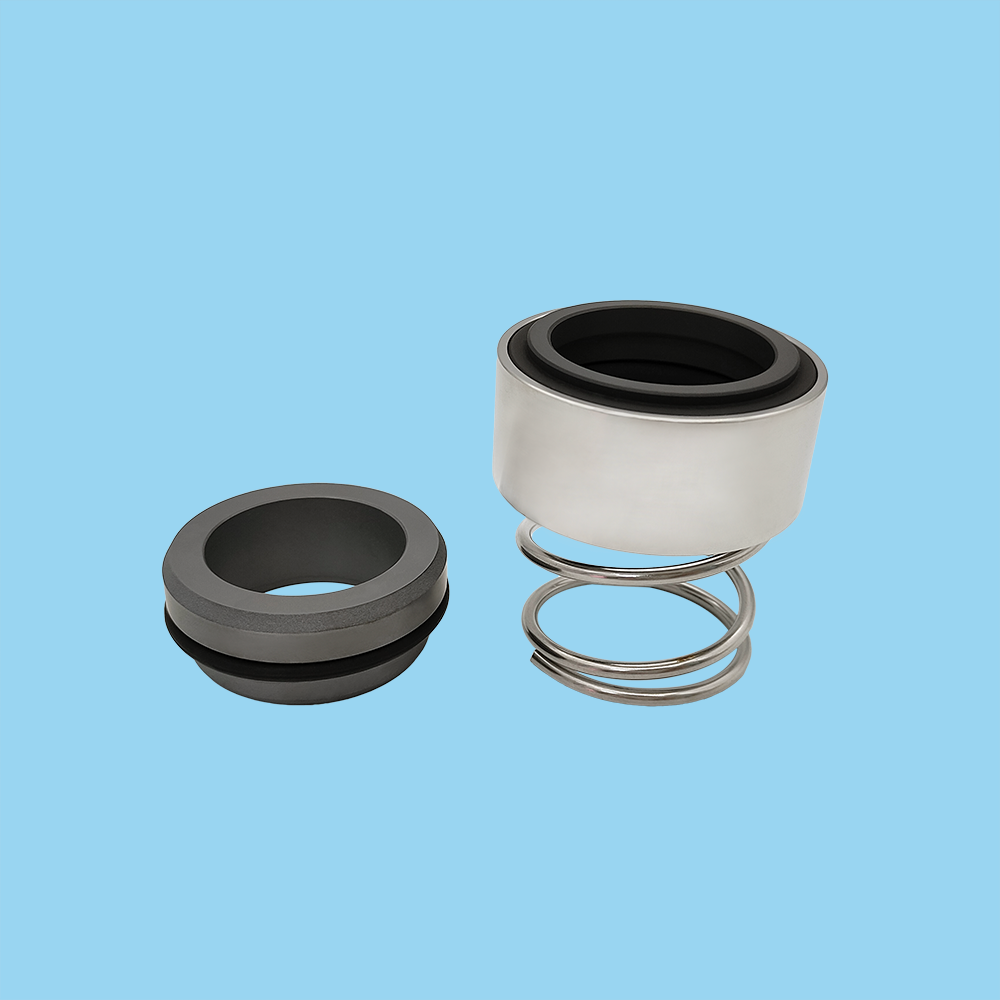

Single Spring H12N Mechanical Seal for Dyeing Machines

Share to:

Single Spring H12N Mechanical Seal for Dyeing Machines

Customization:	Available
Structure:	Single End
Pressure:	≤1.2 MPa

Availability:

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

TS H12N

Speed

Ultra-High-Speed Mechanical Seal

Temperature

Temperature Mechanical Seal

Performance

Corrosion

Standard

Type

TS 1527

Balance

Unbalanced

Transport Mode

International Express, by Air, by Sea, by Train

Replacement to

Bergmann Mechanical Seal

Payment Method

T/T, Western Union, L/C etc

Mini quantity

5 Pcs

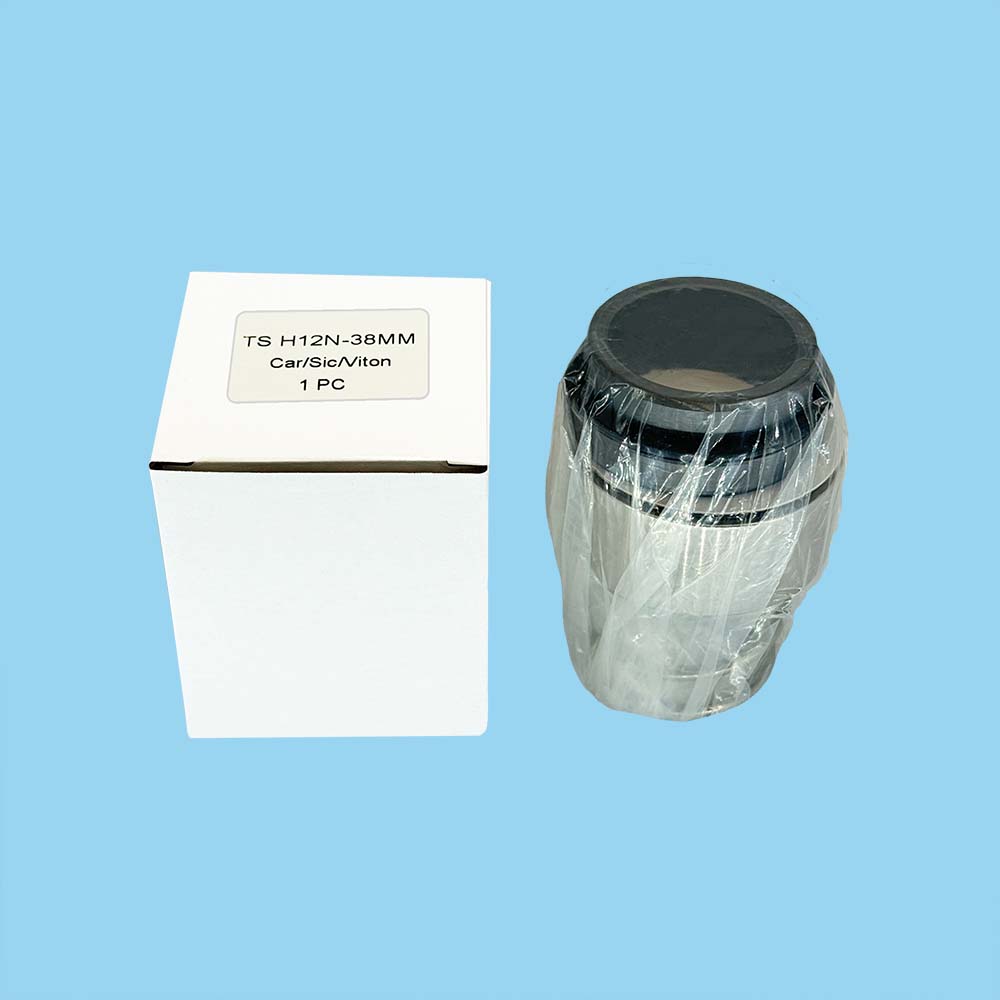

Transport Package

Carton

Specification

Diameter 10-80mm

Trademark

TS

Origin

China

HS Code

8484200090

Production Capacity

1000000PCS/Year

Packaging & Delivery

Package Size

38.00cm * 38.00cm * 32.00cm

Package Gross Weight

22.000kg

Product Description

Working Conditions
Mediums:Water,oil,weak acids.weal alkali,etc.
Temperature: -20ºC~180ºC
Pressure: ≤1.2MPa
Speed: ≤18m/Sec
Combined Materials
Stationary Ring (Carbon / Sic / TC)
Rotary Ring (Carbon / Sic / TC/ SUS304)
Secondary Seal (NBR / EPDM / Viton)
Spring and Punched Parts ( Steel )

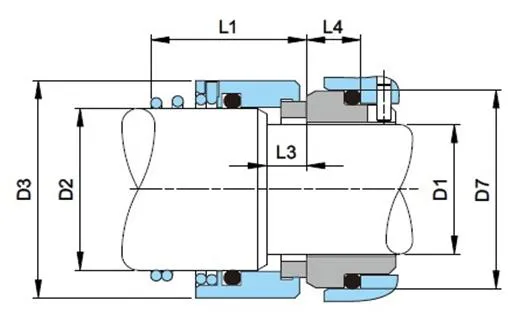

Metric Shaft Size D1	Size Code	D2	D3	D7	L1	L4	L3
10	0100	14	24	21	25.7	10	8
12	0120	16	26	23	26.7	10	8
14	0140	18	31	25	29.7	10	8
16	0160	20	34	27	31.2	10	8
18	0180	22	36	33	32.7	11.5	8.5
20	0200	24	38	35	32.7	11.5	8.5
22	0220	26	40	37	32.7	11.5	8.5
24	0240	28	42	39	32.7	11.5	8.5
25	0250	30	44	40	33.7	11.5	8.5
28	0280	33	47	43	35.7	11.5	8.5
30	0300	35	49	45	35.7	11.5	8.5
32	0320	38	54	48	39.7	11.5	8.5
33	0330	38	54	48	39 7	11.5	8.5
35	0350	40	56	50	43.7	11.5	8.5
38	0380	43	59	56	46.2	14	9
40	0400	45	61	58	48.2	14	9
43	0430	48	64	61	51.2	14	9
45	0450	50	66	63	55.2	14	9
48	0480	53	69	66	55.2	14	9
50	0500	55	71	70	58.2	15	10
53	0530	58	78	73	60.2	15	10
55	0550	60	79	75	60.2	15	10
58	0580	63	83	78	60.2	15	10
60	0600	65	85	80	60.2	15	10
63	0630	68	88	83	60.2	15	10
65	0650	70	90	85	61.2	15	10
70	0700	75	98	92	63.2	18	10
75	0750	80	103	97	68.2	18	10
80	0800	85	109	105	68.2	18.2	9.8

We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

Question3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

Question4: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
