-SN Single Face Cartridge Seal Mechanical Seal for Chemical Centrifugal Pumps

Products Description

Operations Conditions:

1. Equivalent to Burgmann Cateks-SN

2. Single cartridge mechanical seal

3. Multiple spring,balanced, most popular type

4. Temperature:-40ºC to +220ºC

5. Pressure:≤2.5MPa

6. Speed:≤16m/s

Materials:

• Stationary Ring:Silicon Carbide Reaction Bonded

• Rotary Ring: Q5,Resin Impregnated Carbon Graphite(Furan), Silicon Carbide Reaction Bonded

• Secondary Seal: Fluorocarbon Rubber(FKM),Ethylene Propylene(EPDM)

• Spring and Metal Parts: Stainless Steel

• Seat Types:

• Applications:Clean Water

Performance Capabilities:

Temperature	-30℃ to 200℃, dependent on the elastomer
Pressure	Up to 10 bar
Speed	Up to 15 m/s
End play/axial float allowance	±0.1mm
Size	25mm to 100mm
Brand	JR
Face	Carbon, SiC, TC
Seat	Ceramic, SiC, TC
Elastomer	NBR, EPDM, FKM etc.
Spring	SS304, SS316
Metal parts	SS304, SS316
Idividual Packing	Using foam and plastic paper wrapped,   then put one piece of seal in one box,finally put in standard export carton.

• 1.Borgmann Cateks-SN single cartridge seal.

• 2.standard 4-bolts gland designed with big bore flushing,

• 3.2 bolts gland designed for specific usage.

• 4.Suitable for Plan 11, 21, 32.

• Cateks--Single seals without connections (-SNO), with flush (-SN)

• with quench combined with lip seal (-QN) or throttle ring (-TN)

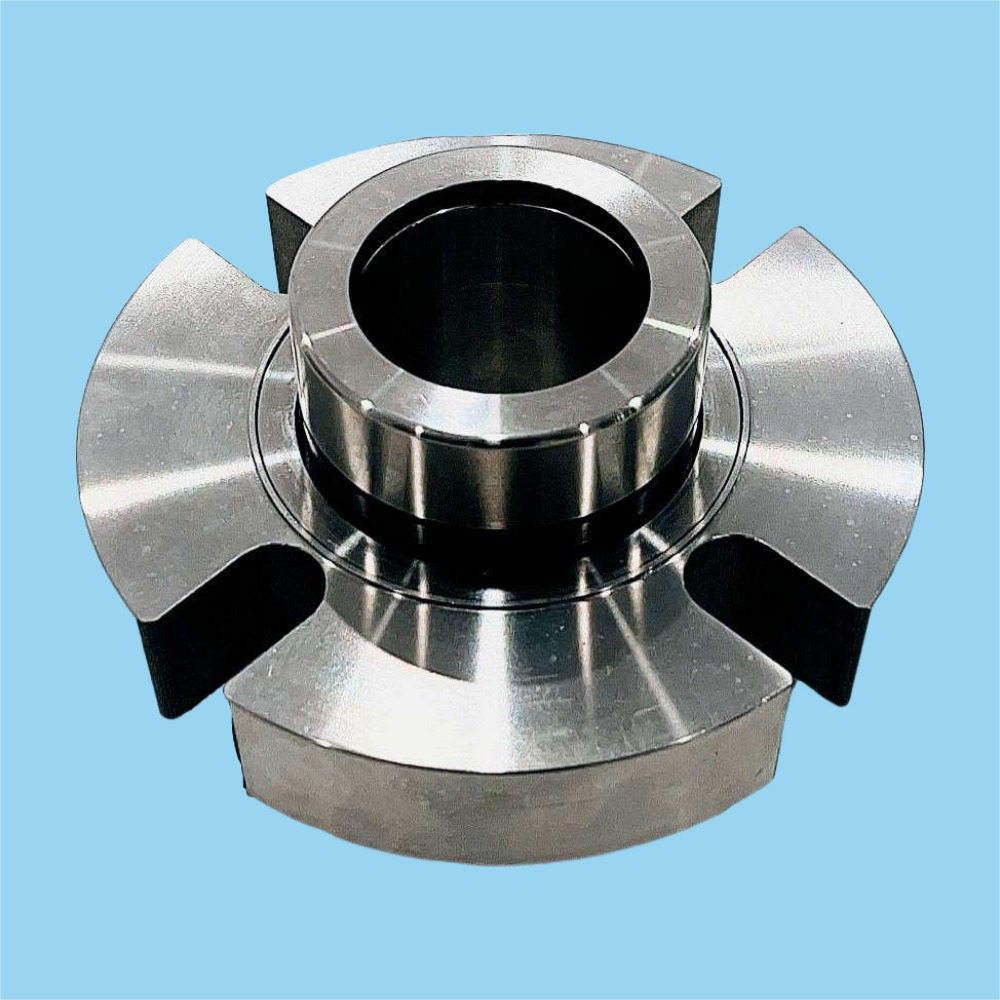

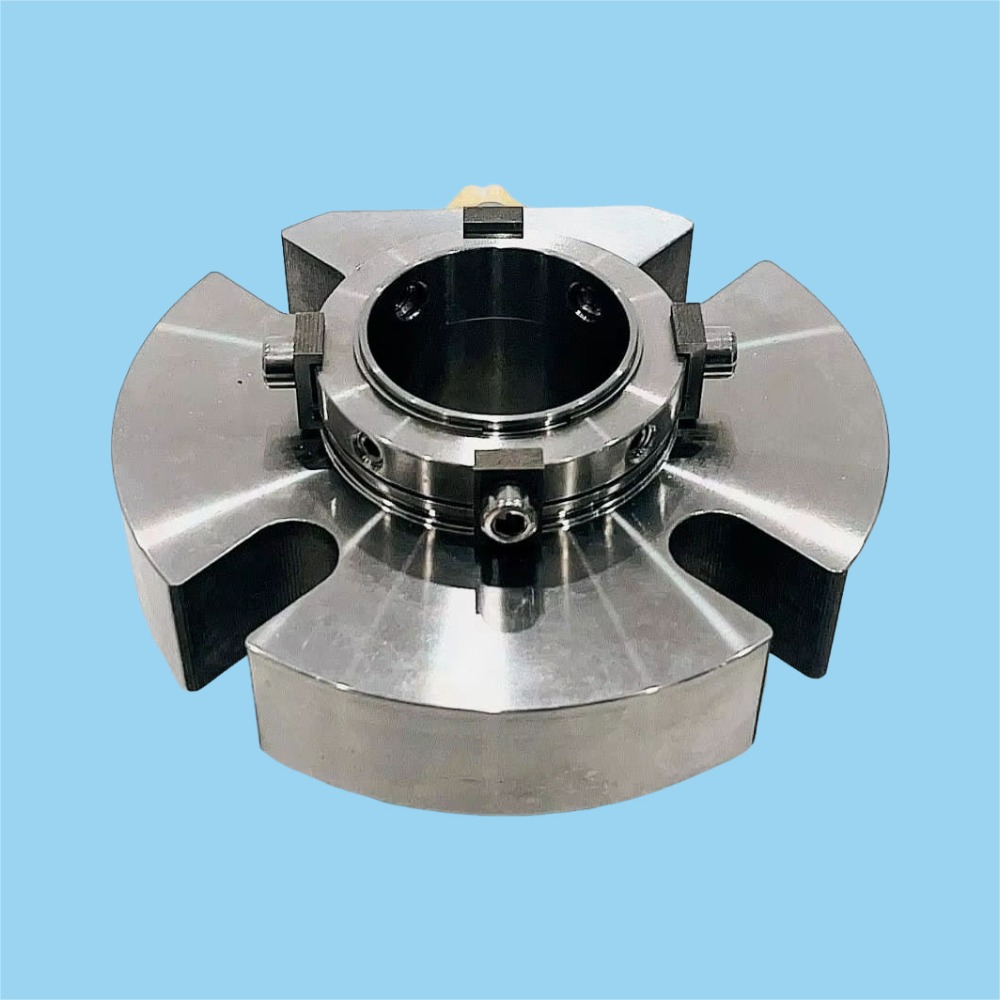

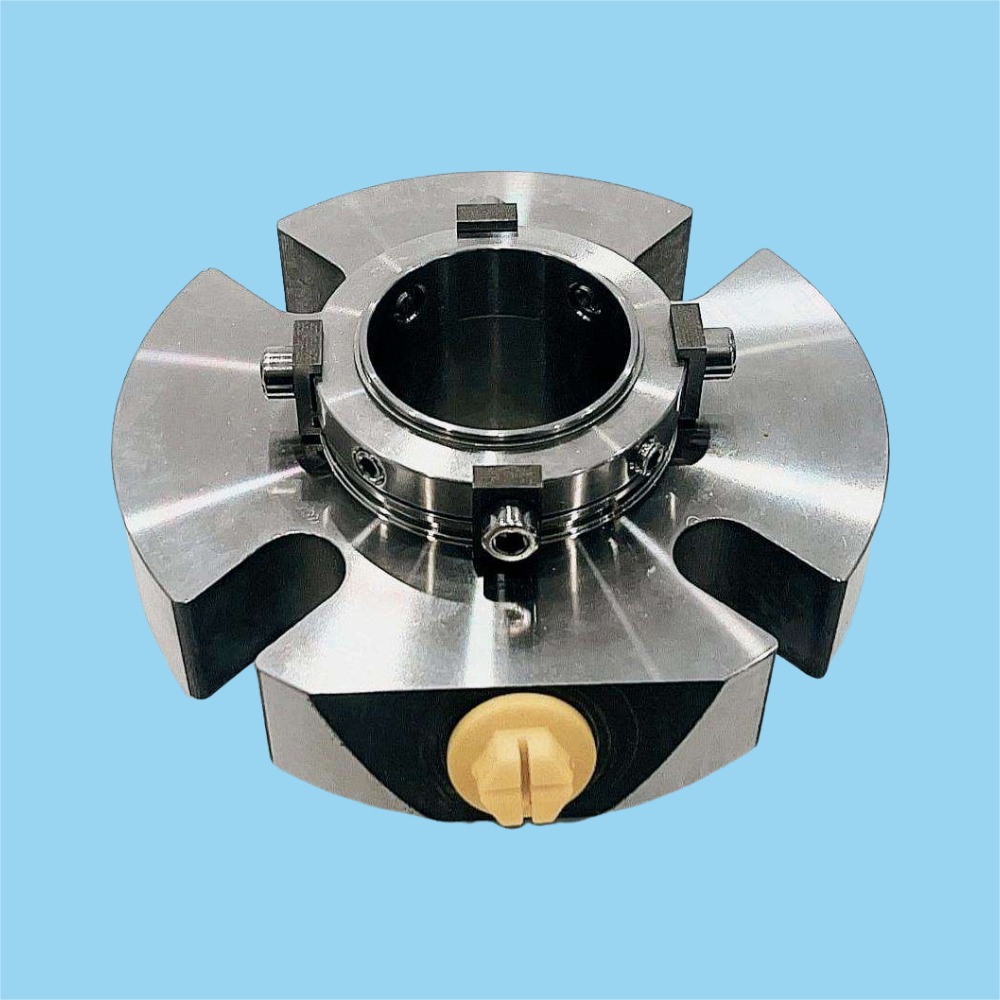

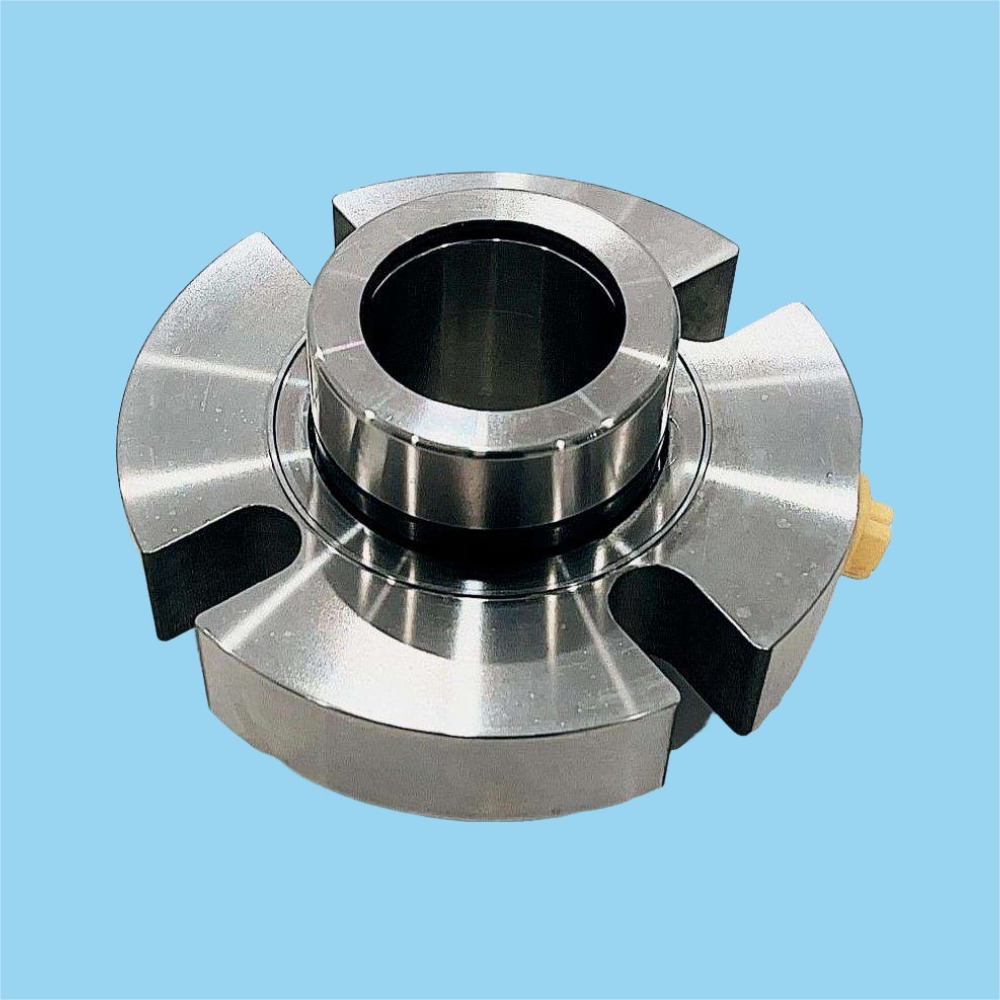

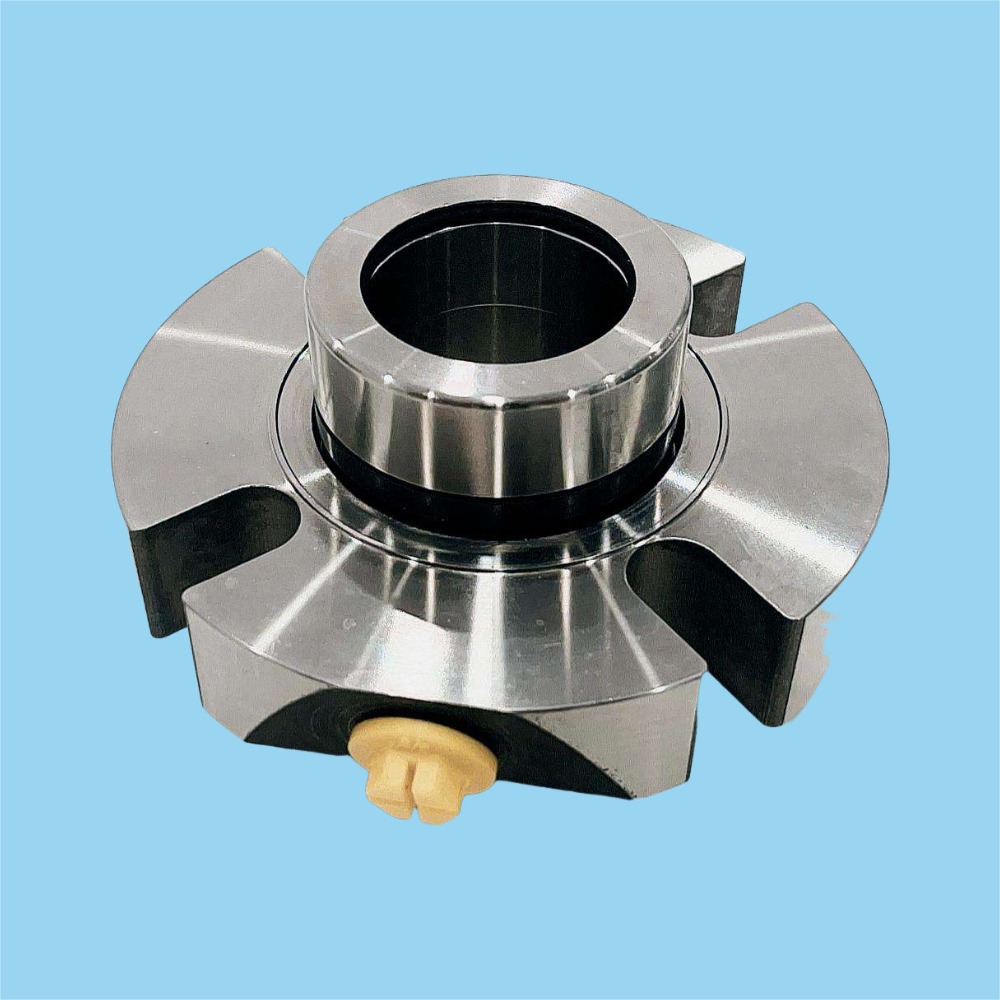

Detailed Photos

We have large stock, so our delivery  is very fast.
   For example,if products are standarded, the delivery time is one week.
   Our company and factory addrss: Ningbo City, Zhejiang  Province,China.
   Our city has a large port and an airport, so its transportation is very convenient.
