Multi-spring Mechanical Seals RO-A for Chemical Pumps

Share to:

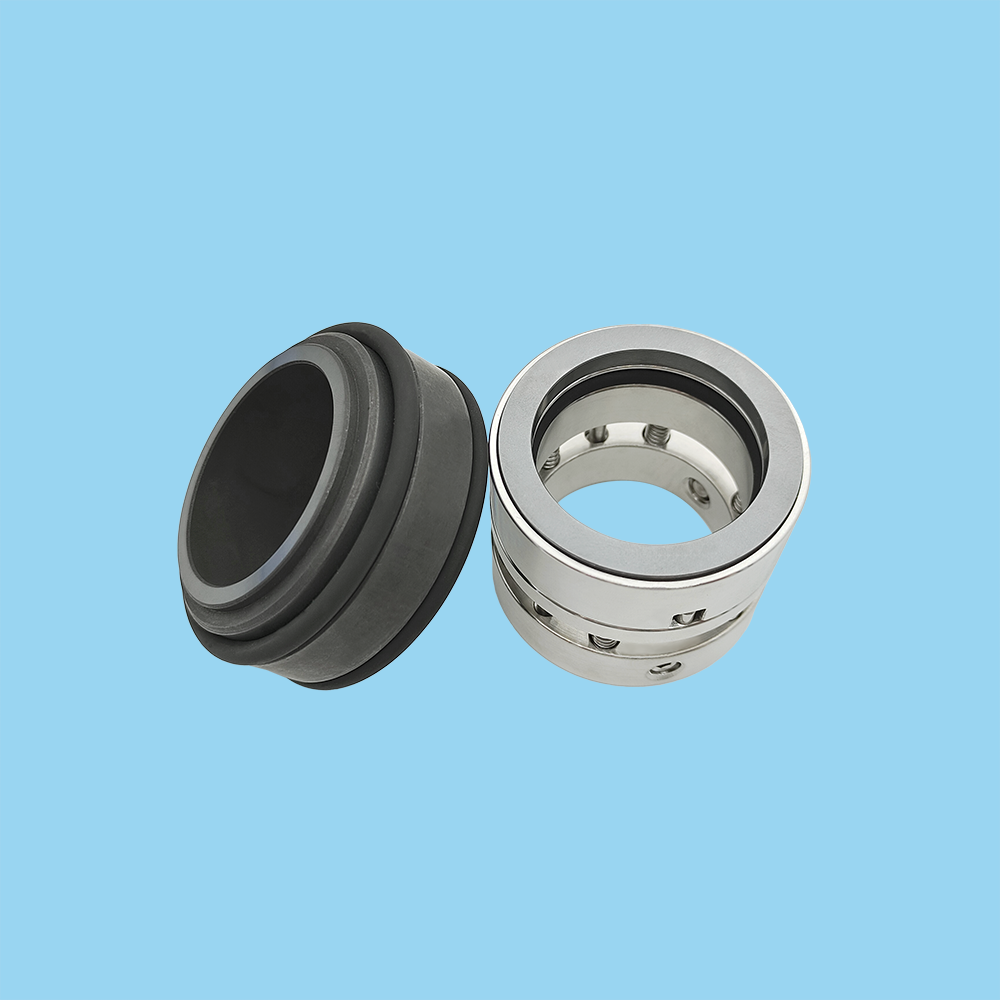

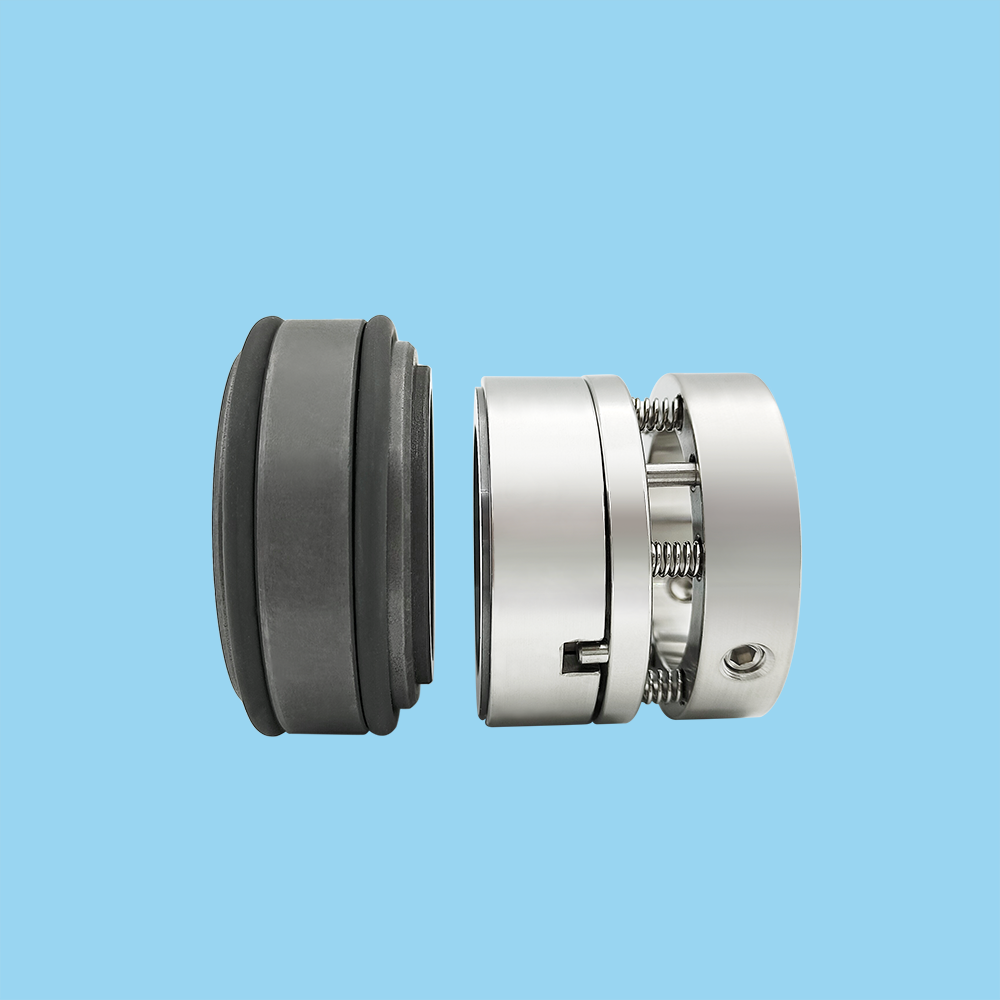

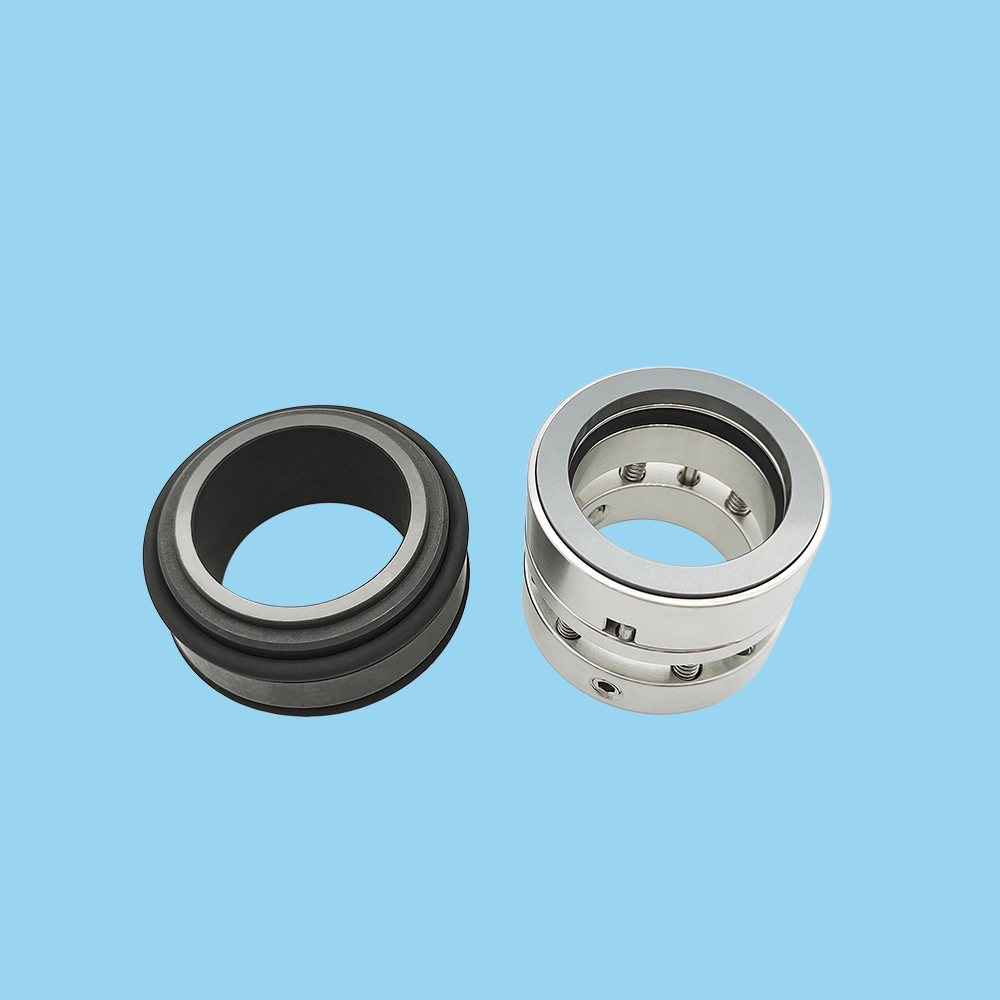

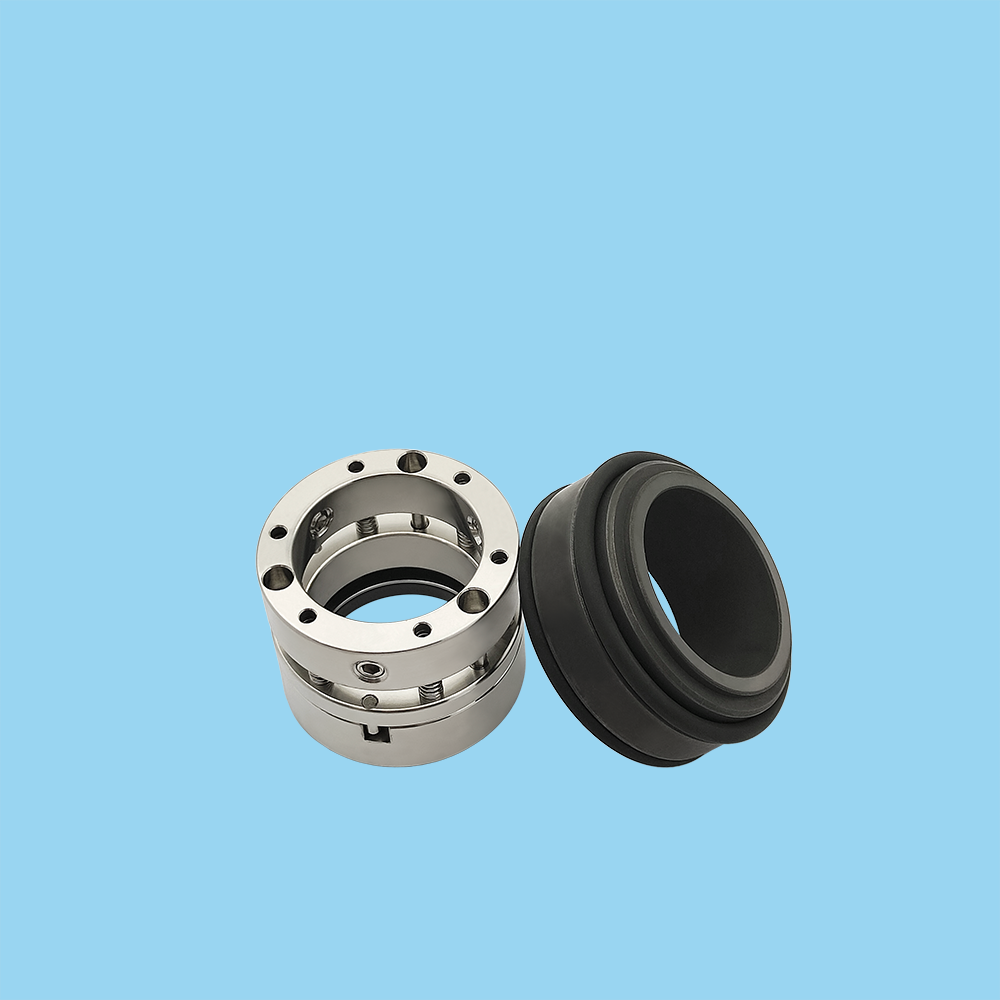

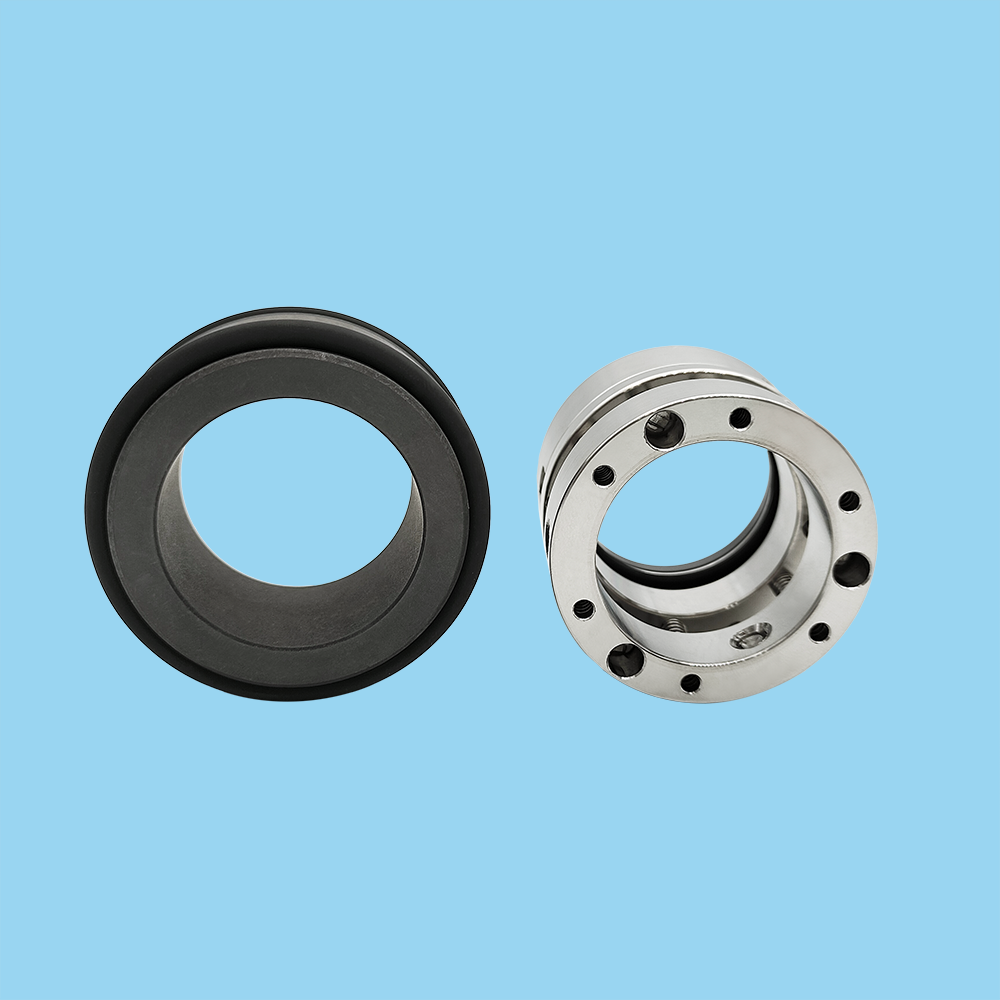

Multi-spring Mechanical Seals RO-A for Chemical Pumps

Customization:	Available
Structure:	Single End
Pressure:	≤1.0 MPa

Availability:

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

T RO-A

Speed

Ultra-High-Speed Mechanical Seal

Temperature

Temperature Mechanical Seal

Performance

Corrosion

Standard

Type

Customization

Balance

Balanced

Transport Mode

International Express, by Air, by Sea, by Train

Payment Method

T/T, Western Union, L/C etc

Stationary Ring

According to customer′s requirements

Mini quantity

5 PCS

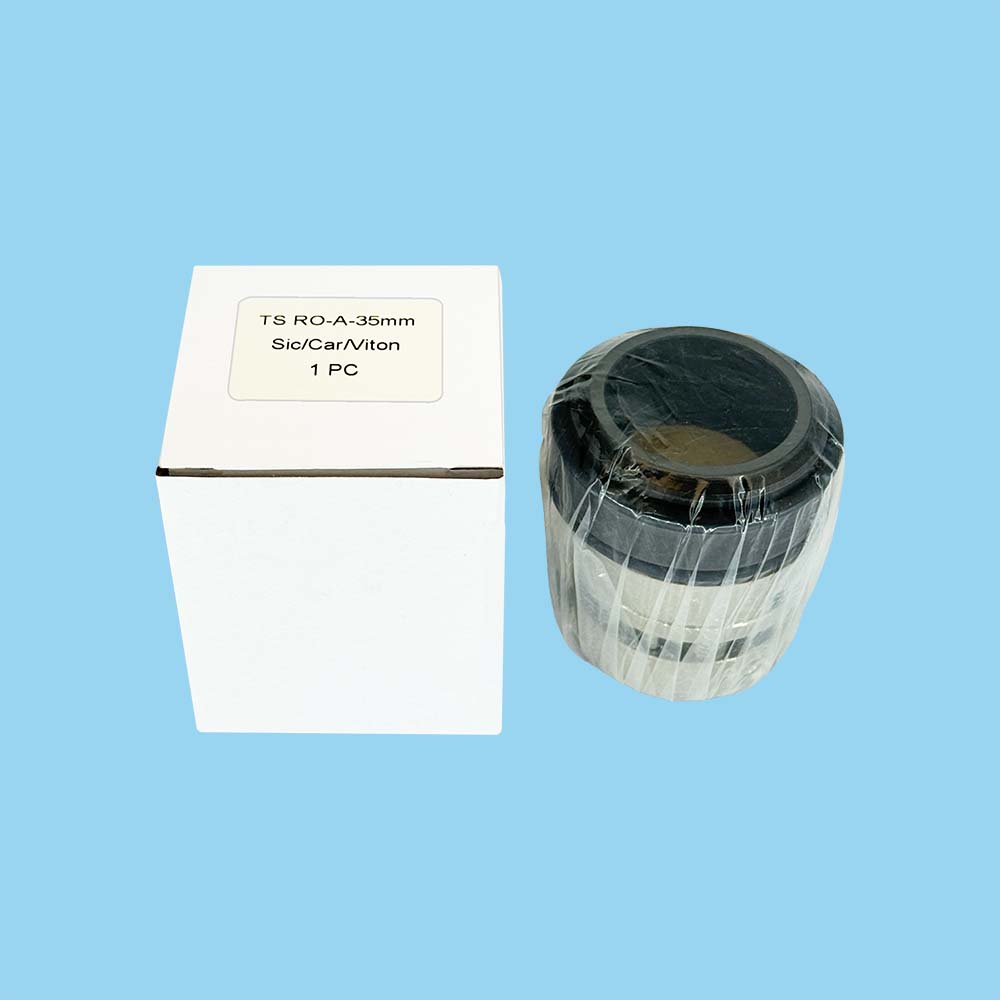

Transport Package

Carton

Specification

Diameter 20MM-100MM

Trademark

Origin

China

HS Code

8484200090

Production Capacity

1000000PCS/Year

Packaging & Delivery

Package Size

38.00cm * 38.00cm * 32.00cm

Package Gross Weight

22.000kg

Product Description

Working Conditions
Mediums: Water,oil,weak acids.weal alkali,etc.
Temperature: -20ºC~150ºC
Pressure: ≤1.0 MPa
Speed: ≤15 m/Sec

Combined Materials
Stationary Ring : Ceramic / Sic / TC
Rotary Ring: Carbon / Sic / TC
Secondary Seal : NBR / EPDM /Viton
Spring and Punched Parts: Stainless steel, SUS304, SUS316

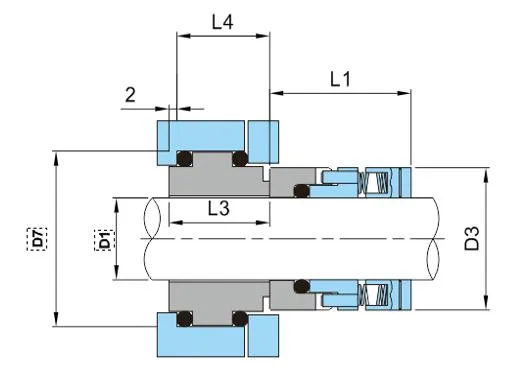

Metric Shaft D1	Size Code	D3	D7	L1	L4	L3
20	0200	34	42	35	23	25
22	0220	36	44	35	23	25
24	0240	38	46	35	23	25
25	0250	39	47	35	23	25
28	0280	42	50	35	23	25
30	0300	44	52	35	23	25
32	0320	46	54	35	23	25
33	0330	47	55	35	23	25
35	0350	49	57	35	25	25
38	0380	54	64	38	25	27
40	0400	56	66	38	25	27
42	0420	58	68	38	25	27
43	0430	59	69	38	25	27
45	0450	61	71	38	25	27
48	0480	64	74	38	25	27
50	0500	66	76	39	25	27
52	0520	68	78	40	25	27
53	0530	69	79	40	25	27
55	0550	71	81	40	25	27
58	0580	76	89	41	28	30
60	0600	78	91	41	28	30
62	0620	80	93	41	28	30
63	0630	81	94	41	28	30
65	0650	83	96	41	28	30
68	0680	86	99	41	30	32
70	0700	90	101	42	30	32
75	0750	95	110	42	30	32
80	0800	100	115	42	31	33
85	0850	105	120	43	31	33
90	0900	110	125	45	31	33
95	0950	115	130	45	31	33
100	1000	120	135	45	31	33

We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port, also has a airport, its transportation is very convenient.

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

Question3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

Question4: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
