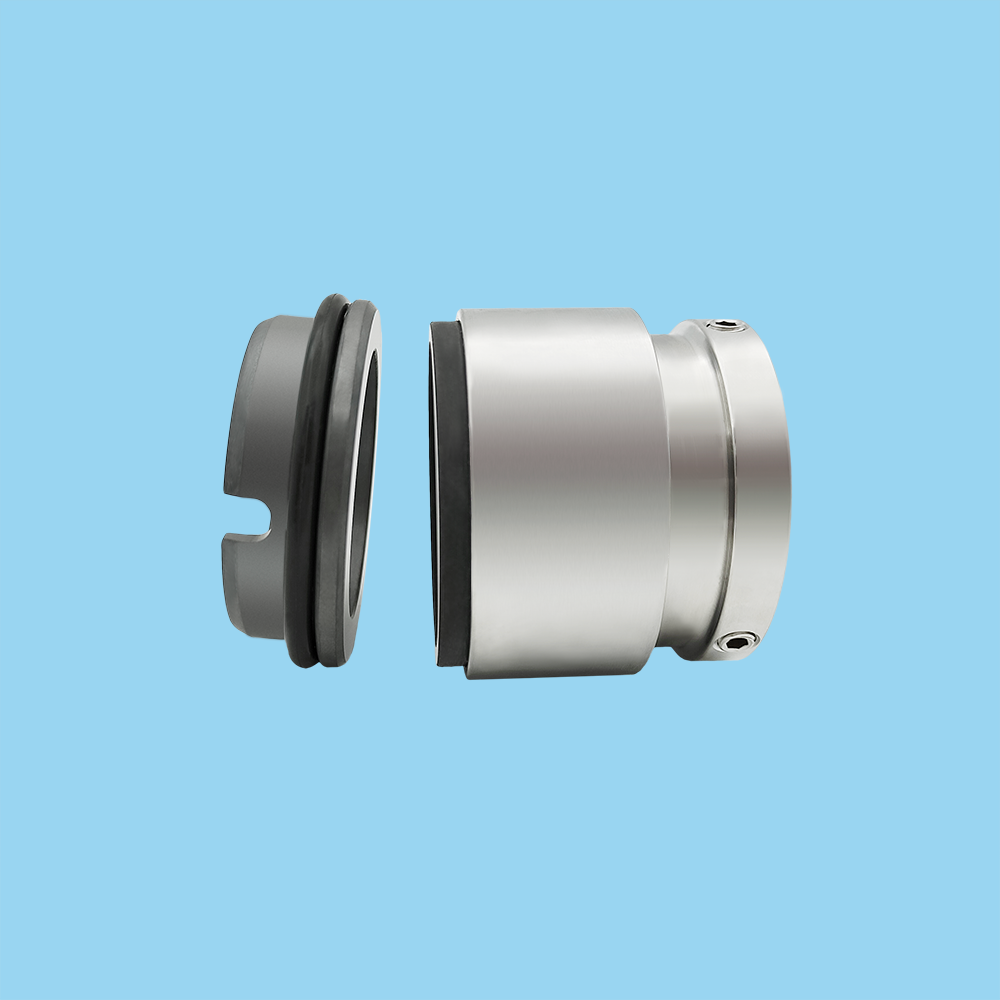

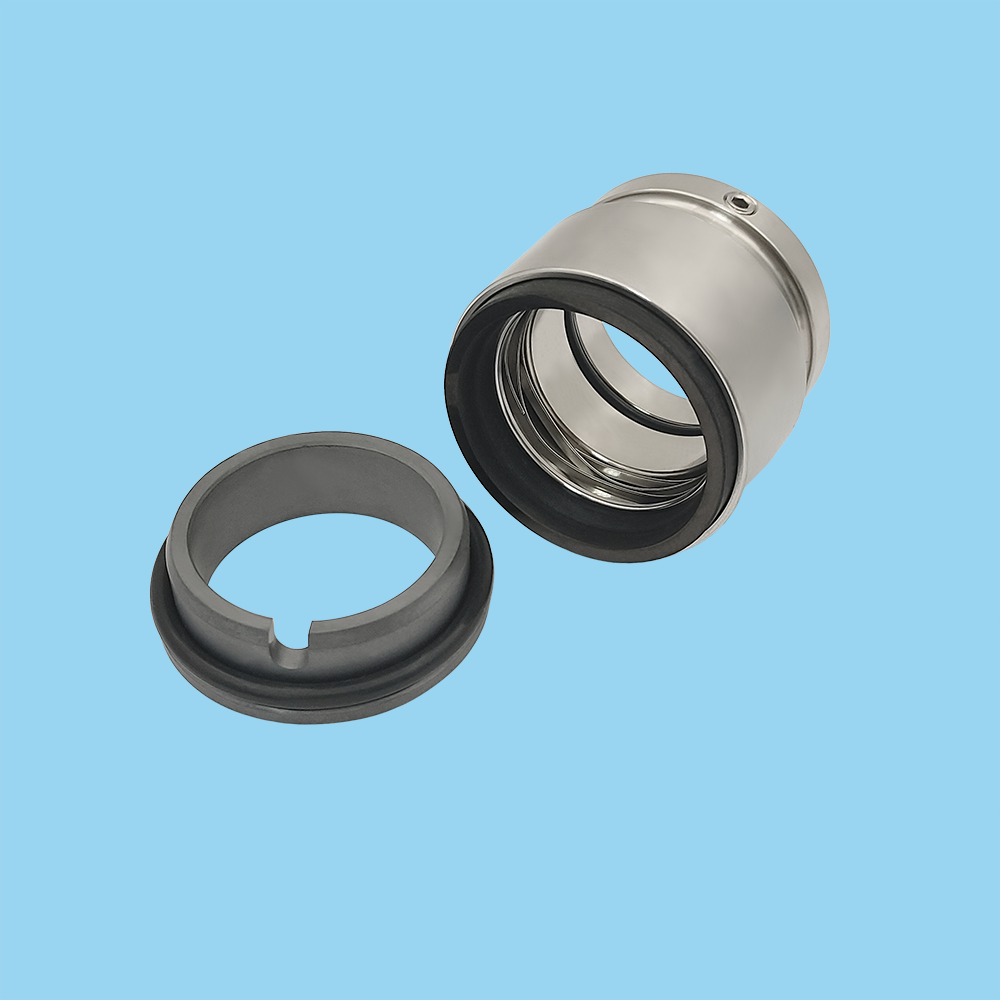

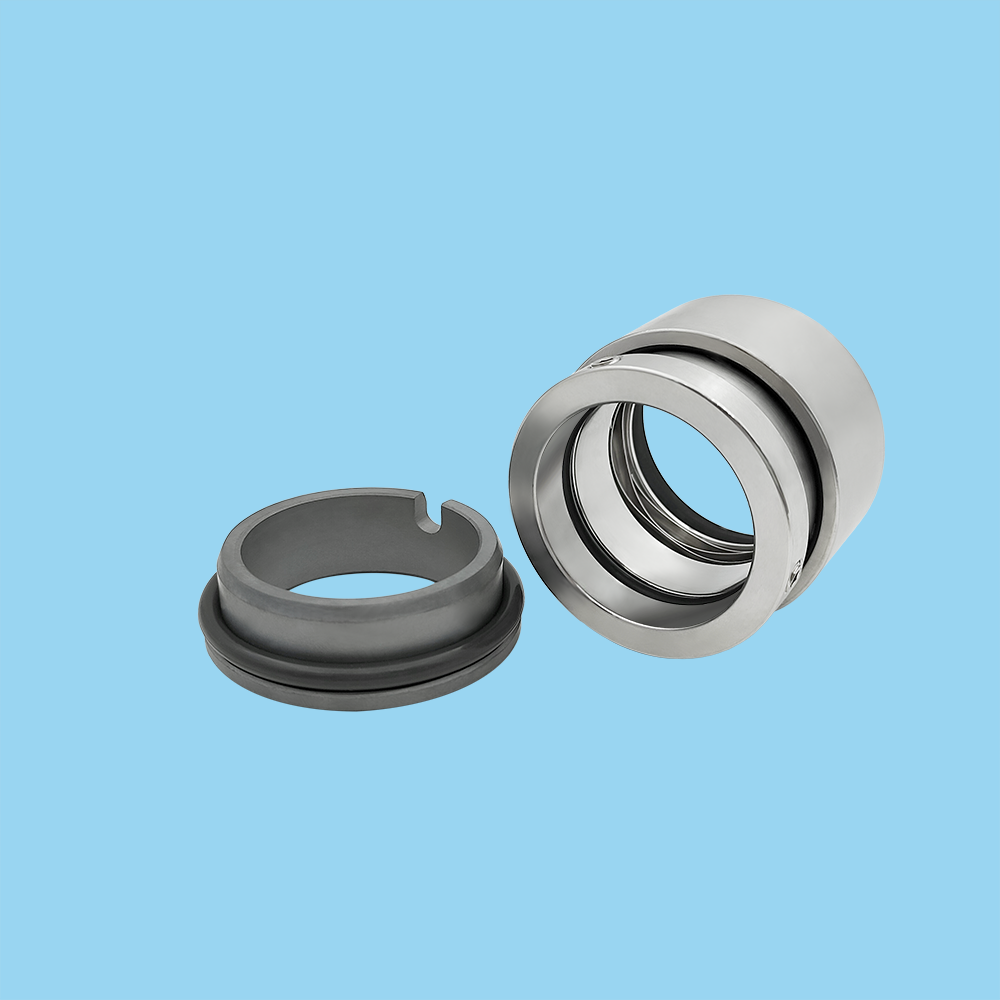

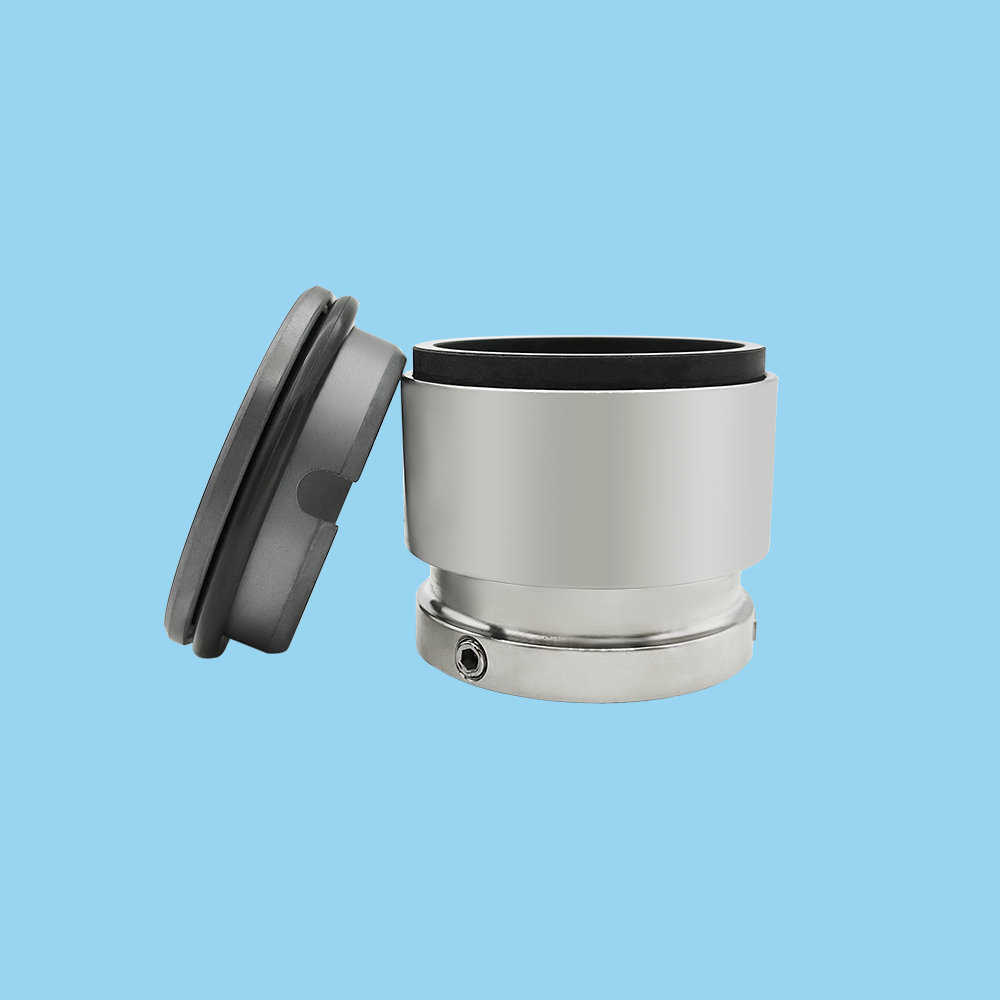

Multi-spring Mechanical Seals HJ92N for Chemical Industry Pumps

Share to:

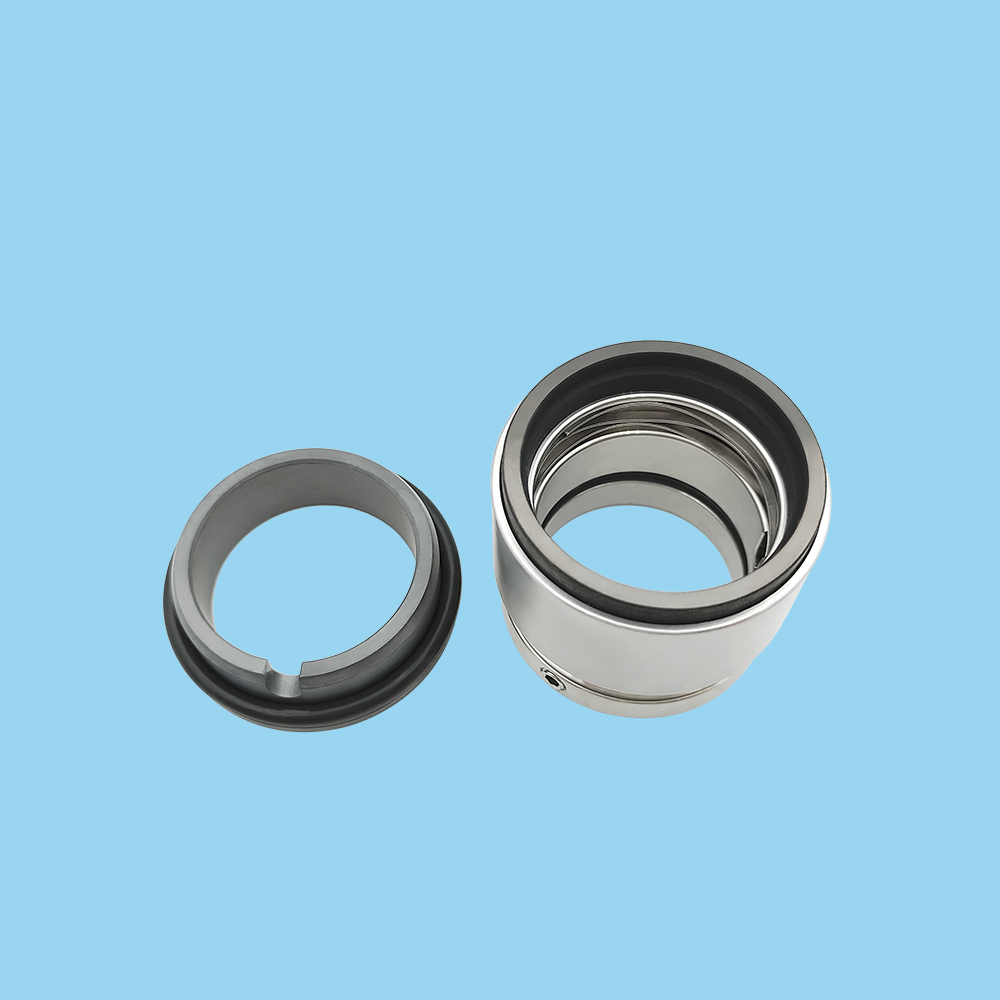

Multi-spring Mechanical Seals HJ92N for Chemical Industry Pumps

Customization:	Available
Structure:	Single End
Pressure:	≤2.5 MPa

Availability:

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

T- HJ92N

Speed

Ultra-High-Speed Mechanical Seal

Temperature

Temperature Mechanical Seal

Performance

Corrosion

Standard

Type

Customization

Balance

Balanced

Transport Mode

International Express, by Air, by Sea, by Train

Replacement to

Burman Seal

Payment Method

T/T, Western Union, L/C etc

Min Quantity

5 PCS

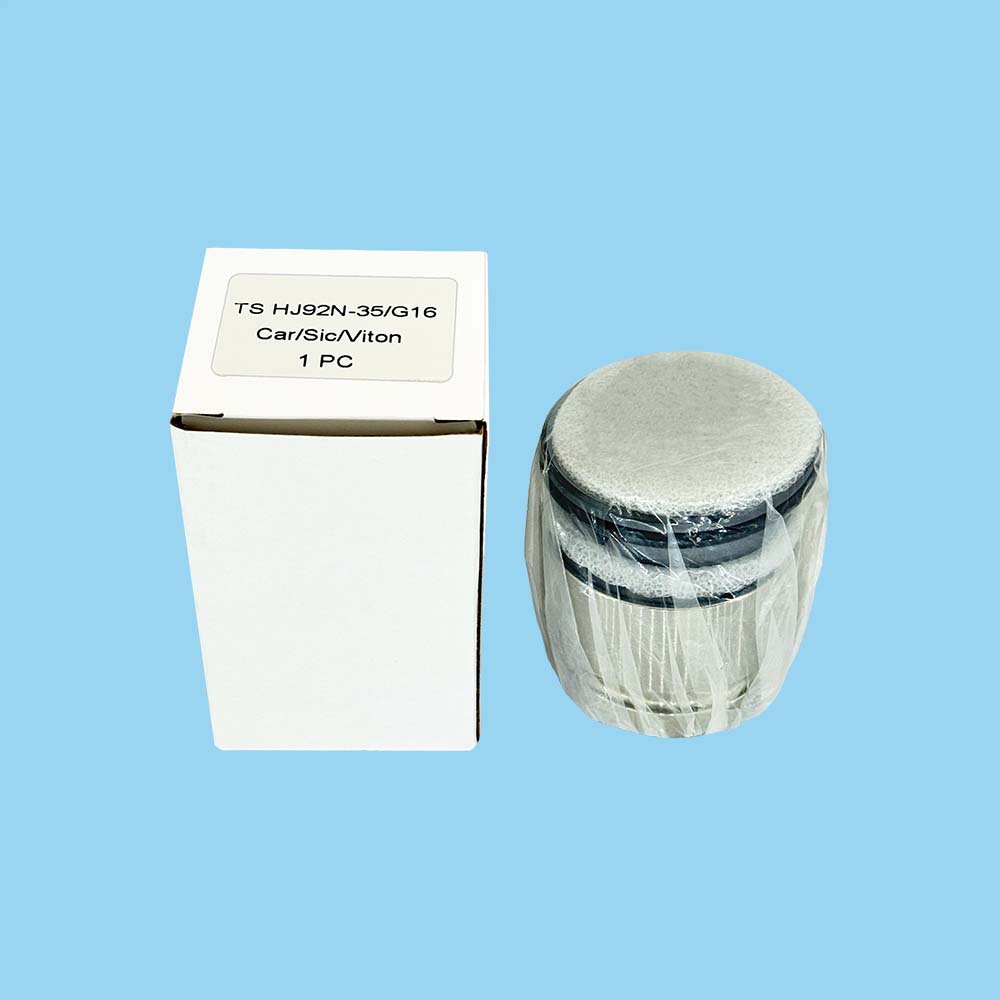

Transport Package

Carton

Specification

Diameter 10-100mm

Trademark

Origin

China

HS Code

8484200090

Production Capacity

1000000PCS/Year

Packaging & Delivery

Package Size

38.00cm * 38.00cm * 32.00cm

Package Gross Weight

22.000kg

Product Description

Working Conditions:
Mediums: Paper making, sugar, sewage treatment and other high viscosity media, etc
Temperature: -20ºC to 200 ºC
Pressure: ≤ 2.5 Mpa
Rotate speed: ≤15 m/s

Materials:
Stationary Ring : Carton / Ceramic / Sic / TC
Rotary Ring : Carbon / Sic / TC /SUS304
Secondary Seal : NBR / EPDM / Viton
Spring and Metal Part: Stainless Steel

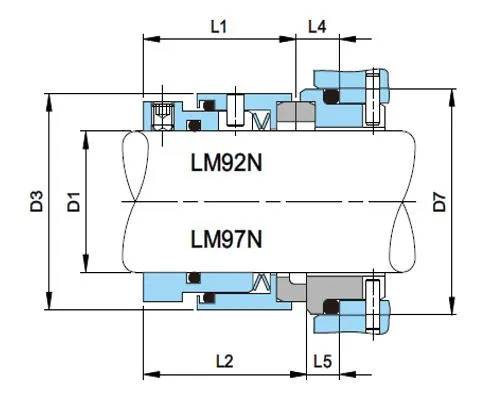

Metric Shaft Size D1	Size Code	D3	D7	L4	L5	L1(92N)	L2(97N)
18	0180	32	33	9	7	28.7	30.7
20	0200	34	35	9	7	28.7	30.7
22	0220	36	37	9	7	28.7	30.7
24	0240	38	39	9	7	31.2	33.2
25	0250	39	40	9	7	31.2	33.2
28	0280	42	43	9.5	7	33.2	35.7
30	0300	44	45	9.5	7	33.2	35.7
32	0320	47	48	9.5	7	33.2	35.7
33	0330	47	48	9.5	7	33.2	35.7
35	0350	49	50	9.5	7	33.2	35.7
38	0380	54	56	10.5	8	34.7	37.2
40	0400	56	58	10.5	8	34.7	37.2
43	0430	59	61	10.5	8	34.7	37.2
45	0450	61	63	10.5	8	34.7	37.2
48	0480	64	66	10.5	8	34.7	37.2
50	0500	66	70	12	9.5	35.7	38.2
53	0530	69	73	12	9.5	35.7	38.2
55	0550	71	75	12	9.5	35.7	38.2
58	0580	78	78	13	10.5	39.7	42.2
60	0600	80	80	13	10.5	39.7	42.2
63	0630	83	83	13	10.5	39.7	42.2
65	0650	85	85	13	10.5	39.7	42.2
68	0680	88	90	13.5	11	39.2	41.7
70	0700	90	92	14	11.5	46.2	48.7
75	0750	99	97	14	11.5	46.2	48.7
80	0800	104	105	14	11.5	46.2	48.7
85	0850	109	110	14	11.5	46.2	48.7
90	0900	114	115	15.5	13	49.7	52.2
95	0950	119	120	15.5	13	49.7	52.2
100	1000	124	125	15.5	13	49.7	52.2

We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

Question3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

Question4: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
