Multi-Spring Mechanical Seals RO-B for Chemical Industry Pumps

Share to:

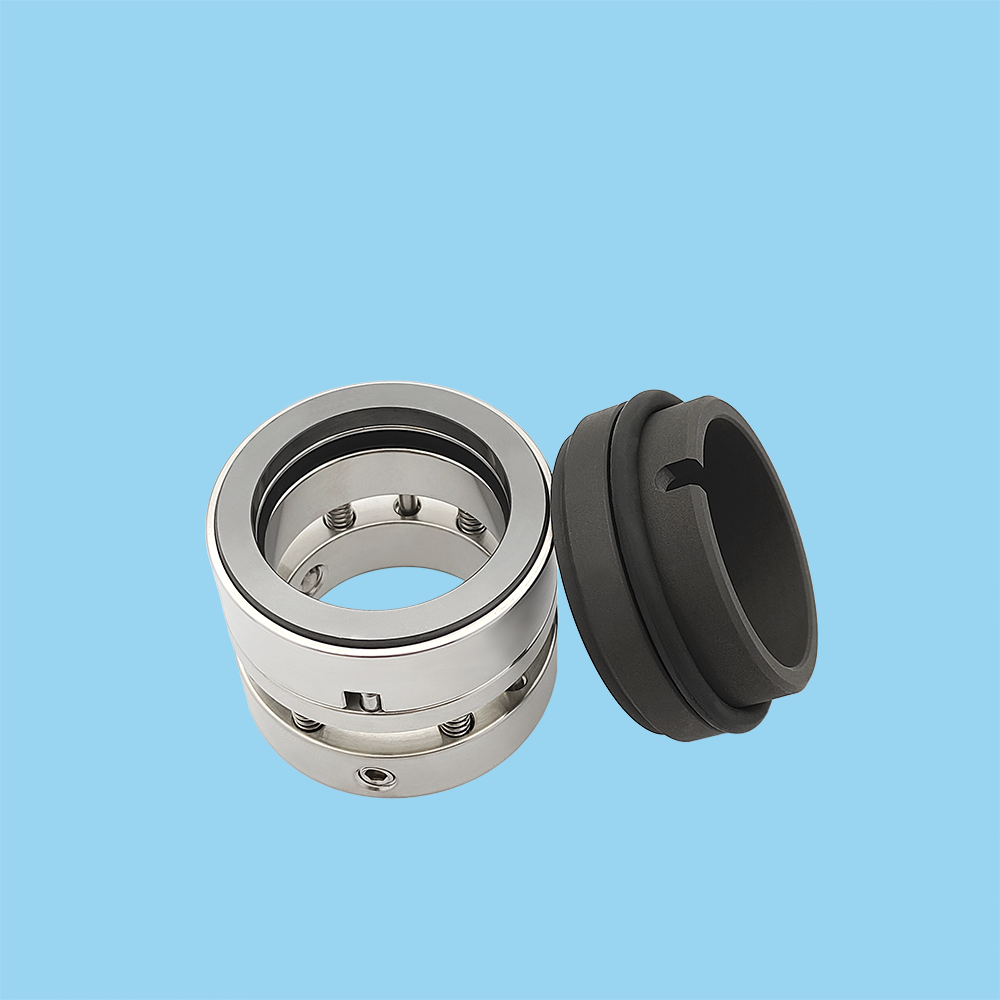

Multi-Spring Mechanical Seals RO-B for Chemical Industry Pumps

Customization:	Available
Structure:	Single End
Pressure:	≤1.0 MPa

Availability:

Quantity:



Inquire Add to Basket

Model:
RO-B

Product Description

Basic Info.

Model NO.

TS RO-B

Speed

Ultra-High-Speed Mechanical Seal

Temperature

Temperature Mechanical Seal

Performance

Corrosion

Standard

Type

Customization, TS

Balance

Balanced

Transport Mode

International Express, by Air, by Sea, by Train

Payment Method

T/T, Western Union, L/C etc

Stationary Ring

According to customer′s requirements

Min Order Qty

5Pcs

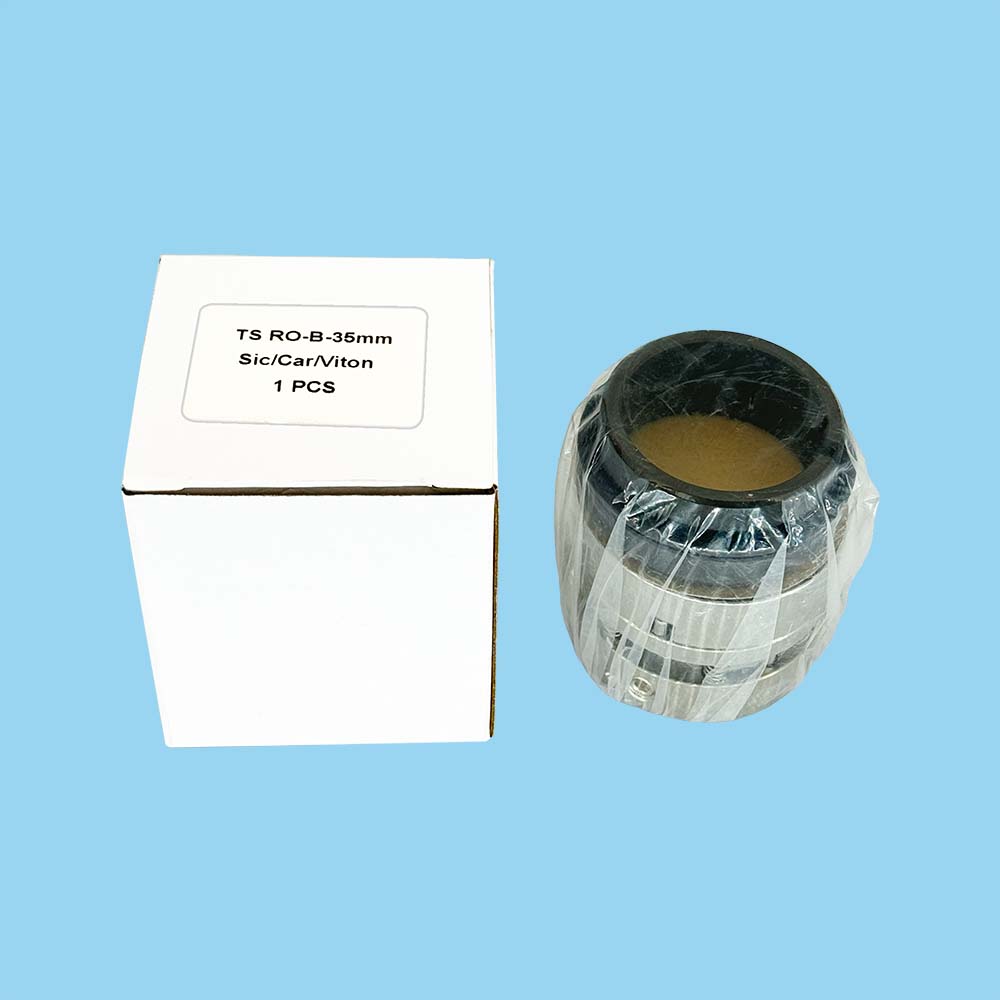

Products Packing

White Box

Transport Package

Carton

Specification

Diameter 20MM-100MM

Trademark

TS

Origin

China

HS Code

8484200090

Production Capacity

1000000PCS/Year

Packaging & Delivery

Package Size

38.00cm * 38.00cm * 3.00cm

Package Gross Weight

22.000kg

Product Description

Working Conditions
Mediums: Water,oil,weak acids.weal alkali,etc.
Temperature: -20ºC~180ºC
Pressure: ≤1.0 MPa
Speed: ≤15 m/Sec

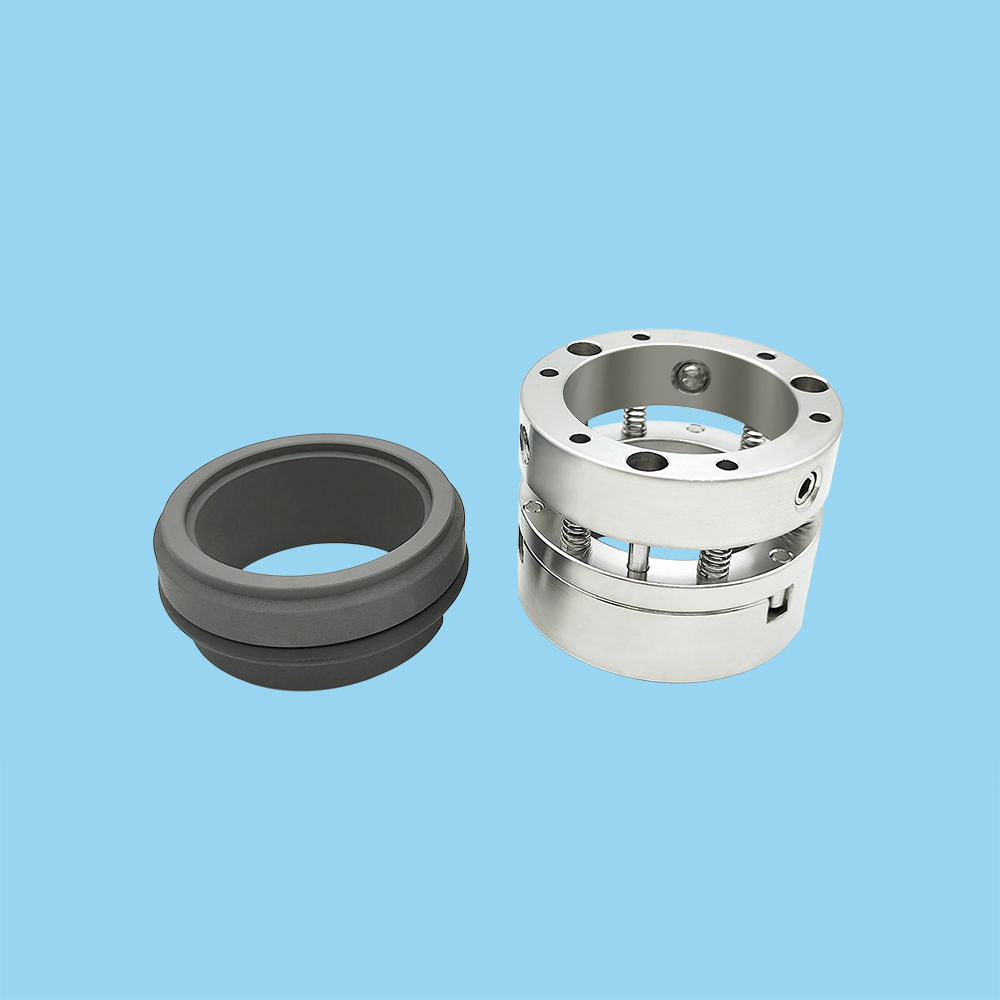

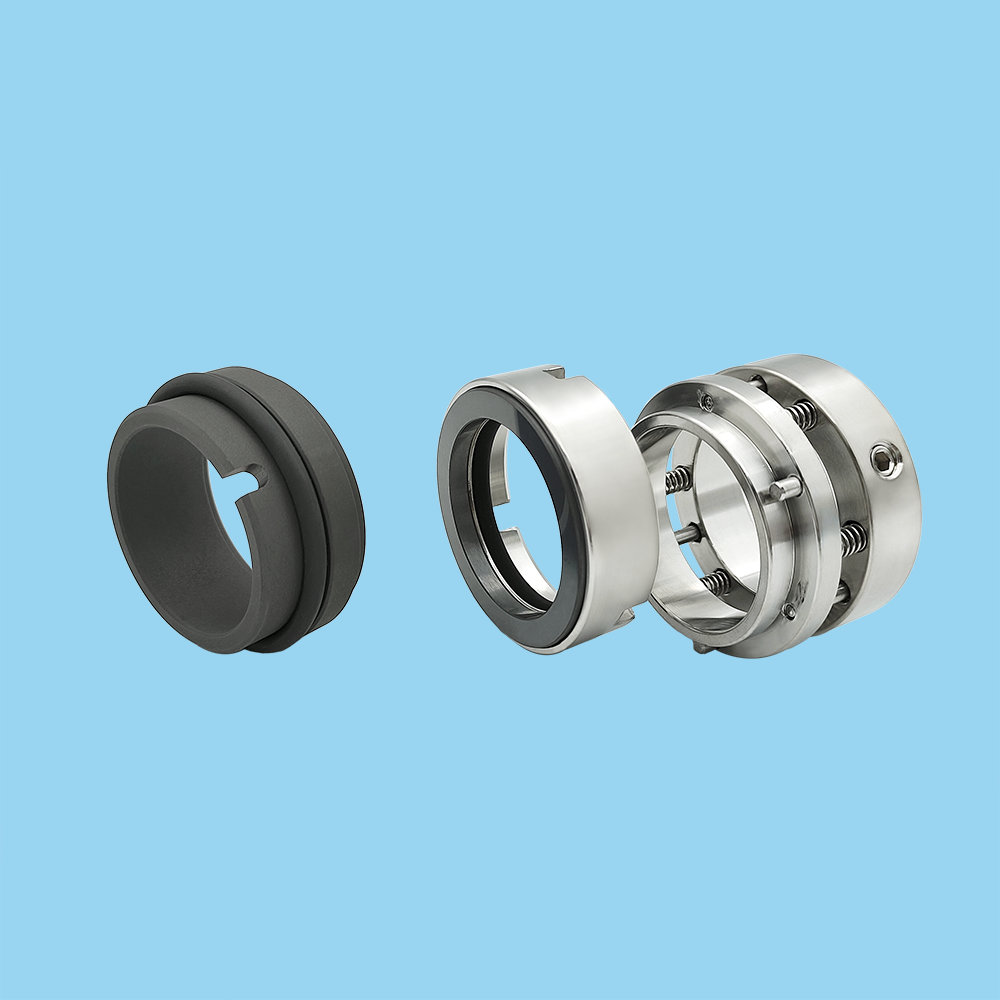

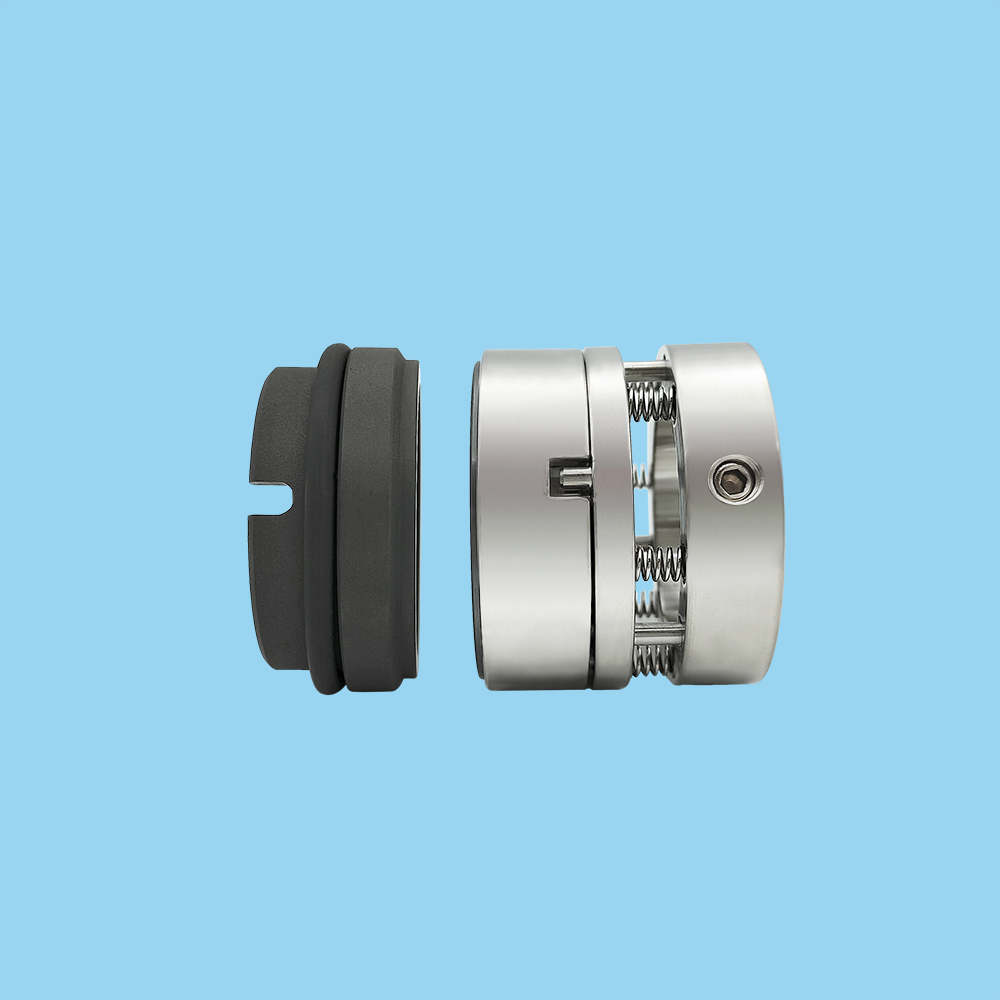

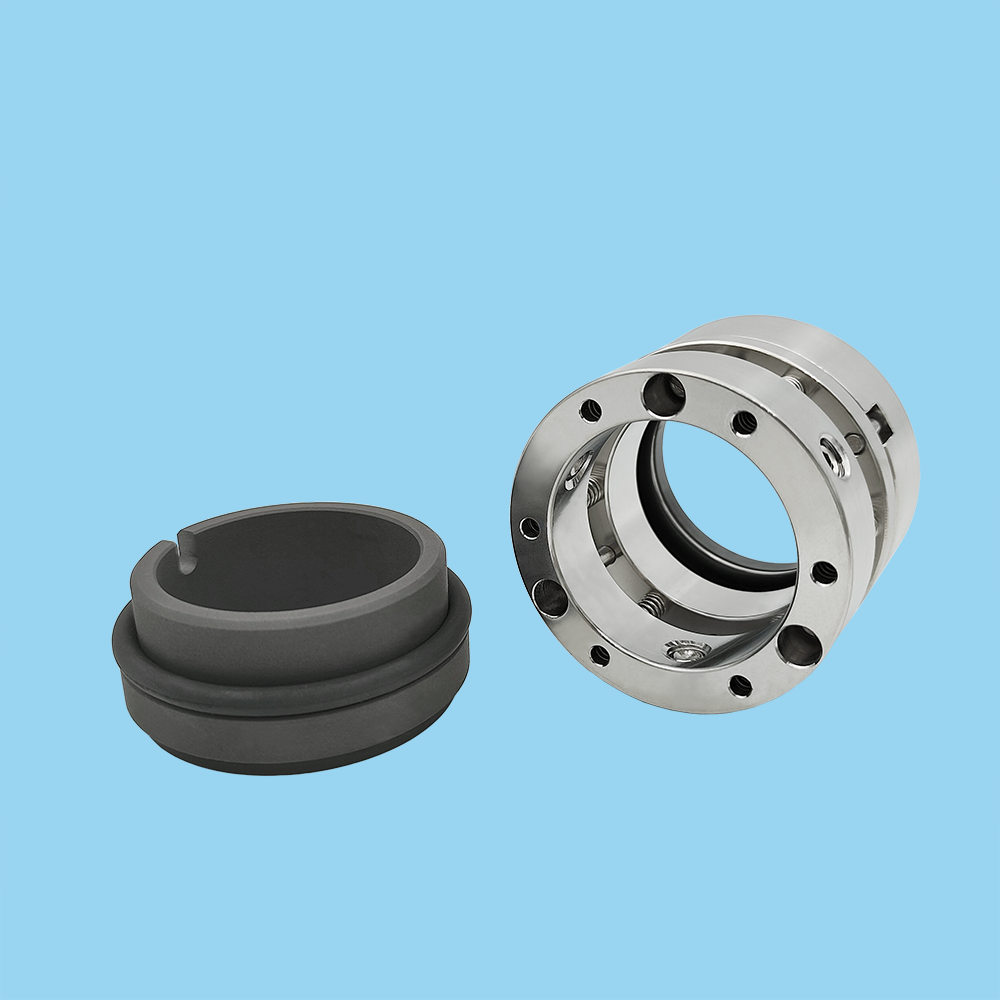

Combined Materials
Stationary Ring : Ceramic / Sic / TC
Rotary Ring: Carbon / Sic / TC
Secondary Seal : NBR / EPDM /Viton
Spring and Punched Parts: Stainless steel, SUS304, SUS316

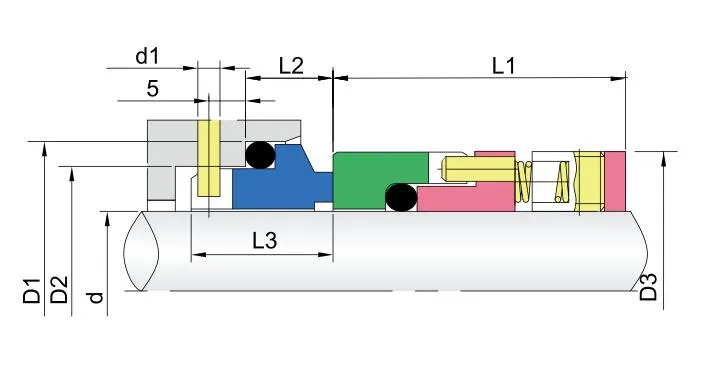

Seals Size d (inches)	D3	D2	D1	L1	L2	L3
20	34	29	35	35	13	21
22	36	31	37	35	13	21
24	38	33	39	35	13	21
25	39	34	40	35	13	21
28	42	37	43	35	13	21
30	44	39	45	35	13	21
32	46	42	48	35	13	21
33	47	42	48	35	13	21
35	49	44	50	35	13	21
38	54	50	56	38	13	21
40	56	52	58	38	13	21
43	59	55	61	38	13	21
45	61	57	63	38	13	21
48	64	60	66	38	13	21
50	66	62	68	39	13	21
53	69	65	71	40	13	21
55	71	67	73	40	13	21
58	76	70	79	41	16	24
60	78	72	81	41	16	24
63	81	75	84	41	16	24
65	83	77	86	41	16	24
68	86	81	90	41	16	24
70	90	83	92	42	16	24
75	95	88	97	42	16	24
80	100	96	105	42	16	24
85	105	101	110	43	16	24
90	110	106	115	45	16	24
95	115	111	120	45	16	24
100	120	116	125	45	16	24

We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port, also has a airport, its transportation is very convenient.

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

Question3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

Question4: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
