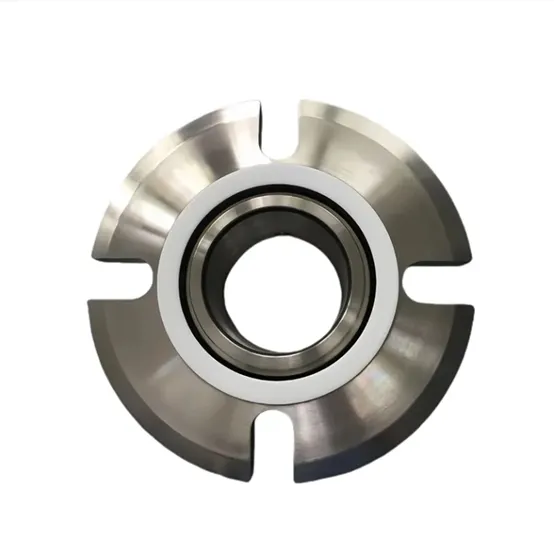

JOHN CRANE 5610 M67369 CARTRIDGE Mechanical Seal CAR/SC/VIT 1.25" STANDARD VTP

color: G60, 5610, 5610Q
material: SIC/SIC/V/304, SIC
style: 12mm, 1"-5.5"

Availability:
Quantity:
  • 5610/5610Q

  • TS

  • 8484200090

Overview


Key attributes

size

1"-5.5"

place of origin

Zhejiang, China

Brand Name

TS

model number

5610/5610Q

Application

Goulds Pump 3196

Analogue

John crane Crane 5610 AES: ACONII, CURC,   SCUSI, SMSS, CSSN, CSS, CURE

MG1S20, Vulcan 1520, AES BP02

IMO ACE 032 K2 xVxx IMO ACE 032 L1 xVxx   IMO ACE 032 L2 xVxx

Mechanische verzegeling selo

Garniture mecanique mekanika sigelo

IMO ACE 038 N1 A076 IMO

ACE 038 N2 xVxx ACE 038 N1 xVxx IMO ACE   038 N2 A076 IMO

Certificate

ISO9001, ISO14001 etc.

Factory-Direct/Manufacturer

Yes

Non-Standard Customization

Support

Quality Control

100% Control

Leadtime

Fast to Ship


Packaging and delivery

Selling Units

Single item

Single package size

20X20X20 cm

Single gross weight

40.000 KG


Lead time

Quantity (sets)

1 - 1

2 - 300

> 300

Lead time (days)

30

45

To be negotiated

Product Description

Product Description

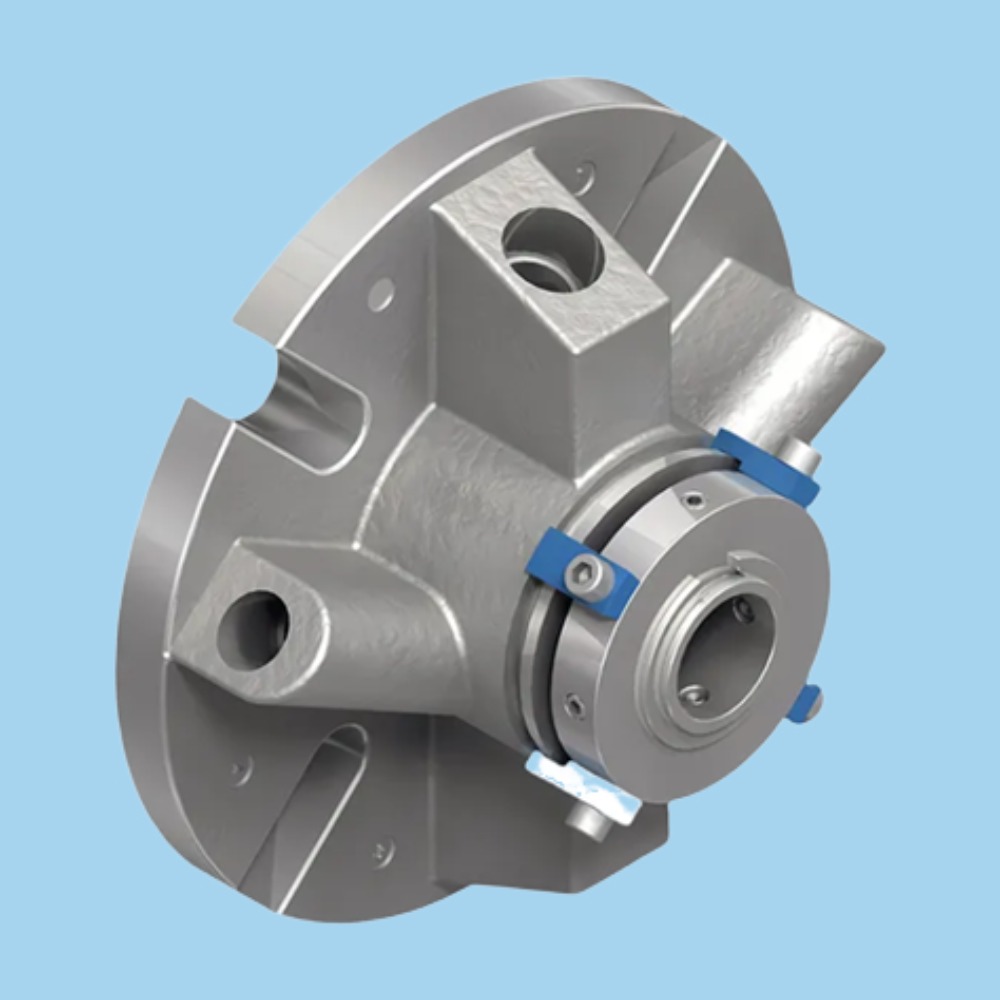

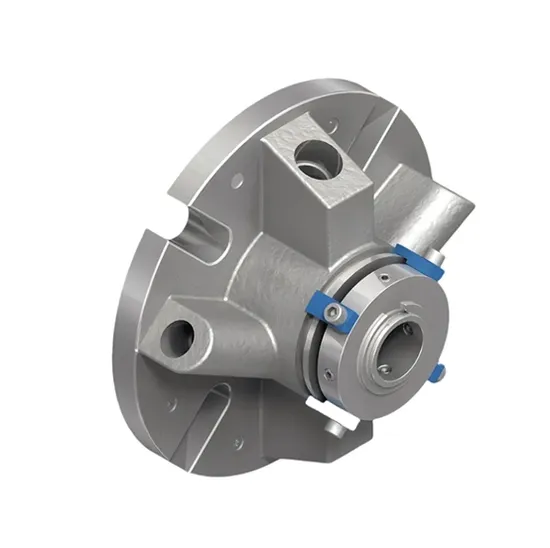

John crane cartridge seal Type 5610



Operating Limits
Temperature:-50---204℃

Speed:23m/s

Pressure:20bar

Standard Size:24-140mm or 1″-5.5″


Material:

Seal Ring:Car,Sic,Ssic,TC
Secondary seal:NBR,Viton,EPDM,Kalrez
Spring and metal parts:304,316,HAST.C


Possible Application:  Goulds 3196   Pump,

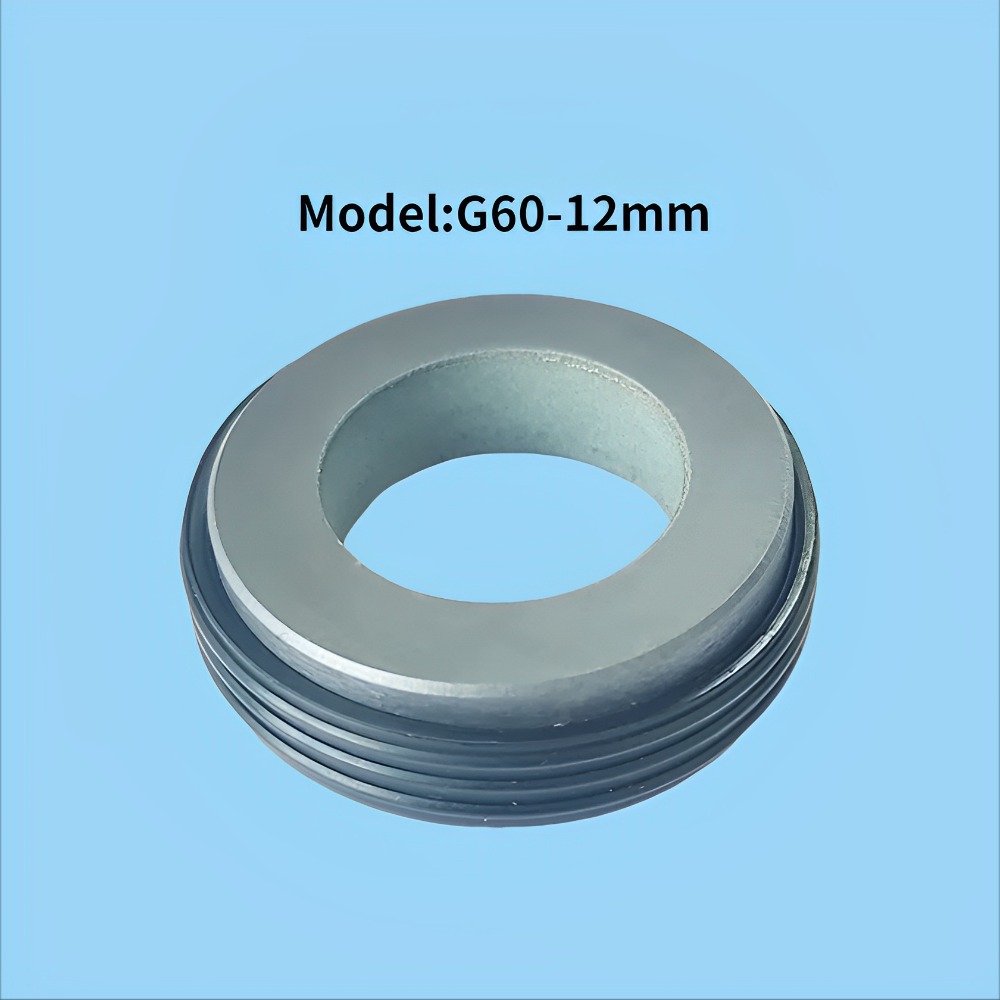

Note: Price $0.25-$0.27 is for G60-12,For   complete mechanical seal price, contact us to get it

Type 5610/5610Q Cartridge Drawing   Numbers Standard Bore Layouts

Seal Size  5610          5610Q
  1.000 H-SP-39543 H-SP-39545
  1.125 H-SP-37305 H-SP-37313
  1.250 H-SP-39554 H-SP-39556
  1.375 H-SP-37306 H-SP-37314
  1.500 H-SP-39564 H-SP-39566
  1.625 H-SP-39574 H-SP-39576
  1.750 H-SP-37307 H-SP-37315
  1.875 H-SP-37308 H-SP-37316
  2.000 H-SP-39584 H-SP-39586
  2.125 H-SP-37309 H-SP-37317
  2.250 H-SP-39594 H-SP-39596
  2.375 H-SP-39604 H-SP-39606
  2.500 H-SP-37310 H-SP-37318
  2.625 H-SP-37311 H-SP-37319
  2.750 H-SP-37312 H-SP-37320
  2.875 H-SP-39614 H-SP-39616

3.000 H-SP-39624 H-SP-39626

3.125 H-SP-41625 H-SP-41626
  3.250 H-SP-41630 H-SP-41631
  3.375 H-SP-41636 H-SP-41637

3.500 H-SP-41641 H-SP-41642
  3.625 H-SP-41646 H-SP-41647
  3.750 H-SP-41651 H-SP-41652
  3.875 H-SP-41954 H-SP-41955
  4.000 H-SP-41656 H-SP-41657
  4.125 H-SP-41661 H-SP-41662
  4.250 H-SP-41664 H-SP-41666
  4.500 H-SP-41668 H-SP-41669
  4.750 H-SP-41671 H-SP-41672
  5.000 H-SP-41674 H-SP-41675
  5.250 H-SP-41677 H-SP-41678
  5.500 H-SP-41680 H-SP-41681

  Type 5610/5610Q Cartridge Drawing Numbers Oversize Bore Layouts
  Seal Size   5610       5610Q
  1.375 H-SP-38057 H-SP-38058
  1.750 H-SP-38067 H-SP-38068
  1.875 H-SP-38077 H-SP-38078
  2.125 H-SP-39034 H-SP-39035
  2.500 H-SP-39007 H-SP-39008
  2.625 H-SP-38087 H-SP-38088
  2.750 H-SP-39017 H-SP-39018

Mechanical Seal Listed Below is also   available, contact us to get details

John Crane: 5610, 5610Q, 5611, 5611Q,   4610, SB1, B1A, 1648, T5860
  Burg-mann: HRC-N, UNITEX, Car-tex, TSK1, Car-tex-QN
  Flowserve: ISC1BX, ISC1EX, ISC1PX, D, DP, DQ, DX, DZ, QB, UC
  AES: ACONII, CURC, SCUSI, SMSS, CSSN, CSS, CURE
  Chesterton: 155, 156, 180, Z-F, S10, 150, 170
  Safematic: Safeseal SE2-AP-60-305145, SE2-A-50-QRMG for Sulzer pumps AHLSTAR   APP4, APP3

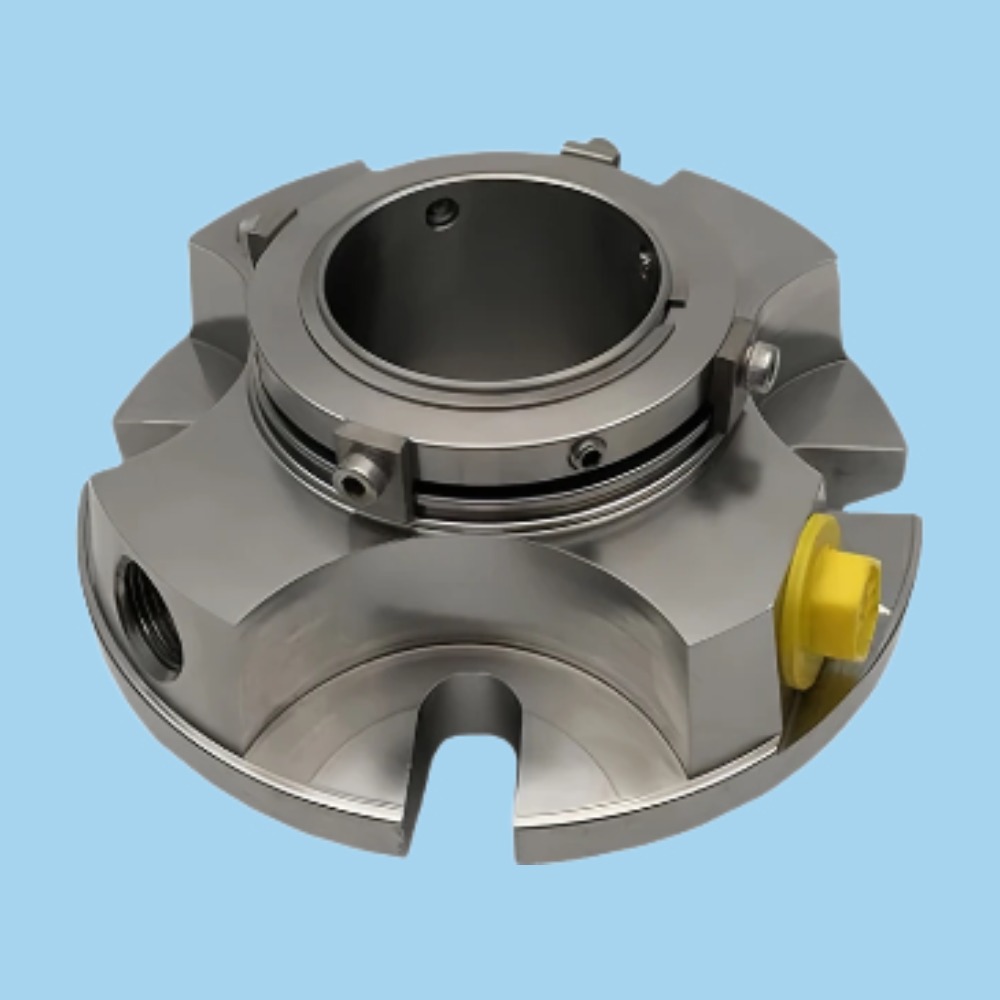

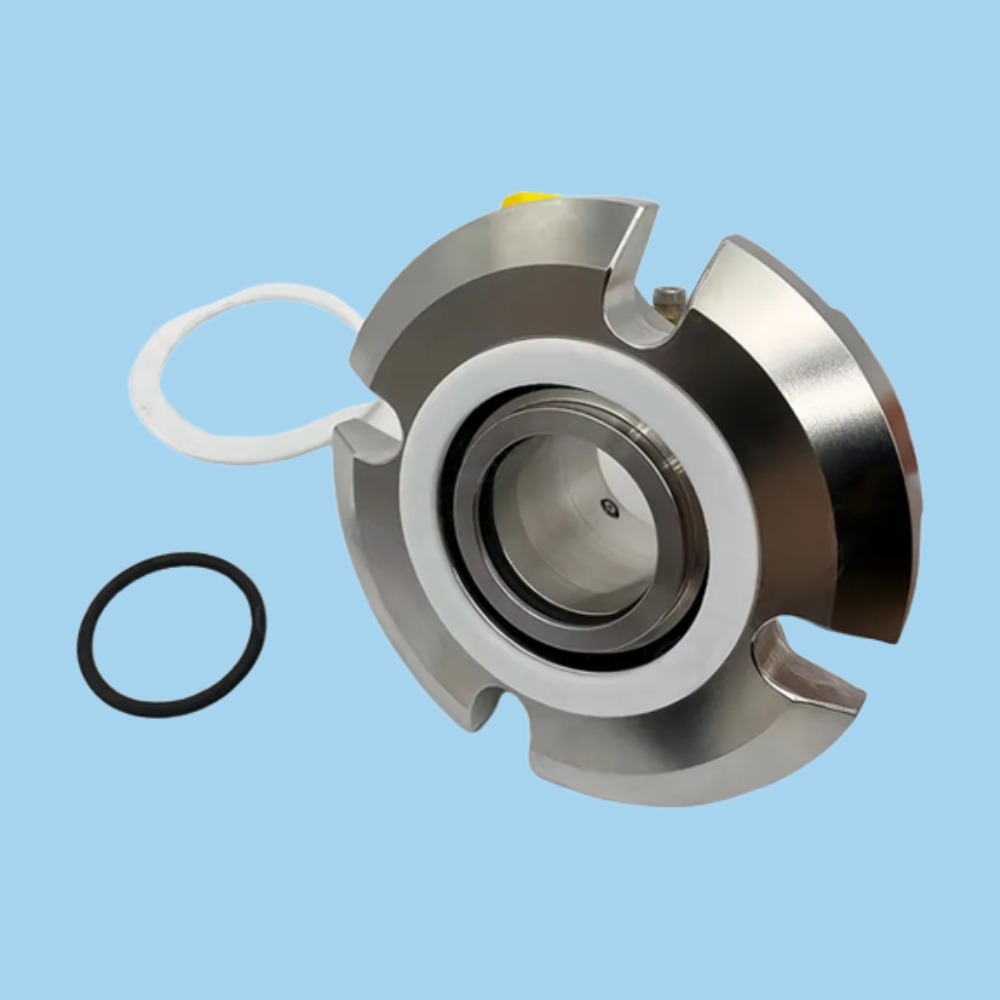

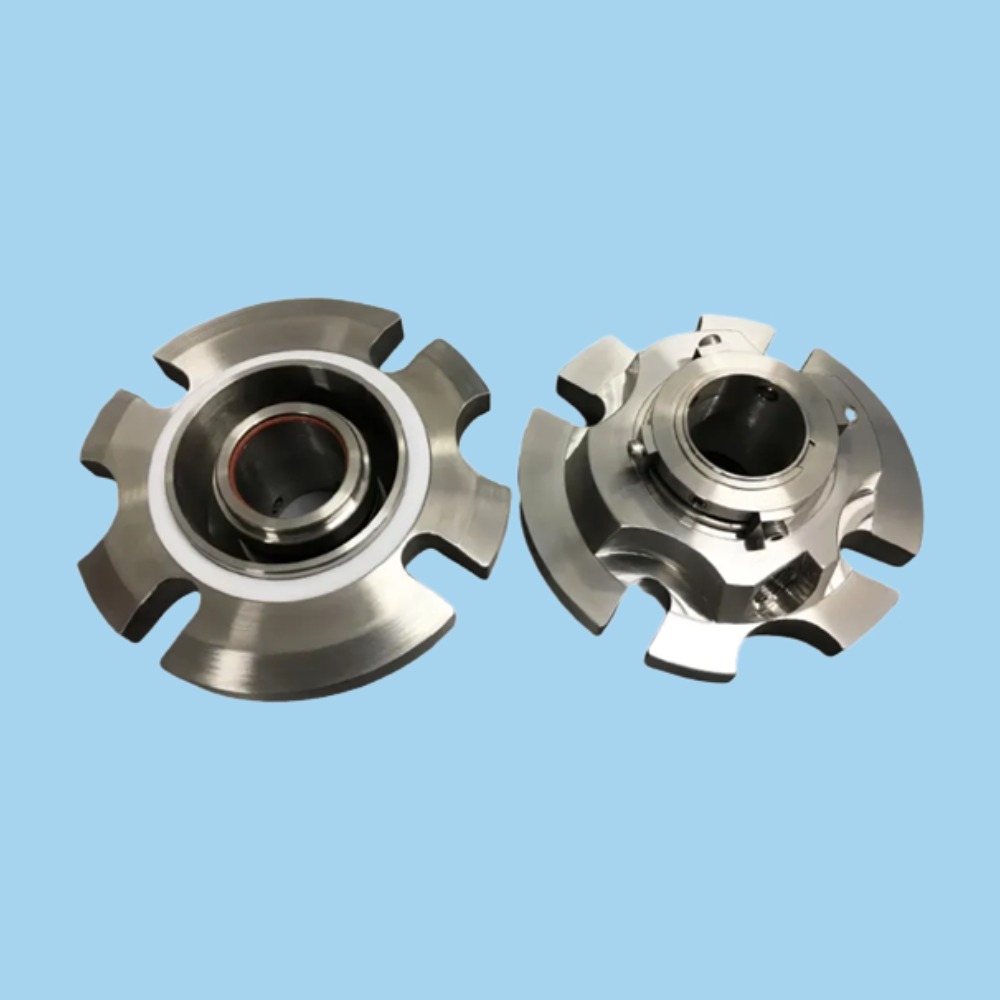

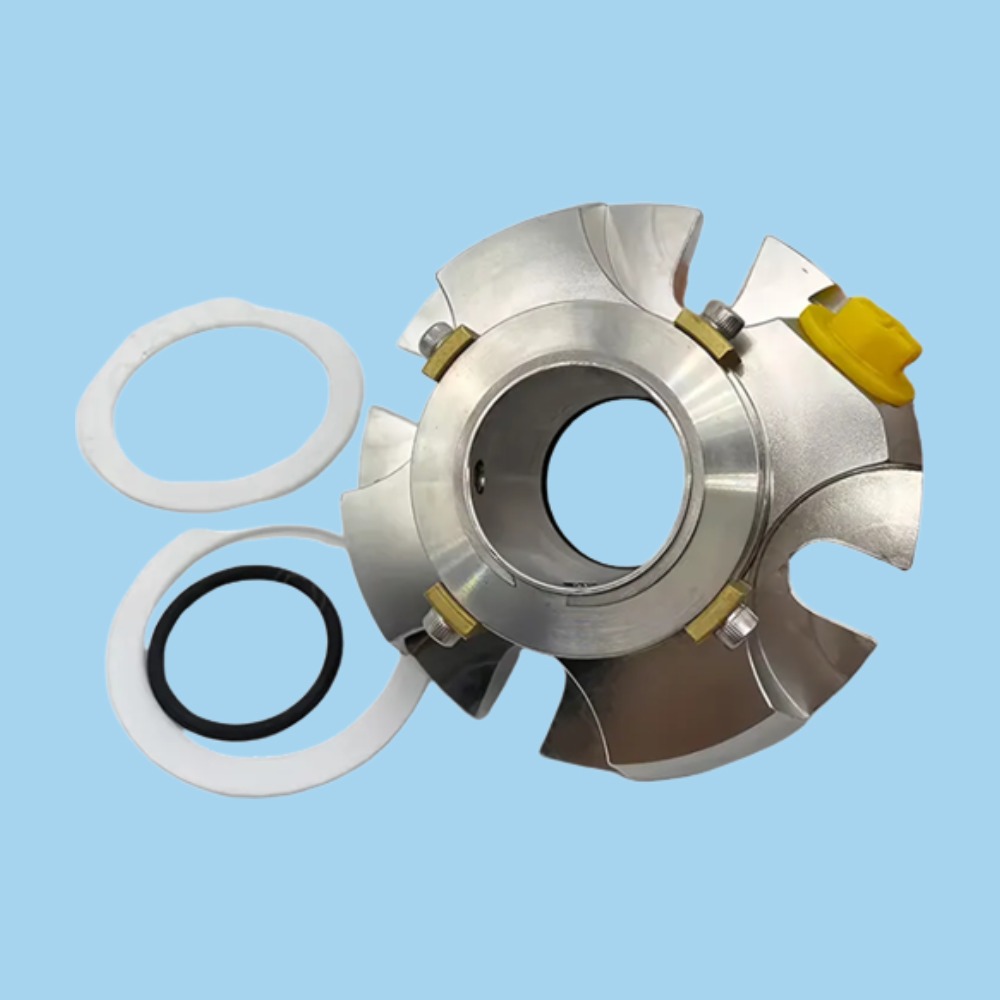

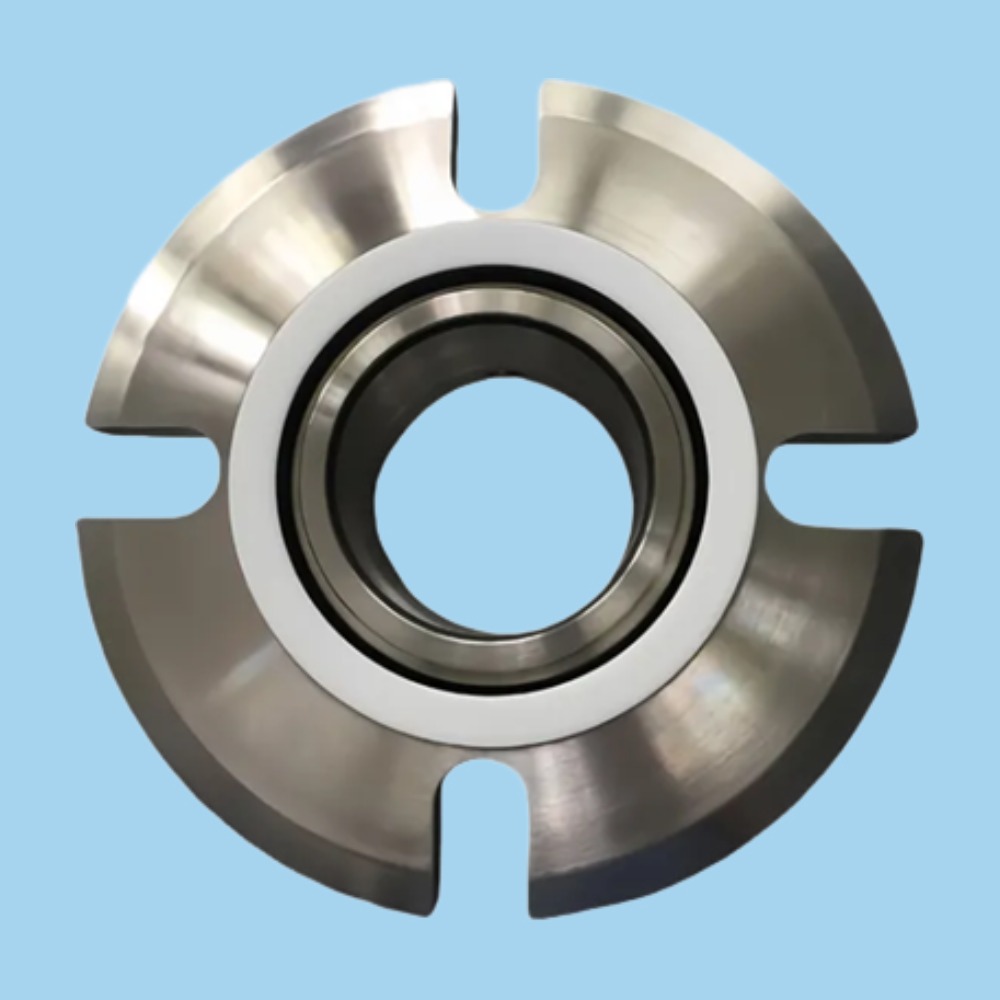

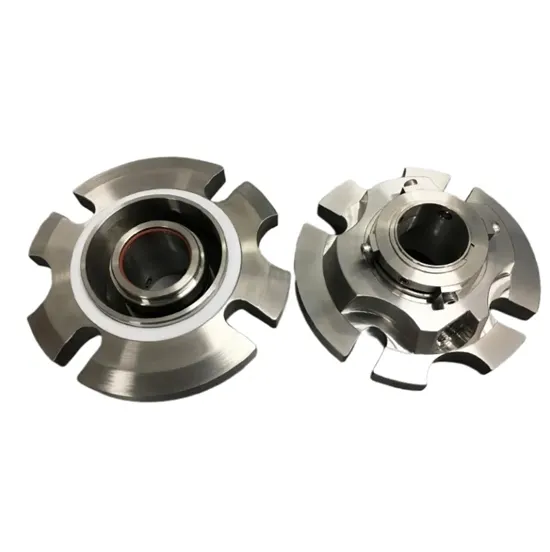

Detailed Photos

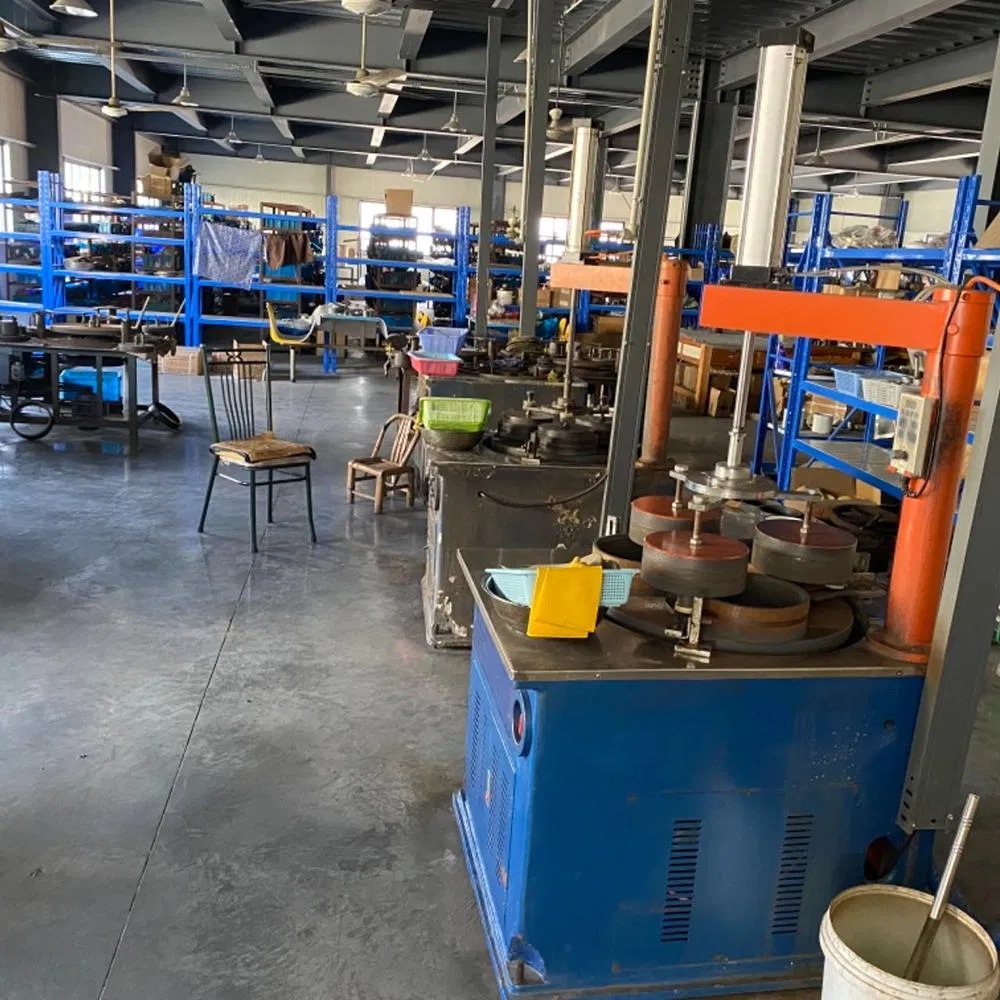

Production Factory

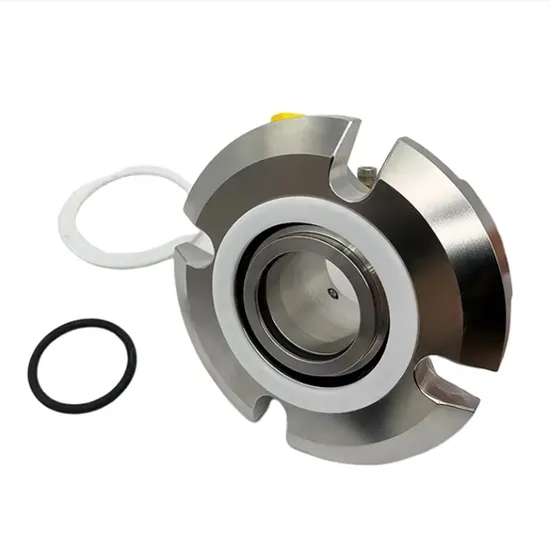

JOHN CRANE 5610 M67369 CARTRIDGE Mechanical Seal CAR/SC/VIT 1.25" STANDARD VTP

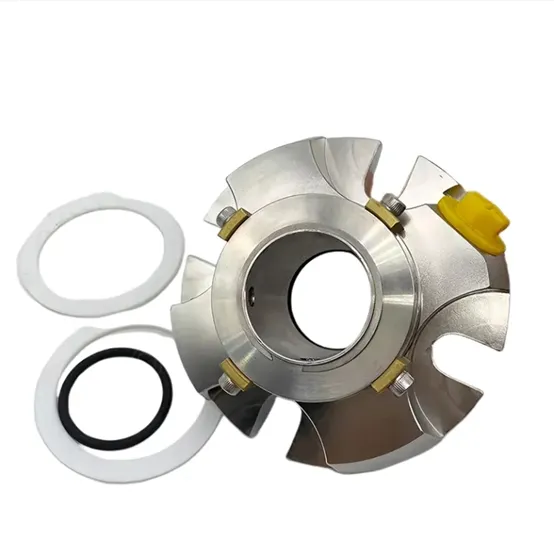

JOHN CRANE 5610 M67369 CARTRIDGE Mechanical Seal CAR/SC/VIT 1.25" STANDARD VTP


Our Advantages

We have large stock, so our delivery  is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang  Province,China.
Our city has a large port and an airport, so its transportation is very convenient.

Packaging & Shipping

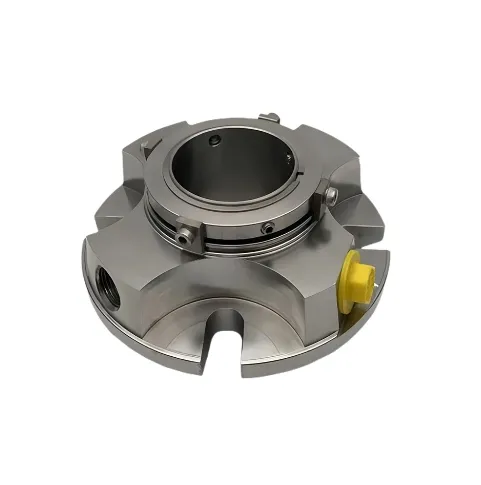

JOHN CRANE 5610 M67369 CARTRIDGE Mechanical Seal CAR/SC/VIT 1.25" STANDARD VTP
JOHN CRANE 5610 M67369 CARTRIDGE Mechanical Seal CAR/SC/VIT 1.25" STANDARD VTP



FAQ

Question 1: Are you a factory or a trade company?
Answer:  We are a factory and have our top sales for the trade service.

Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

Question3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

Question4: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

Question5: Can I try to get a SAMPLE before the order?
Answer:  Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
