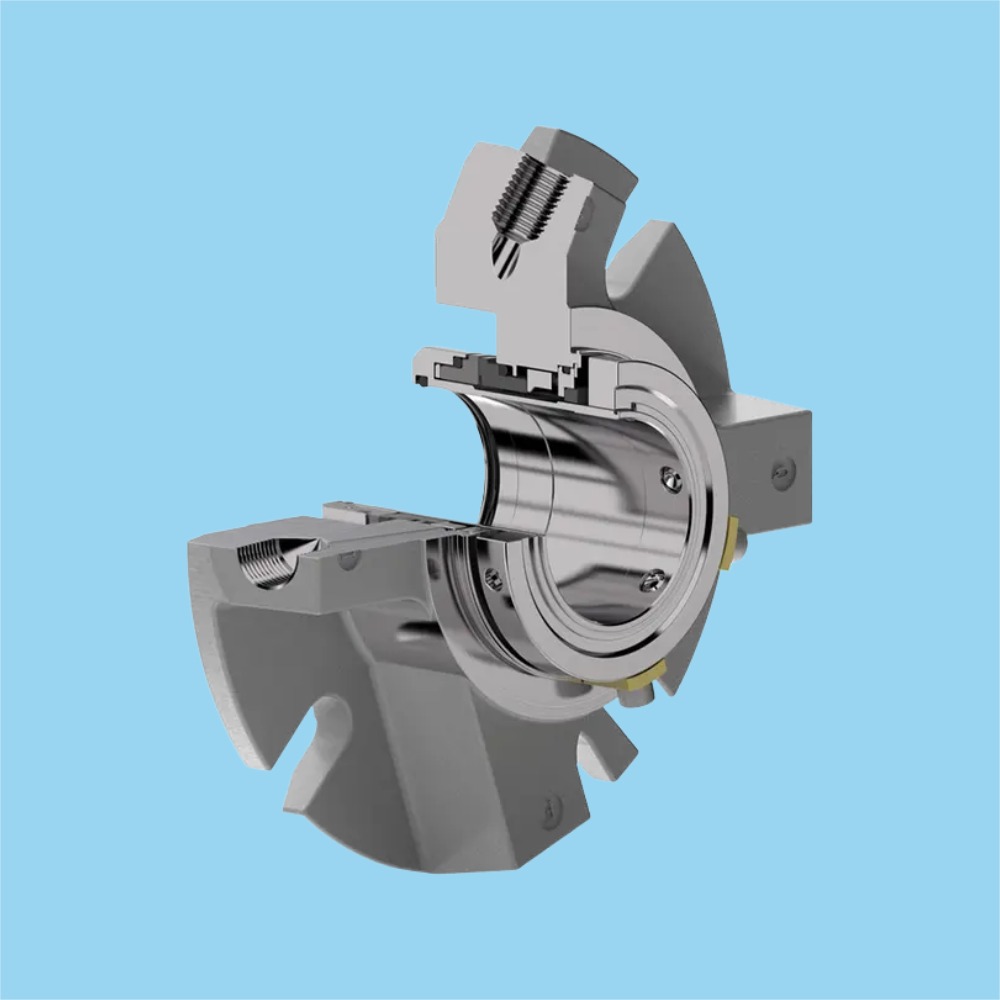

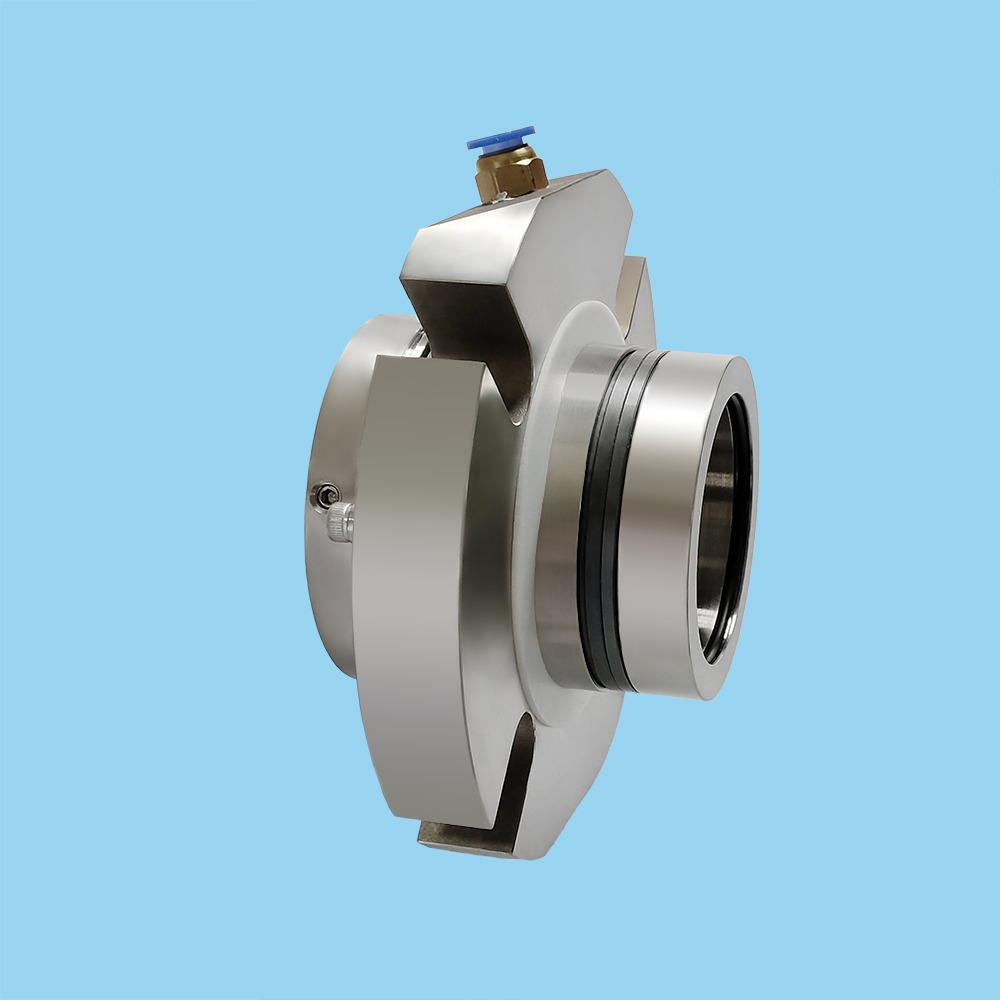

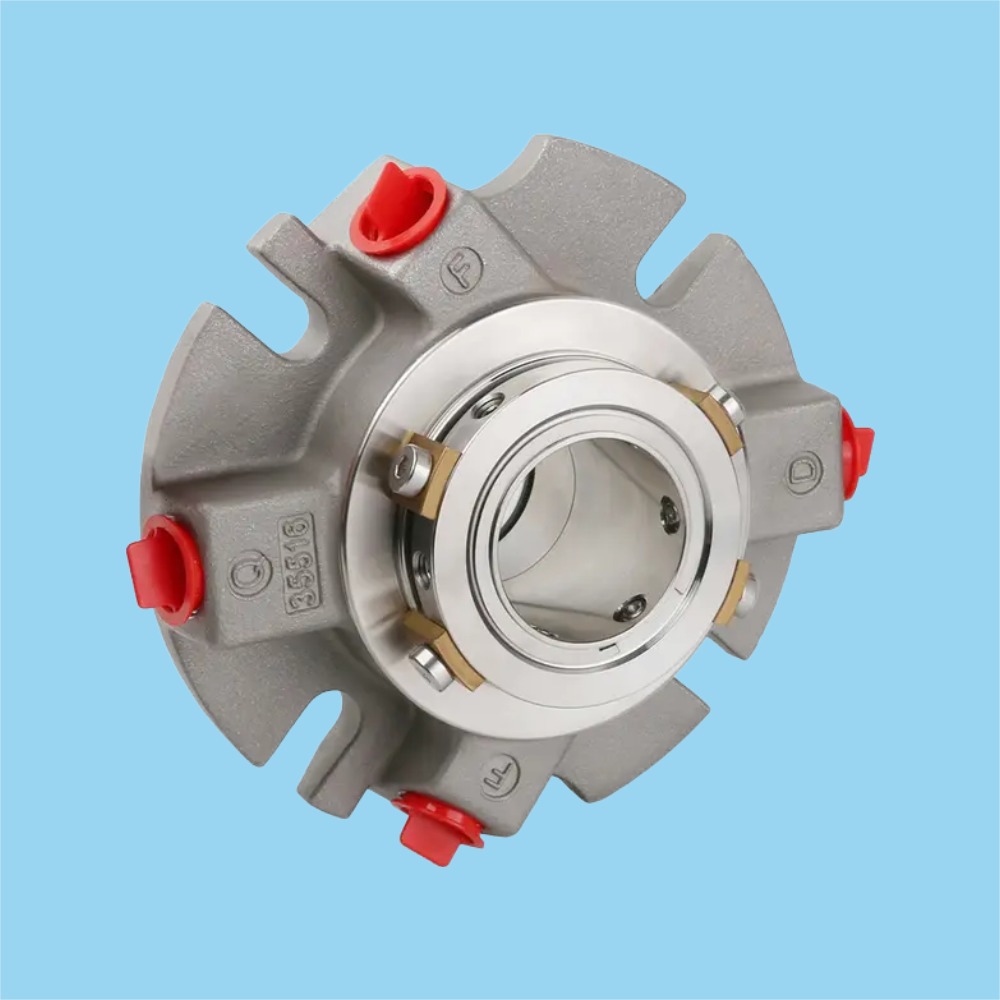

GSMA Single Cartridge Mechanical Seal for Chemical Pumps

Key Features

• Suitable for ANSI standard chambers.

• Complies with ASME B73.1 and B73.2 standard pump chamber dimensions lModular cartridge design.

• Equipped with Flush, Quench & Drain environmental ports.

• Higher pressure limit: up to 25 bar maximum pressure

• Equipped with a large diameter 3/8 "interface for shaft diameters above 35 to maximize cooling effectiveness

• Standard design with throttling liner, suitable for flushing schemes such as API 11/21/31/32/61/62.

• Dimensions range from 1.375 "to 3.625" (34.9mm to 66.67mm).

• Can replace 5610,CSSN CARTEX-ASQN.

Specifications

GSMA
Temperature	-20° C to +160° C
Pressure	0〜25 Bar
Speed	Up to 25 m/s
Sealing product	Acid,alkaline, low percentage of pulp, water, oil and other similar media.

Material Arrangement
Seal faces	SSIC/CARBON/TC
Rubber	EPDM/ FKM /Aflas/ Kalrez
Springs	ALLOY 276
MetaI	316SS/DUPLEX/ALLOY 276/904L

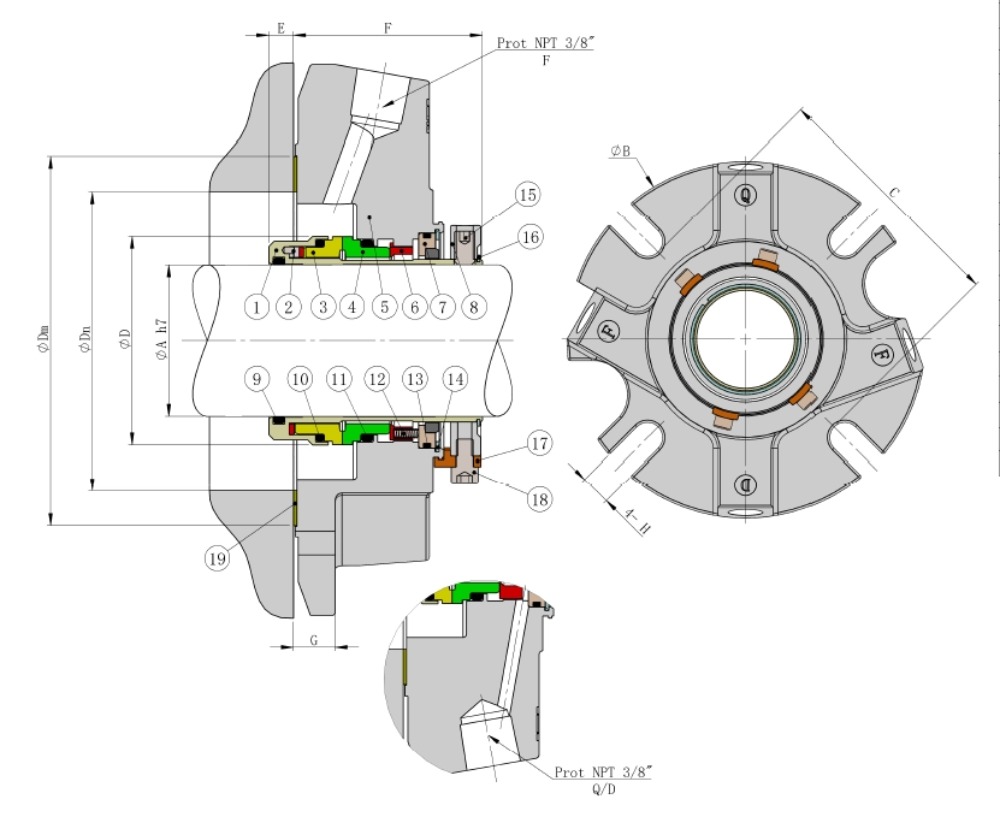

Assembly Chart

   We have large stock, so our delivery  is very fast.
   For example,if products are standarded, the delivery time is one week.
   Our company and factory addrss: Ningbo City, Zhejiang  Province,China.
   Our city has a large port and an airport, so its transportation is very convenient.

   Question 1: Are you a factory or a trade company?
   Answer:  We are a factory and have our top sales for the trade service.

   Question 2: What is the minimum order quantity for each order?
   Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

   Question 3: What is your company's service tenet?
   Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

   Question 4: What are the prices of your products?
   Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

   Question 5: Can I try to get a SAMPLE before the order?
   Answer:  Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
