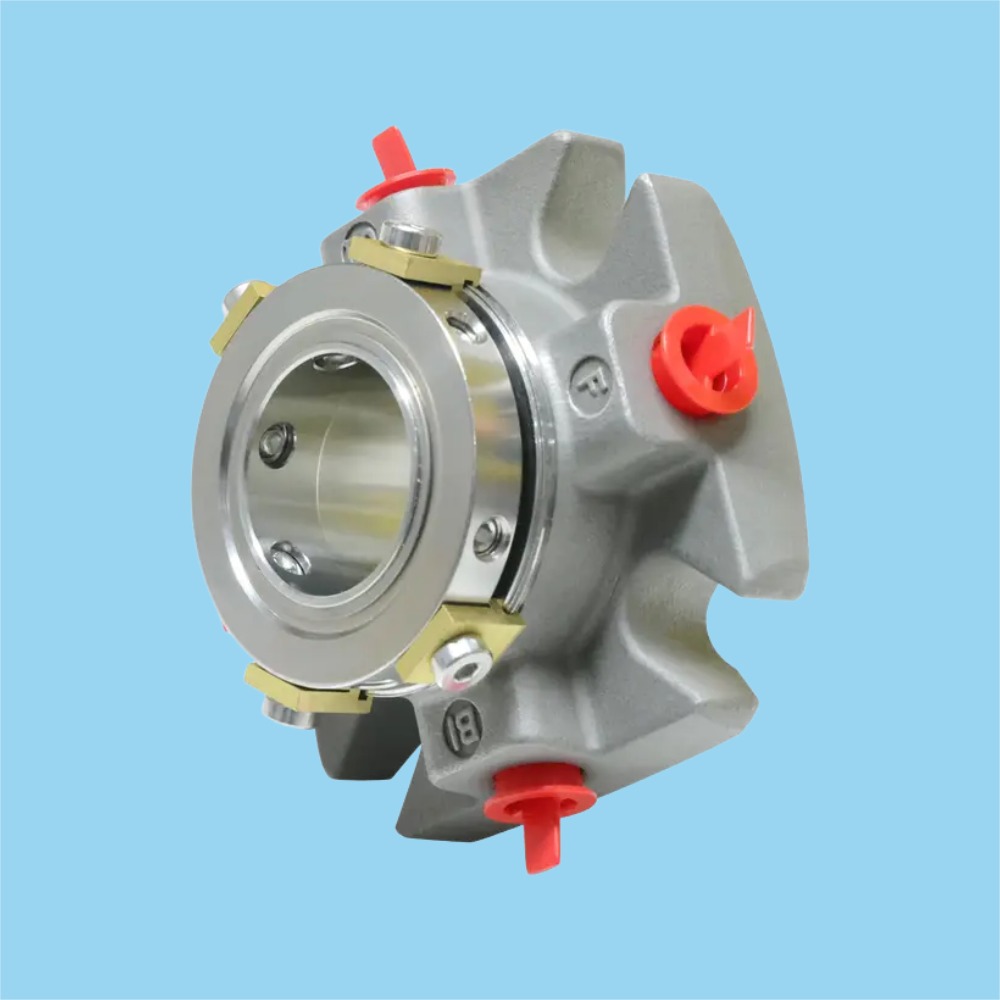

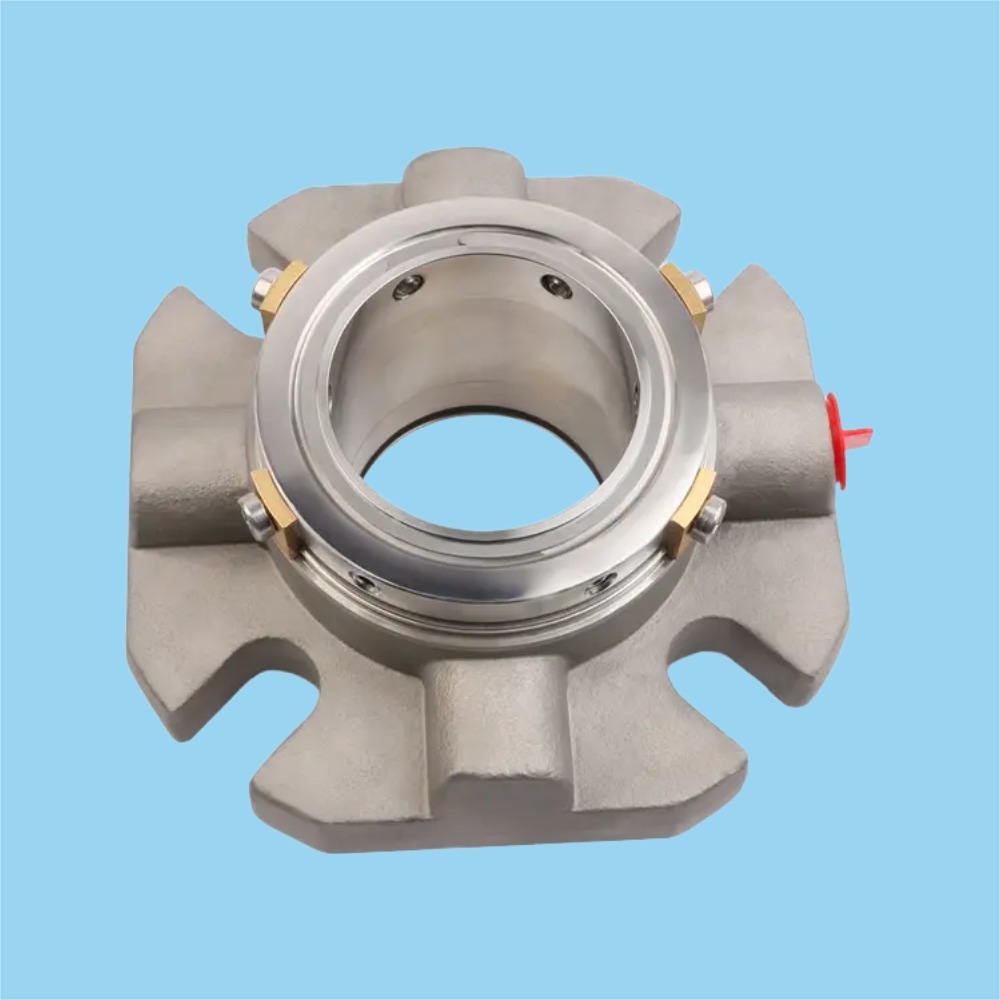

GSM Single Cartridge Mechanical Seal for Chemical Pumps

Key Features

• Applicable to ISO2858 standard chambers and other compact chambers .

• Static ring compensation sealing end face technology.

• The integral structural design of the sealing ring improves stability in high temperature and high pressure conditions.

• The sealing ring drive has a large contact area to prevent damage to the sealing ring caused by equipment startup and shutdown in viscous liquids.

• Higher temperature limit, maximum temperature resistance of 160 ℃, no issues such as ring shedding and end face displacement caused by inlay process.

• Modular cartridge design, provide high performance sealing solutions for chemical applications .

• Equipped with Flush, Quench & Drain environmental ports .

• Sizes range from 1.000 "to 4.000" (24mm~100mm).

• Can replace 5610Q,SMSS, CARTEX-QN/TN.

Specifications

GSM
Temperature	-20° C to +160° C
Pressure	0〜25 Bar
Speed	Up to 25 m/s
Sealing product	Acid,alkaline, low percentage of pulp, water, oil and other similar media.

Material Arrangement
Seal faces	SSIC/CARBON/TC
Rubber	EPDM/ FKM /Aflas®/ Kalrez®
Springs	ALLOY 276
MetaI	316SS/DUPLEX/ALLOY 276/904L

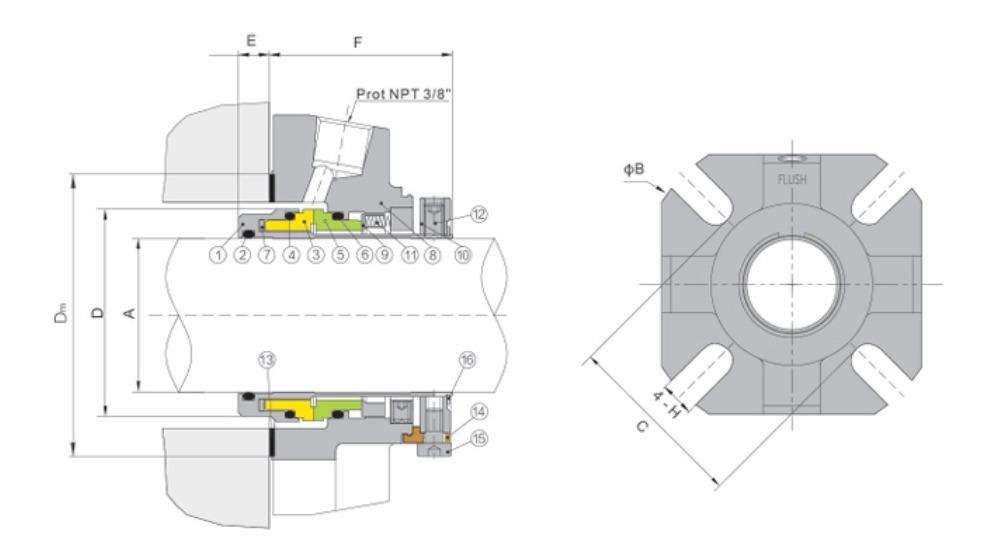

Assembly Chart

   We have large stock, so our delivery  is very fast.
   For example,if products are standarded, the delivery time is one week.
   Our company and factory addrss: Ningbo City, Zhejiang  Province,China.
   Our city has a large port and an airport, so its transportation is very convenient.

   Question 1: Are you a factory or a trade company?
   Answer:  We are a factory and have our top sales for the trade service.

   Question 2: What is the minimum order quantity for each order?
   Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

   Question 3: What is your company's service tenet?
   Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

   Question 4: What are the prices of your products?
   Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

   Question 5: Can I try to get a SAMPLE before the order?
   Answer:  Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
