Elastomer O Ring Mechanical Shaft Seal 8-1T Multi Spring Mechanical Seal

Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components are held togther by a snap ring in a unized construction design and can be repaired easily on-site.

High Quality Multiple Spring O-ring Mechanical Seals

Description:

Replacement to:

John Crane 8-1T seal

Aesseal M05S seal

Sterling 294S seal

1. Operational Conditions:
Temperature: -20ºC to +180ºC
Pressure: ≤2.5MPa
Speed: ≤15m/s
2. Materials:
Stationary Ring: Ceramic, Silicon Carbide, TC
Rotary Ring: Carbon, Silicon Carbide
Secondary Seal: NBR, EPDM, FKM, PTFE
Spring and Metal Parts: Steel
3. Seat Type:
Standard: JR16
Alternative: JR22
4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

Operational Conditions:
Temperature:	-20ºCto+180ºC
Pressure:	≤2.5MPa
Speed:	≤15m/s
Materials:
Stationary Ring:	V1,Q1,Q2,U2
Rotary Ring:	B,A,Q1,Q2
Secondary Seal:	P,E,V,M1,M2
Spring and Metal Parts:	F,G,M
Seat Types:
Standard:	JR16
Alternative:	JR22
Applications:	Clean water, sewage water, Oil and other   moderately corrosive fluids

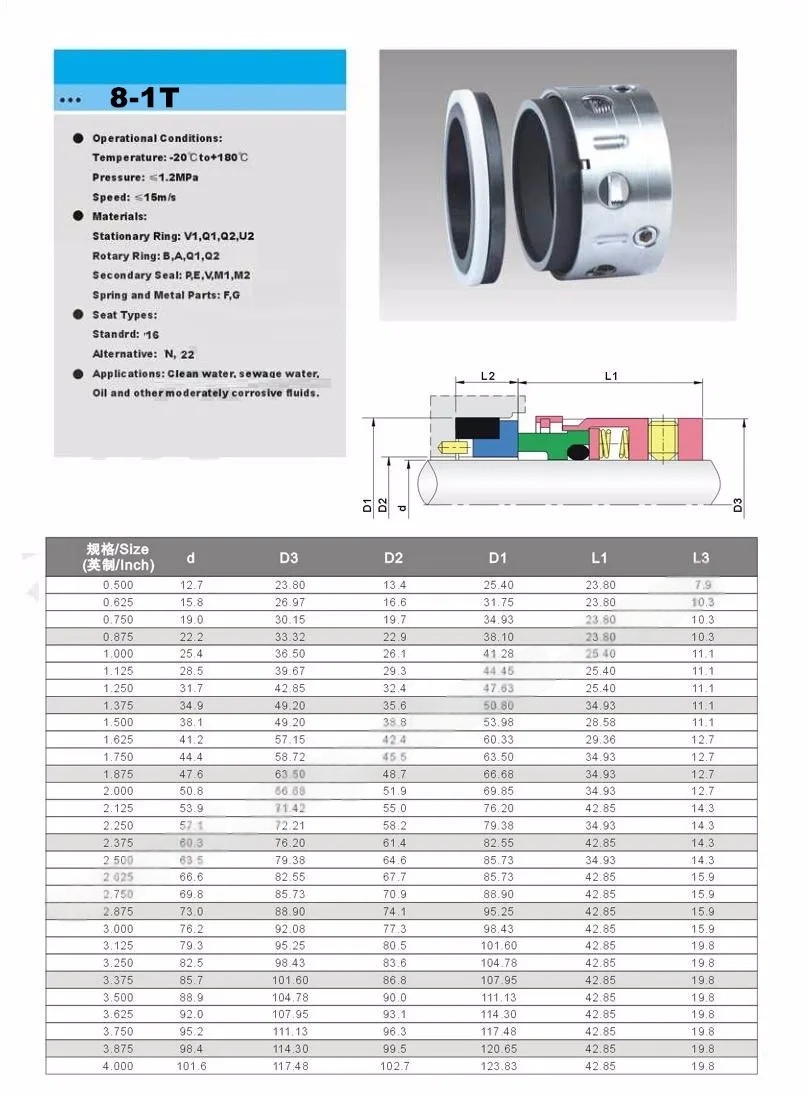

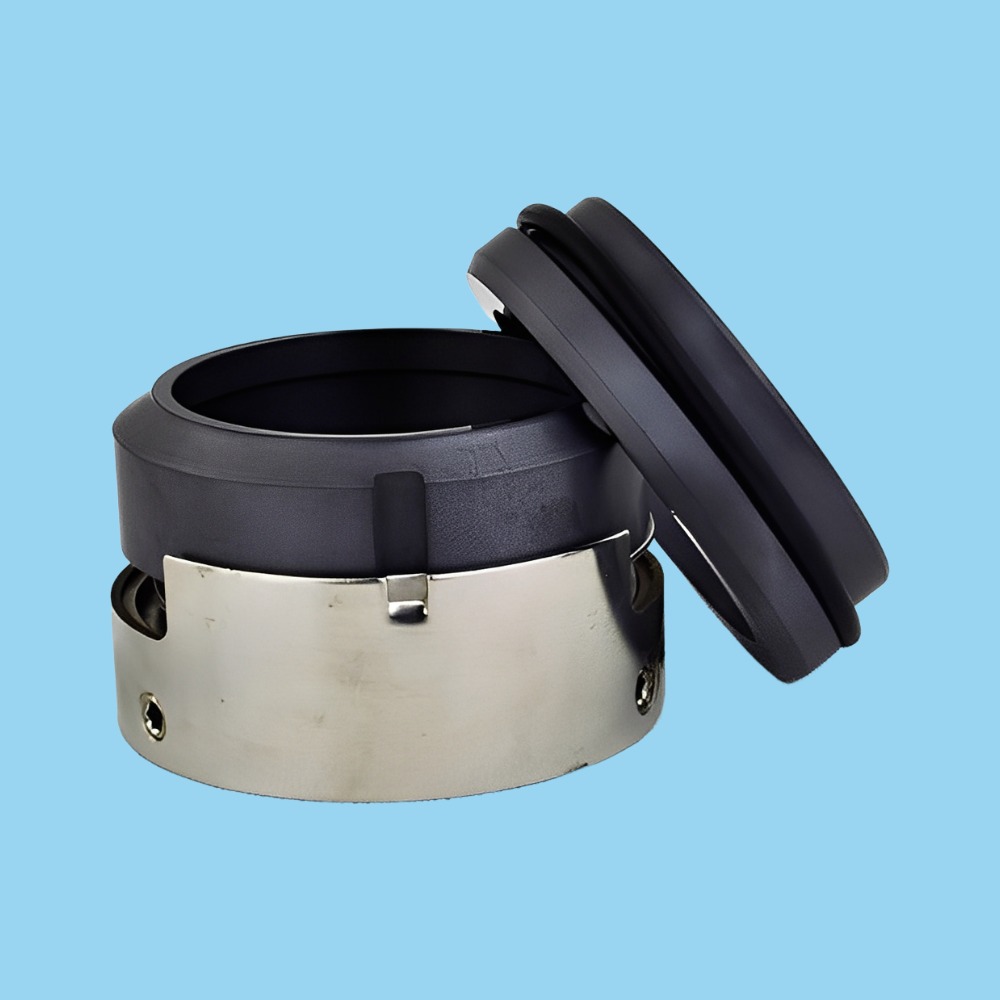

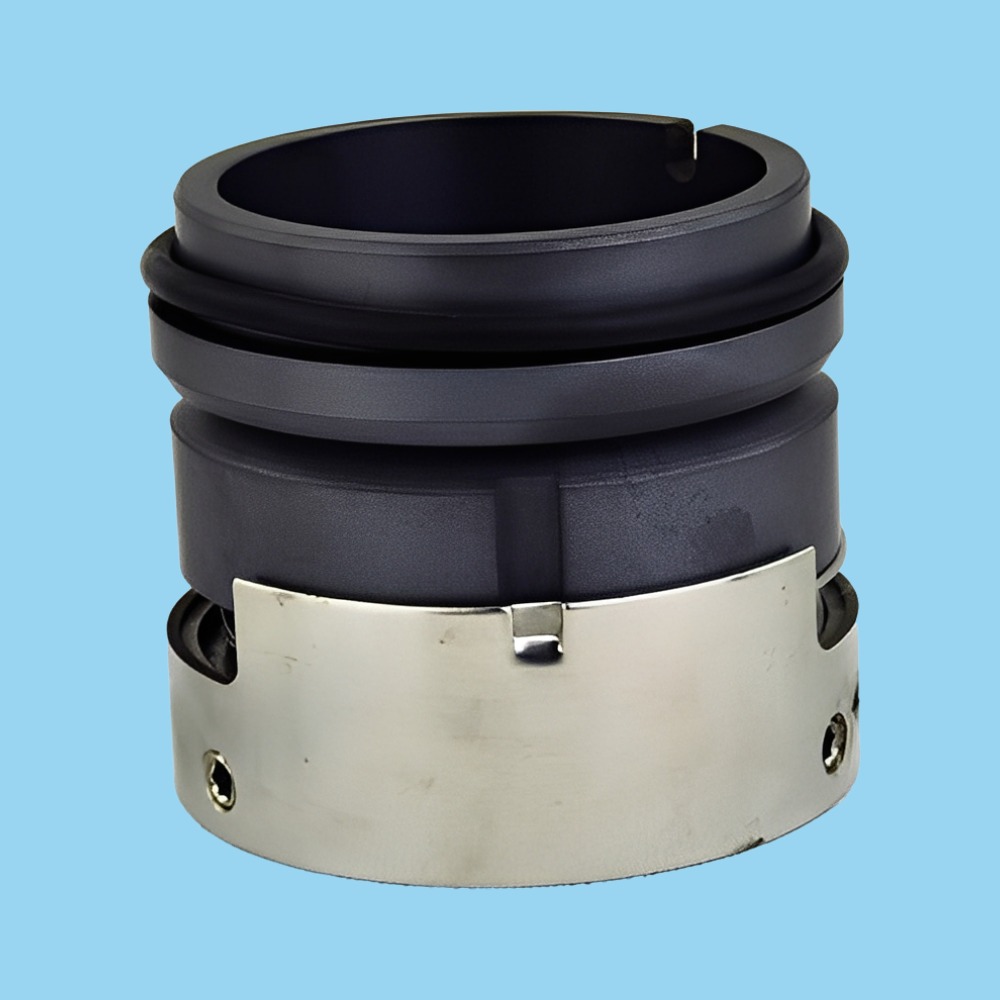

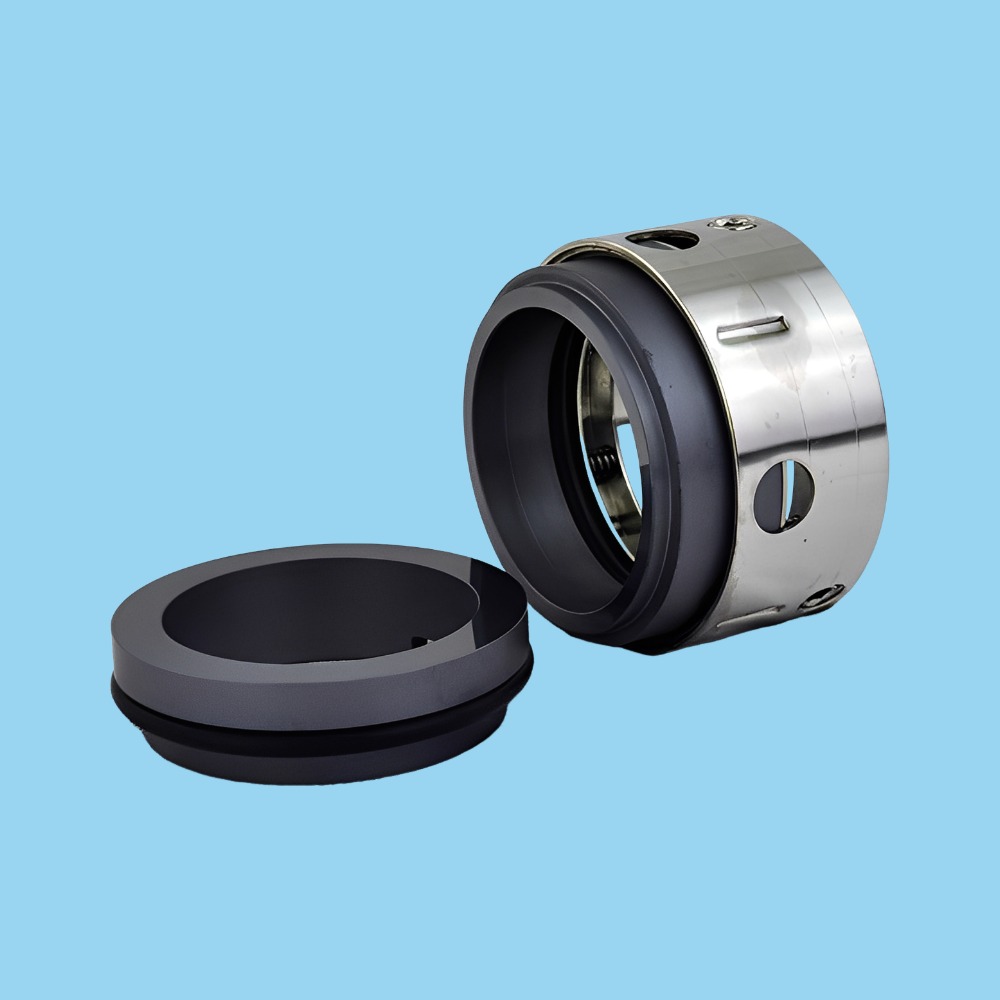

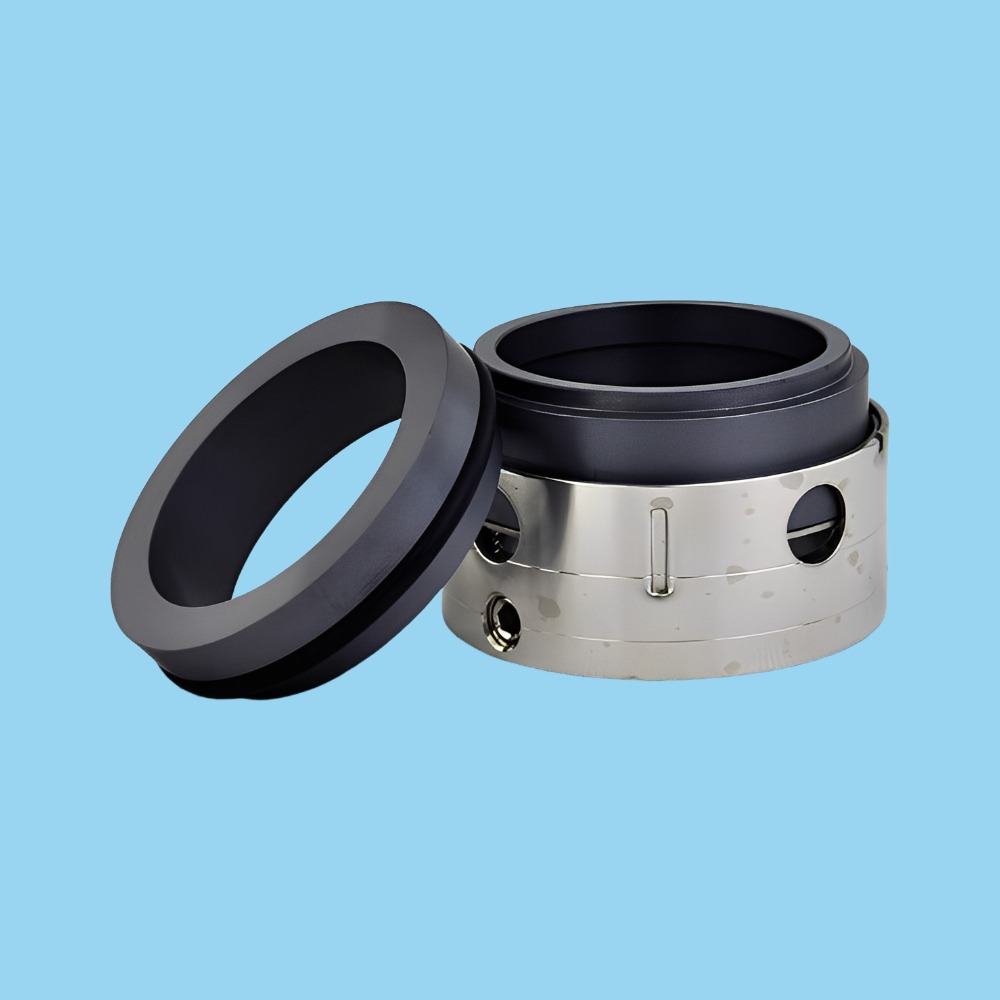

Detailed Photos
