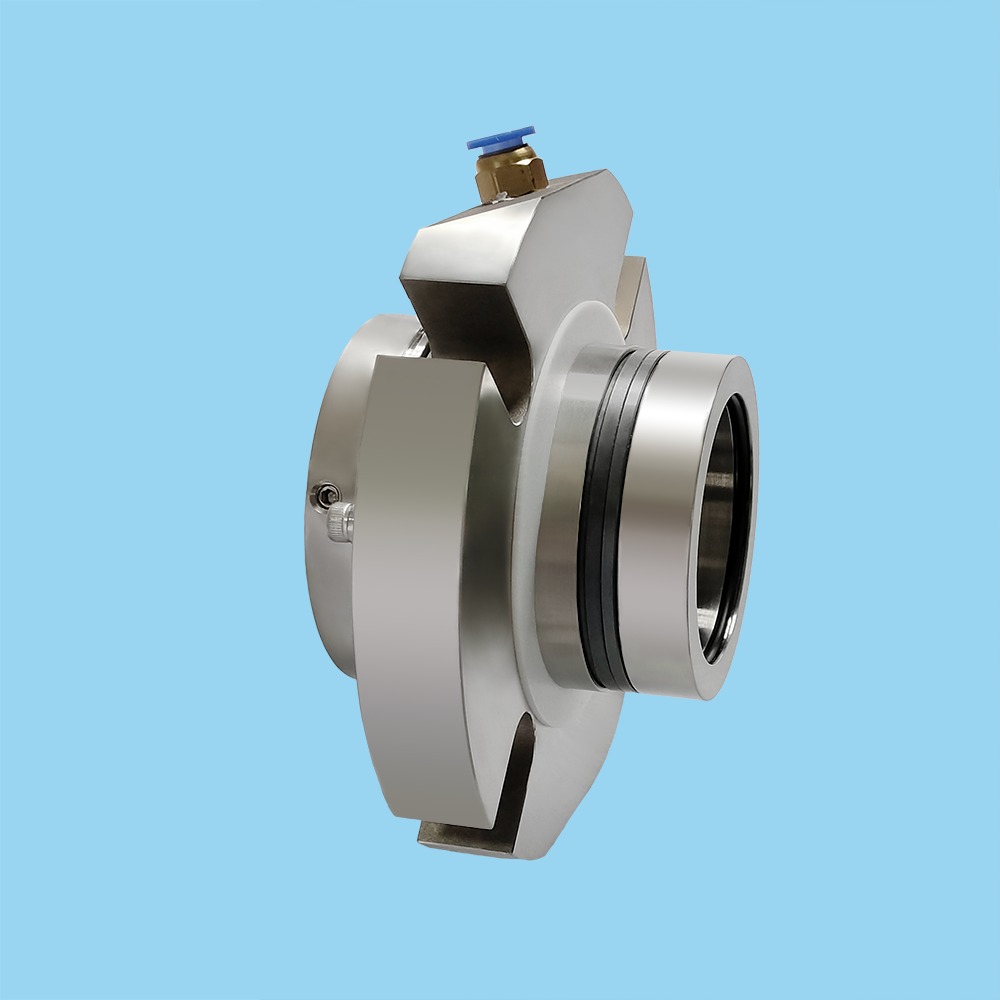

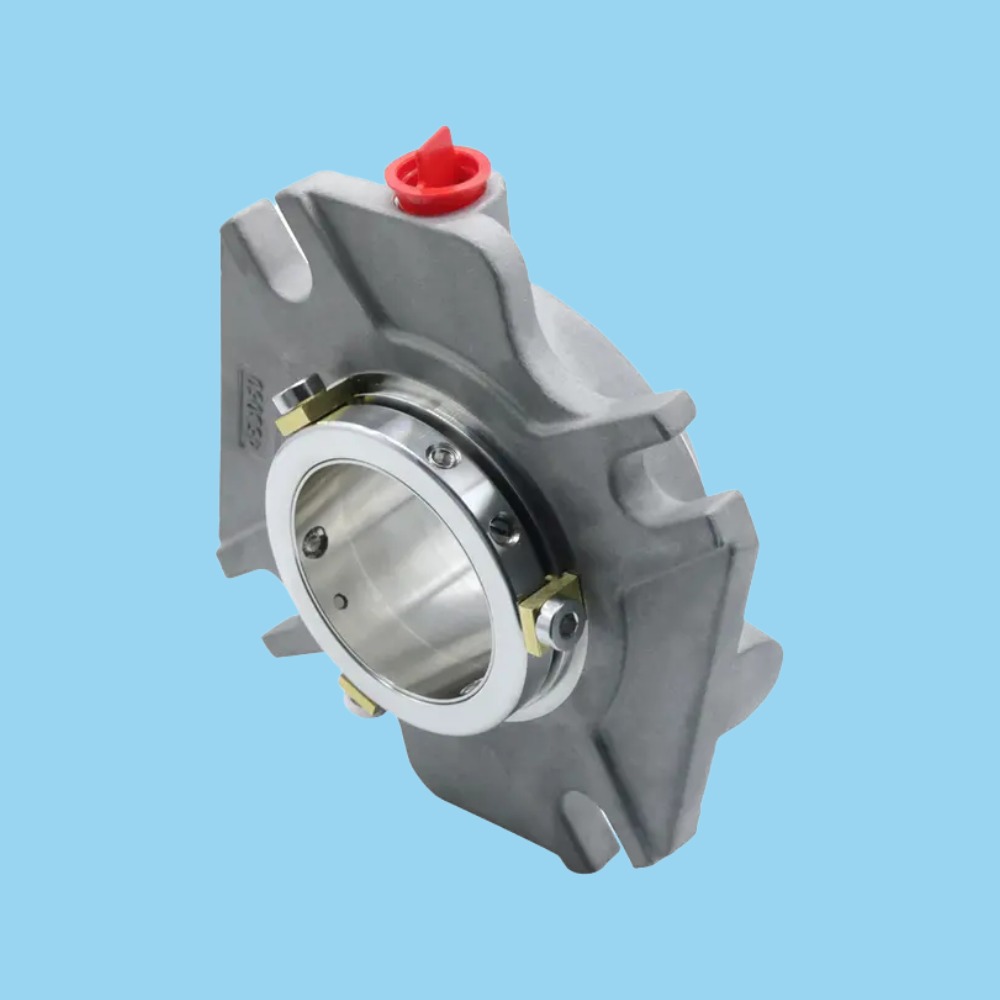

ESMH Single Cartridge Mechanical Seal

Key Features

● Standard 4 bolts gland designed for ISO 2858 pump.

● Sealing suitable for Sulzer® AHLSTAR pump chamber

● Modular containerized design, suitable for general working conditions

● Front end equipped with impeller lining ring.

● Sizes range from 30, 40, 50, 60, and 80.

● Suitable for plan 11/21/32.
● Can replace SE1,TB1.

Specifications

Operating Conditions
Temperature	-20°C to +120°C
Pressure	0~15 Bar
Speed	Up to 20 m/s
Sealing product	Acid,alkaline, low percentage of pulp, water, oil and other similar media.

Material Arrangement
Seal faces	SSIC/CARBON/TC
Rubber	EPDM/ FKM /Aflas®/ Kalrez®
Springs	ALLOY276
MetaI	316SS/DUPLEX/ALLOY276/904L

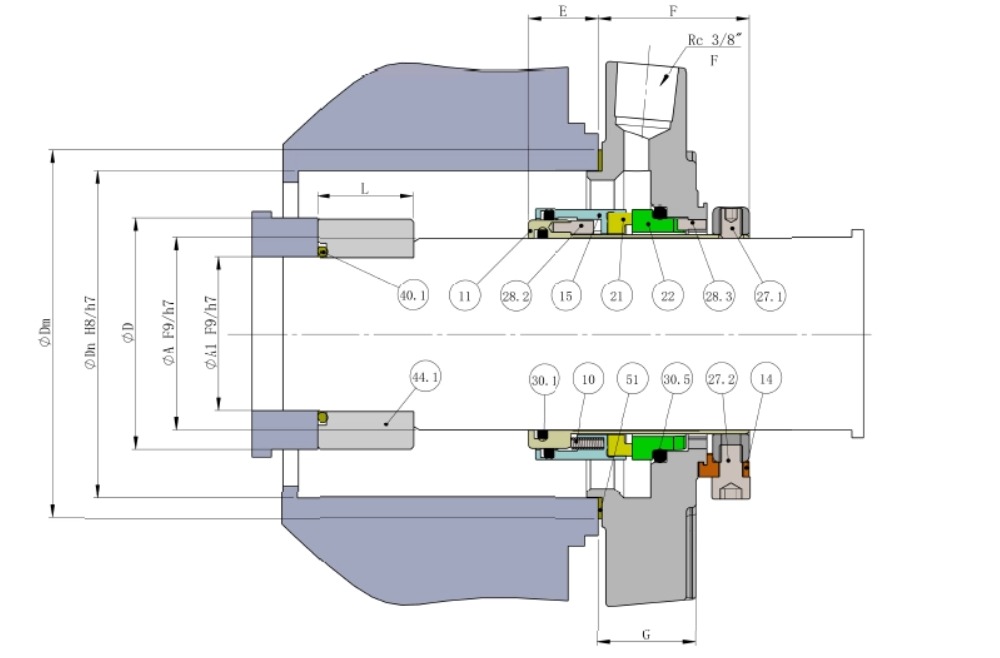

Assembly Chart
