Dual Mechanical Seal SE2-AP SE2C for Sulzer Process Pumps

Double  Mechanical Seal SE2-AP Dual Seals For Chemical Centrifugal Pumps

Operational Conditions:

1. TEMPERATURE: 180

2. PRESSURE LIMITS Process pressure: 20 bar

3. Seal water pressure: 15 bar

4. SPEED LIMITS:30m/s

Materials

• Seal face: SIC/SIC(product side), SIC/Carbon(atmosphere side)
       O ring: EPDM/FKM
       Spring: 316SS
       Metal part: 304SS/316SS/2205 duplex stainless steel

Performance Capabilities

Performance Capabilities	Materical combination
Temperature: -50°C to 204°C, dependent on   o-ring material	Face: Carbon, SiC, TC
Pressure: Up to 2Mpa	Seat: Ceramic, SiC, TC
Speed: Up to 23 m/s	O-ring: NBR, EPDM,FEP etc
End play/axial float allowance: ±1mm	Spring: SS304, SS316, hastelloy
Sizes:25-100mm or 1″-4.00″	Metal parts: SS304, SS316

• SE2 safeseal is a customer installed (OEM standard) double      balanced barrel seal designed for harsh applications in the pulp and paper      industry. The seal is usually used for grinding and environmentally      harmful liquids in pulp mill cooking, evaporation and causticization      facilities. It is designed as a double pressurized seal, but contains a      patented double balance function, which also allows it to be used as a non      pressurized (Series) double seal device. Se2-ap seal is specially designed      for Sulzer app pump series.

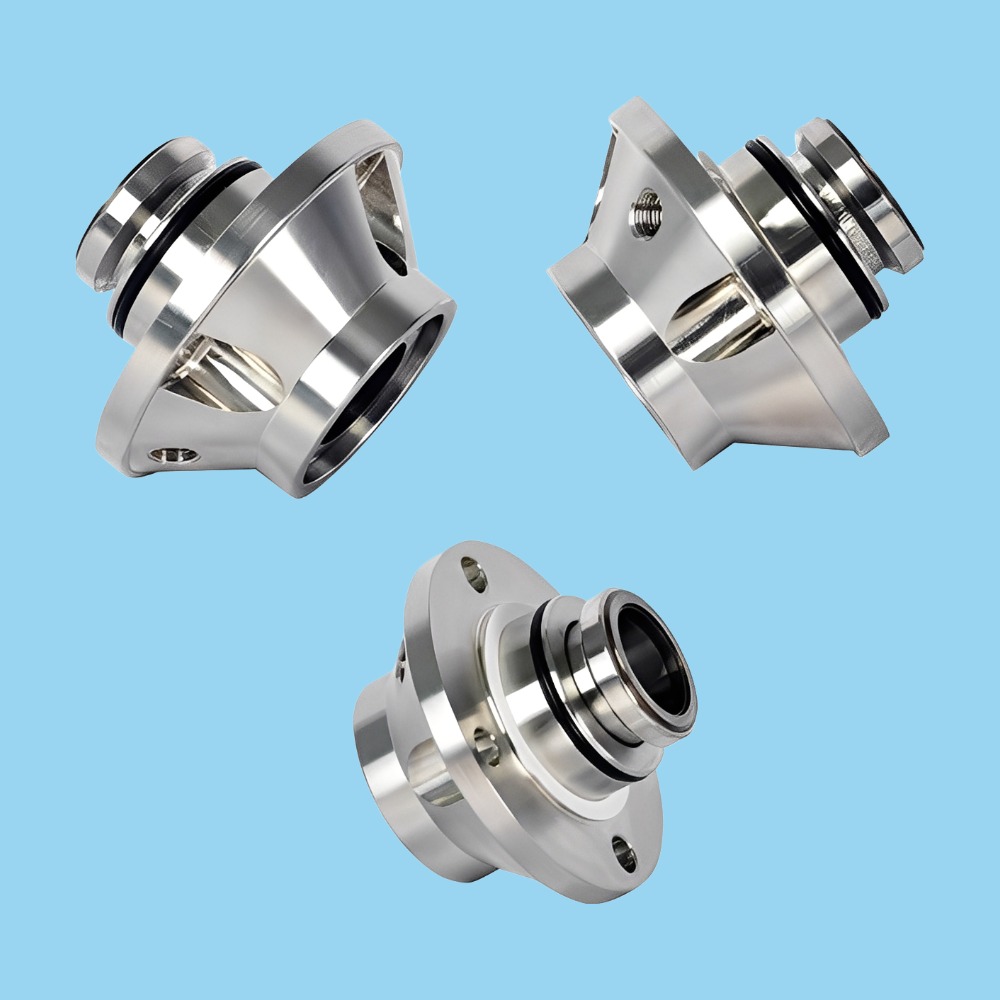

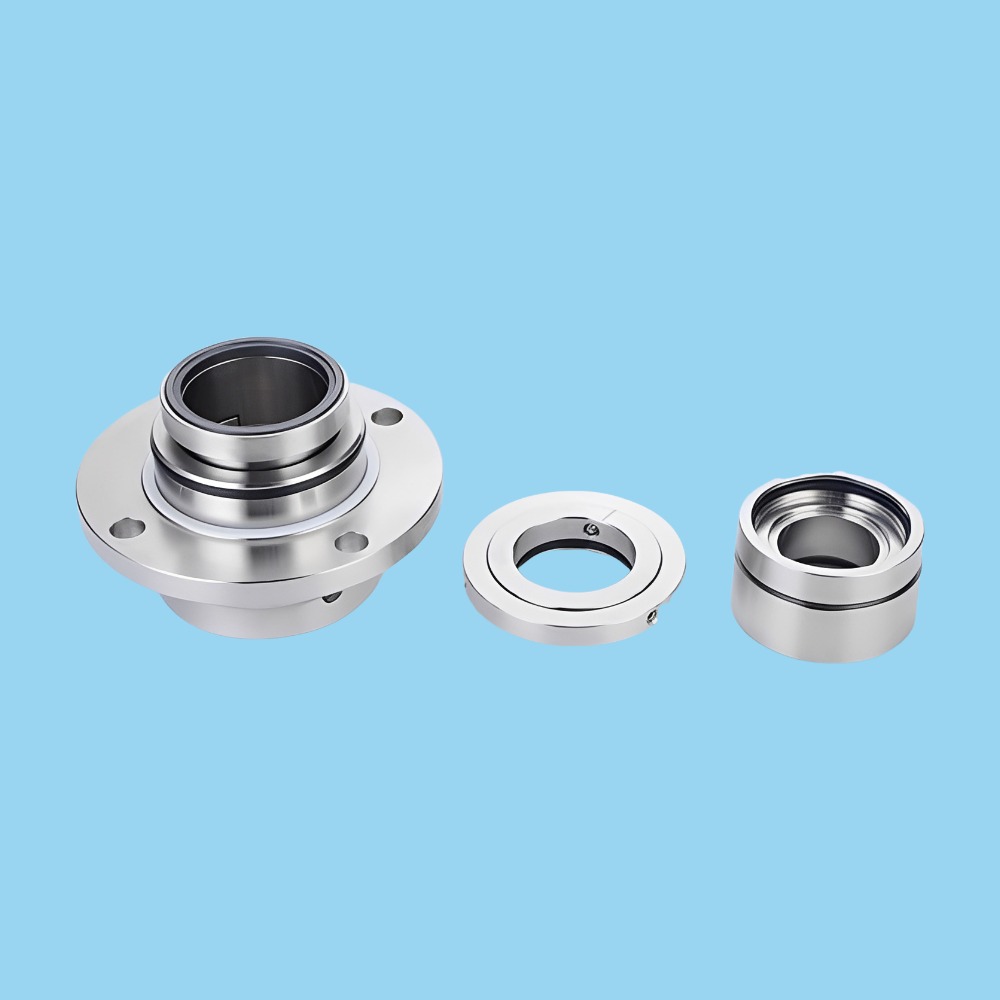

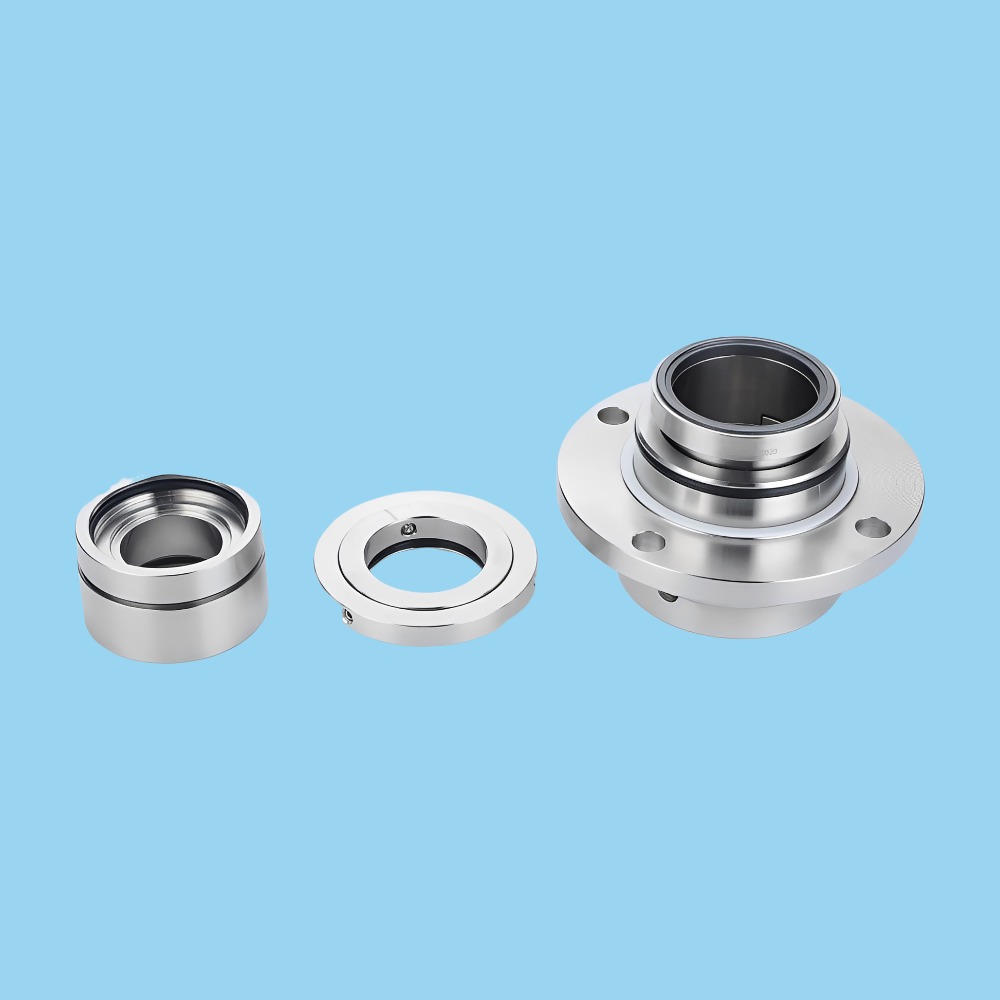

Detailed Photos

We have large stock, so our delivery  is very fast.

For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang  Province,China.
Our city has a large port and an airport, so its transportation is very convenient.

   Question 1: Are you a factory or a trade company?
   Answer:  We are a factory and have our top sales for the trade service.

   Question 2: What is the minimum order quantity for each order?
   Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

   Question 3: What is your company's service tenet?
   Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.

   Question 4: What are the prices of your products?
   Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.

   Question 5: Can I try to get a SAMPLE before the order?
   Answer:  Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
