CURU -CURC- CRCO - CURE
Key attributes
model number | CURU -CURC- CRCO - CURE |
place of origin | Zhejiang, China |
Brand Name | |
Standard or Nonstandard | Standard |
Website | https://www.tisun-seals.com/ |
Stationary Ring: | Ceramic/Sic/TC |
Rotary Ring: | Carbon/Sic/TC |
Bellows: | NBR/EPDM/VITO/PTFE |
Metal parts: | SS304/SS316 |
Packaging and delivery
Selling Units | Single item |
Single package size | 38X38X32 cm |
Single gross weight | 20.000 KG |
Lead time
Quantity (sets) | 1 - 10 | > 10 |
Lead time (days) | 10 | To be negotiated |

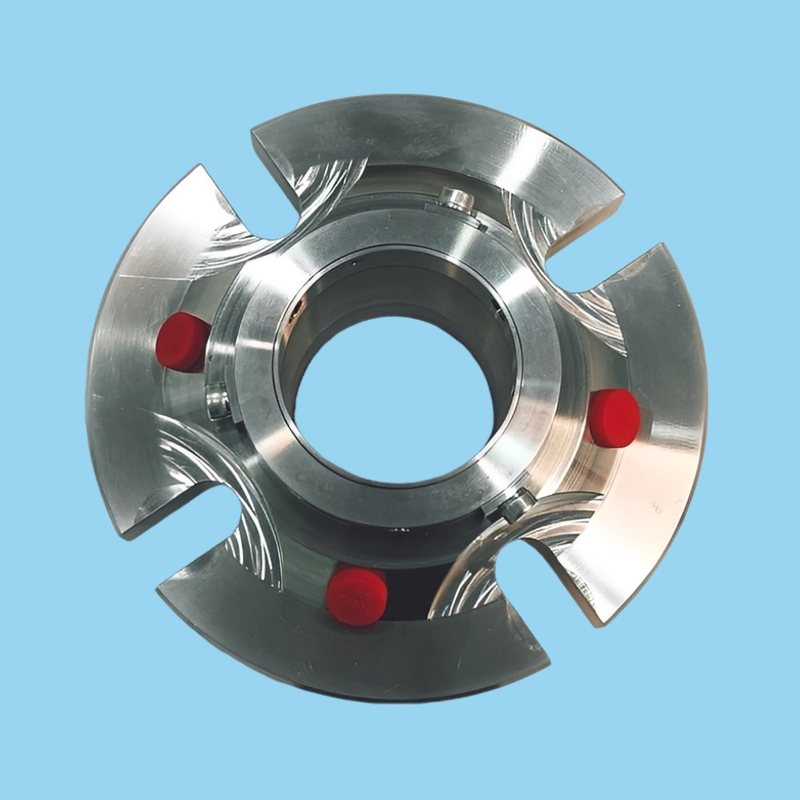

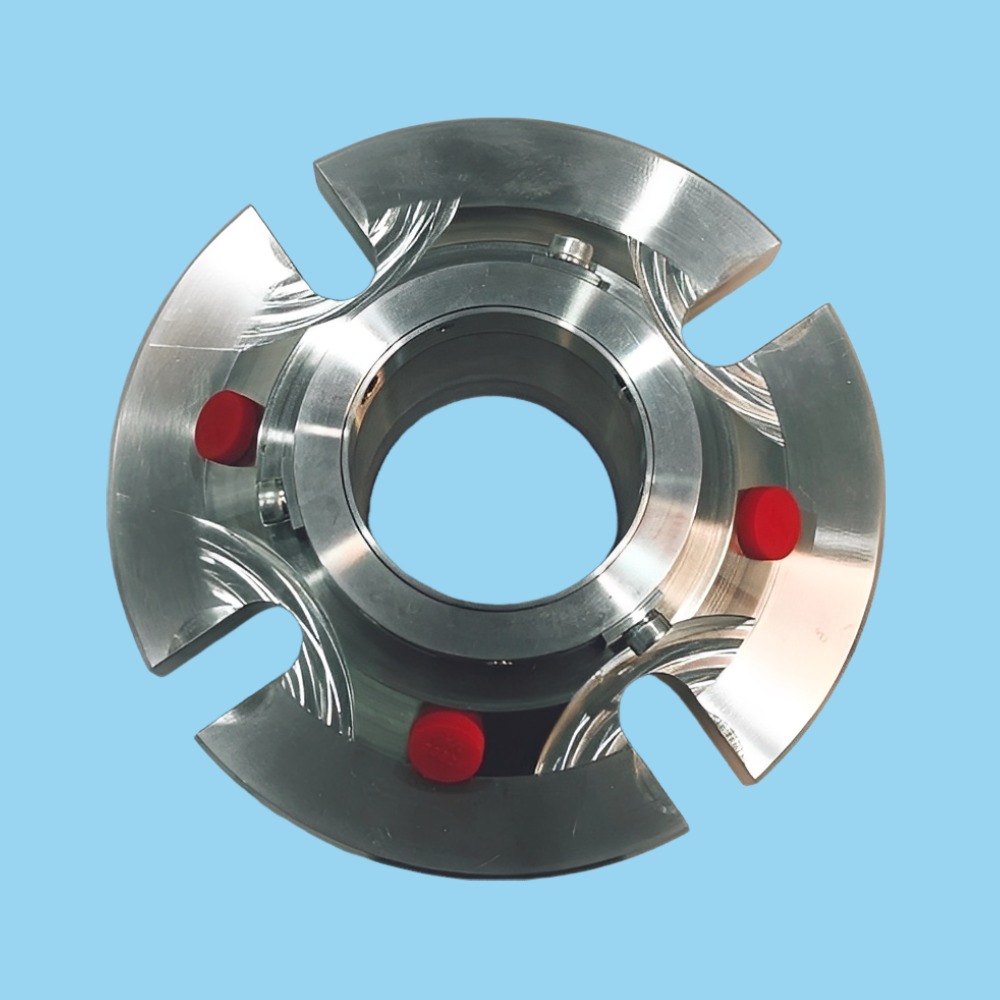

Aesseal Spring Single Mechanical Seal Cartridge Seal CURU -CURC- CRCO - CURE
Operations Conditions:
Temperature:-20℃-220℃
Speed:<15M/S
Pressure:<2.5Mpa
Size:24mm-100mm/1”-5”
Materials:
Face: Carbon, SiC, TC
Seat: SiC, TC
rings: NBR, EPDM, FKM, Aflas, FEP, Kalrez, Chemraz etc.
Spring: SS316, hastelloy C
Metal parts: SS316
The type seal can replace with AES type CURU cartridge seal.
Single Mechanical Seal
The AESSEAL CURU, CRCO™ and CURC™ mechanical seals are part of a range of seals specifically designed to optimize the use of Silicon Carbide.
All these seals incorporate improved third generation self aligning technology. The design objective was to minimize metal to Silicon Carbide impact, particularly on start–up.
In some seal designs, impact between metal anti–rotation pins and Silicon Carbide can be sufficiently severe to induce stress cracking in the Silicon Carbide. Silicon Carbide has many advantages when used in mechanical seals. The material has superior chemical resistance, hardness and heat dissipation properties compared to practically any other material used as a mechanical seal face. Silicon Carbide is, however, brittle by nature, so the design of the self–aligning stationary in the CURC™ range of mechanical seals seeks to minimize this metal to Silicon impact on start–up.
ATEX Range Certifications
CURU
Category 2 (Zone 1/21) & Category 3 (Zone 2/22)
Features:
Self Aligning stationary face, maximizing seal life
Stationary face with radial locating pins minimizes damage in stop / start applications with viscous fluids
Quench flush and drain ports for cooling or heating options to maximize seal life
Bi-Metal option with exotic alloy wetted components for maximum versatility at minimum price premium
Hydraulically balanced seal face technology for reduced power consumption
Non-clogging rotaries and non shaft fretting elastomers
Multiple spring and positive set screw shaft drive
Single Seals with Environmental Control Options
Performance Capabilities:
Temperature | -20℃ to 150℃, dependent on the elastomer |
Pressure | Up to 28 bar |
Speed | Up to 25m/s |
End play/axial float allowance | ±0.1mm |
Size | Sizes: 24mm-125mm/1”-5” |
Brand | TS |
Face | Carbon, SiC, TC |
Seat | |
Elastomer | FKM, EPDM, Kalrez |
Spring | SS304, SS316 |
Metal parts | SS304, SS316 |
Idividual Packing | Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton. |
We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.
Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.
Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.
Question 3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.
Question 4: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is indicated on the website is only the average market price. For specific models, you can contact us for price consultation and negotiation.
Question 5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).
