98 HGH201 Mechanical Seals for Pumps Pusher Seals

Customization: Available
Structure: Single End
Pressure: High Pressure Mechanical Seals
Quantity:
Overview

Basic Info.

Model NO.
98 HGH201
Speed
Ultra-High-Speed Mechanical Seal
Temperature
High Temperature Mechanical Seal
Performance
Corrosion
Standard
Standard
Type
Custom-Made, TS
Balance
Balanced
Payment Method
T/T, Western Union, L/C etc
Replace
Bogmann Seals
Export Port
Ningbo Port, Shanghai Port
Products Packaging
White Box
Min Order Qty
5 Pcs
Transport Package
Carton Packing
Specification
Diameter Size 50-310mm
Trademark
Custom-made, TS
Origin
Made in China
HS Code
8484200090
Production Capacity
1000000 PCS/Year

Packaging & Delivery

Package Size
38.00cm * 38.00cm * 32.00cm
Package Gross Weight
22.000kg

Product Description

Product Description

(1)Features
• For plain shafts (HGH201)
• Semi split single seal
• Multiple springs rotating
• Balanced
• Independent of direction of rotation
• Unsplit as original equipment (HGH200)
• Cartridge available (based on HGH210)
• Variant for stepped shafts available (HGH211)
• Splitted seal parts: sliding faces and O-Rings

(2)Advantages
• Economical: no complete dismantling of pump necessary
• Reduction of down-times and installation times
• Springs are protected from the product
• Rugged seal design
• Split seat can be used on both

(3)Operating range (see note on page 1)
Shaft diameter: d1 = 50 ... 310 mm (2" ... 12.20")
(larger diameters on request)
Pressure: p1 = 25 bar (363 PSI)
Temperature: t1 = 150 °C (302 °F)
Sliding velocity: vg = 20 m/s (66 ft/s)
Axial movement: ±2.0 mm

(4)Materials
Seal face: Silicon carbide (Q1)
Seat: Silicon carbide (Q1, Q2),
Carbon graphite antimony impregnated (A),
Carbon graphite resin impregnated (B)
Secondary seals: FKM, (V), EPDM (E), NBR, (P)
Metal parts: CrNiMo steel (G)

(5)Recommended applications
• Water and waste water technology
• Power plant technology
• Shipbuilding
• Pulp and paper industry
• Sea water desalination
• Pulp with up to 5 % fiber content
• Water turbines
• Chest agitators
• Stern tubes
• Cooling water pumps
• Gears
• Defibrators

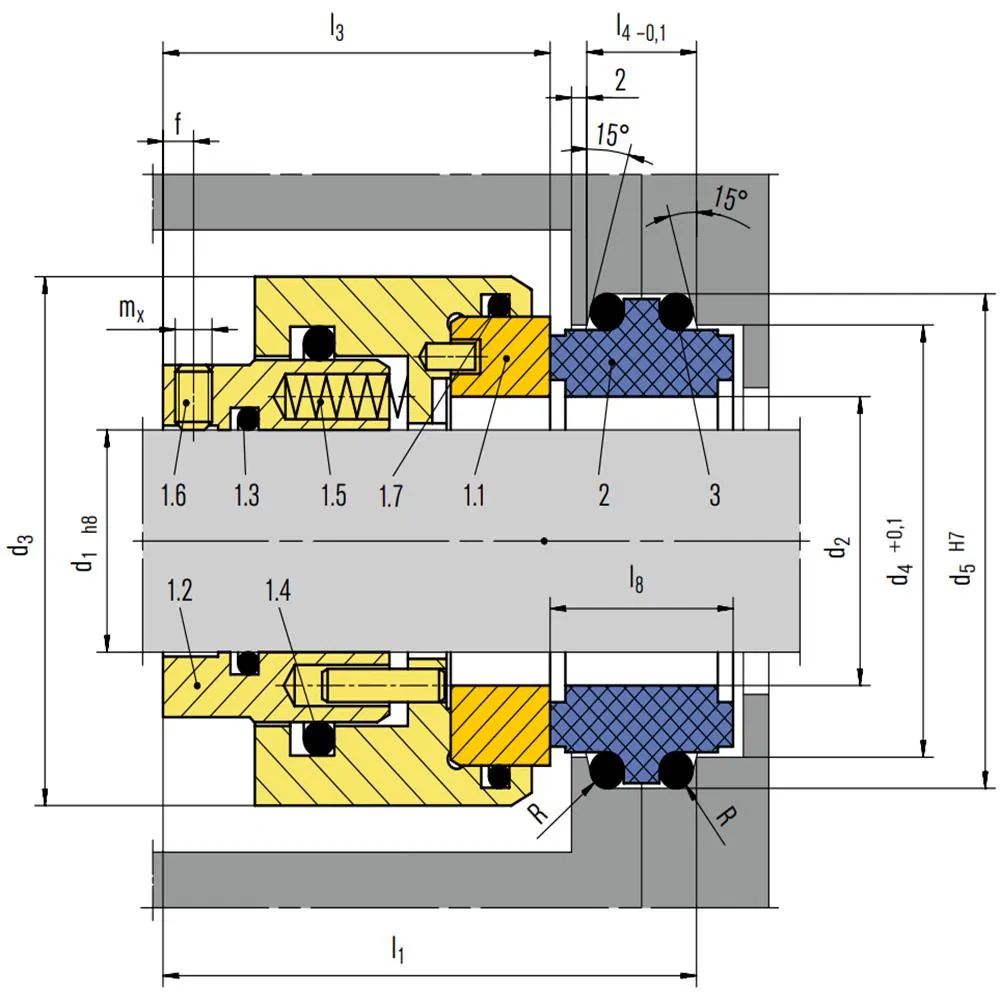

(6)Item Description
1.1 Seal face1)
1.2 Driver collar
1.3 O-Ring1)
1.4 O-Ring1)
1.5 Spring
1.6 Set screw
1.7 O-Ring1)
2 Stationary seat1)
3 O-Ring1)
1) For disassembly of unsplit seal faces, seats and O-Ring these should be broken or cut.

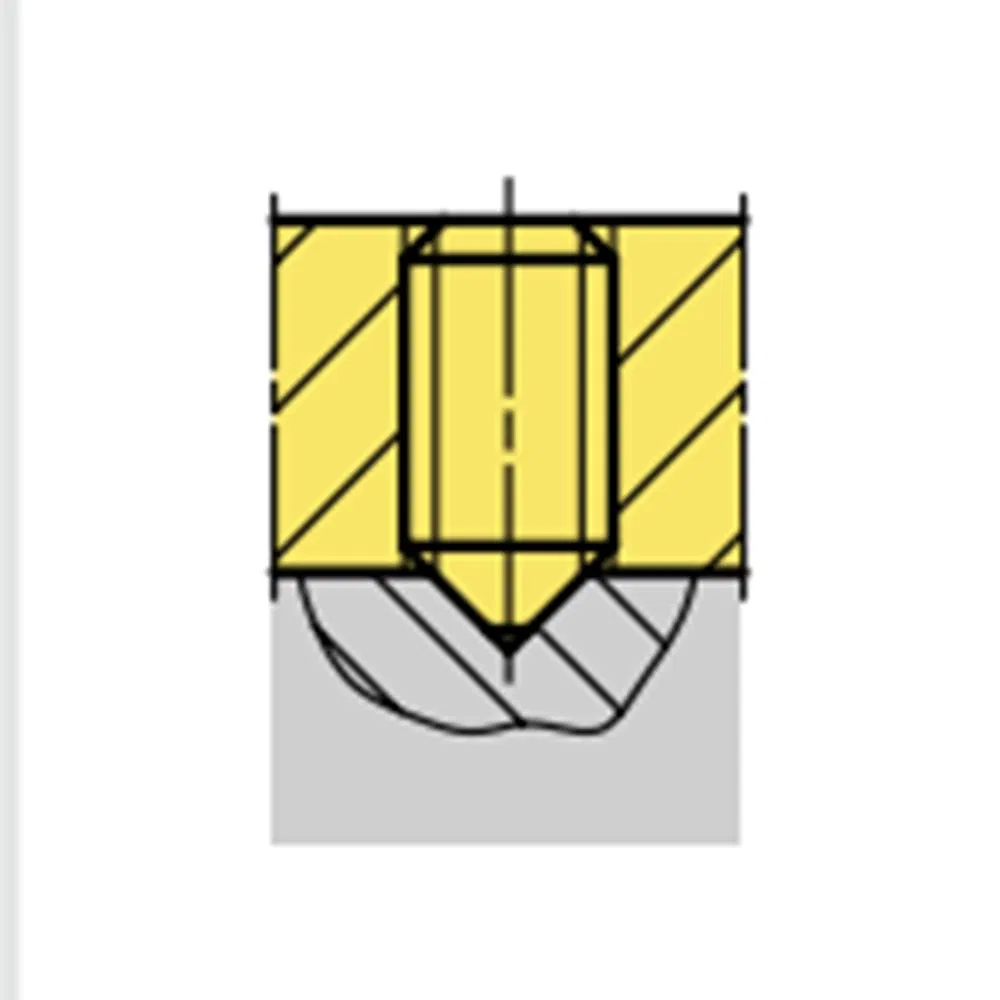

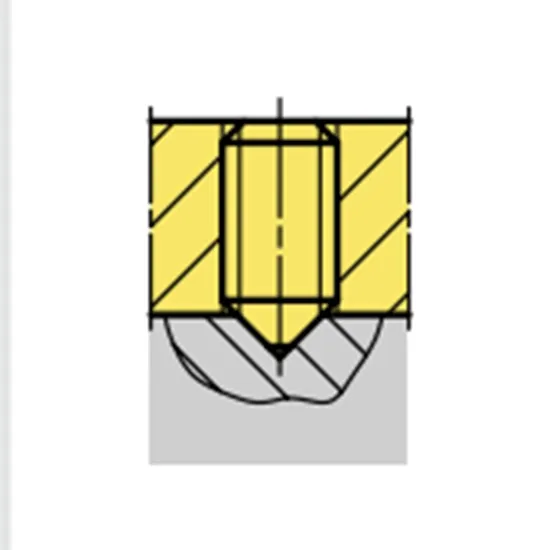

(7)Torque transmission

98 HGH201 Mechanical Seals for Pumps Pusher Seals
d 1 ≥ 105 mm
Set screws with
cone point

4 x offset by 90°

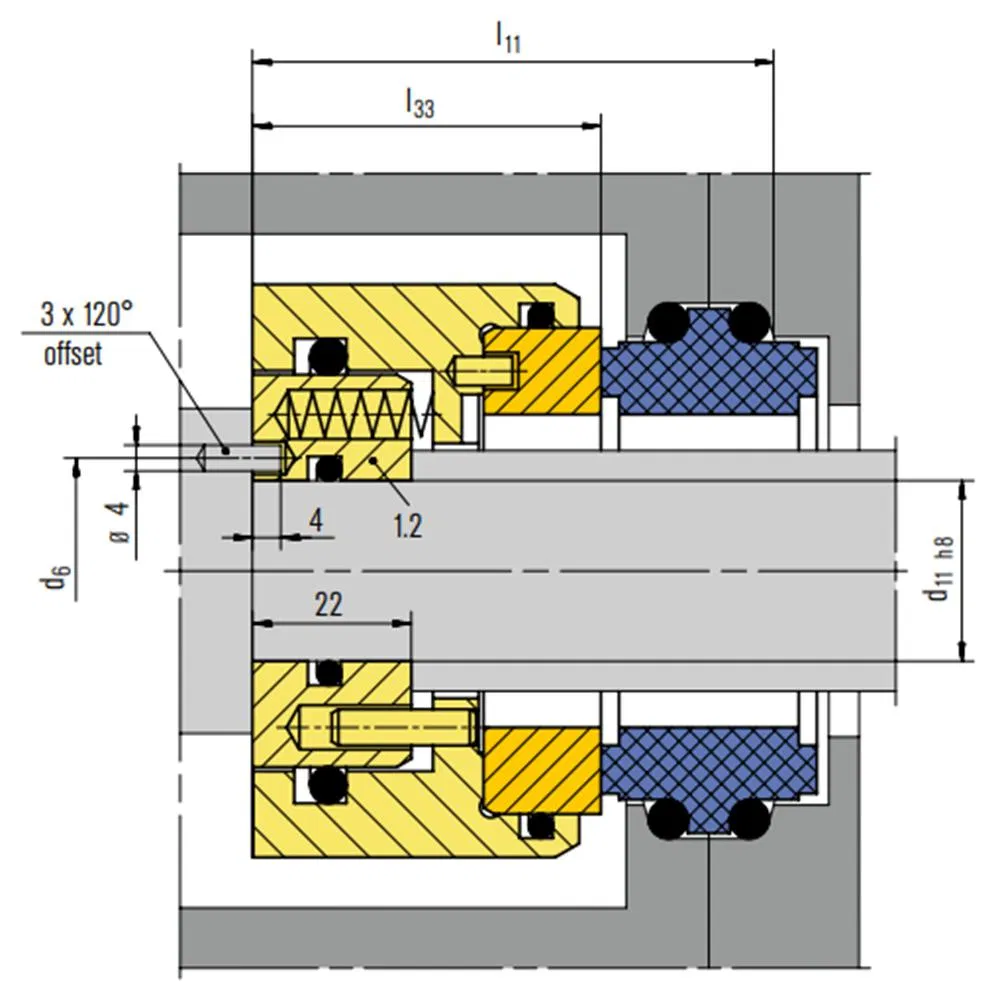

(8)Product variant
HGH211

Dimensions, items and descriptions as HGH201. Item 1.2
driver collar is modified for securing on stepped shafts.
Unsplit as original equipment: Designation HGH210.

98 HGH201 Mechanical Seals for Pumps Pusher Seals
HGH211

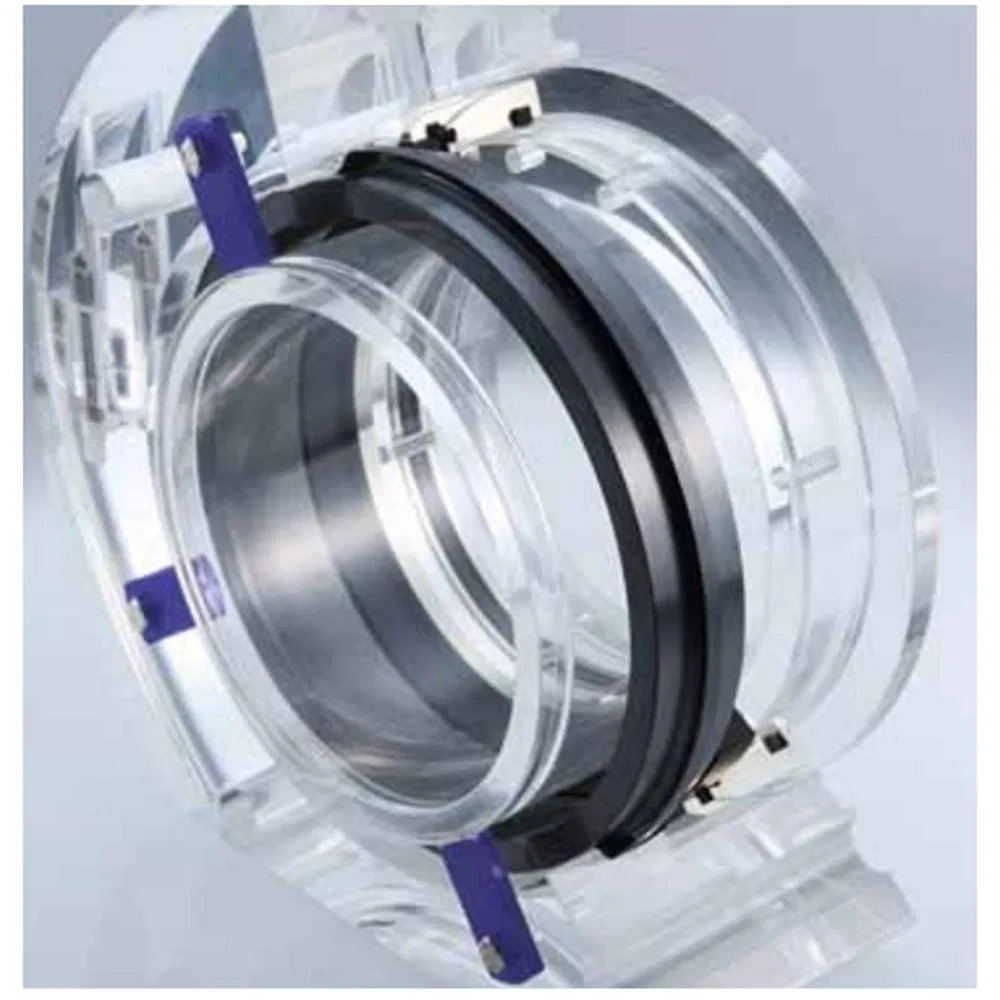

Detailed Photos
98 HGH201 Mechanical Seals for Pumps Pusher Seals
98 HGH201 Mechanical Seals for Pumps Pusher Seals
98 HGH201 Mechanical Seals for Pumps Pusher Seals
Product Structure Size

Dimensions in mm

d1 d11 d2 d3 d4 d5 d6 L1 L11 L3 L33 L4 L8 R f
50 40.0 60.0 95.0 80.5 89.6 55.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
55 45.0 65.0 100.0 85.5 94.6 60.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
60 50.0 70.0 105.0 90.5 99.6 65.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
65 55.0 75.0 110.0 95.5 104.6 70.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
70 60.0 80.0 115.0 100.5 109.6 75.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
75 65.0 85.0 120.0 105.5 114.6 80.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
80 70.0 90.0 125.0 110.5 119.6 85.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
85 75.0 95.0 130.0 115.5 124.6 90.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
90 80.0 100.0 135.0 120.5 129.6 95.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
95 85.0 105.0 140.0 125.5 134.6 100.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
100 90.0 110.0 145.0 130.5 139.6 105.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
105 95.0 115.0 150.0 135.5 144.6 110.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
110 100.0 120.0 155.0 140.5 149.6 115.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
115 105.0 125.0 160.0 145.5 154.6 120.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
120 110.0 130.0 165.0 150.5 159.6 125.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
125 115.0 135.0 170.0 155.5 164.6 130.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
130 120.0 140.0 175.0 160.5 169.6 135.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
135 125.0 145.0 180.0 165.5 174.6 140.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
140 130.0 150.0 185.0 170.5 179.6 145.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
145 135.0 155.0 190.0 175.5 184.6 150.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
150 140.0 160.0 195.0 180.5 189.6 155.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
155 145.0 165.0 200.0 185.5 194.6 160.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
160 150.0 170.0 205.0 190.5 199.6 165.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
165 155.0 175.0 210.0 195.5 204.6 170.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
170 160.0 180.0 215.0 200.5 209.6 175.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
175 165.0 185.0 220.0 205.5 214.6 180.0 95.3 75.3 70.0 50.0 18.8 31.8 2.5 6.0
180 170.0 192.0 225.0 212.5 224.6 185.0 104.2 84.2 72.0 52.0 26.4 38.0 3.5 6.0
185 175.0 197.0 230.0 217.5 229.6 190.0 104.2 84.2 72.0 52.0 26.4 38.0 3.5 6.0
190 180.0 202.0 235.0 222.5 234.6 195.0 104.2 84.2 72.0 52.0 26.4 38.0 3.5 6.0
195 185.0 207.0 240.0 227.5 239.6 200.0 104.2 84.2 72.0 52.0 26.4 38.0 3.5 6.0
200 190.0 212.0 245.0 232.5 244.6 205.0 109.2 84.2 77.0 52.0 26.4 38.0 3.5 6.0
205 195.0 217.0 255.0 237.5 249.6 210.0 109.2 84.2 77.0 52.0 26.4 38.0 3.5 8.0
210 200.0 222.0 260.0 242.5 254.6 215.0 109.2 84.2 77.0 52.0 26.4 38.0 3.5 8.0
220 210.0 232.0 270.0 252.5 264.6 225.0 109.2 84.2 77.0 52.0 26.4 38.0 3.5 8.0
230 220.0 242.0 280.0 262.5 274.6 235.0 109.2 84.2 77.0 52.0 26.4 38.0 3.5 8.0
240 230.0 252.0 290.0 272.5 284.6 245.0 109.2 84.2 77.0 52.0 26.4 38.0 3.5 8.0
250 240.0 262.0 300.0 282.5 294.6 255.0 109.2 84.2 77.0 52.0 26.4 38.0 3.5 8.0
260 250.0 272.0 310.0 295.5 307.6 265.0 109.2 84.2 77.0 52.0 26.4 38.0 3.5 8.0
270 260.0 282.0 320.0 305.5 317.6 275.0 109.2 84.2 77.0 52.0 26.4 38.0 3.5 8.0
280 270.0 292.0 330.0 315.5 327.6 285.0 109.2 84.2 77.0 52.0 26.4 38.0 3.5 8.0
290 280.0 302.0 340.0 325.5 337.6 295.0 109.2 84.2 77.0 52.0 26.4 38.0 3.5 8.0
300 290.0 312.0 350.0 335.5 347.6 305.0 109.2 84.2 77.0 52.0 26.4 38.0 3.5 8.0
310 300.0 322.0 360.0 345.5 357.5 315.0 109.2 84.2 77.0 52.0 26.4 38.0 3.5 8.0
