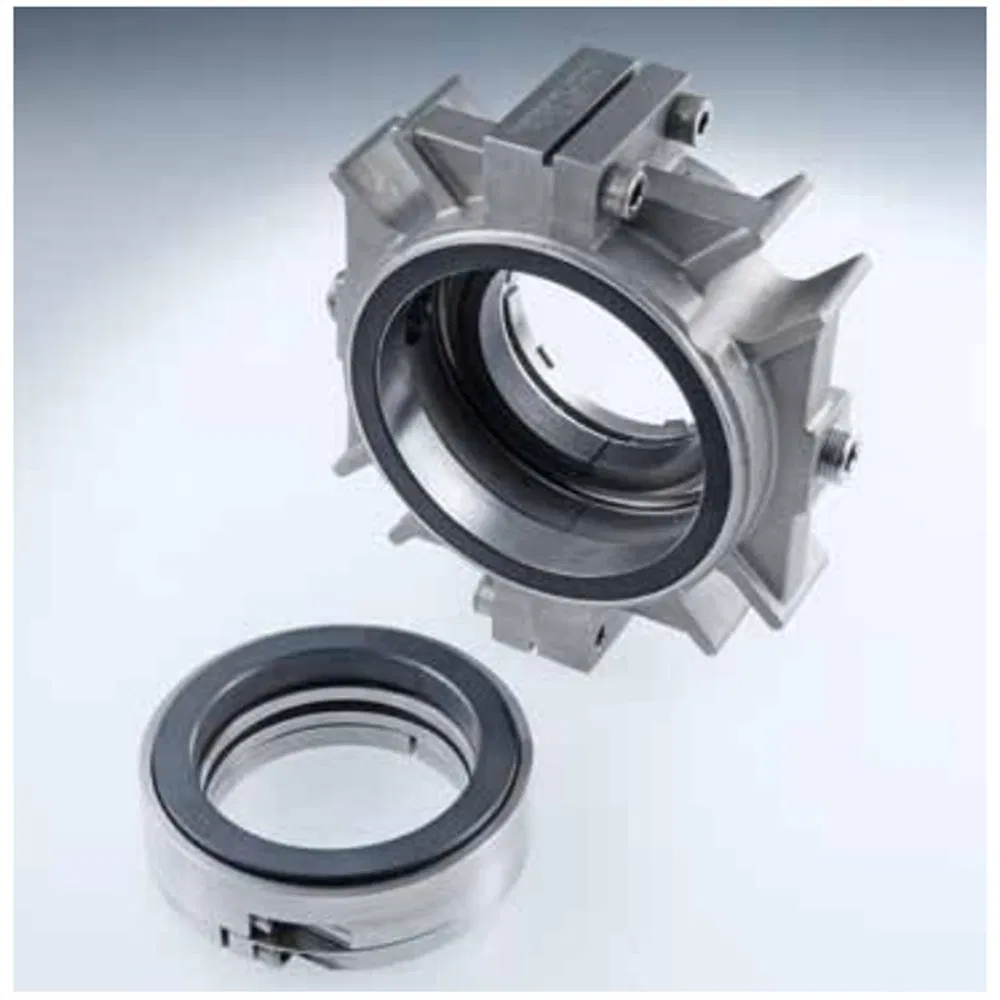

96 Splitex Mechanical Seals for Pumps Pusher Seals

(1)Features
• Fully split single seal, 2 x 2 segments, pre-assembled
• Semi-cartridge
• Balanced
• Stationary springs
• Bi-directional
• External pressurization
• Built-in flushing connections
• Installation and wear control

(2)Advantages
• Reduced repair and downtime: 2x 2 pre-assembled design speeds up and simplifies installation because pump does not have to be disassembled.
• Long service life: precise pre-alignment because of pre-assembled segments. Stationary springs which are protected from the product prevent clogging.
• Greater flexibility during installation: no modification necessary because the seal is located outside of the stuffing box.
• Shaft protection: uniform torque transmission via clamping ring prevents damage caused by set screws.
• Dependable operation: mechanical decoupling of clamping ring (torque transmission) avoids distortion of the seat.
• Simple monitoring of the seal during operation because of mechanical wear indicator on the seal face.
• Low leakage: elimination of secondary seals eliminates leakage paths between split components.
• High tolerance to shaft deflections ensured by stationary design and elastic seat mounting (gasket).

(3)Operating range (see note on page 1)
Shaft diameter: d1 = 50 ... 150 mm (1.940" ... 6.000")
Pressure: p1 = 10 bar (145 PSI)
Temperature: t = -40 °C ... +150 °C (-40 °F ... +300 °F),
above 80 °C (175 °F) flush is recommended
Sliding velocity: vg = 10 m/s (33 ft/s)
Axial movement: ±1.5 mm (1/16")
Radial movement: ±0.8 mm (1/32")

(4)Material
Seal face: Carbon graphite antimoniny impregnated (A),
Silicon carbide (Q6)
Seat: Silicon carbide (Q6)
Secondary seals: FKM (V), EPDM (E), NBR (P)
Springs: CrNiMo steel (G)
Metal parts: CrNiMo steel (G), CrNiMo cast steel (G)

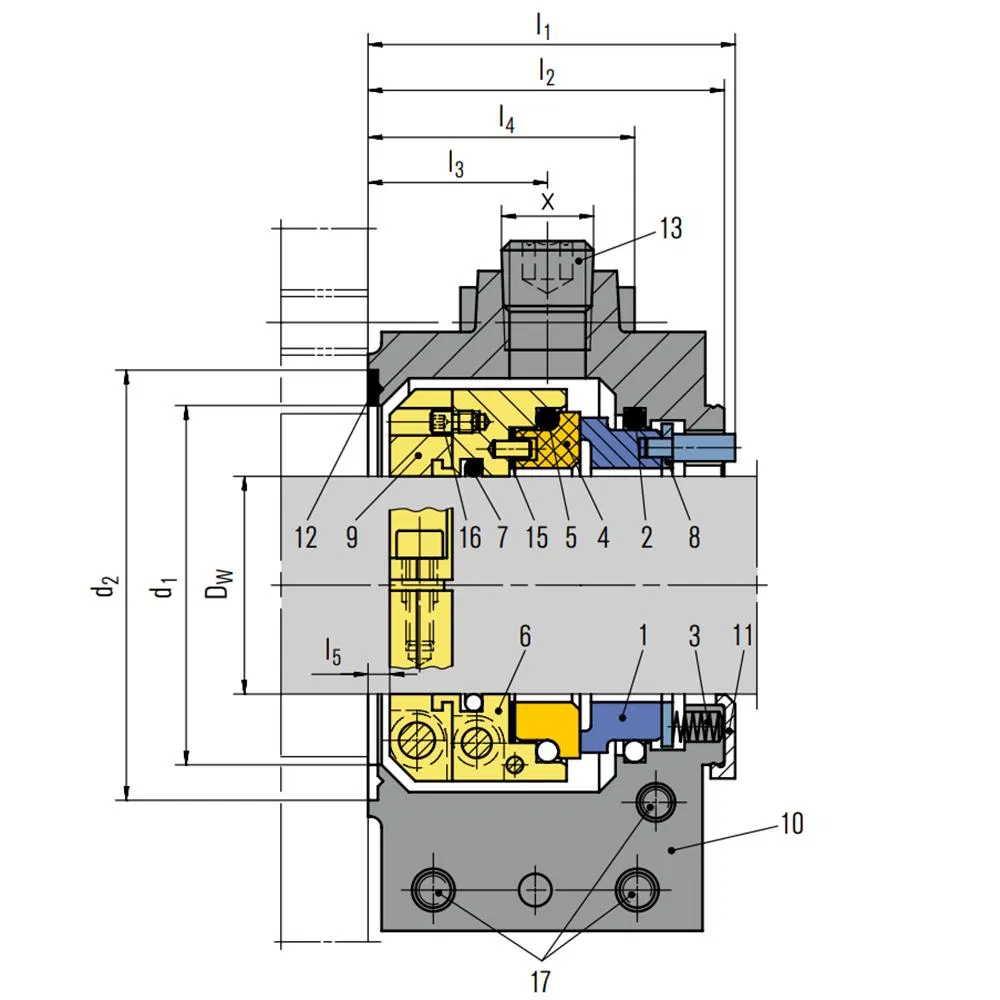

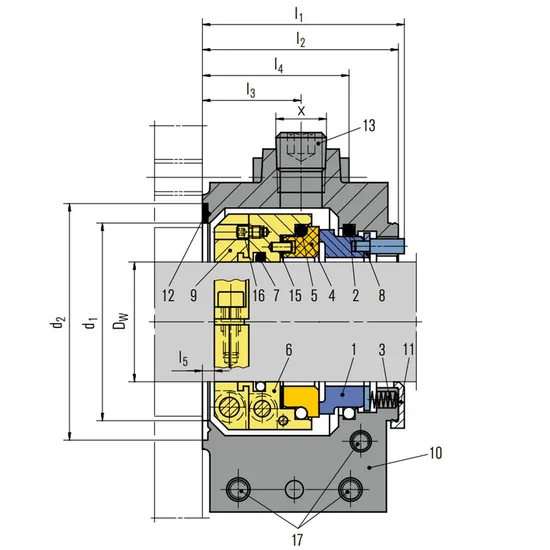

(5)Item               Description
1                     Seal face
2, 5, 7             O-Ring
3                     Spring
4                     Seat
6                     Driver
8                     Thrust ring
9                     Clamp collar
  10                    Housing
  11                    Assembly fixture
  12, 15              Gasket
  13                    Head screw plug
  14                    Mounting plate
  16                    Set screw
  17                    Socket head screw

(6)Recommended applications
• Water and waste water technology
• Pulp and paper industry
• Mining industry
• Power plant technology
• Shipbuilding
• Process industry
• Pulp
• Centrifugal pumps
• Agitators
• Displacement pumps
• Conveying pulp with stock pumps
• Conveying timber to refiners with pumping screws
• Circulation of pulp-and-water mixtures in storage vessels
• Pump stations for waste water treatment
• Cooling water pumps for energy generatio

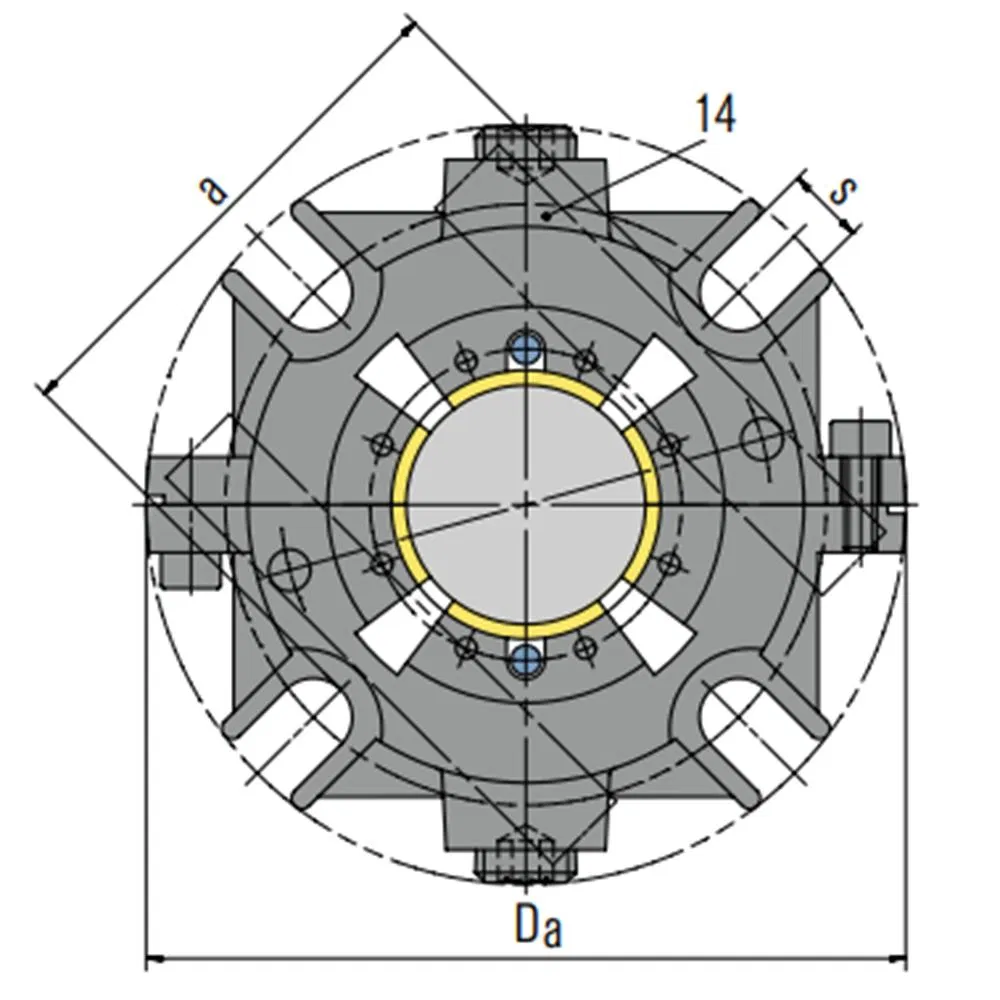

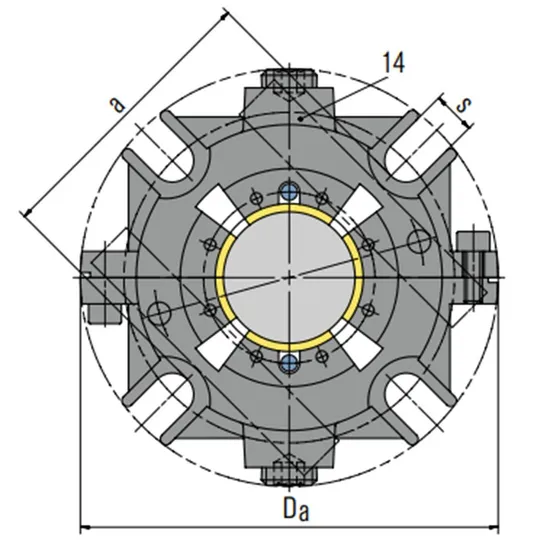

Seal cover
