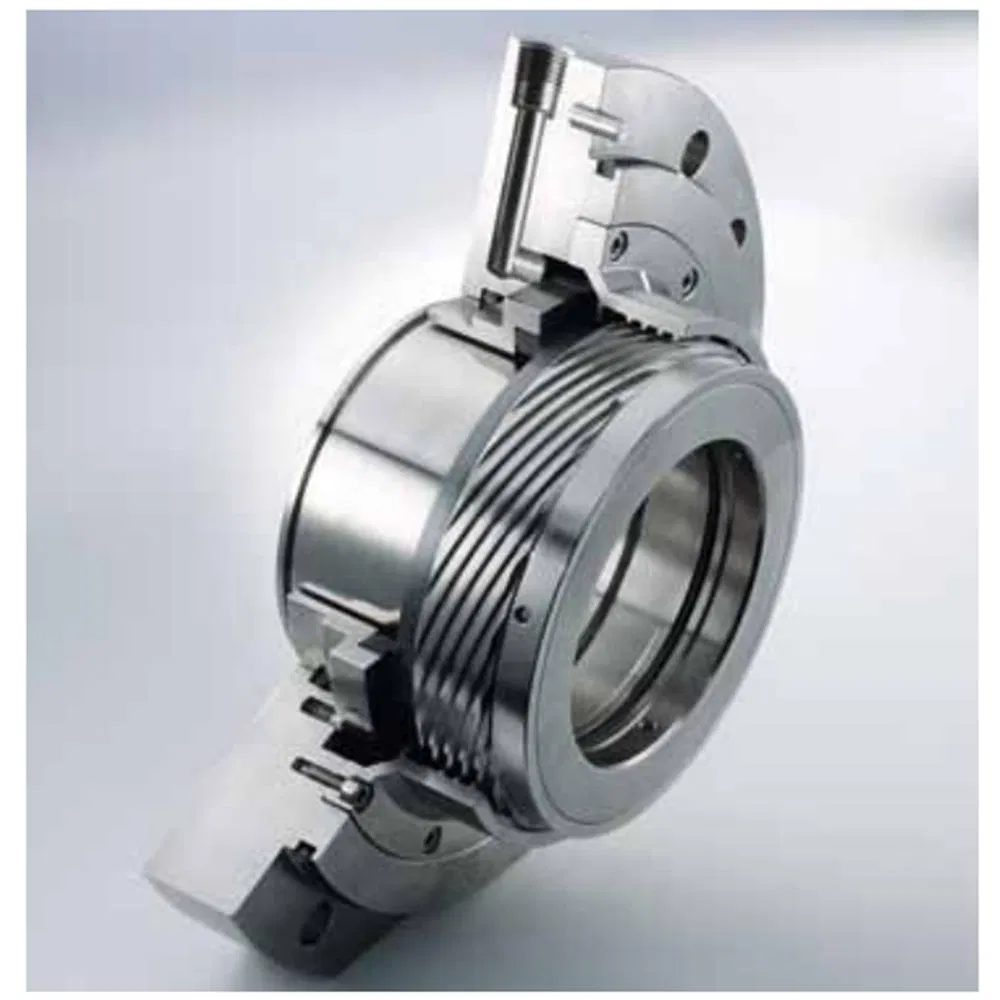

91 SHF/SHP mechanical seal for chemaical  pump

(1)Features
• Cartridge design
• Single seal
• Balanced
• Dependent of direction of rotation
• Integrated pumping device
• Stationary spring loaded unit
• Shrink-fitted seal face
• Multiple springs

(2)Advantages
• Deformation-optimized seal for high sliding velocities and medium pressures
• Economical due to standardized inner components
• Universal application for OEM or retrofits of boiler feed water pumps with floating ring seals, labyrinths or packings
• High flexibility due to adaptation of the connection parts to the pump seal chamber
• Optimum heat dissipation due to integrated pumping device and optimized seat design
• Insensitive to shaft deflections due to stationary design
• Pre-assembled unit for quick and easy installation
• Only small number of components
• Short built

(3)Operating range (see note on page 1)
Shaft diameter: d1* = 40 ... 250 mm (1.57" ... 9.84")
Pressure: p1 = 50 bar (725 PSI)
Temperature: t = 300 °C (572 °F)
Sliding velocity: vg = 60 m/s (197 ft/s)
Axial movement: ±3 mm
* Other sizes on request

(4)Materials
Seal face: Silicon carbide (Q), Carbon graphite antimony
impregnated (A), Carbon graphite resin impregnated (B)
Seat: Silicon carbide (Q)
Secondary seals: EPDM (E), FFKM (K)
Springs: CrNiMo steel (G)
Metal parts: CrNiMo steel (G)

(5)Recommended seal supply
• API Plan 23

(6)Recommended applications
• Power plant technology
• Boiler feed water pumps

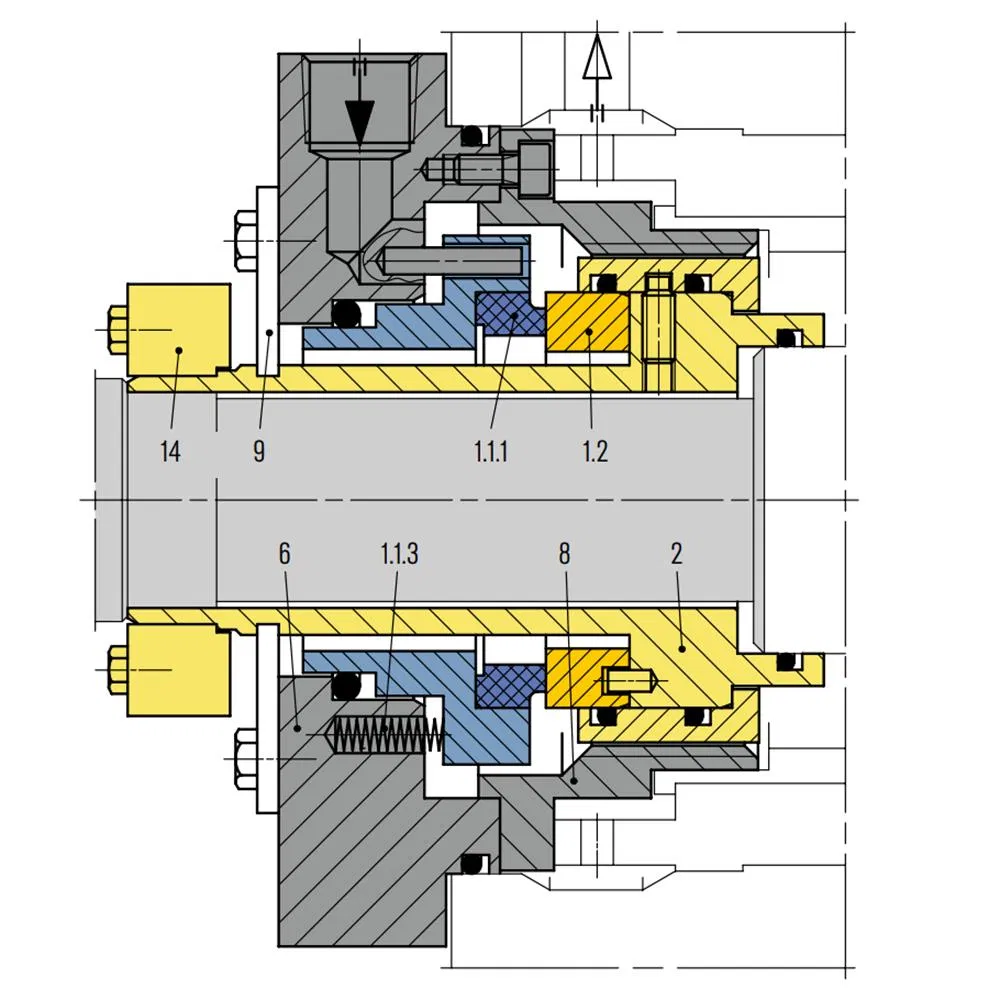

(7)Item            Description
1.1.1            Seal face
1.1.3            Spring
1.2               Seat
2                  Shaft sleeve
6                  Cover
8                  Pumping screw with flow guide
9                  Assembly fixture
14                Shrink disk

(8)Product variant

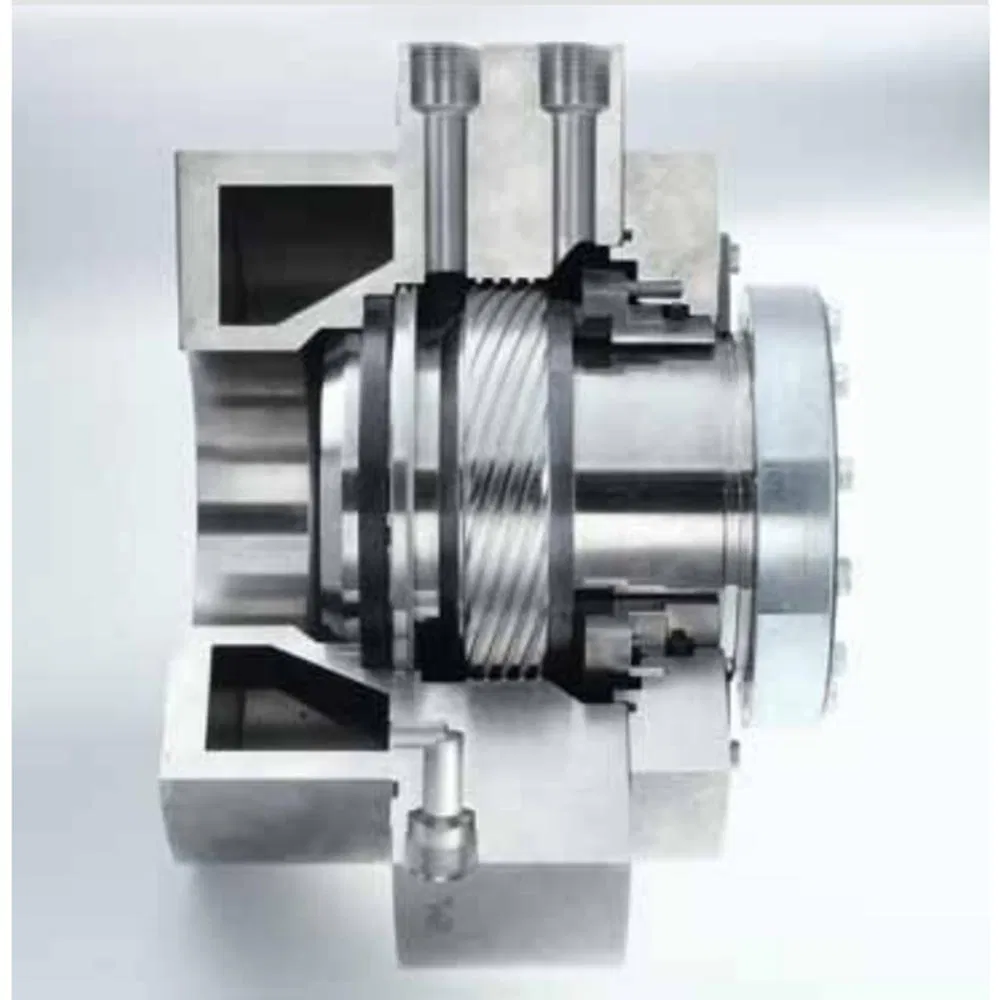

SHF4
Single mechanical seal with integrated jacket cooling, for boiler feed pumps.

SHF4
