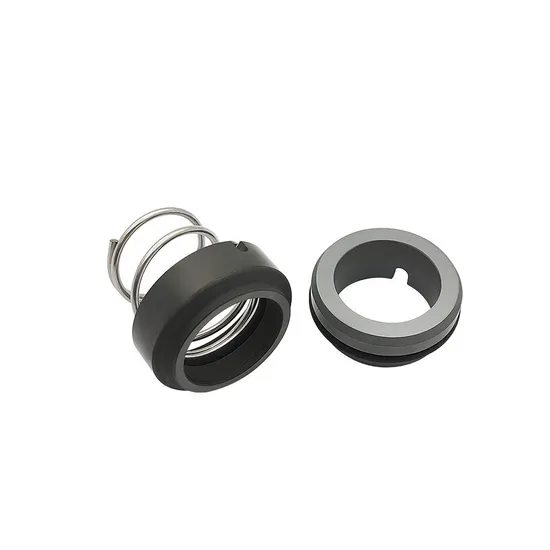

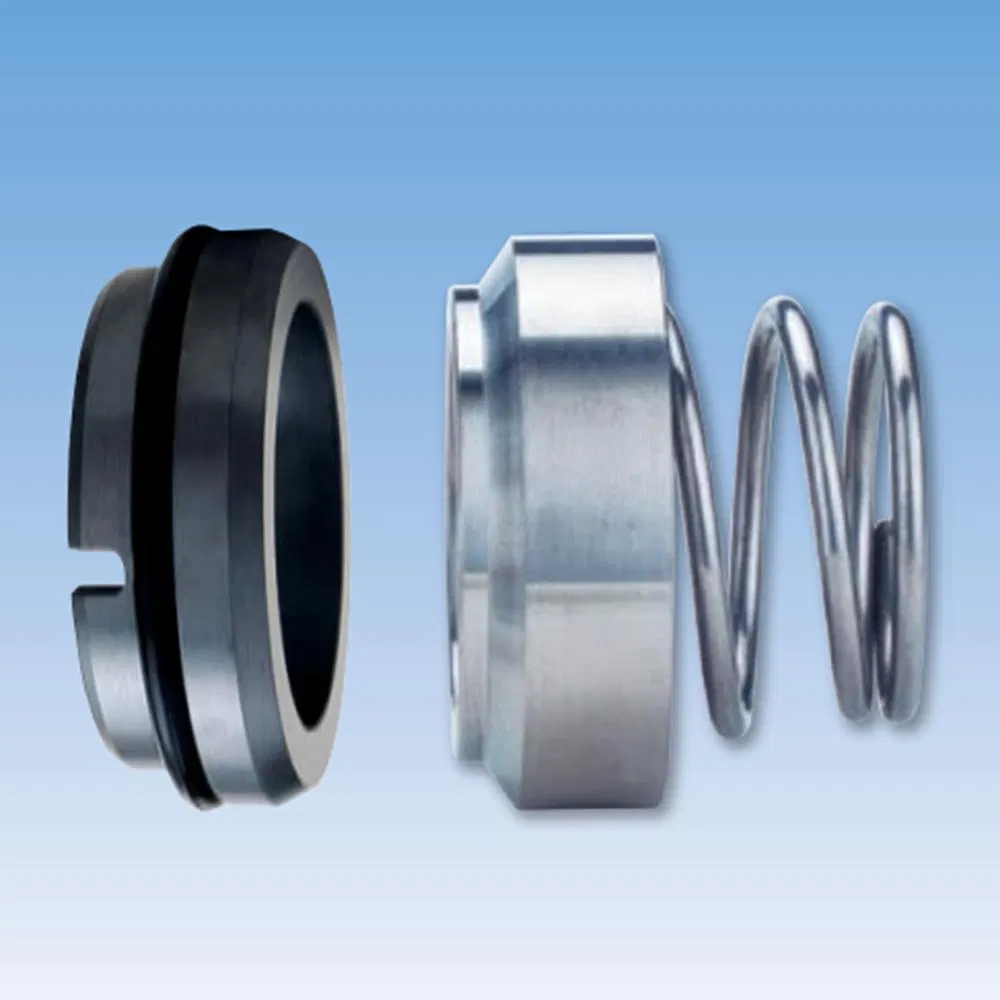

| Customization: | Available |
|---|---|
| Structure: | Single End |
| Pressure: | High Pressure Mechanical Seals |
| Quantity: | |
|---|---|
Operating Conditions
Temperature: -20ºC to +180 ºC
Pressure: ≤1.0MPa
Speed: ≤15m/S
Combined Materials
Stationary Ring : V1,Q1,Q2,U2,B,A
Rotary Ring : B,A,Q1,Q2,F,G
Secondary Seat : V,P,E,M1,M2
Spring and Metal Parts: F,G,M

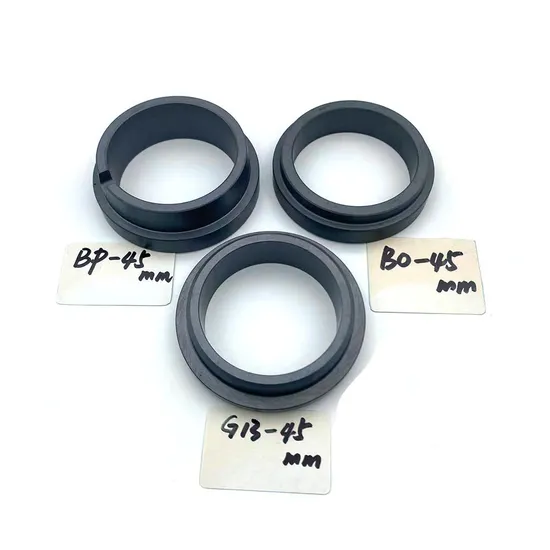

Seat Types
Standard : C06
Alternative : C01,C03,C04
Applications : Clean water,sewage water,oil
and other moderately corrosive fluids.
| Seal Ring Materials | |||
| Type | Meterial Description | Symbol | Code |
| SIC | Silicon Carbide,Sintered Pressureless | SSiC | Q1 |
| Silicon Carbide,Sintered Pressureless (shrunk-in) | Q12 | ||
| Silicon Carbide,Reaction bonded | RBSiC | Q2 | |
| Silicon Carbide,Reaction bonded (shrunk-in) | Q22 | ||
| Reaction Silicon Carbide with Graphite | Q3 | ||
| Sintered Silicon Carbide with SB | Q4 | ||
| AI2O3 | Ceramic(Alumina) | 99.5%AI2O3 | V |
| Ceramic (Alumina) | 99%AI2O3 | V1 | |
| Ceramic (Alumina) | 95%Al2O3 | V2 | |
| Cermet | Fe+Al2O3 | V3 | |
| TC | Co-binder Tungsten Carbide | YG6,YG8 | U1 |
| Co-binder Tungsten Carbide (shrunk-in) | U12 | ||
| Ni-binder Tungsten Carbide | M106,M108 | U2 | |
| Ni-binder Tungsten Carbide (shrunk-in) | U22 | ||
| NiCrMo-binder Tungsten Carbide | W7 | U3 | |
| NiCrMo-binder Tungsten Carbide (shrunk-in) | U32 | ||
| Carbon | Antimony Impreg. Carbon Graphite | A | |
| Babbit Alloy lmpreg.Carbon Graphite | A1 | ||
| Copper lmpreg.Carbon Graphite | A2 | ||
| Resin lmpregnated Carbon Graphite (Furan) | B | ||
| Resin Impregnated Carbon Graphite(Epoxy) | B1 | ||
| Resin lmpregnated Carbon Graphite(Phenol-formaldethyde) | B2 | ||
| Hot-pressing Carbon | B5 | ||
| Metal | Stainless Steel | 304 | F |
| Stainless Steel | 304L | F1 | |
| Stainless Steel | 316 | G | |
| Stainless Steel | 316L | G1 | |
| Tin bronze | ZQSn6-6-3 | S1 | |
| High silicon cast iron | S2 | ||
| High nickel cast iron | S3 | ||
| Plastic | PTFE,glassfibre reinforced | Y1 | |
| PTFE,carbon reinforced | Y2 | ||
| Secondary Seal Materials | |||
| Type | Meterial Description | Symbol | Code |
| Rubber | Nitrile (NBR) | NBR | p |
| Ethylene Propylene(EPDM) | EPR | E | |
| Fluorocarbon (Viton) | FPM | V | |
| Silicic Rubber | MVQ | S | |
| Chloroprene | CR | N | |
| Hydrogen Nitrile | HNBR | H | |
| Perfluoroelastomer(Kalrez,Chemraz) | K | ||
| PTFE | Pure PTFE | PTFE | T |
| PTFE,glassfibre reinforced | T2 | ||
| PTFE,carbon reinforced | T3 | ||
| PTFE wrapped | FPM,with PTFE wrapped | PTFE+FPM | M1 |
| EPR, with PTFE wrapped | PTFE+EPR | M2 | |
| MVQ, with PTFE wrapped | PTFE+MVQ | M3 | |
| Expanded graphite | Expanded graphite | G | |
| Spring Materials | |||
| Type | Meterial Description | Symbol | Code |
| Hastelloy C-4 Alloy | Hast.C4 | M | |
| Stainless Steel | 304 | F | |
| Stainless Steel | 304L | F1 | |
| Stainless Steel | 316 | G | |
| Stainless Steel | 316L | G1 | |
| 65Mn Coated with Chrome---------65Mn | 65Mn | G8 | |
| Metal Materials | |||
| Type | Meterial Description | Symbol | Code |
| Normal Stainless Steel | 2Cr13 | F2 | |
| Stainless Steel | 304 | F | |
| Stainless Steel | 304L | F1 | |
| Stainless Steel | 316 | G | |
| Stainless Steel | 316L | G1 | |
| Hastelloy C-4 Alloy | Hast.C4 | M | |
| Hastelloy B-2 Alloy | Hast.B2 | M1 | |
| Carpenter | Carp.20 | M3 | |
| Monel | Monel.K500 | M4 | |
| Hastelloy C-276 Alloy | Hast.C-276 | M5 | |
| Pure Titanium | TA2 | T2 | |
| Carpenter | Carp.42 | T4 | |
| Deposit induration Stainless Steel | AM350 | T6 | |
| 08F Coated with Chrome | Q235-A | C | |
| Brass | H62 | H | |

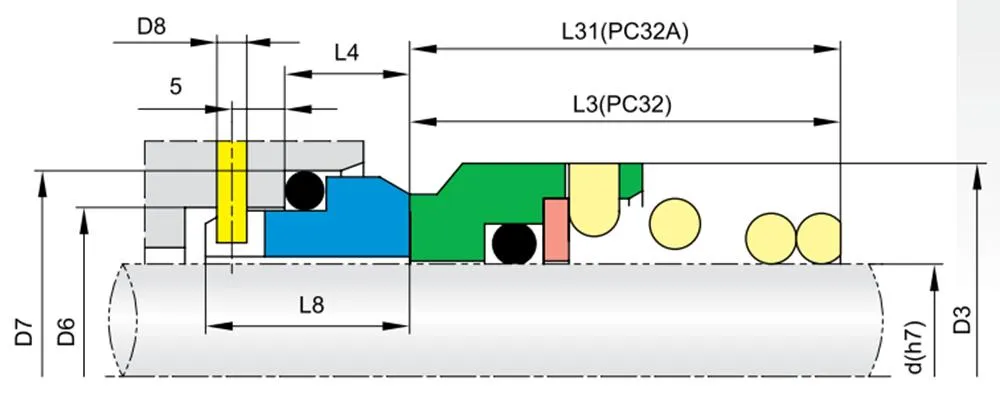

| Size | d | D3 | D6 | D7 | D8 | L3 | L31 | L4 | L8 |
| 10 | 10.0 | 19.0 | 17.0 | 21.0 | 3.0 | 15.5 | 15.5 | 10.0 | 17.5 |
| 12 | 12.0 | 21.0 | 19.0 | 23.0 | 3.0 | 16.0 | 15.5 | 10.0 | 17.5 |
| 14 | 14.0 | 23.0 | 21.0 | 25.0 | 3.0 | 16.5 | 15.5 | 10.0 | 17.5 |
| 16 | 16.0 | 26.0 | 23.0 | 27.0 | 3.0 | 18.0 | 17.5 | 10.0 | 17.5 |
| 18 | 18.0 | 29.0 | 27.0 | 33.0 | 3.0 | 19.5 | 18.5 | 11.5 | 19.5 |
| 20 | 20.0 | 31.0 | 29.0 | 35.0 | 3.0 | 22.0 | 20.0 | 11.5 | 19.5 |
| 22 | 22.0 | 33.0 | 31.0 | 37.0 | 3.0 | 21.5 | 21.5 | 11.5 | 19.5 |
| 24 | 24.0 | 35.0 | 33.0 | 39.0 | 3.0 | 23.5 | 23.0 | 11.5 | 19.5 |
| 25 | 25.0 | 36.0 | 34.0 | 40.0 | 3.0 | 26.5 | 24.5 | 11.5 | 19.5 |
| 28 | 28.0 | 40.0 | 37.0 | 43.0 | 3.0 | 26.5 | 24.5 | 11.5 | 19.5 |
| 30 | 30.0 | 43.0 | 39.0 | 45.0 | 3.0 | 26.5 | 24.5 | 11.5 | 19.5 |
| 32 | 32.0 | 46.0 | 42.0 | 48.0 | 3.0 | 28.5 | 28.0 | 11.5 | 19.5 |
| 33 | 33.0 | 47.0 | 42.0 | 48.0 | 3.0 | 28.5 | - | 11.5 | 19.5 |
| 35 | 35.0 | 49.0 | 44.0 | 50.0 | 3.0 | 28.5 | 28.0 | 11.5 | 19.5 |
| 38 | 38.0 | 53.0 | 49.0 | 56.0 | 4.0 | 33.5 | 31.0 | 14.0 | 22.0 |
| 40 | 40.0 | 56.0 | 51.0 | 58.0 | 4.0 | 36.0 | 34.0 | 14.0 | 22.0 |
| 43 | 43.0 | 59.0 | 54.0 | 61.0 | 4.0 | 38.5 | - | 14.0 | 22.0 |
| 45 | 45.0 | 61.0 | 56.0 | 63.0 | 4.0 | 39.5 | 36.5 | 14.0 | 22.0 |
| 48 | 48.0 | 64.0 | 59.0 | 66.0 | 4.0 | 46.0 | 42.0 | 14.0 | 22.0 |
| 50 | 50.0 | 66.0 | 62.0 | 70.0 | 4.0 | 45.0 | 43.0 | 15.0 | 23.0 |
| 53 | 53.0 | 69.0 | 65.0 | 73.0 | 4.0 | 47.0 | - | 15.0 | 23.0 |
| 55 | 55.0 | 71.0 | 67.0 | 75.0 | 4.0 | 49.0 | 47.0 | 15.0 | 23.0 |
| 58 | 58.0 | 76.0 | 70.0 | 78.0 | 4.0 | 55.0 | 50.0 | 15.0 | 23.0 |
| 60 | 60.0 | 78.0 | 72.0 | 80.0 | 4.0 | 55.0 | 51.0 | 15.0 | 23.0 |
| 63 | 63.0 | 83.0 | 75.0 | 83.0 | 4.0 | 55.0 | - | 15.0 | 23.0 |
| 65 | 65.0 | 84.0 | 77.0 | 85.0 | 4.0 | 55.0 | 52.0 | 15.0 | 23.0 |
| 68 | 68.0 | 88.0 | 81.0 | 90.0 | 4.0 | 55.0 | 53.0 | 18.0 | 26.0 |
| 70 | 70.0 | 90.0 | 83.0 | 92.0 | 4.0 | 57.0 | 54.0 | 18.0 | 26.0 |
| 75 | 75.0 | 98.0 | 88.0 | 97.0 | 4.0 | 62.0 | 55.0 | 18.0 | 26.0 |
| 80 | 80.0 | 100.0 | 95.0 | 105.0 | 4.0 | 61.8 | 58.0 | 18.2 | 26.2 |
