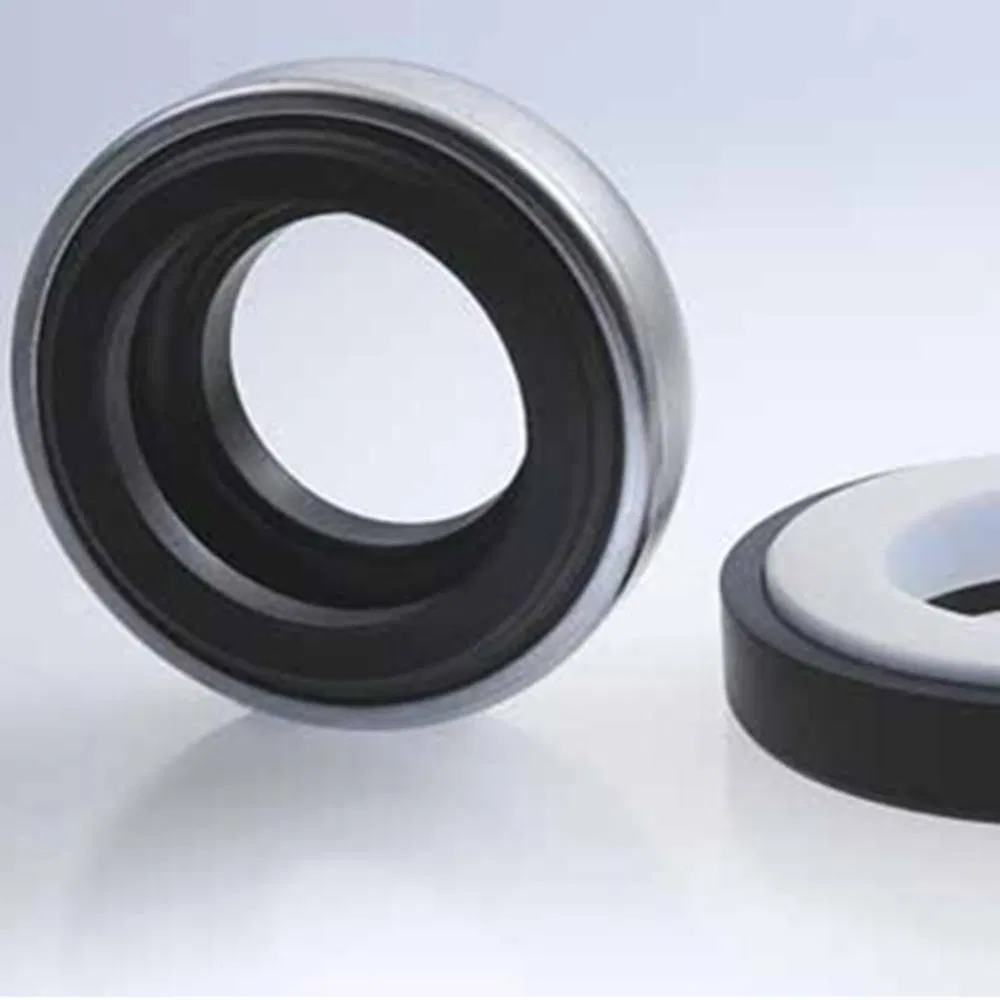

66 BT-AR Mechanical Seals for Pumps Pusher Seals

(1) Features
•Single and dual seal
•Short axial installation length
•Protection of the shaft along the whole length of the seal
•Material approvals available


(2) Advantages
The BT-AR is the "small seal for large pump series", a
mechanical seal for mass produced water pumps. Its key
feature is the short axial installation length. This allows
pumps to be built economically. The compact design of
BT-AR seals assures reliable and durable sealing. The
elasticity of the bellows design makes it possible to cope
with robust operating conditions.


(3) Operating  range  (see  note  on  page  1)
Shaft diameter: d1 = 6 ... 60 mm (0.24".....2.4")
Pressure: p1* = 6 bar (87 PSI),
vacuum.....0.5 bar
(up to 1 bar with seat locking)
Temperature: t* = -20 °C ... +120 °C (-4 °F.....+248 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
* Depending on medium, size and material


(4) Materials
Seal face: Carbon graphite antimony impregnated (A),
Carbon graphite resin impregnated (B, B3),
Silicon carbide (Q1, Q6), Tungsten carbide (U)*,
PTFE glass fiber reinforced (Y)
Seat: Steatite (X), Aluminium oxide (V, V1),
Silicon carbide (Q1, Q6), Tungsten carbide (U)*
Elastomer: NBR (P), EPDM (E), FKM (V), HNBR (X4)
Metal parts: 1.4571 (G), 1.4301 (F), 1.4401 (G),
1.4057 (F1)*
*) Only for BT-AR3


(5)Standards and approvals
•Material approvals: KTW, W270, ACS, WRAS, NSF61, FDA.


(6) Recommended applications
•Water and waste water technology
•Food and beverage industry
•Water and waste water
•Beverages and foodstuffs
•Domestic and garden pumps
•Whirlpool and swimming pool pumps
•Dishwasher pumps
•Submersible motors/pumps
•Water pumps

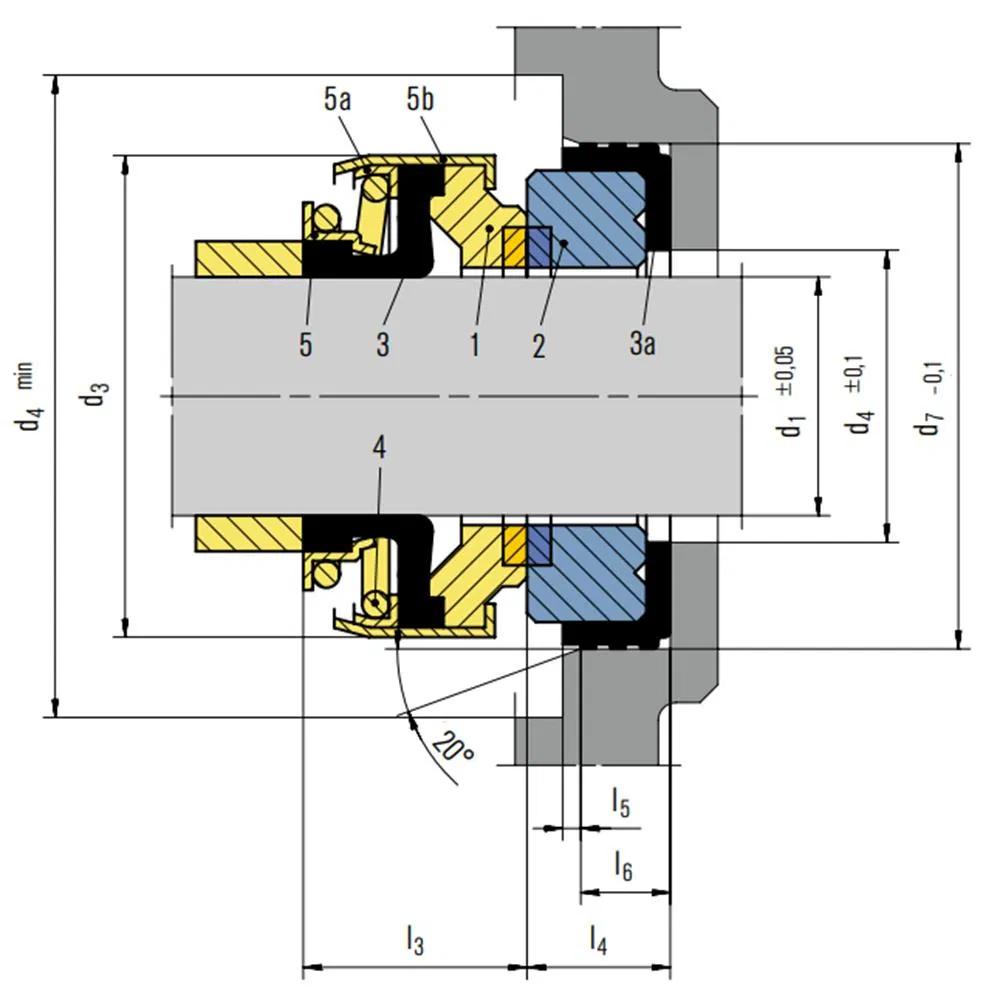

(7) Item         Description
1               Seal face
2               Seat
3               Bellows
3a             Corner sleeve
4               Spring
5               Drive collar
5a             Locking ring
5b             Collar


(8)Product variant
BT-AR3
Seal faces made of tungsten carbide (U). Elastomers
and diameter range same as BT-AR. The BT-AR3 is the
right choice when the seal has to be used in high duty
applications or where the seal faces could be damaged
by abrasives (waste water).

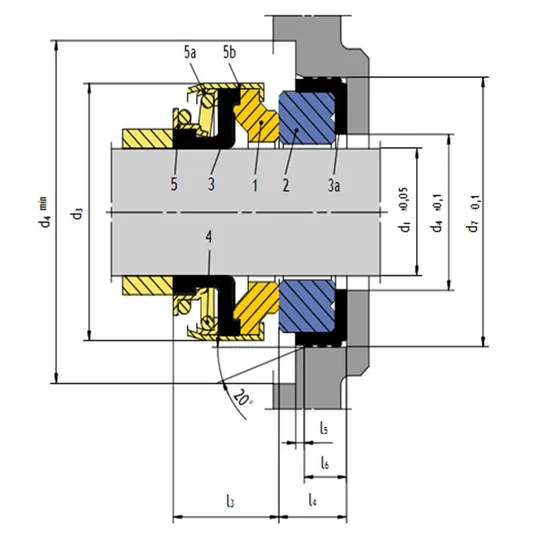

BT-AR3
