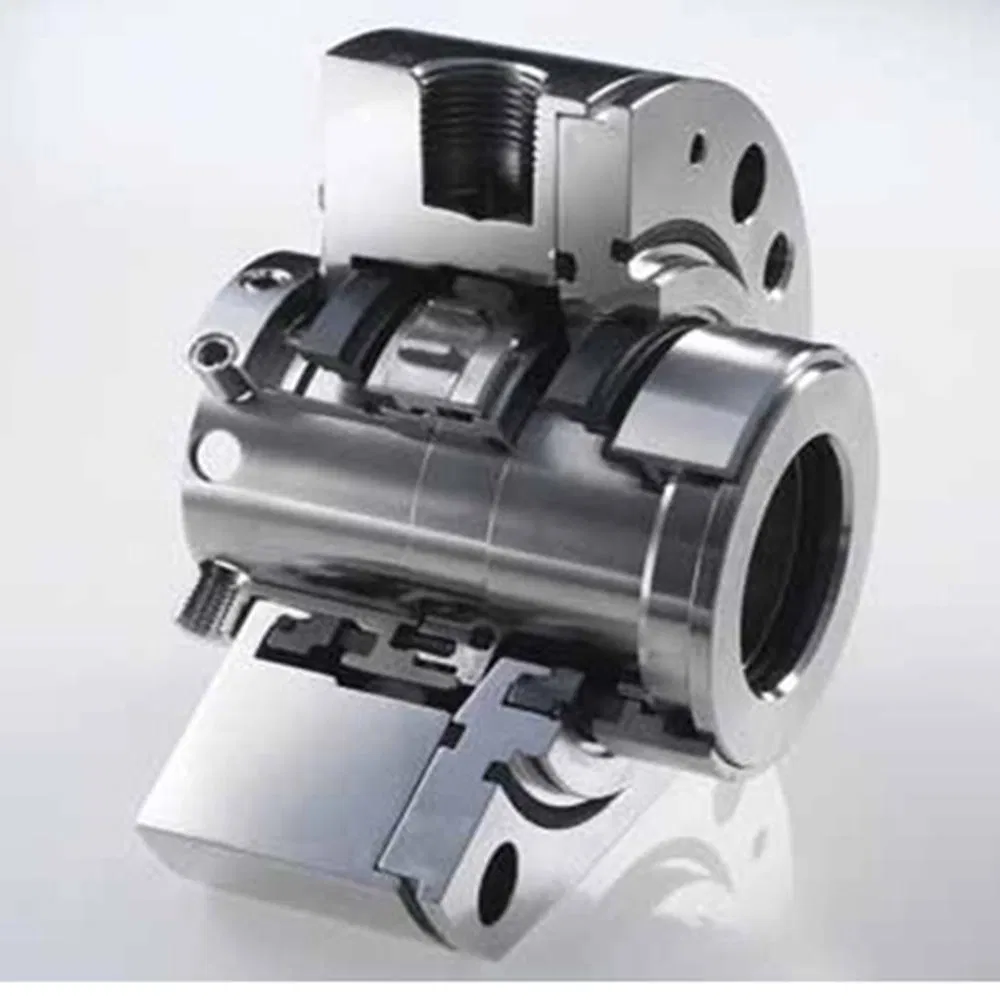

56 Mechanical Seals for Pumps Pusher Seals

(1)Features
•Single and dual seals
•Cartridge
•Seal design according API fb82/ISO 21049
•Category 1, Type A, Arrangement 1, 2 or 3
•Balanced
•Version independent of direction of rotation available
•Shrink-fitted seal faces
•Solid seats
•Single seals with API plan 11 and fb1 (Apitax-SA)

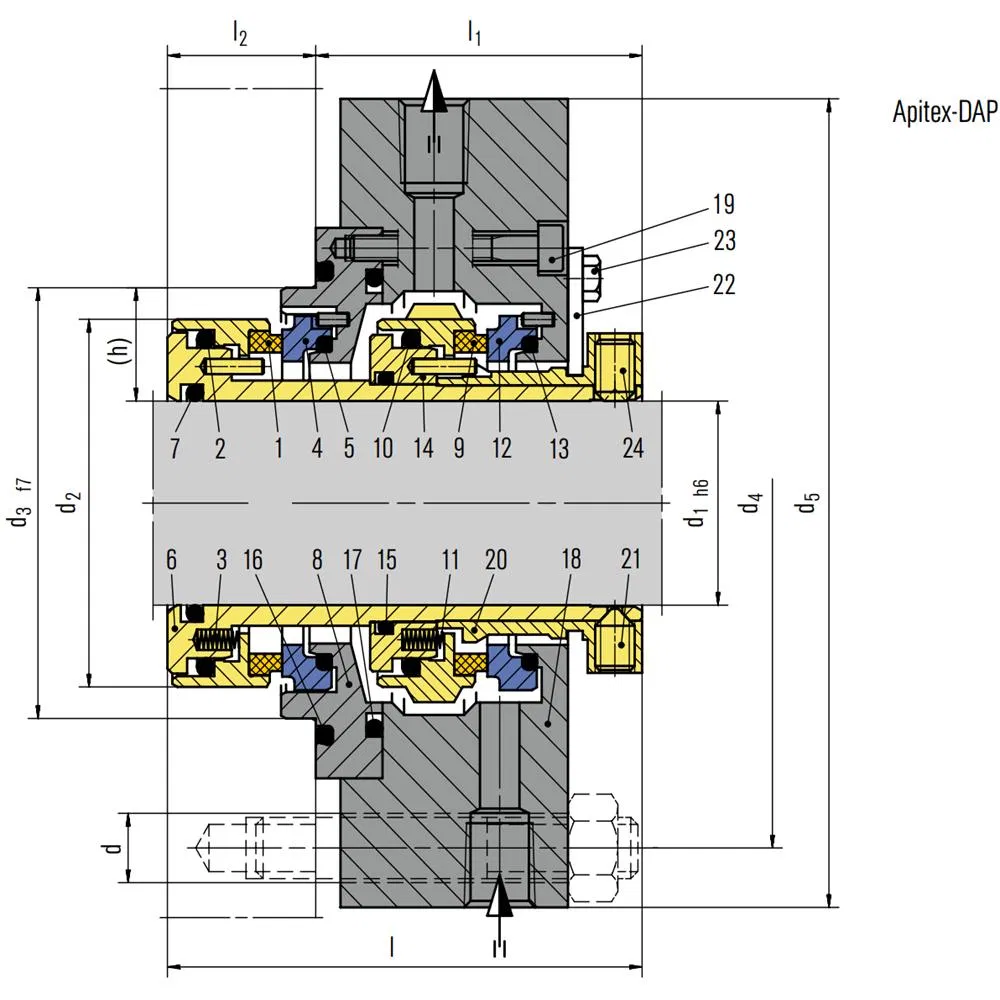

•Dual seals with API plan 52/53 (Apitax-DAP)
•Other flush plans available

(2) Advantages
•Suitable for pressure reversal
•Insensitive to shaft deflections and process fluctuations
•Cover distortion cannot cause seat misalignment
•Good heat dissipation
•No external pump necessary
•Pre-assembled unit, ready to install
•Low space requirements
•Springs protected from the product
•Security due to proofed design

(3)Operating  range  (see  note  on  page  1)
Shaft diameter: d1 = 20 ... 110 mm (0.750"......4.300"),
other sizes on request
Pressure: p1 = 22 bar (319 PSI)
Temperature: t = -40 °C......+ 260 °C
(-40 °F....+ 500 °F)
(> 220 °C (428 °F) please inquire)
Sliding velocity: vg = 23 m/s (75 ft/s)

(4) Materials
Seal face: Carbon graphite antimony impregnated (A),
Silicon carbide sintered pressureless (Q12)
Seat: Silicon carbide sintered pressureless (Q1)
Secondary seals: FKM (V), FFKM (K), NBR (P), EPDM (E)
Springs: Hastelloy C-4 (M)* and C-276 (M5)
Metal parts: CrNiMo steel (G)
*EagleBurgman standard

(5)Standards and approvals
•API 682/ISO 21049

(6)Recommended applications
•Chemical industry
•Petrochemical industry
•Oil and gas industry
•Light volatile and highly viscous hydrocarbons
•Toxic and hazardous media
•Media with poor lubrication properties
•Low solids content and low abrasive media
•Vertical and horizontal ANSI chemical standard pumps

(7)Item                                        Description
1, 9                                         Seal face
2, 5, 7, 10, 13, 15, 16, 17     O-Ring
3, 11                                      Spring
4 ,12                                      Seat
6                                            Shaft sleeve
8                                            Adapter
14                                          Driver
18                                          Housing
19                                          HSH Cap screw
20                                          Set ring
21                                          Set screw
22                                          Assembly fixtures
23                                          Hexagon bolt
24                                          Set screw

(8)Product variant

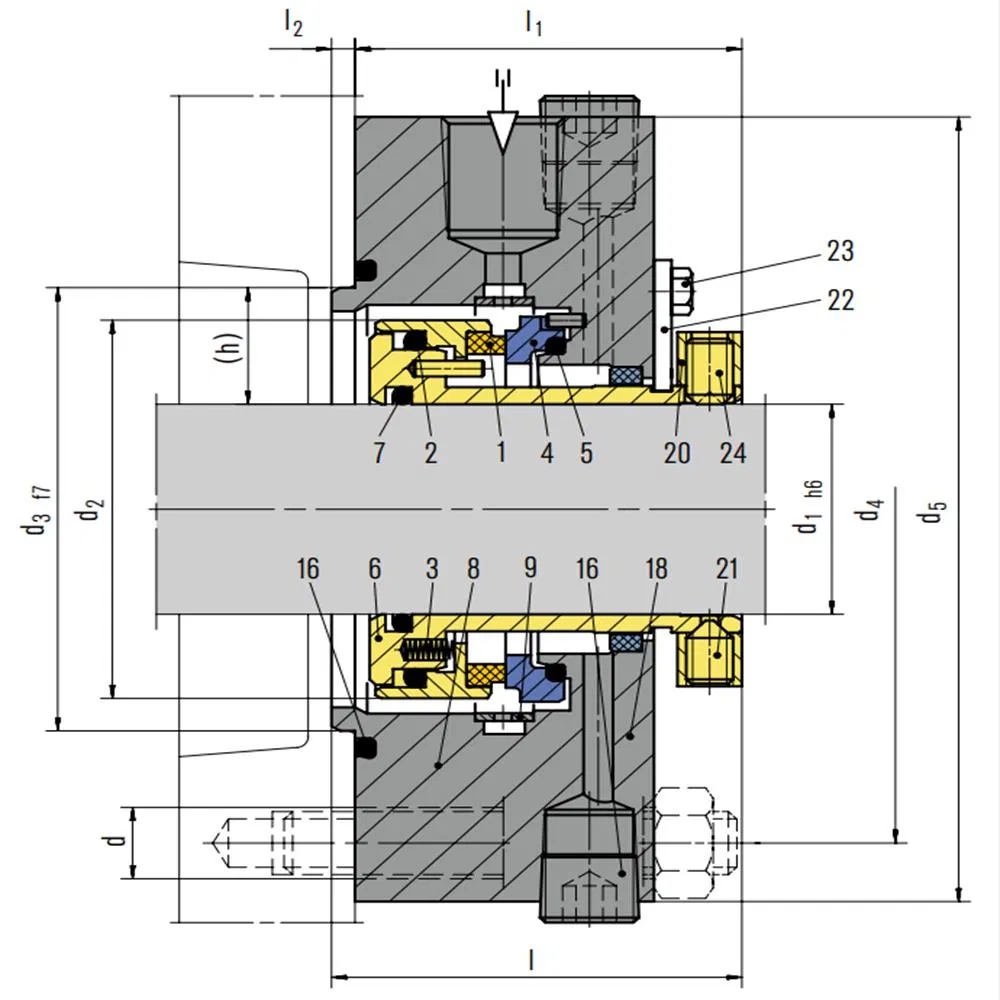

APitex-SA single seal

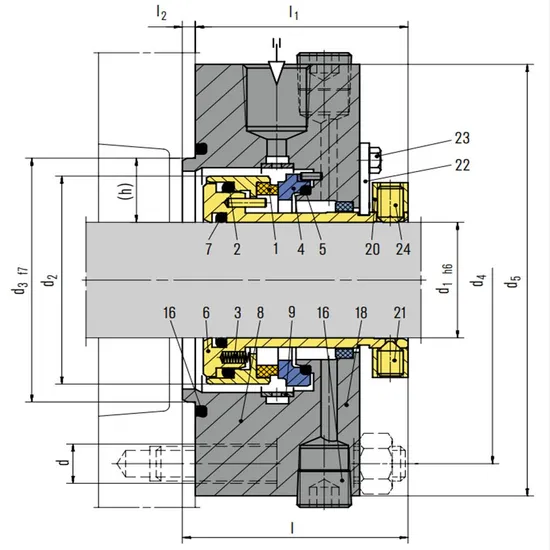

APItex-SA single seal

Dimensions in mm
