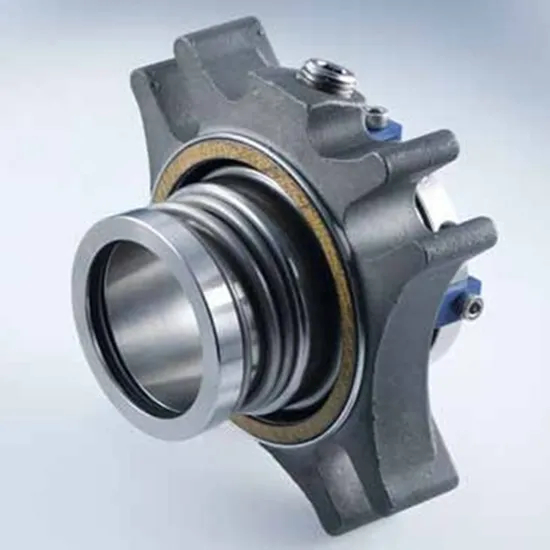

(1)Features
•Single cartridge seal
•Elastomer bellows
•Unbalanced
•Independent of direction of rotation
•Stationary seat, rotating spring
•Bellows and spring free from torsion
•Metric and inch sizes available
(2)Advantages
•Straightforward and easy installation
•Fits into any installation space due to smallest outer diameter
•Important material certifications available
•Universal application opportunities (standardization)
•No modifications of the pump's installation chamber necessary
•Economical cartridge solution
•Comes with flush connection acc. to API 682, Plan 11 for seal chamber cleaning and cooling
(3) Operating range (see note on page 1)
Shaft diameter: dN = 25 ... 75 mm (1"...2.625")
Pressure: p1 = 12 bar (174 PSI)
Temperature: t = -20 °C ... +140 °C (-4 °F...+284 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
Axial movement: ±0.5 mm
(4)Materials
Seal face: Carbon graphite resin impregnated (B),
Silicon carbide (Q1)
Seat: Silicon carbide (Q1)
Secondary seals: FKM (V), EPDM (E)
Metal parts: CrNiMo steel (G), CrNiMo cast steel (G)
(5)Recommended applications
•Water and waste water technology
•Cold and hot water
•Cooling fluids
•Beverages
•Diluted lyes and acids
•Suspensions with low solids content
•Circulating pumps
•Water and waste water pumps
•Production of pressure oils for bio diesel fuels
(6) Standards and approvals
•Material approvals: e. g. FDA, KTW, WRAS, W270, NSF, ACS

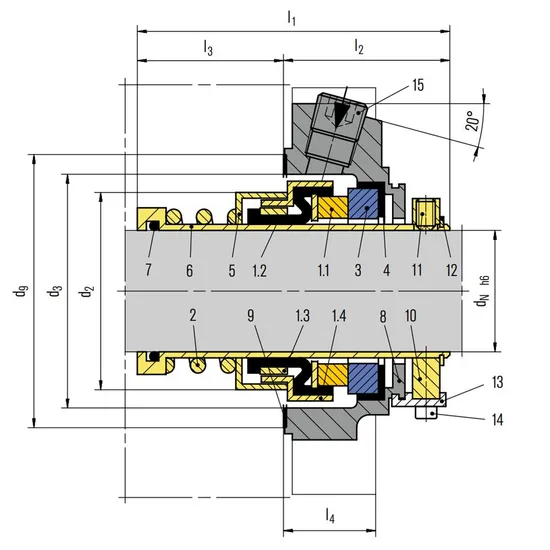

(7) Item Description
1.1 Seal face
1.2 Bellows
1.3 Drive collar
1.4 "L"-ring (Spring collar)
2 Spring
3 Seat (G60)
4 O-Ring or corner sleeve
5 Spacer ring
6 Shaft sleeve
7 O-Ring
8 Cover
9 Gasket
10 Drive collar
11 Set screw
12 Snap ring
13 Assembly fixture
14 Socket head screw
15 Screw plug

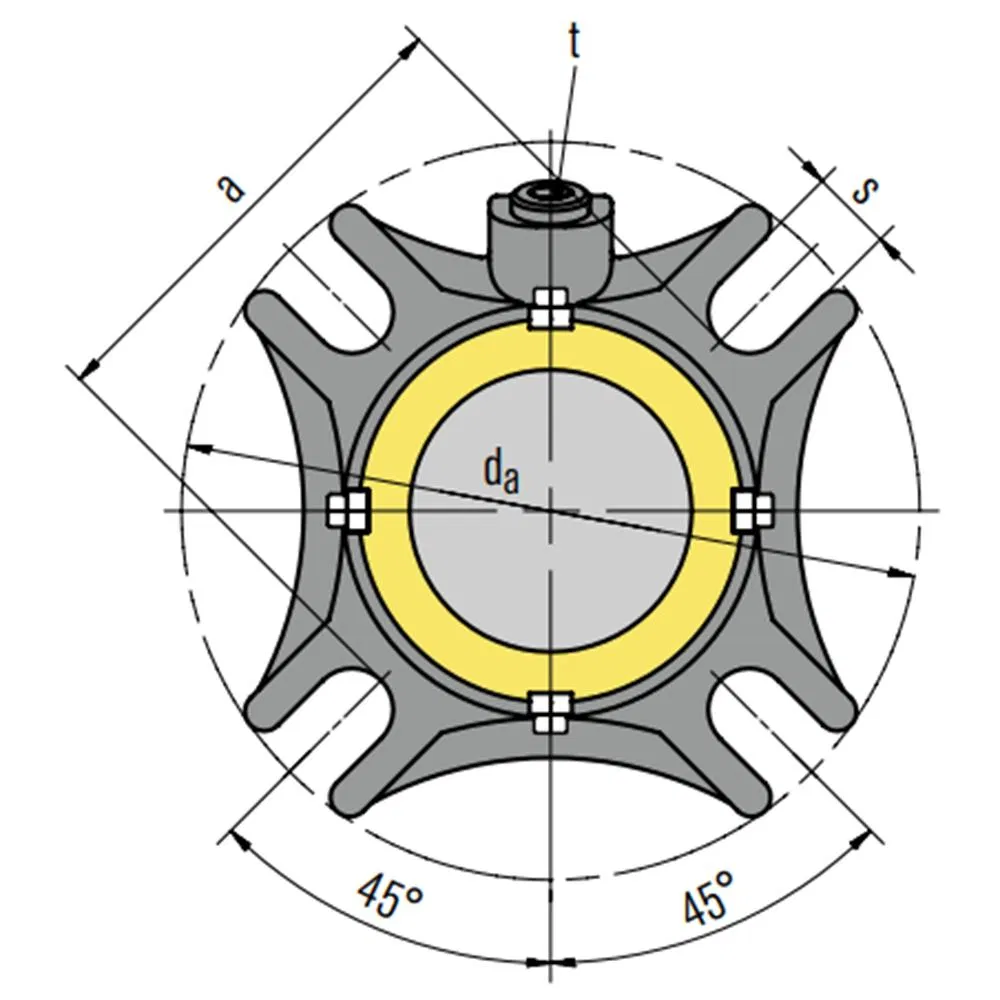

(8)Seat alternative
| dN | d2 | d3min. | d3max. | d9 | da | a | s | L1 | L2 | L3 | L4 | t |
| 25 | 38.4 | 41.5 | 51.0 | 60.0 | 105.0 | 62.0 | 13.2 | 65.5 | 41.0 | 24.5 | 23.0 | 1/4 NPT |
| 28 | 42.4 | 44.5 | 52.0 | 60.0 | 105.0 | 62.0 | 13.2 | 68.0 | 41.5 | 26.5 | 23.0 | 1/4 NPT |
| 30 | 42.4 | 45.5 | 56.0 | 63.0 | 105.0 | 67.0 | 13.2 | 68.0 | 41.5 | 26.5 | 23.0 | 1/4 NPT |
| 33 | 45.0 | 48.0 | 57.0 | 65.0 | 110.0 | 67.0 | 13.2 | 69.5 | 42.0 | 27.5 | 23.0 | 1/4 NPT |
| 35 | 49.1 | 50.8 | 61.5 | 68.0 | 107.0 | 70.0 | 13.2 | 72.5 | 44.0 | 28.5 | 26.0 | 1/4 NPT |
| 38 | 51.3 | 54.5 | 66.0 | 73.0 | 123.0 | 75.0 | 14.7 | 72.5 | 44.0 | 28.5 | 26.0 | 1/4 NPT |
| 40 | 54.3 | 57.5 | 68.0 | 75.0 | 123.0 | 77.0 | 14.7 | 75.5 | 44.5 | 31.0 | 26.0 | 1/4 NPT |
| 43 | 56.3 | 59.5 | 70.5 | 78.0 | 133.0 | 80.0 | 14.7 | 76.5 | 44.5 | 32.0 | 26.0 | 1/4 NPT |
| 45 | 59.8 | 63.0 | 73.0 | 79.0 | 130.0 | 82.0 | 14.2 | 76.5 | 44.5 | 32.0 | 26.0 | 1/4 NPT |
| 48 | 61.8 | 65.0 | 75.0 | 82.0 | 130.0 | 84.0 | 14.2 | 78.0 | 45.0 | 33.0 | 26.0 | 1/4 NPT |
| 50 | 64.8 | 68.0 | 78.0 | 85.0 | 148.0 | 87.0 | 14.7 | 80.5 | 47.0 | 33.5 | 28.0 | 3/8 NPT |
| 53 | 66.8 | 70.0 | 87.0 | 95.0 | 148.0 | 97.0 | 17.5 | 81.5 | 47.0 | 34.5 | 28.0 | 3/8 NPT |
| 55 | 71.0 | 73.0 | 83.0 | 90.0 | 148.0 | 92.0 | 17.5 | 83.5 | 47.0 | 36.5 | 28.0 | 3/8 NPT |
| 60 | 76.5 | 79.0 | 91.0 | 100.0 | 157.0 | 102.0 | 17.5 | 85.5 | 47.0 | 38.5 | 28.0 | 3/8 NPT |
| 65 | 83.0 | 85.7 | 98.5 | 108.0 | 162.0 | 110.0 | 17.5 | 88.0 | 48.5 | 39.5 | 28.0 | 3/8 NPT |
| 70 | 88.0 | 94.0 | 108.0 | 116.0 | 178.0 | 118.0 | 17.5 | 92.0 | 48.5 | 43.5 | 28.0 | 3/8 NPT |
| 75 | 93.4 | 98.4 | 118.0 | 125.0 | 190.0 | 127.0 | 17.5 | 93.5 | 49.0 | 44.5 | 28.0 | 3/8 NPT |
| dN | d2 | d3min. | d3max. | d9 | da | a | s | L1 | L2 | L3 | L4 | t |
| 1.000 | 1.512 | 1.634 | 2.000 | 2.362 | 4.134 | 2.440 | 0.520 | 2.579 | 1.614 | 0.965 | 0.906 | 1/4 NPT |
| 1.125 | 1.669 | 1.750 | 2.050 | 2.362 | 4.134 | 2.441 | 0.520 | 2.677 | 1.634 | 1.043 | 0.906 | 1/4 NPT |
| 1.250 | 1.772 | 1.890 | 2.250 | 2.559 | 4.331 | 2.638 | 0.520 | 2.736 | 1.654 | 1.083 | 0.906 | 1/4 NPT |
| 1.375 | 1.933 | 2.000 | 2.420 | 2.677 | 4.213 | 2.756 | 0.520 | 2.854 | 1.732 | 1.122 | 1.024 | 1/4 NPT |
| 1.500 | 2.020 | 2.146 | 2.625 | 2.874 | 4.843 | 2.950 | 0.579 | 2.854 | 1.732 | 1.122 | 1.024 | 1/4 NPT |
| 1.750 | 2.354 | 2.480 | 2.812 | 3.110 | 5.118 | 3.230 | 0.559 | 3.012 | 1.752 | 1.260 | 1.024 | 1/4 NPT |
| 1.875 | 2.433 | 2.559 | 2.940 | 3.228 | 5.118 | 3.307 | 0.559 | 3.071 | 1.772 | 1.299 | 1.024 | 1/4 NPT |
| 2.000 | 2.551 | 2.677 | 3.190 | 3.346 | 5.827 | 3.430 | 0.579 | 3.169 | 1.850 | 1.319 | 1.102 | 3/8 NPT |
| 2.125 | 2.795 | 2.875 | 3.437 | 3.740 | 5.512 | 3.820 | 0.689 | 3.287 | 1.850 | 1.437 | 1.102 | 3/8 NPT |
| 2.250 | 2.874 | 2.992 | 3.560 | 3.780 | 6.181 | 3.858 | 0.689 | 3.287 | 1.850 | 1.437 | 1.102 | 3/8 NPT |
| 2.375 | 3.012 | 3.110 | 3.590 | 3.937 | 6.181 | 4.020 | 0.689 | 3.366 | 1.850 | 1.516 | 1.102 | 3/8 NPT |
| 2.500 | 3.209 | 3.287 | 3.800 | 4.173 | 6.693 | 4.252 | 0.689 | 3.465 | 1.909 | 1.555 | 1.102 | 3/8 NPT |
| 2.625 | 3.268 | 3.374 | 3.937 | 4.252 | 6.378 | 4.331 | 0.689 | 3.465 | 1.909 | 1.555 | 1.102 | 3/8 NPT |
