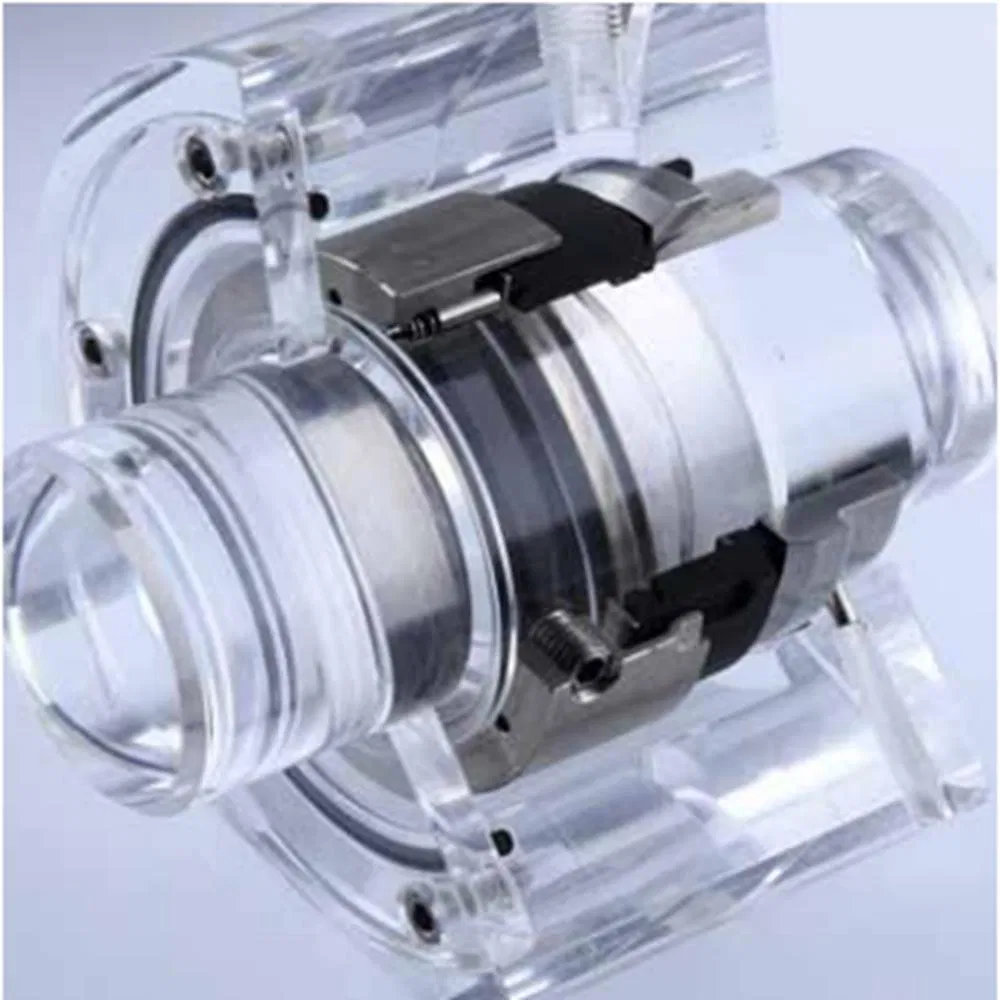

28 H75VN Mechanical Seals for Pumps Pusher Seals

(1)Features
• Single seal
• Cartridge unit available
• Design acc. to API 682/ISO 21049
• Category 2 and 3, Type A, Arrangement 1
• Independent of direction of rotation
• Rotating multiple springs
• Integrated pumping device available (H75VP)

(2)Advantages
• "Low-Emission-Seal" acc. to the American STLE-limits
• Universally applicable both for retrofits or original equipment
• Efficient stock-keeping due to standardized components
• Extended selection of materials
• Extended field of operation in terms of temperature and pressure
• Metal parts also in special materials available

(3)Operating range (see note on page 1)
Shaft diameter: d = 20 ... 110 mm (0.79" ... 4.33")*
Pressure: p1 = 40 bar (580 PSI)
Temperature: t = -40 °C ... +220 °C (-40 °F ... +428 °F)
Sliding velocity: vg = 23 m/s (75 ft/s)
Axial movement: ±2.0 ... 4.0 mm depending on diameter and installation situation
* Other sizes on request

(4)Materials
Seal face: Carbon graphite antimony impregnated (A)
Seat: Silicon carbide (Q1, Q2)
Secondary seals: EPDM (E), NBR (P), FKM (V), FFKM (K)
Springs: Hastelloy C-4 (M)
Metal parts: CrNiMo steel (G), Duplex (G1)
Hastelloy C-4 (M)

(5)Standards and approvals
• API 682/ISO 21049

(6)Recommended applications
• Refining technology
• Petrochemical industry
• Oil and gas industry
• Light hydrocarbons
• API 610/ISO 13709 pumps
• Process pumps

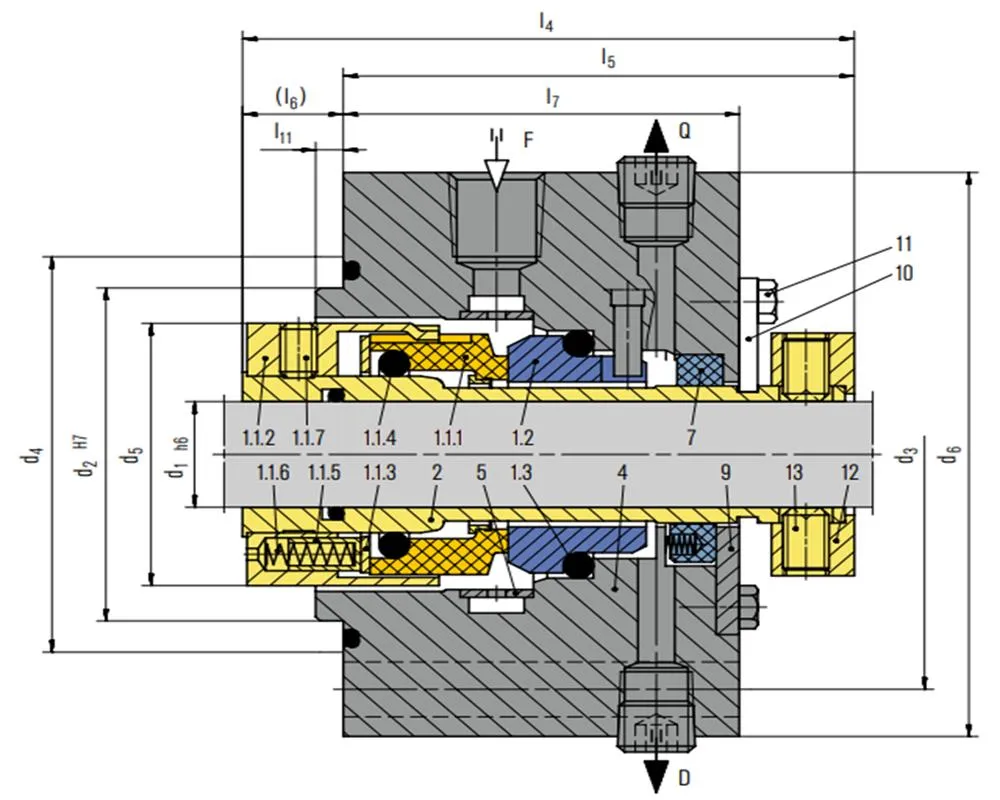

(7)Item               Description
1.1.1               Seal face
1.1.2               Driver
1.1.3               Thrust ring
1.1.4, 1.3        O-Ring
1.1.5               Sleeve
1.1.6               Spring
1.1.7               Set screw
1.2                  Seat
2                     Shaft sleeve
4                     Housing
5                     Insert
7                     Throttle ring
9                     Washer
10                   Assembly fixture
11                   Hexagon bolt
12                   Set ring
13                   Set screw

(8)Product variants

H75VP
Dimensions, items and descriptions as H75VN, but with
pumping ring. Shorter installation length possible.

H75N
Dimensions, items and descriptions as H75VN.
Seal face: Silicon carbide (Q1, Q2)
Seat: Silicon carbide (Q1, Q2)

Dimensions in mm

Dimensions in inch
