| Customization: | Available |
|---|---|
| Structure: | Single End |
| Pressure: | High Pressure Mechanical Seals |
| Quantity: | |
|---|---|
(1)Features

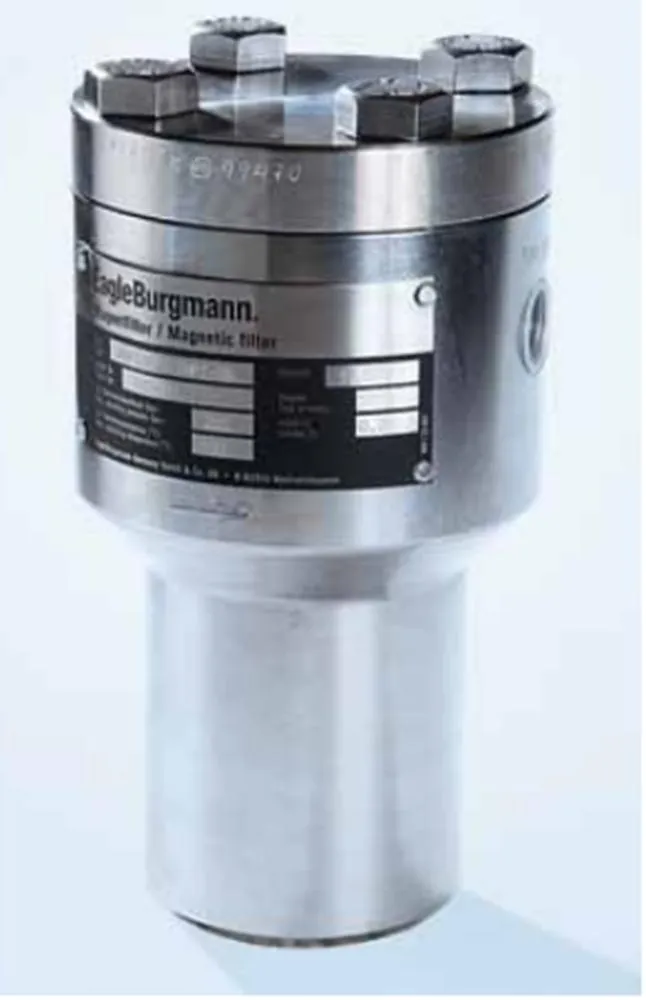

Magnetic filters of the MAF203 range
are inline filters for installation inside
pipelines. The combination of magnetic
rod and filter element guarantees a high
level of efficiency. Magnetic filters are
used in seal supply systems and any other
such systems in which a liquid has to be
cleaned of magnetic and non-magnetic
impurities up to a certain size.
(2)Advantages
• For operating pressures of up to 200 bar
• Combination device: magnetic filter and filter element in one
• Internal mesh to protect the filter element for reverse currents
• Housing can be dismantled: simple maintenance and cleaning
• Magnetic rod is of short overall height when dismantled:
low space requirements for maintenance work

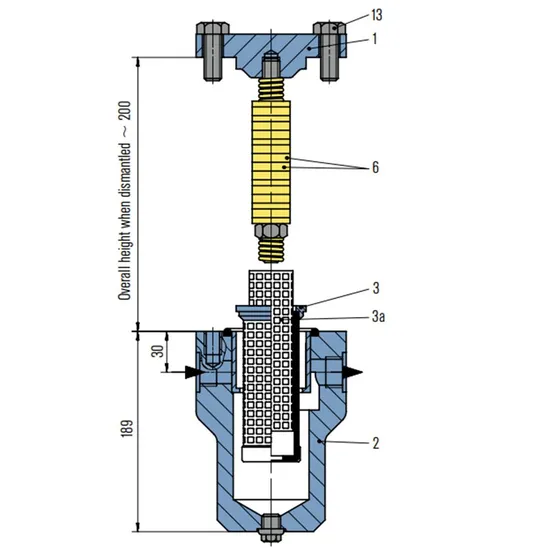

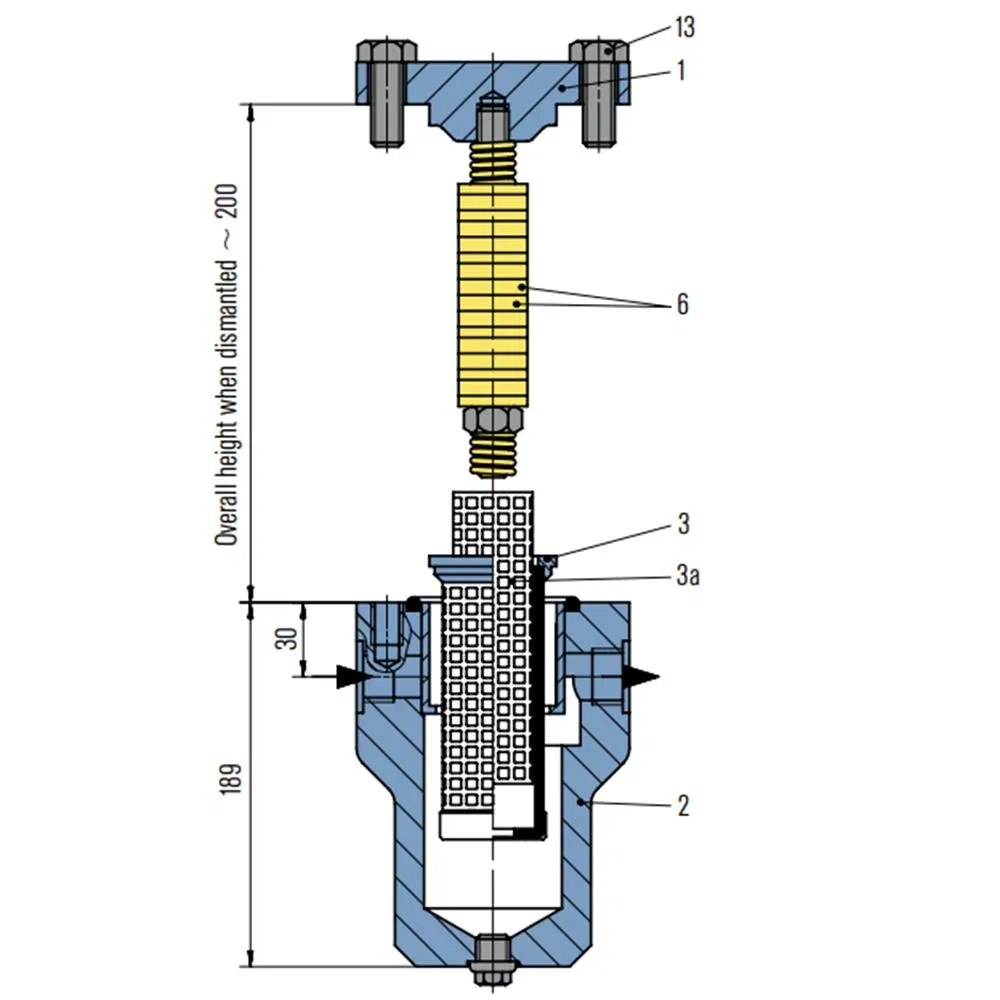

(3)Item Description
1 Cover
2 Filter Cover
3 Sleeve
3a Internal mesh
6 Ring magnet
13 Hex screw
(4)Functional description
The magnetic rod is positioned in the filter
in such a way that it catches magnetic
particles flowing past in the water on all
sides. Partial coarse filtration is provided
by the incorporated filter element.
(5)Recommended applications
• Petrochemical industry
• Chemical industry
• Power plant technology
• Refining technology
• Oil and gas industry
| Designation | Connection | Allowable pressure | Allowable temperature | Filter grade | Weight (approx.) | Housing, cover | Filter element1) | O-Ring | Gasket |
| MAF203/G1/2-00 | G 1/2" | 200 bar (2,900 PSI) | 150 °C (302 °F) | 50 μm | 10.5 kg (23 lb) | 1.4571 | 1.4301 | Viton | T2 |
| MAF203/G3/4-00 | G 3/4" | 200 bar (2,900 PSI) | 150 °C (302 °F) | 50 μm | 10.5 kg (23 lb) | 1.4571 | 1.4301 | Viton | T2 |
| MAF203/G1-00 | G 1" | 200 bar (2,900 PSI) | 150 °C (302 °F) | 50 μm | 10.5 kg (23 lb) | 1.4571 | 1.4301 | Viton | T2 |
| MAF203/1/2NPT-00 | 1/2 NPT | 200 bar (2,900 PSI) | 150 °C (302 °F) | 50 μm | 10.5 kg (23 lb) | 1.4571 | 1.4301 | Viton | T2 |
| MAF203/3/4NPT-00 | 3/4 NPT | 200 bar (2,900 PSI) | 150 °C (302 °F) | 50 μm | 10.5 kg (23 lb) | 1.4571 | 1.4301 | Viton | T2 |
| MAF203/1NPT-00 | 1 NPT | 200 bar (2,900 PSI) | 150 °C (302 °F) | 50 μm | 10.5 kg (23 lb) | 1.4571 | 1.4301 | Viton | T2 |
| 1) Other materials on request | |||||||||
We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.
Question1: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is displayed on the website is only the average market price. For specific models, you can contact us for further consultation and negotiation.
Question 2: Are you a factory or a trade company?
Answer: We are a factory with top sales for the trade service.
Question 3: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and services through placing trial orders. Looking forward to the long-term cooperation with you.
Question4: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product, or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.
Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company will provide you with samples for free, but you will have to pay for the international delivery (freight collect payment).
