238 ZY Cyclone separators Mechanical Seals for Pumps Pusher Seals

(1)Features

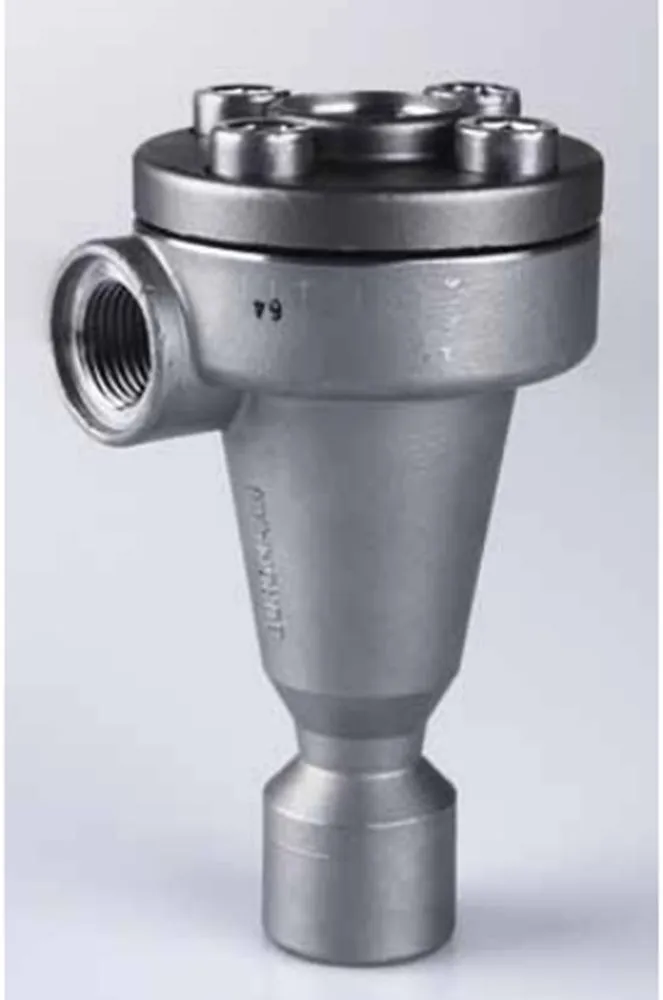

The ZY range (shown above: ZY62) is
available in 3 basic versions:
ZY61: cyclone separator with replaceable
insert made of elastomer or ceramic
ZY62: cast version of the cyclone
separator
ZY203: cyclone separator for high flow
rates and high pressures
Circulation in accordance with API 682/
ISO 21 049: Plan 31, Plan 41

(2)Advantages
• Dirt is automatically conveyed to the suction nozzle of the pump:
maintenance-free mode of operation for guaranteed reliability
• High filtration efficiency
• Wide range of products for the optimum solution for every application
• ZY203: for operating pressures of up to 200 bar
• ZY61, ZY203 optional in block-type design with integrated flange
connections: low space requirements because of compact design

(3)Functional description
Cyclone separators of the ZY range are
used to clean mainly aqueous liquids
containing dirt and solids (e.g. in circulation
systems of sewage, sludge or pipeline
pumps). The best possible filtration efficiency
is achieved when the specific weight of
the solids is much higher than that of the
carrier liquid, and when the differential
pressure is as large as possible within the
permissible pressure range (min. 1.7 bar
in accordance with API 682). The viscosity
of the medium is also a factor that needs
to be taken into account.

(4)Recommended applications
• Water and waste water technology
• Petrochemical industry
• Chemical industry
• Oil and gas industry
• Refining technology

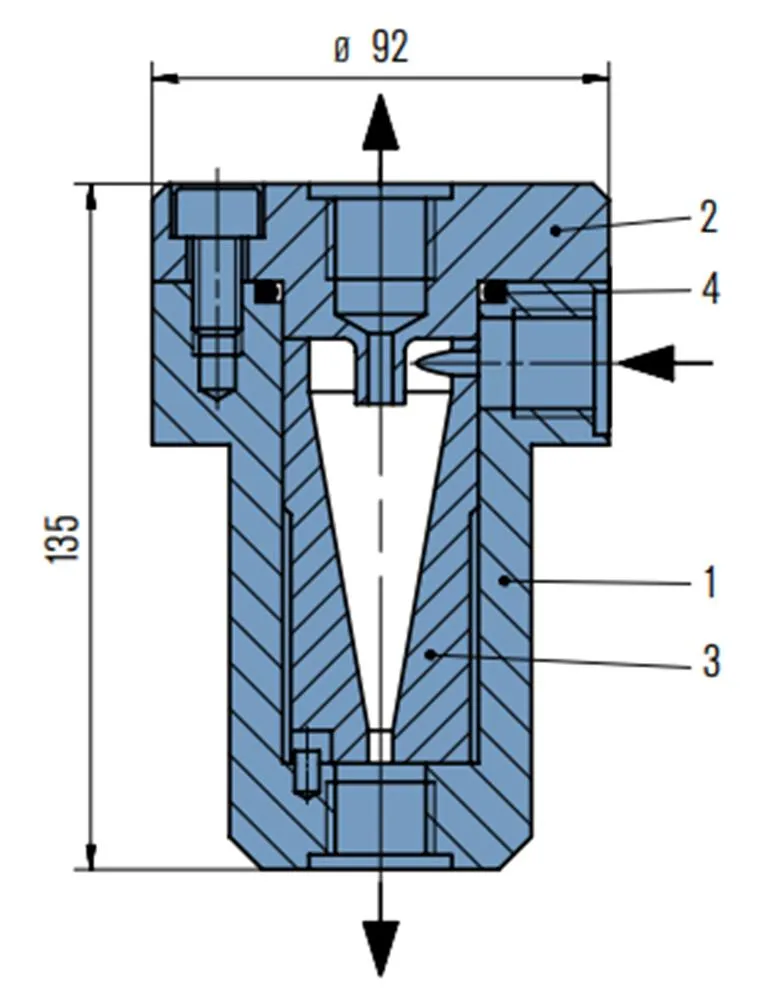

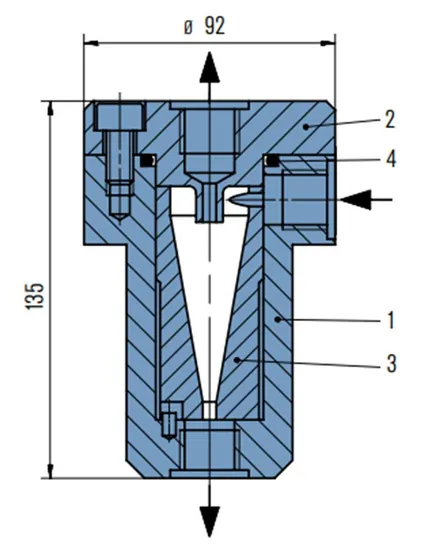

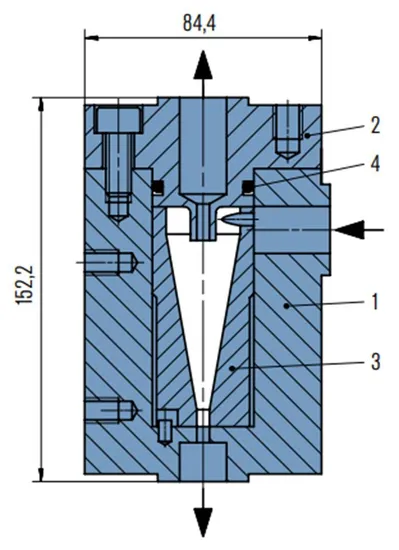

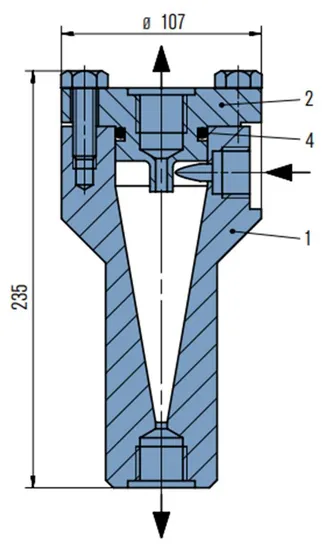

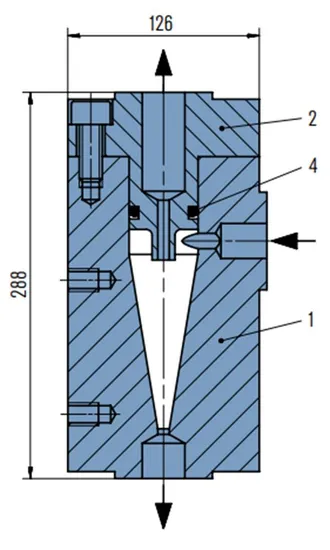

(5)Item      Description
1            Housing
2            Cover
3            Insert
4           O-Ring

(6)Product variant

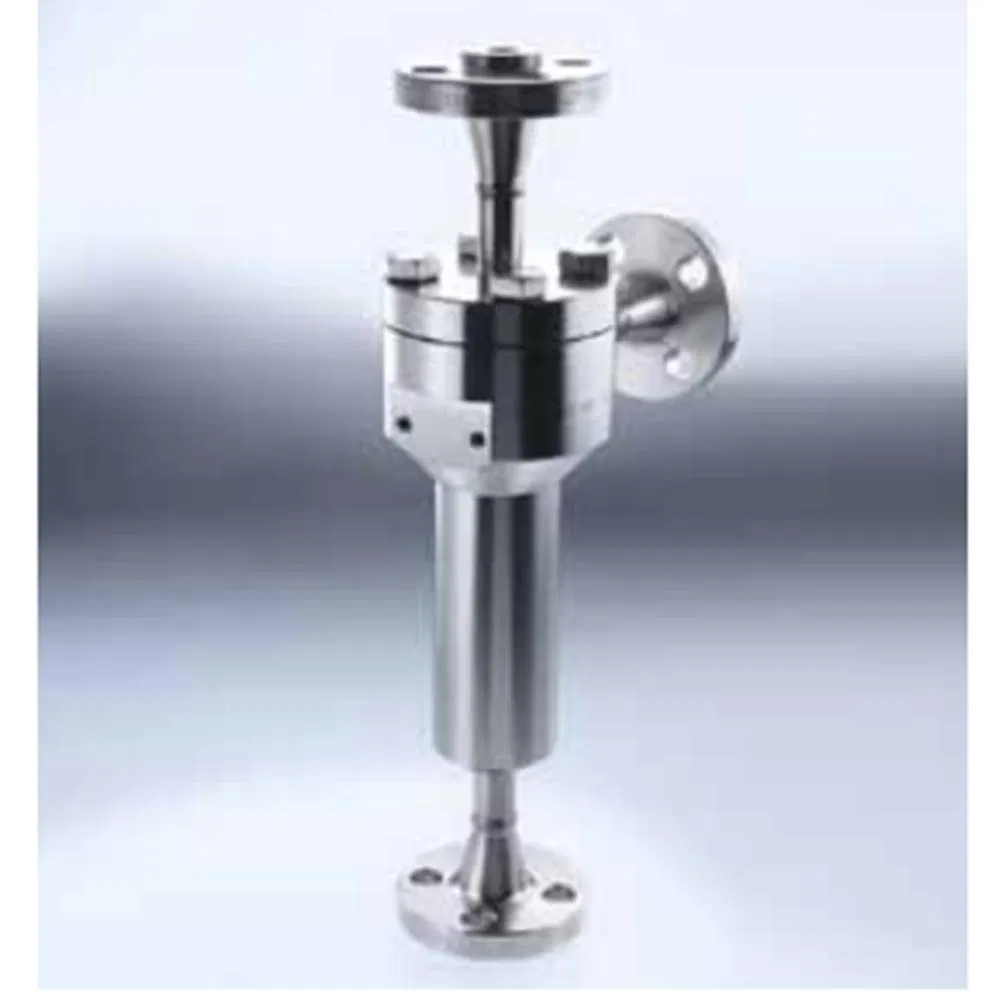

ZY203 with flange connections

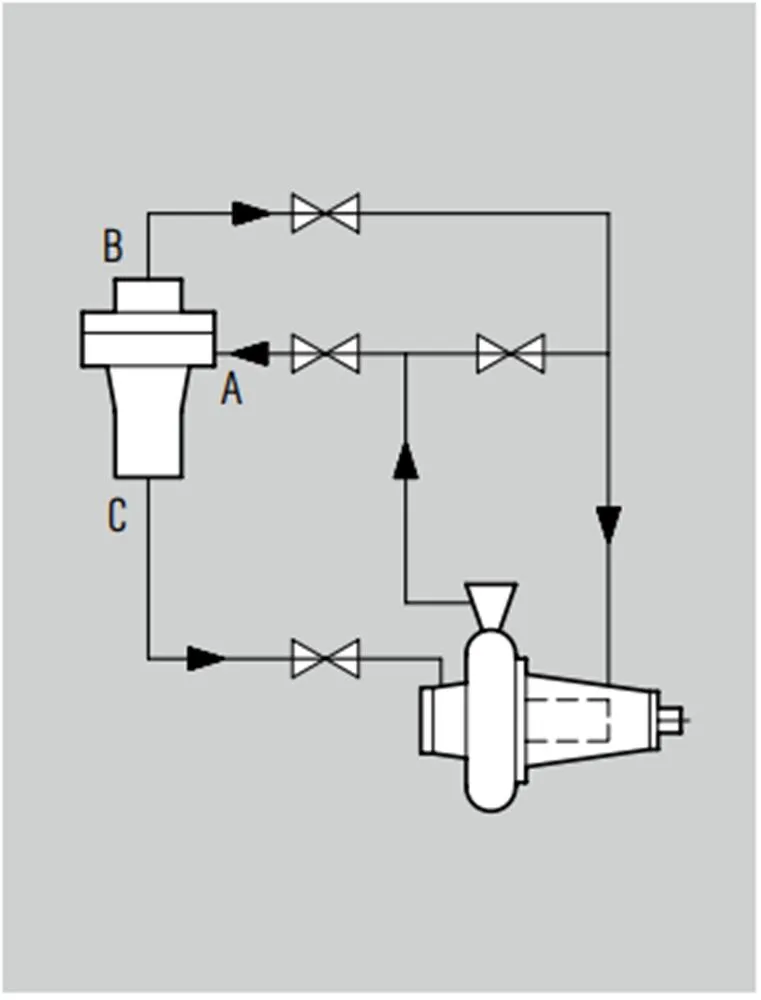

Operating and installation diagram for a
  cyclone separator.

  The cyclone separator must always be
  installed in the vertical position. The pressure
  at the outlets (C) and (B) must be lower than
  at the inlet (A). Cleaned liquid is conveyed
  to the top (B) and the separated dirt to the
  suction port of the pump.

  Flow rates for water as medium.
