| Customization: | Available |
|---|---|
| Structure: | Single End |
| Pressure: | High Pressure Mechanical Seals |
| Quantity: | |
|---|---|
Customization
(1)Features

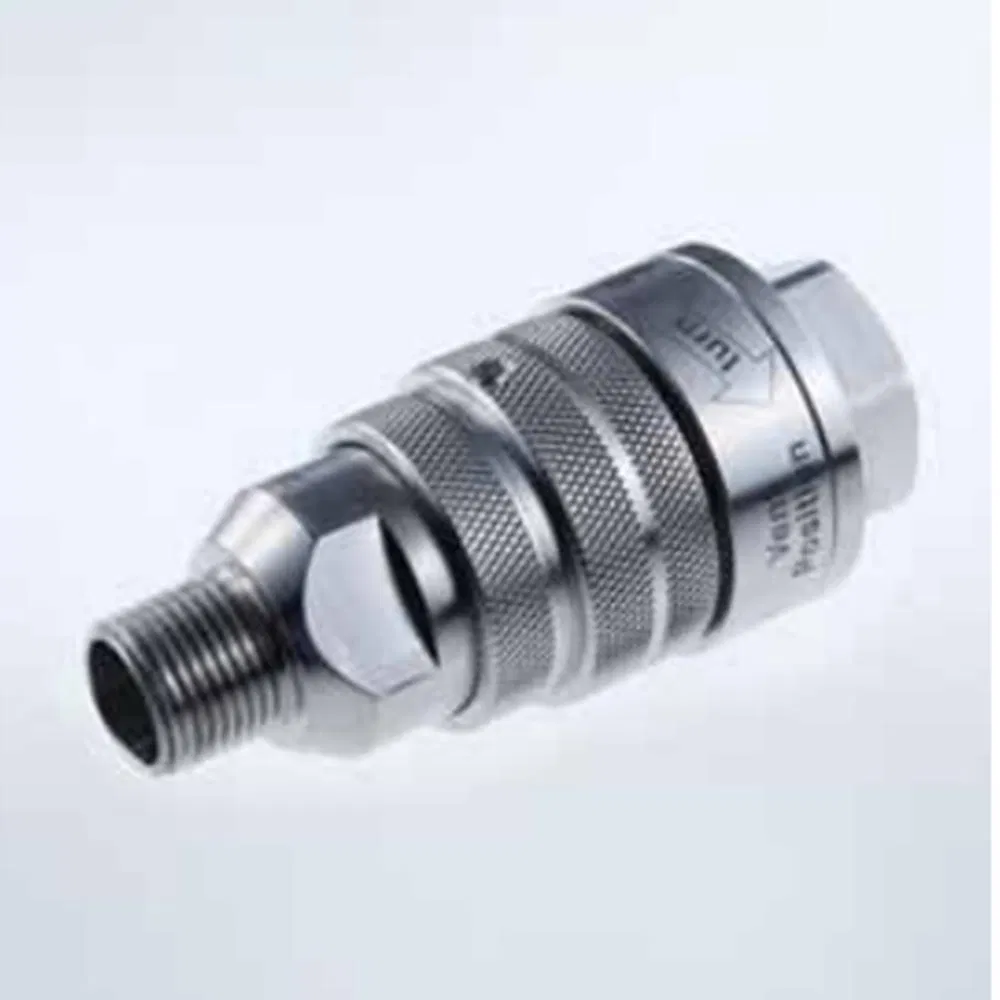

The EgleBergman BestFlow is a
temperature-controlled "money-saving
valve" for double seals on which the
barrier water connection extends directly
into the seal chamber, e.g. DN.
(2)Advantages
• Reduced, minimum barrier water consumption depending on the seal temperature
• Easy installation and use: no additional connection lines needed
• Venting in horizontal and vertical mounting position
• Long-term assurance of the functionality of the expansion element thanks to its physical and chemical properties
• Rugged, fatigue-free moving parts
• No temperature peaks during opening and closing of the valve thanks to the thermosensitive expansion element
• No power supply required (Ex-protection)
• Pressure-balanced component; pressure fluctuations have no effect on the BestFlow; controlled solely via temperature
(3)Functional description

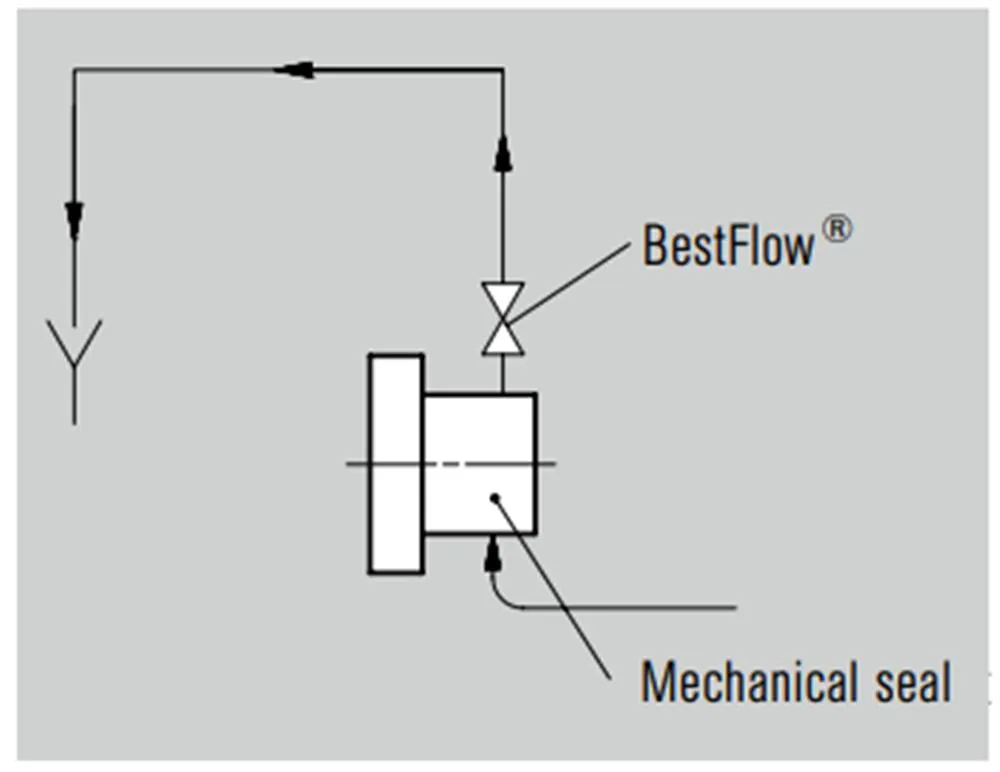

EgleBergman BestFlow controls the
buffer water flow via a thermosensitive
expansion element. If the temperature in
the seal increases above the permitted
value, the valve will open automatically.
More fresh, cool buffer water can then
flow into the seal chamber. As soon as
the seal or the barrier fluid has cooled
down, the valve closes and the flow is
stopped. This ensures that an exchange
of barrier medium only takes place when
cooling of the seal is required. This results
in enormous savings in terms of water
consumption, without any compromise in
terms of operational reliability and safety.
Temperature control for double seals,
which are operated in the non-flow mode.
(4)Recommended applications
• Pulp and paper industry
• Water and waste water technology
• Chemical industry
(5)Notes
Temperature control for double seals,
which are operated in the non-flow mode.
| Designation | BestFlow-3/8NPT-60 | BestFlow-3/8NPT-82 | BestFlow-R3/8"-60 | BestFlow-R3/8"-82 |
| t3 out | 60 °C (140 °F) | 82 °C (180 °F) | 60 °C (140 °F) | 82 °C (180 °F) |
| p3 max | 16 bar (232 PSI) | 16 bar (232 PSI) | 16 bar (232 PSI) | 16 bar (232 PSI) |
| p3 - p1 =p | min. 2 bar (29 PSI) | min. 2 bar (29 PSI) | min. 2 bar (29 PSI) | min. 2 bar (29 PSI) |
| Connection | 3/8 NPT | 3/8 NPT | R3/8 | R3/8 |
| Metal parts | 1.4571 Brass | 1.4571 Brass | 1.4571 Brass | 1.4571 Brass |
| Seal | Viton or EPDM | Viton or EPDM | Viton or EPDM | Viton or EPDM |
| Other connection dimensions on request. | ||||
We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.
Question1: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is displayed on the website is only the average market price. For specific models, you can contact us for further consultation and negotiation.
Question 2: Are you a factory or a trade company?
Answer: We are a factory with top sales for the trade service.
Question 3: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and services through placing trial orders. Looking forward to the long-term cooperation with you.
Question4: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product, or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.
Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company will provide you with samples for free, but you will have to pay for the international delivery (freight collect payment).
