| Customization: | Available |
|---|---|
| Structure: | Single End |
| Pressure: | High Pressure Mechanical Seals |
| Quantity: | |
|---|---|
Customization
(1)Features

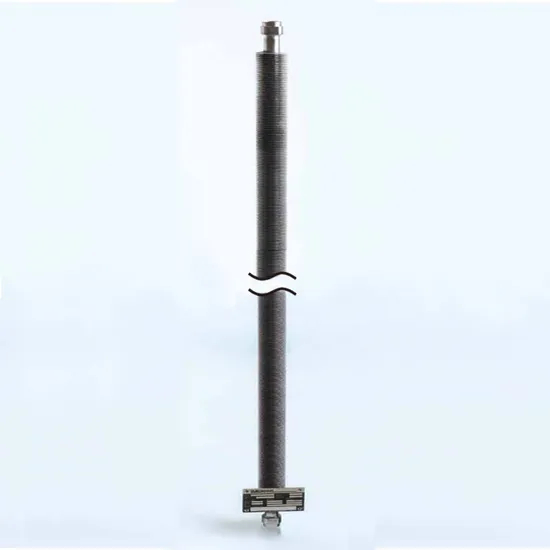

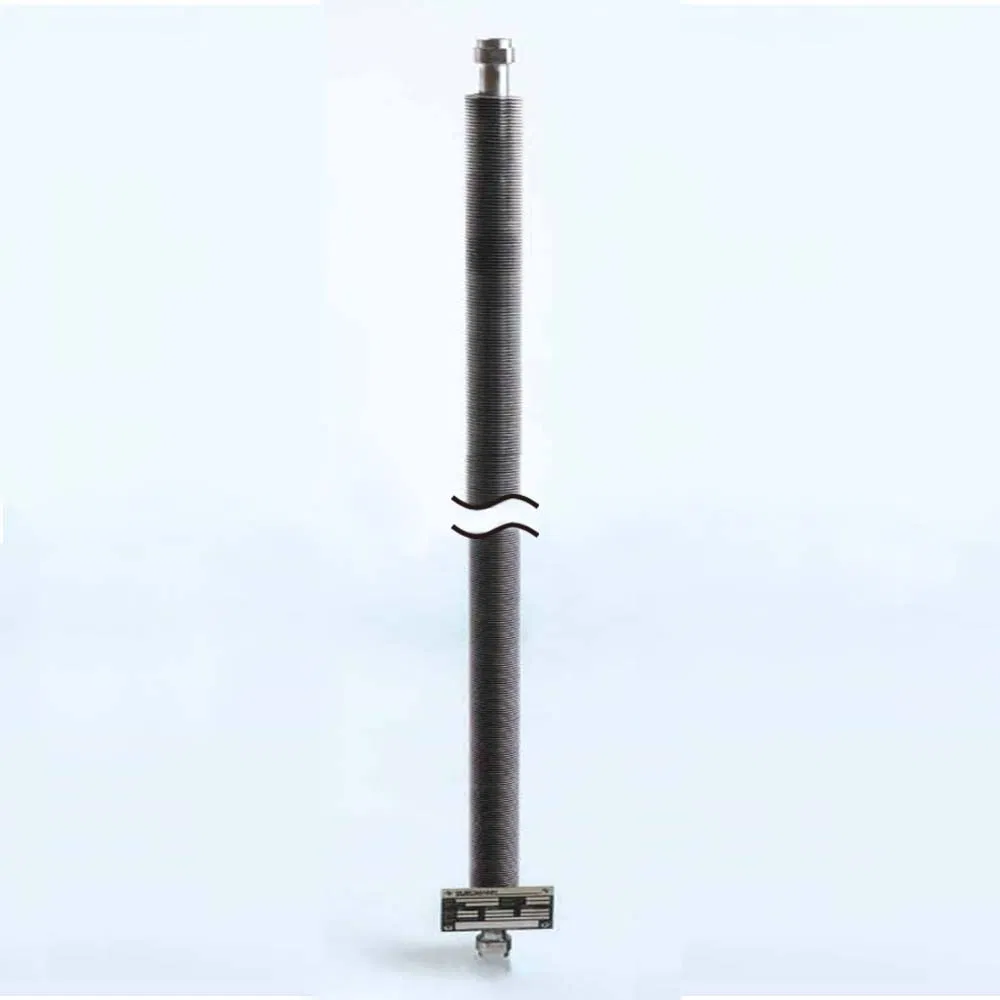

Heat exchangers of the WEL1000 range
are used to cool process/barrier fluids in
seal supply circuits. The heat exchangers
are made of straight, laser-welded finned
tubes. The cooling medium is ambient
air. It is important, therefore, for WEL
heat exchangers to be installed in well
ventilated places indoors or, ideally,
outdoors. There is a choice of two different
basic versions of the WEL1000 range
(1 or 2 tubes), supplied fully assembled
along with valves, base frame and other
system components.
Circulation in accordance with API 682/
ISO 21 049: Plan 21, Plan 22, Plan 23,
Plan 41
(2)Advantages
• Welded finned tubes without gaps for guaranteed optimum energy transmission
• Universal usage: high-quality 1.4571 stainless steel finned tube design
• No cooling water connection or heating required for the cooling water pipe in winter
• There is a choice of two different basic versions
(3)Standards and approvals
• PED 97/23 EC (Design and production in accordance with EU Pressure Equipment Directive)
• ASME VIII, Div. 1 (Calculation)
(4)Recommended applications
• Chemical industry
• Petrochemical industry
• Oil and gas industry
• Refining technology
• Power plant technology
(5)Notes
WEL heat exchangers should be installed
in well ventilated places indoors or, ideally,
outdoors. Vertical installation is essential.
| Designation | WEL1000/A001 | WEL1000/A002 |
| Pressure Equipment Directive | PED | PED |
| Number of finned tubes | 1 | 2 |
| Connections | G1/2" | G1/2" |
| Allowable pressure1) | 110 bar (1,595 PSI) | 110 bar (1,595 PSI) |
| Allowable temperature1) | 200 °C (392 °F) | 200 °C (392 °F) |
| Volume (liters) | 0.7 | 1.4 |
| Parts in contact with the medium | 1.4571 | 1.4571 |
| Other versions on request. 1) These values are based on the calculation of strength | ||
We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.
Question1: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is displayed on the website is only the average market price. For specific models, you can contact us for further consultation and negotiation.
Question 2: Are you a factory or a trade company?
Answer: We are a factory with top sales for the trade service.
Question 3: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and services through placing trial orders. Looking forward to the long-term cooperation with you.
Question4: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product, or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.
Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company will provide you with samples for free, but you will have to pay for the international delivery (freight collect payment).
