(1)Features

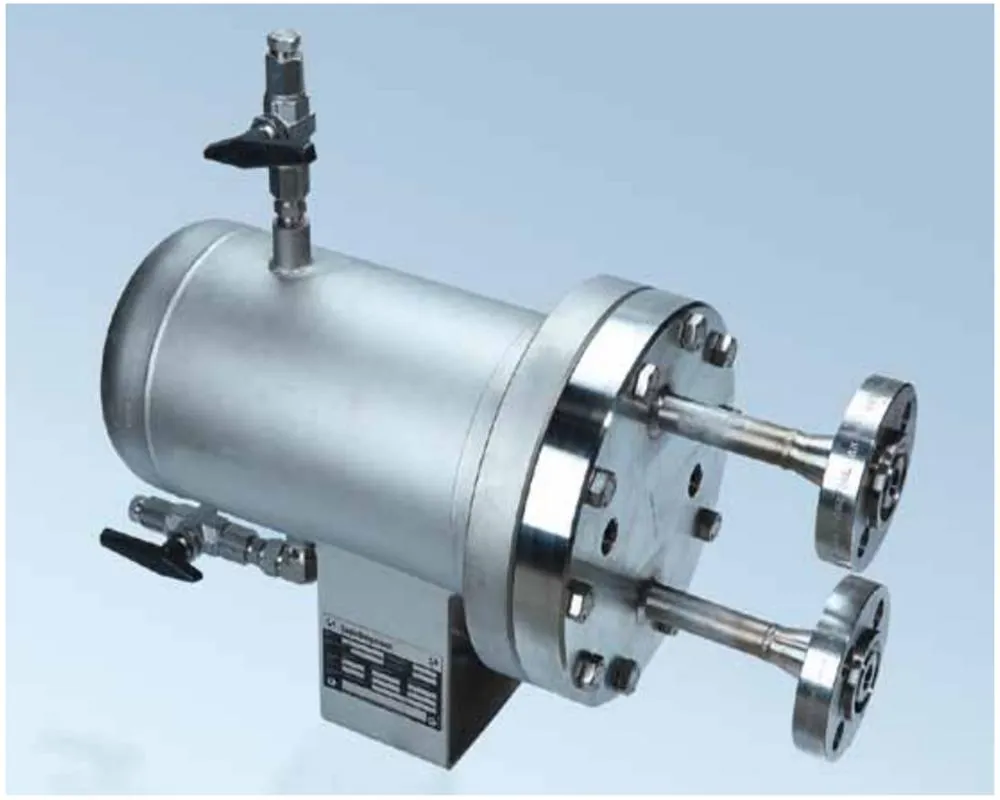

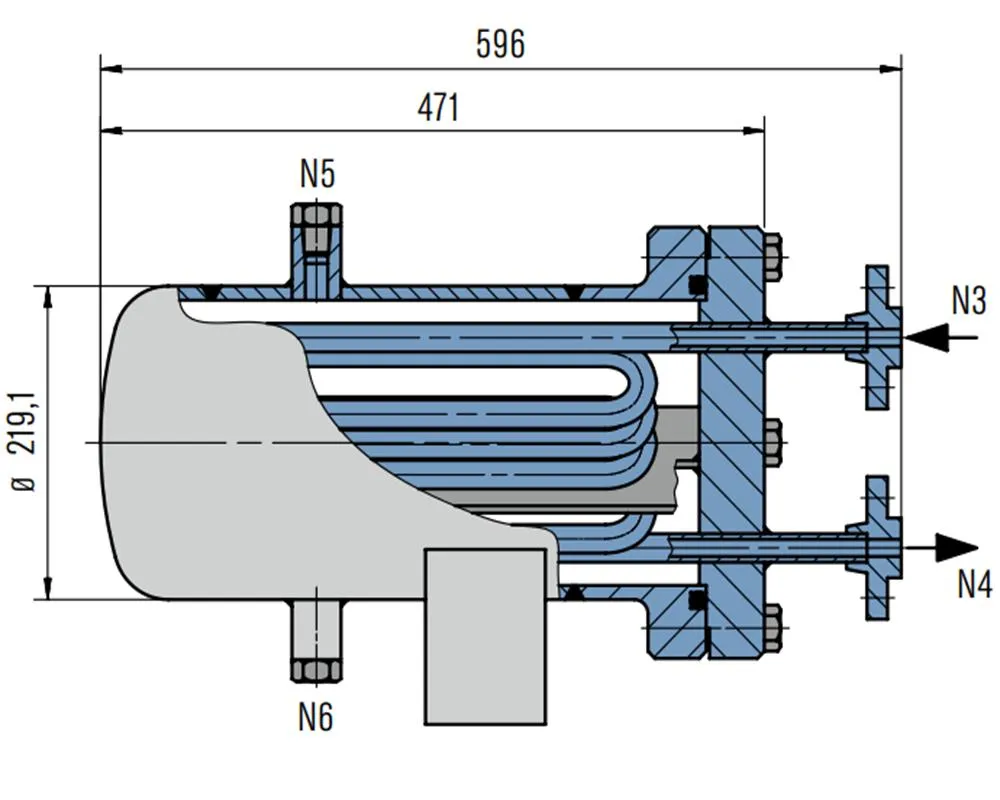

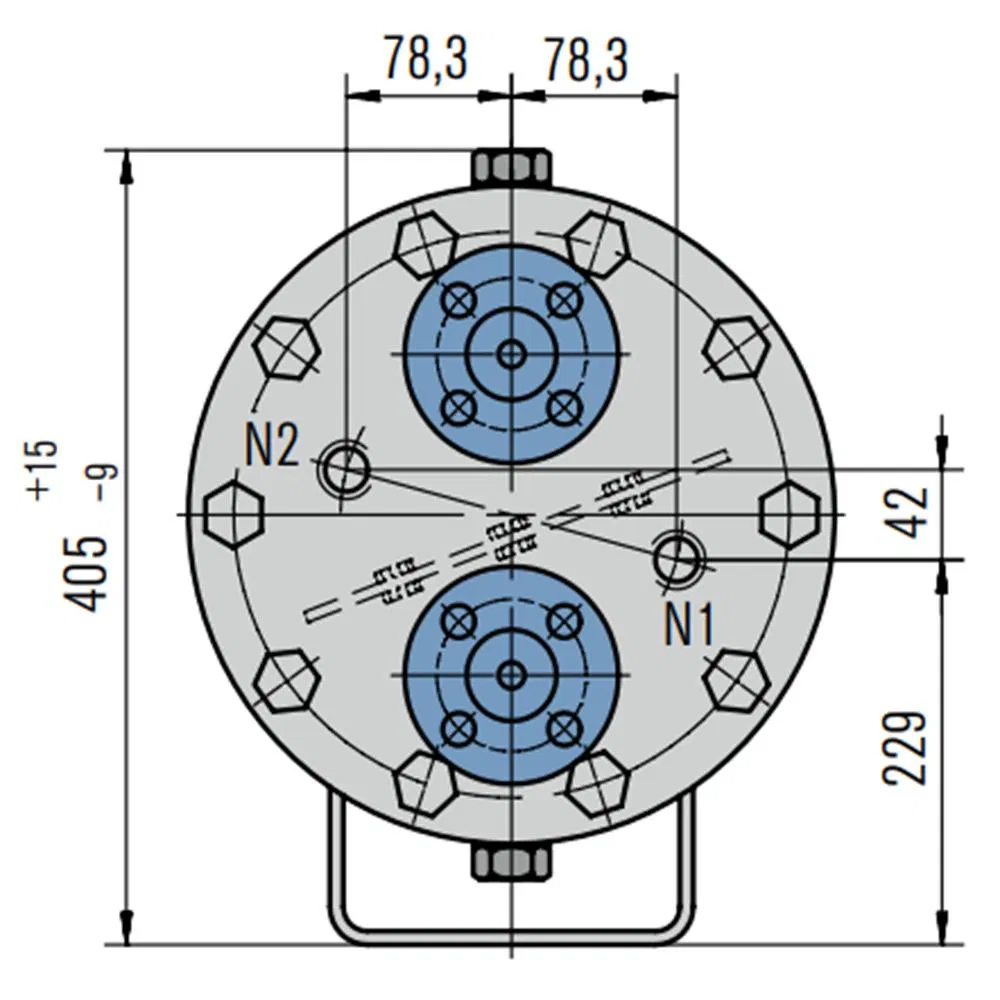

Heat exchangers of the WE range are used
to cool process/barrier fluids in seal supply
circuits. WE heat exchangers are available
in two standard sizes and are API 682
conform. The process/barrier medium is
directed through the tube and the cooling
medium through the shell.
For simple draining or venting of the
cooling water side, the heat exchanger
can also be supplied with ventilation/
drainage ball valves. In addition, the heat
exchangers can also be combined with
a temperature instrument in the supply
line to the mechanical seal (optional in
accordance with API 682).
Circulation in accordance with API 682/
ISO 21 049: Plan 21, Plan 22, Plan 23,
Plan 41
(2)Advantages
• Operating limits up to 45 bar/260 °C (tube side): suitable for a wide range of demanding operating conditions.
• Heat exchanger can be dismantled: for optimum and simple cleaning of the tubes
• Cooling water side and process side can be completely vented and drained
• 1.4404 stainless steel: high resistance to corrosive media
(3)Standards and approvals
• PED 97/23 EC (Design and production in accordance with EU Pressure Equipment Directive)
• ASME VIII, Div. 1 (Design, calculation and production)
(4)Recommended applications
• Chemical industry
• Petrochemical industry
• Oil and gas industry
• Refining technology
(5)Notes
Cleaning:
Cooling water side: the area around the
tubes can be cleaned mechanically after
the housing is removed.
Process/barrier medium side: flush with a
suitable solvent.
| Designation | WE6045/A002 | WE6045/A001 | WE6045/M014-D0 | WE6045/M015-D0 | WE6045/M016-D0 | WE6045/M017-D0 | ||||||
| Tube | Shell | Tube | Shell | Tube | Shell | Tube | Shell | Tube | Shell | Tube | Shell | |
| Pressure Equipment Directive | ASME | ASME | ASME | ASME | ASME | ASME | ASME | ASME | ASME | ASME | ASME | ASME |
| For shaft diameters ≤ 60 mm (acc. to API 682) | √ | √ | √ | |||||||||
| For shaft diameters > 60 mm (acc. to API 682) | √ | √ | √ | |||||||||
| Ball valve for draining on the cooling water side | √ | √ | √ | √ | ||||||||
| Connections | 1/2" flange | 1/2 NPT | 3/4" flange | 3/4 NPT | 1/2" flange | 1/2 NPT | 3/4" flange | 3/4 NPT | 1/2 NPT | 1/2 NPT | 3/4 NPT | 3/4 NPT |
| Design pressure1) | 45 bar (653 PSI) | 16 bar (232 PSI) | 45 bar (653 PSI) | 16 bar (232 PSI) | 45 bar (653 PSI) | 16 bar (232 PSI) | 45 bar (653 PSI) | 16 bar (232 PSI) | 45 bar (653 PSI) | 16 bar (232 PSI) | 45 bar (653 PSI) | 16 bar (232 PSI) |
| Design temperature1) | 260 °C (500 °F) | 150 °C (302 °F) | 260 °C (500 °F) | 150 °C (302 °F) | 260 °C (500 °F) | 150 °C (302 °F) | 260 °C (500 °F) | 150 °C (302 °F) | 260 °C (500 °F) | 150 °C (302 °F) | 260 °C (500 °F) | 150 °C (302 °F) |
| Cooling capacity (kW)*) | 4 | 6 | 4 | 6 | 4 | 6 | ||||||
| Metal parts | 1.4404 | 1.4404 | 1.4404 | 1.4404 | 1.4404 | 1.4404 | ||||||
| O-Rings | Viton | Viton | Viton | Viton | Viton | Viton | ||||||
| Screws | Stainless steel A4-70 | Stainless steel A4-70 | Stainless steel A4-70 | Stainless steel A4-70 | Stainless steel A4-70 | Stainless steel A4-70 | ||||||
| Other versions on request 1)These values are based on the calculation of strength. *) Related to water on both sides | ||||||||||||
