| Customization: | Available |
|---|---|
| Structure: | Single End |
| Pressure: | High Pressure Mechanical Seals |
| Quantity: | |
|---|---|
(1)Features

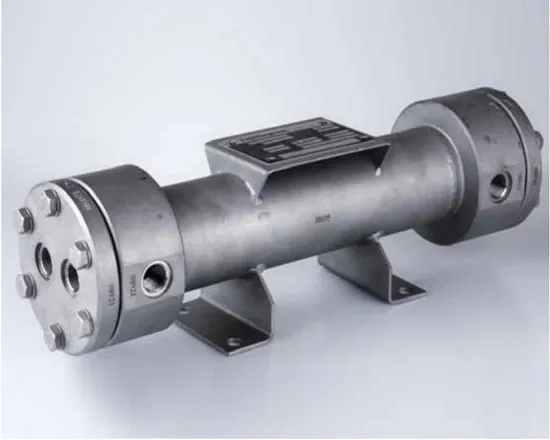

Heat exchangers of the WED range are
used to cool process/barrier fluids in seal
supply circuits. Designed as a tubular heat
exchanger with integrated guide plates,
the buffer medium is directed through the
shell of the WED and the cooling medium
through the tubes.
Circulation in accordance with API 682/
ISO 21 049: Plan 21, Plan 22, Plan 23,
Plan 41
(2)Advantages
• Tubular heat exchanger design with integrated guide plates: extremely efficient cooling capacity yet very compact dimensions
• Cooling capacity up to 36 kW*)
• Universal usage: parts in contact with the medium are made of 1.4571
• It can be installed either in vertical or horizontal position
• The heat exchanger can be dismantled: easy to clean
(3)Standards and approvals
• PED 97/23 EC (Design and production in accordance with EU Pressure Equipment Directive)
• ASME VIII, Div. 1 (Design, calculation and production)
(4)Recommended applications
• Chemical industry
• Petrochemical industry
• Oil and gas industry
• Refining technology
• Power plant technology
(5)Notes
Cleaning:
Cooling water side: it can be cleaned
mechanically after the cover is removed.
Process/barrier medium side: flush with a
suitable solvent.
(6)Item Description

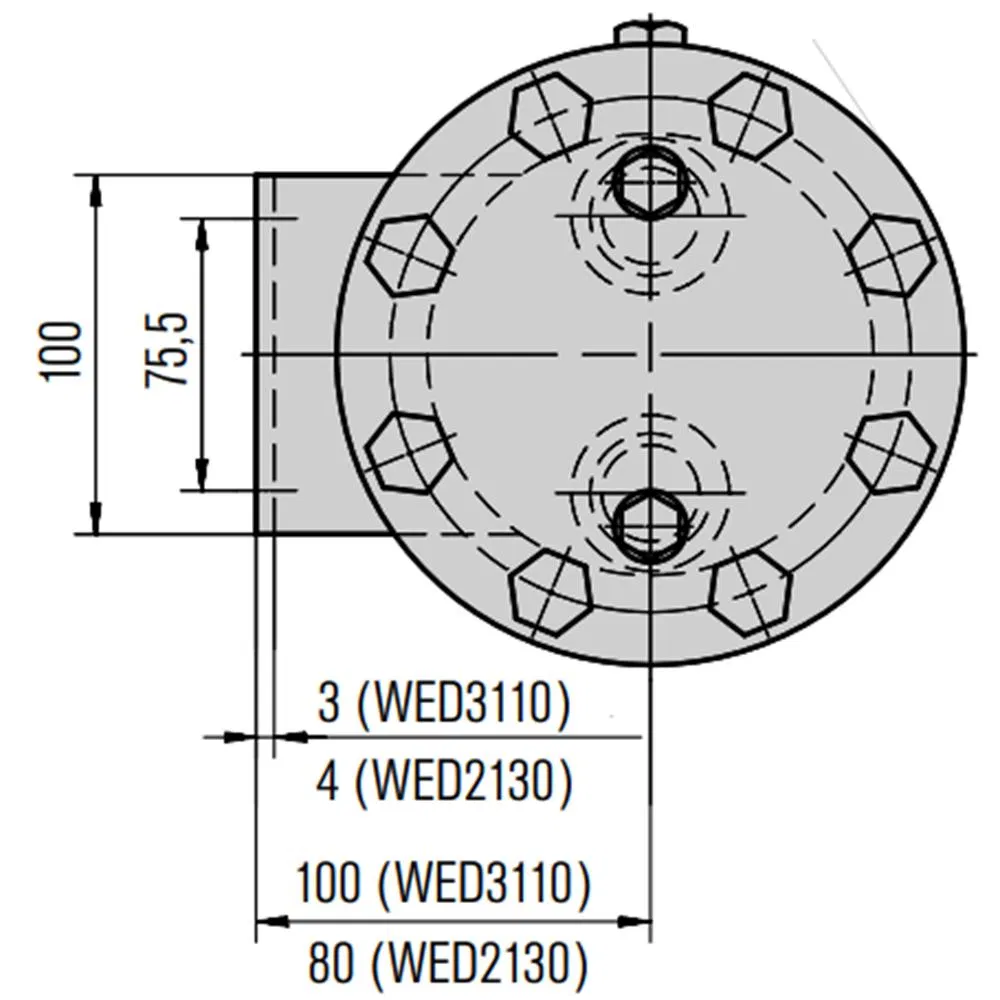

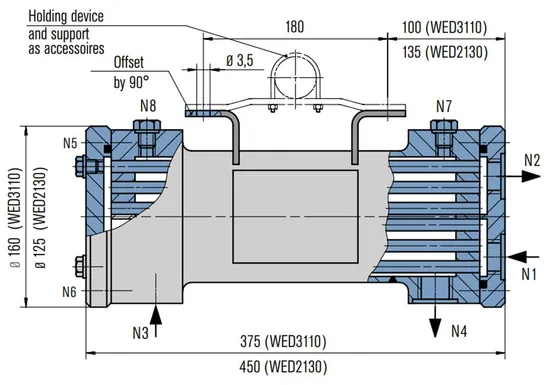

Connections
N2 Cooling water OUT
N1 Cooling water IN
N4 Process/barrier medium OUT
N3 Process/barrier medium IN
N7/N8 Process/barrier circuit vent
N5 Cooling circuit vent
N6 Cooling water drain
| Description | WED2130/A100 | WED3110/A100 | ||
| Tubes | Shell | Tubes | Shell | |
| Pressure Equipment Directive | PED | PED | ||
| Design pressure1) | 16 bar (232 PSI) | 130 bar (1,885 PSI) | 16 bar (232 PSI) | 110 bar (1,595 PSI) |
| Design temperature1) | 150 °C (302 °F) | 150 °C (302 °F) | ||
| Inlet temperature 2) | 30 °C (86 °F) | 65 °C (149 °F) | 30 °C (86 °F) | 65 °C (149 °F) |
| Flow quantity (m³/h)2) | 1 | approx. 0.5 | 6.0 | approx. 3 |
| Volume (liters) | 0.23 | 1.4 | 0.75 | 1.8 |
| Cooling surface2) | 0.2 | 0.6 | ||
| Cooling capacity (kW)*) | 6 | 36 | ||
| Net weight (approx.) | 14 kg (31 lb) | 24 kg (53 lb) | ||
| Metal parts | 1.4571 | 1.4571 | ||
| O-Rings | Viton | Viton | ||
| Gaskets | PTFE | PTFE | ||
| Screws | Stainless steel A4-70 | Stainless steel A4-70 | ||
| Other versions on request. 1) These values are based on the calculation of strength. 2) These values are based on the calculation of heat. *) Related to water on both sides | ||||
We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.
Question1: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is displayed on the website is only the average market price. For specific models, you can contact us for further consultation and negotiation.
Question 2: Are you a factory or a trade company?
Answer: We are a factory with top sales for the trade service.
Question 3: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and services through placing trial orders. Looking forward to the long-term cooperation with you.
Question4: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product, or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.
Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company will provide you with samples for free, but you will have to pay for the international delivery (freight collect payment).
(1)Features

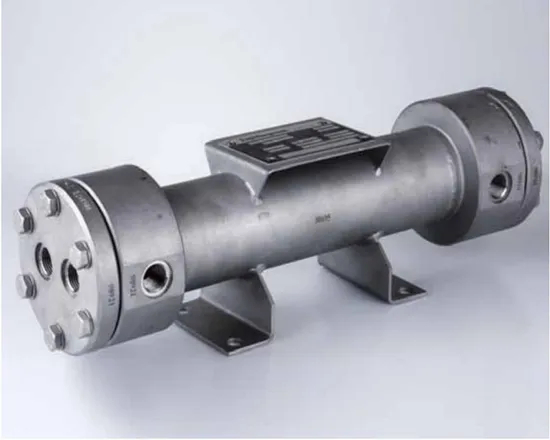

Heat exchangers of the WED range are
used to cool process/barrier fluids in seal
supply circuits. Designed as a tubular heat
exchanger with integrated guide plates,
the buffer medium is directed through the
shell of the WED and the cooling medium
through the tubes.
Circulation in accordance with API 682/
ISO 21 049: Plan 21, Plan 22, Plan 23,
Plan 41
(2)Advantages
• Tubular heat exchanger design with integrated guide plates: extremely efficient cooling capacity yet very compact dimensions
• Cooling capacity up to 36 kW*)
• Universal usage: parts in contact with the medium are made of 1.4571
• It can be installed either in vertical or horizontal position
• The heat exchanger can be dismantled: easy to clean
(3)Standards and approvals
• PED 97/23 EC (Design and production in accordance with EU Pressure Equipment Directive)
• ASME VIII, Div. 1 (Design, calculation and production)
(4)Recommended applications
• Chemical industry
• Petrochemical industry
• Oil and gas industry
• Refining technology
• Power plant technology
(5)Notes
Cleaning:
Cooling water side: it can be cleaned
mechanically after the cover is removed.
Process/barrier medium side: flush with a
suitable solvent.
(6)Item Description

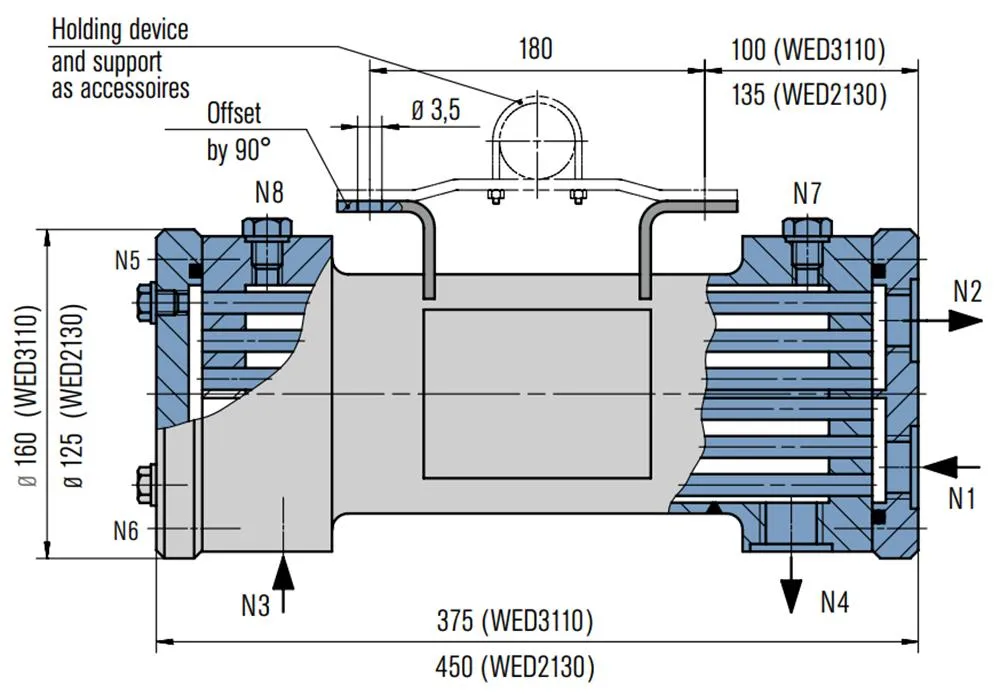

Connections
N2 Cooling water OUT
N1 Cooling water IN
N4 Process/barrier medium OUT
N3 Process/barrier medium IN
N7/N8 Process/barrier circuit vent
N5 Cooling circuit vent
N6 Cooling water drain
| Description | WED2130/A100 | WED3110/A100 | ||
| Tubes | Shell | Tubes | Shell | |
| Pressure Equipment Directive | PED | PED | ||
| Design pressure1) | 16 bar (232 PSI) | 130 bar (1,885 PSI) | 16 bar (232 PSI) | 110 bar (1,595 PSI) |
| Design temperature1) | 150 °C (302 °F) | 150 °C (302 °F) | ||
| Inlet temperature 2) | 30 °C (86 °F) | 65 °C (149 °F) | 30 °C (86 °F) | 65 °C (149 °F) |
| Flow quantity (m³/h)2) | 1 | approx. 0.5 | 6.0 | approx. 3 |
| Volume (liters) | 0.23 | 1.4 | 0.75 | 1.8 |
| Cooling surface2) | 0.2 | 0.6 | ||
| Cooling capacity (kW)*) | 6 | 36 | ||
| Net weight (approx.) | 14 kg (31 lb) | 24 kg (53 lb) | ||
| Metal parts | 1.4571 | 1.4571 | ||
| O-Rings | Viton | Viton | ||
| Gaskets | PTFE | PTFE | ||
| Screws | Stainless steel A4-70 | Stainless steel A4-70 | ||
| Other versions on request. 1) These values are based on the calculation of strength. 2) These values are based on the calculation of heat. *) Related to water on both sides | ||||
We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.
Question1: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is displayed on the website is only the average market price. For specific models, you can contact us for further consultation and negotiation.
Question 2: Are you a factory or a trade company?
Answer: We are a factory with top sales for the trade service.
Question 3: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and services through placing trial orders. Looking forward to the long-term cooperation with you.
Question4: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product, or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.
Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company will provide you with samples for free, but you will have to pay for the international delivery (freight collect payment).
