| Customization: | Available |
|---|---|
| Structure: | Single End |
| Pressure: | High Pressure Mechanical Seals |
| Quantity: | |
|---|---|
(1)Features

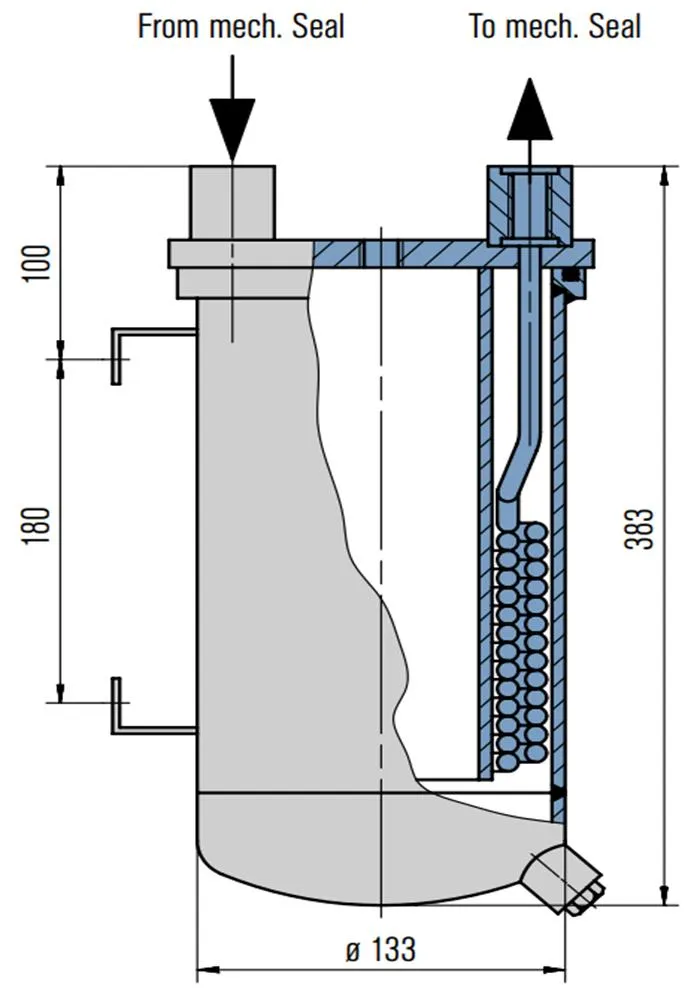

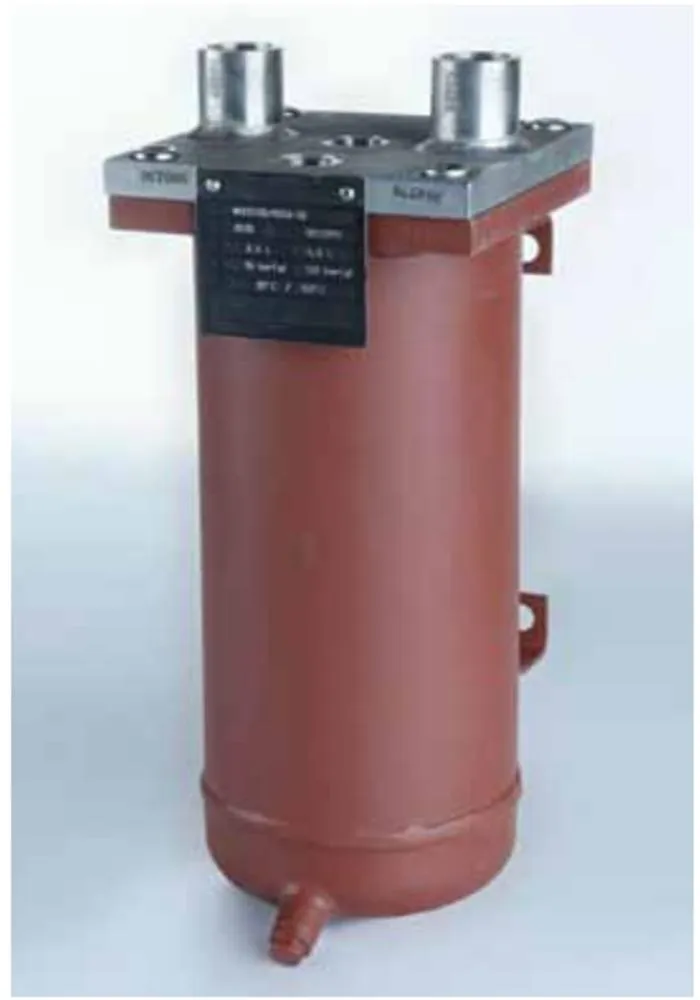

WDK5120 heat exchangers are used
to cool process/barrier fluids in seal
supply circuits. The heat exchanger has
a wound double helix around the guide
tube. Process/barrier medium in the tubes,
cooling medium around the tubes.
Circulation in accordance with API 682/
ISO 21 049: Plan 21, Plan 22, Plan 23,
Plan 41
(2)Advantages
• Effective cooling: with wound double helix around a guide tube
• Cooling capacity up to 10.5 kW
• Excellent value for money
• Vessel can be dismantled: for optimum cleaning of the cooling water side
• Universal usage: parts in contact with the buffer medium are made of 1.4571
(3)Standards and approvals
• PED 97/23 EC (Design and production in accordance with EU Pressure Equipment Directive)
(4)Recommended applications
• Chemical industry
• Petrochemical industry
• Power plant technology
• Refining technology
• Oil and gas industry
(5)Notes
Cleaning:
Cooling water side: the area around the
tubes can be cleaned mechanically after
the housing is removed.
Process/barrier medium side: flush with a
suitable solvent.
| Designation | WDK5120/A003 | |
| Tube | Shell | |
| Pressure Equipment Directive | PED | |
| Design pressure1) | 120 bar (1,740 PSI) | 16 bar (232 PSI) |
| Design temperature1) | 160 bar (2,321 PSI) | 95 bar (1,378 PSI) |
| Inlet temperature2) | 70 °C (158 °F) | 25 °C (77 °F) |
| Flow rate2) | 10 l/min | 1.8 m³/h |
| Volume (liters) | 0.34 | 1.13 |
| Cooling surface2) | 0.3 m² | |
| Cooling capacity (kW) | 10.5 | |
| Net weight (approx.) | 10.3 kg (23 lb) | |
| Full weight (approx.) | 11.8 kg (26 lb) | |
| Metal parts | 1.4571 | Carbon steel, primed on the outside |
| Seals | Viton | |
| Screws | Stainless steel A4-70 | |
| Other versions on request. 1) These values are based on the calculation of strength. 2) These values are based on the calculation of heat. | ||
We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.
Question1: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is displayed on the website is only the average market price. For specific models, you can contact us for further consultation and negotiation.
Question 2: Are you a factory or a trade company?
Answer: We are a factory with top sales for the trade service.
Question 3: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and services through placing trial orders. Looking forward to the long-term cooperation with you.
Question4: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product, or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.
Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company will provide you with samples for free, but you will have to pay for the international delivery (freight collect payment).
(1)Features
WDK5120 heat exchangers are used
to cool process/barrier fluids in seal
supply circuits. The heat exchanger has
a wound double helix around the guide
tube. Process/barrier medium in the tubes,
cooling medium around the tubes.
Circulation in accordance with API 682/
ISO 21 049: Plan 21, Plan 22, Plan 23,
Plan 41
(2)Advantages
• Effective cooling: with wound double helix around a guide tube
• Cooling capacity up to 10.5 kW
• Excellent value for money
• Vessel can be dismantled: for optimum cleaning of the cooling water side
• Universal usage: parts in contact with the buffer medium are made of 1.4571
(3)Standards and approvals
• PED 97/23 EC (Design and production in accordance with EU Pressure Equipment Directive)
(4)Recommended applications
• Chemical industry
• Petrochemical industry
• Power plant technology
• Refining technology
• Oil and gas industry
(5)Notes
Cleaning:
Cooling water side: the area around the
tubes can be cleaned mechanically after
the housing is removed.
Process/barrier medium side: flush with a
suitable solvent.
| Designation | WDK5120/A003 | |
| Tube | Shell | |
| Pressure Equipment Directive | PED | |
| Design pressure1) | 120 bar (1,740 PSI) | 16 bar (232 PSI) |
| Design temperature1) | 160 bar (2,321 PSI) | 95 bar (1,378 PSI) |
| Inlet temperature2) | 70 °C (158 °F) | 25 °C (77 °F) |
| Flow rate2) | 10 l/min | 1.8 m³/h |
| Volume (liters) | 0.34 | 1.13 |
| Cooling surface2) | 0.3 m² | |
| Cooling capacity (kW) | 10.5 | |
| Net weight (approx.) | 10.3 kg (23 lb) | |
| Full weight (approx.) | 11.8 kg (26 lb) | |
| Metal parts | 1.4571 | Carbon steel, primed on the outside |
| Seals | Viton | |
| Screws | Stainless steel A4-70 | |
| Other versions on request. 1) These values are based on the calculation of strength. 2) These values are based on the calculation of heat. | ||
We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.
Question1: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is displayed on the website is only the average market price. For specific models, you can contact us for further consultation and negotiation.
Question 2: Are you a factory or a trade company?
Answer: We are a factory with top sales for the trade service.
Question 3: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and services through placing trial orders. Looking forward to the long-term cooperation with you.
Question4: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product, or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.
Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company will provide you with samples for free, but you will have to pay for the international delivery (freight collect payment).
