| Customization: | Available |
|---|---|
| Structure: | Single End |
| Pressure: | High Pressure Mechanical Seals |
| Quantity: | |
|---|---|
(1)Features

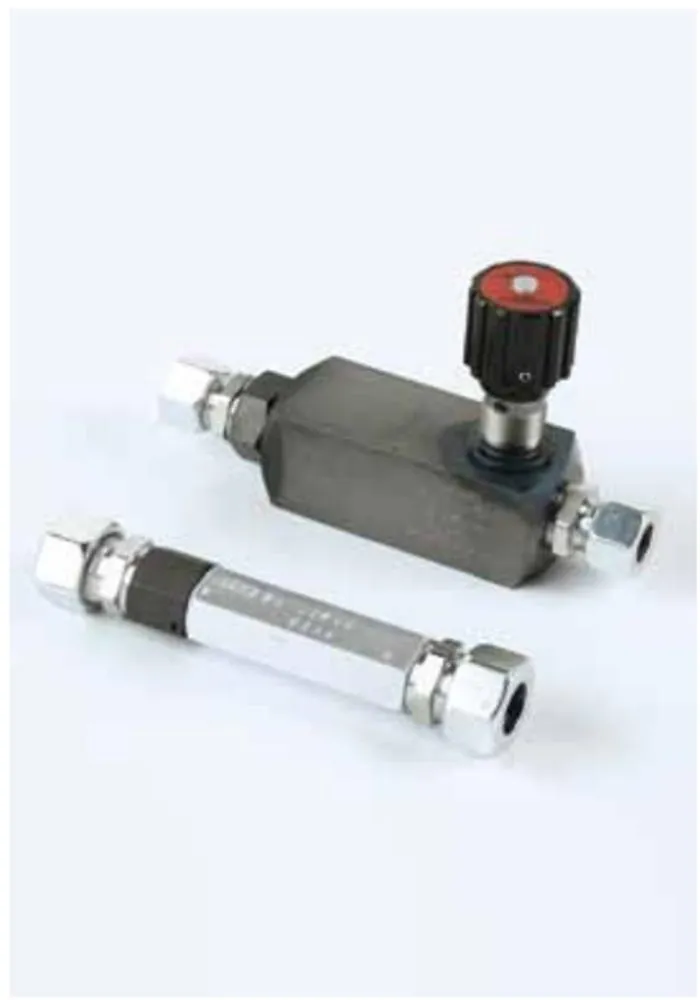

The distribution unit is used when two or
more mechanical seals are to be supplied
from a single barrier fluid unit of the
SPA1000, SPA2000 or SPA3000 range.
The VTE is suitable for hydraulic oil as
barrier medium. It is delivered as a separate
unit which the customer must install in the
pipe work at a suitable position. There is a
choice of 2 basic types:

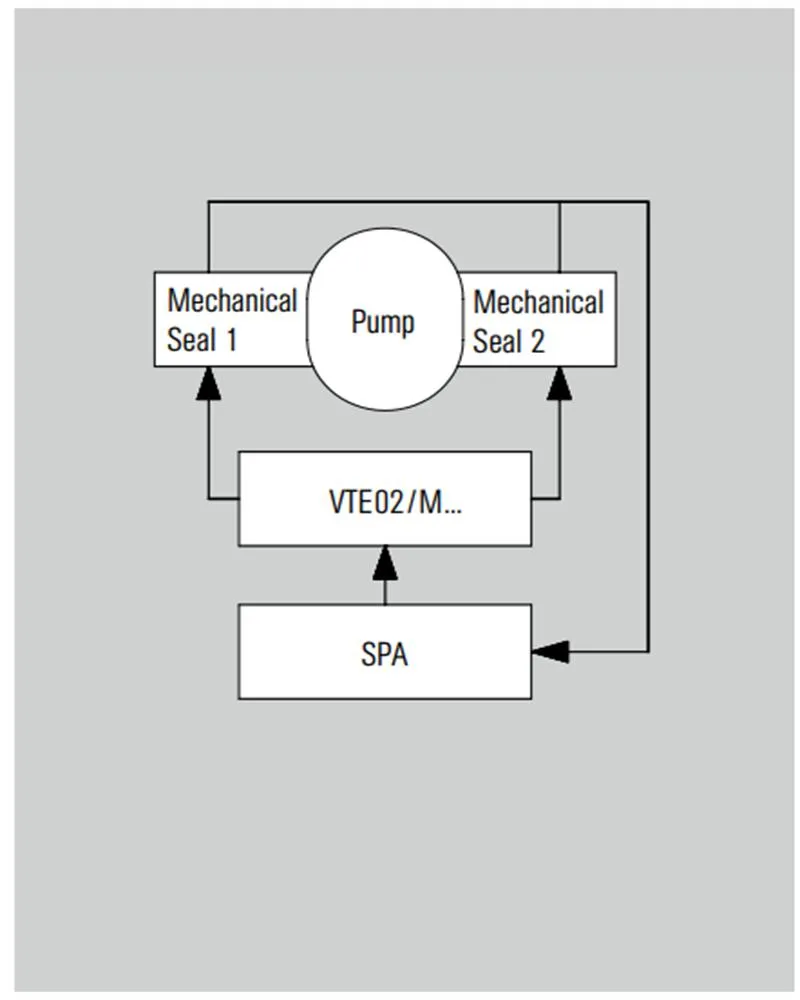

VTE02/M ... : Distribution unit for
supplying two or more mechanical seals in
between bearing pumps.

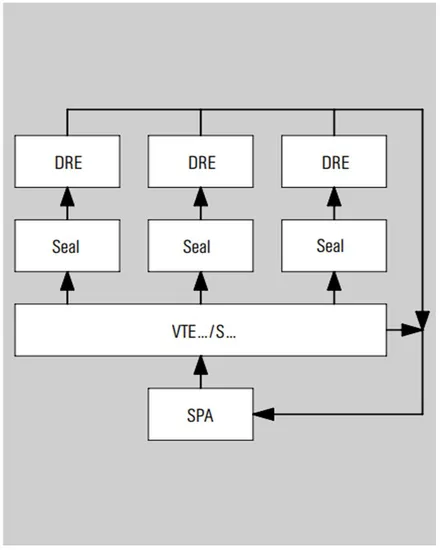

VTE .../S ... : Distribution unit for supplying
two or more mechanical seals in different
pumps. It contains an overflow valve and
one flow control valve per seal. DRE pressure
control units are necessary if different
barrier pressures are used on the
mechanical seals.
(2)Advantages
• Distribution unit for supplying several mechanical seals
• Suitable for hydraulic oil
(3)Recommended applications
• Chemical industry
• Petrochemical industry
• Refining technology
• Oil and gas industry
| Distribution unit for supplying two mechanical seals in between bearing pumps | ||||||
| Designation | Max. barrier pressure | Allowable temperature | Norm. flow/ inlet (l/min) | Individual current (l/min.) | Allowable viscosity range (mm²/s) | Suitable for |
| VTE02/M060 | 250 bar (3,626 PSI) | -20 °C ... +80 °C (-4 °F ... +176 °F) | 6 | 2 x 3 | 10 ... 300 | SPA1040/A01 (A02) SPA1090/A01 (A02) |
| VTE02/M120 | 250 bar (3,626 PSI) | -20 °C ... +80 °C (-4 °F ... +176 °F) | 12 | 2 x 6 | 10 ... 300 | SPA2020/A01 (A02) SPA2050/A01 (A02) SPA2120/A01 (A02) |
| VTE02/M230 | 250 bar (3,626 PSI) | -20 °C ... +80 °C (-4 °F ... +176 °F) | 23 | 2 x 11.5 | 10 ... 300 | SPA3020/A01 (A02) SPA3050/A01 (A02) SPA3120/A01 (A02) |
| Distribution unit for supplying two or more mechanical seals in different pumps | |||||||
| Designation | Max. barrier pressure | Allowable temperature | Norm. flow/ inlet (l/min) | Individual current (l/min.) | Allowable viscosity range (mm²/s) | Suitable for | Quantity of supplied mechanical seals |
| VTE02/S020 | 210 bar (3,046 PSI) | -20 °C ... +70 °C (-4 °F ... +158 °F) | 6 | 2 x 2.5 | 2.8 ... 380 | SPA1040/A01 (A02) SPA1090/A01 (A02) | 2 |
| VTE02/S050 | 210 bar (3,046 PSI) | -20 °C ... +70 °C (-4 °F ... +158 °F) | 12 | 2 x 5 | 2.8 ... 380 | SPA2020/A01 (A02) SPA2050/A01 (A02) SPA2120/A01 (A02) | 2 |
| VTE02/S110 | 210 bar (3,046 PSI) | -20 °C ... +70 °C (-4 °F ... +158 °F) | 23 | 2 x 11 | 2.8 ... 380 | SPA3020/A01 (A02) SPA3050/A01 (A02) SPA3120/A01 (A02) | 2 |
| VTE03/S030 | 210 bar (3,046 PSI) | -20 °C ... +70 °C (-4 °F ... +158 °F) | 12 | 3 x 3.5 | 2.8 ... 380 | SPA2020/A01 (A02) SPA2050/A01 (A02) SPA2120/A01 (A02) | 3 |
| VTE03/S072 | 210 bar (3,046 PSI) | -20 °C ... +70 °C (-4 °F ... +158 °F) | 23 | 3 x 7 | 2.8 ... 380 | SPA3020/A01 (A02) SPA3050/A01 (A02) SPA3120/A01 (A02) | 3 |
| VTE04/S021 | 210 bar (3,046 PSI) | -20 °C ... +70 °C (-4 °F ... +158 °F) | 12 | 4 x 2.5 | 2.8 ... 380 | SPA2020/A01 (A02) SPA2050/A01 (A02) SPA2120/A01 (A02) | 4 |
| VTE04/S052 | 210 bar (3,046 PSI) | -20 °C ... +70 °C (-4 °F ... +158 °F) | 23 | 4 x 5 | 2.8 ... 380 | SPA3020/A01 (A02) SPA3050/A01 (A02) SPA3120/A01 (A02) | 4 |
| Versions for supplying more than four mechanical seals on request. | |||||||
We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.
Question1: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is displayed on the website is only the average market price. For specific models, you can contact us for further consultation and negotiation.
Question 2: Are you a factory or a trade company?
Answer: We are a factory with top sales for the trade service.
Question 3: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and services through placing trial orders. Looking forward to the long-term cooperation with you.
Question4: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product, or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.
Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company will provide you with samples for free, but you will have to pay for the international delivery (freight collect payment).
(1)Features
The distribution unit is used when two or
more mechanical seals are to be supplied
from a single barrier fluid unit of the
SPA1000, SPA2000 or SPA3000 range.
The VTE is suitable for hydraulic oil as
barrier medium. It is delivered as a separate
unit which the customer must install in the
pipe work at a suitable position. There is a
choice of 2 basic types:
VTE02/M ... : Distribution unit for
supplying two or more mechanical seals in
between bearing pumps.

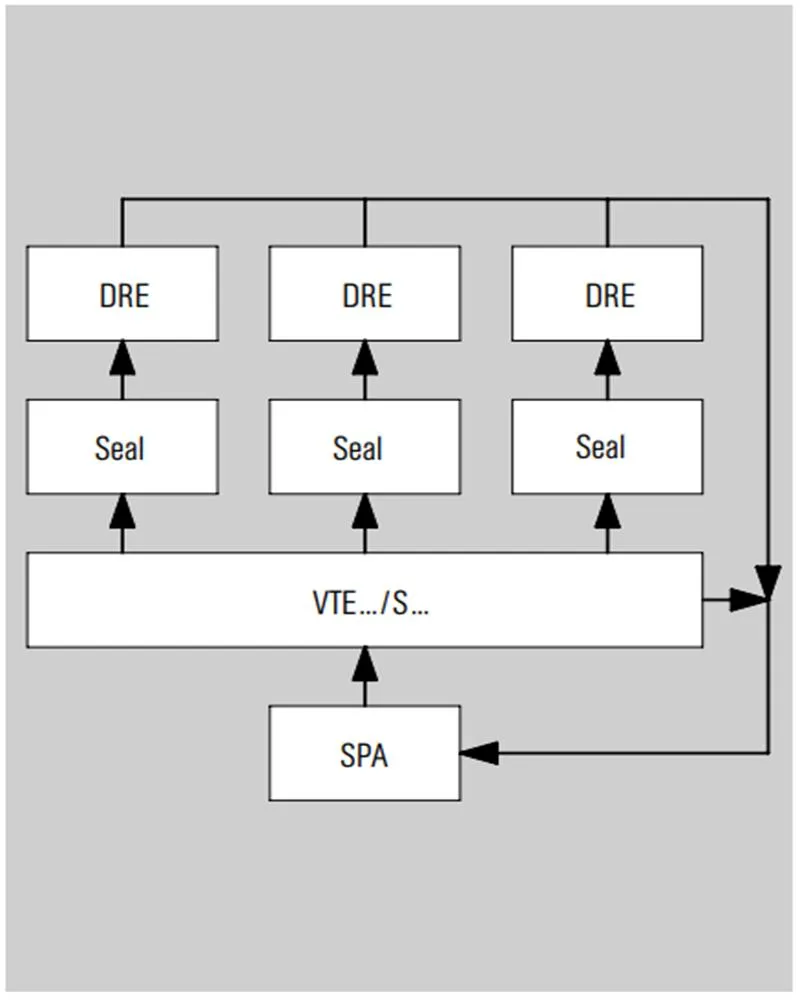

VTE .../S ... : Distribution unit for supplying
two or more mechanical seals in different
pumps. It contains an overflow valve and
one flow control valve per seal. DRE pressure
control units are necessary if different
barrier pressures are used on the
mechanical seals.
(2)Advantages
• Distribution unit for supplying several mechanical seals
• Suitable for hydraulic oil
(3)Recommended applications
• Chemical industry
• Petrochemical industry
• Refining technology
• Oil and gas industry
| Distribution unit for supplying two mechanical seals in between bearing pumps | ||||||
| Designation | Max. barrier pressure | Allowable temperature | Norm. flow/ inlet (l/min) | Individual current (l/min.) | Allowable viscosity range (mm²/s) | Suitable for |
| VTE02/M060 | 250 bar (3,626 PSI) | -20 °C ... +80 °C (-4 °F ... +176 °F) | 6 | 2 x 3 | 10 ... 300 | SPA1040/A01 (A02) SPA1090/A01 (A02) |
| VTE02/M120 | 250 bar (3,626 PSI) | -20 °C ... +80 °C (-4 °F ... +176 °F) | 12 | 2 x 6 | 10 ... 300 | SPA2020/A01 (A02) SPA2050/A01 (A02) SPA2120/A01 (A02) |
| VTE02/M230 | 250 bar (3,626 PSI) | -20 °C ... +80 °C (-4 °F ... +176 °F) | 23 | 2 x 11.5 | 10 ... 300 | SPA3020/A01 (A02) SPA3050/A01 (A02) SPA3120/A01 (A02) |
| Distribution unit for supplying two or more mechanical seals in different pumps | |||||||
| Designation | Max. barrier pressure | Allowable temperature | Norm. flow/ inlet (l/min) | Individual current (l/min.) | Allowable viscosity range (mm²/s) | Suitable for | Quantity of supplied mechanical seals |
| VTE02/S020 | 210 bar (3,046 PSI) | -20 °C ... +70 °C (-4 °F ... +158 °F) | 6 | 2 x 2.5 | 2.8 ... 380 | SPA1040/A01 (A02) SPA1090/A01 (A02) | 2 |
| VTE02/S050 | 210 bar (3,046 PSI) | -20 °C ... +70 °C (-4 °F ... +158 °F) | 12 | 2 x 5 | 2.8 ... 380 | SPA2020/A01 (A02) SPA2050/A01 (A02) SPA2120/A01 (A02) | 2 |
| VTE02/S110 | 210 bar (3,046 PSI) | -20 °C ... +70 °C (-4 °F ... +158 °F) | 23 | 2 x 11 | 2.8 ... 380 | SPA3020/A01 (A02) SPA3050/A01 (A02) SPA3120/A01 (A02) | 2 |
| VTE03/S030 | 210 bar (3,046 PSI) | -20 °C ... +70 °C (-4 °F ... +158 °F) | 12 | 3 x 3.5 | 2.8 ... 380 | SPA2020/A01 (A02) SPA2050/A01 (A02) SPA2120/A01 (A02) | 3 |
| VTE03/S072 | 210 bar (3,046 PSI) | -20 °C ... +70 °C (-4 °F ... +158 °F) | 23 | 3 x 7 | 2.8 ... 380 | SPA3020/A01 (A02) SPA3050/A01 (A02) SPA3120/A01 (A02) | 3 |
| VTE04/S021 | 210 bar (3,046 PSI) | -20 °C ... +70 °C (-4 °F ... +158 °F) | 12 | 4 x 2.5 | 2.8 ... 380 | SPA2020/A01 (A02) SPA2050/A01 (A02) SPA2120/A01 (A02) | 4 |
| VTE04/S052 | 210 bar (3,046 PSI) | -20 °C ... +70 °C (-4 °F ... +158 °F) | 23 | 4 x 5 | 2.8 ... 380 | SPA3020/A01 (A02) SPA3050/A01 (A02) SPA3120/A01 (A02) | 4 |
| Versions for supplying more than four mechanical seals on request. | |||||||
