| Customization: | Available |
|---|---|
| Structure: | Single End |
| Pressure: | High Pressure Mechanical Seals |
| Quantity: | |
|---|---|

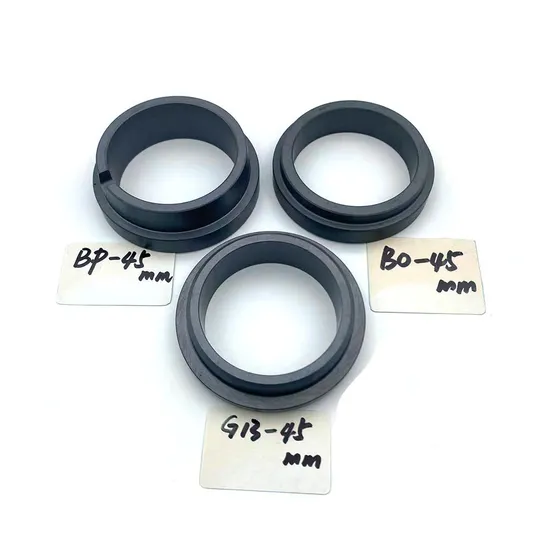

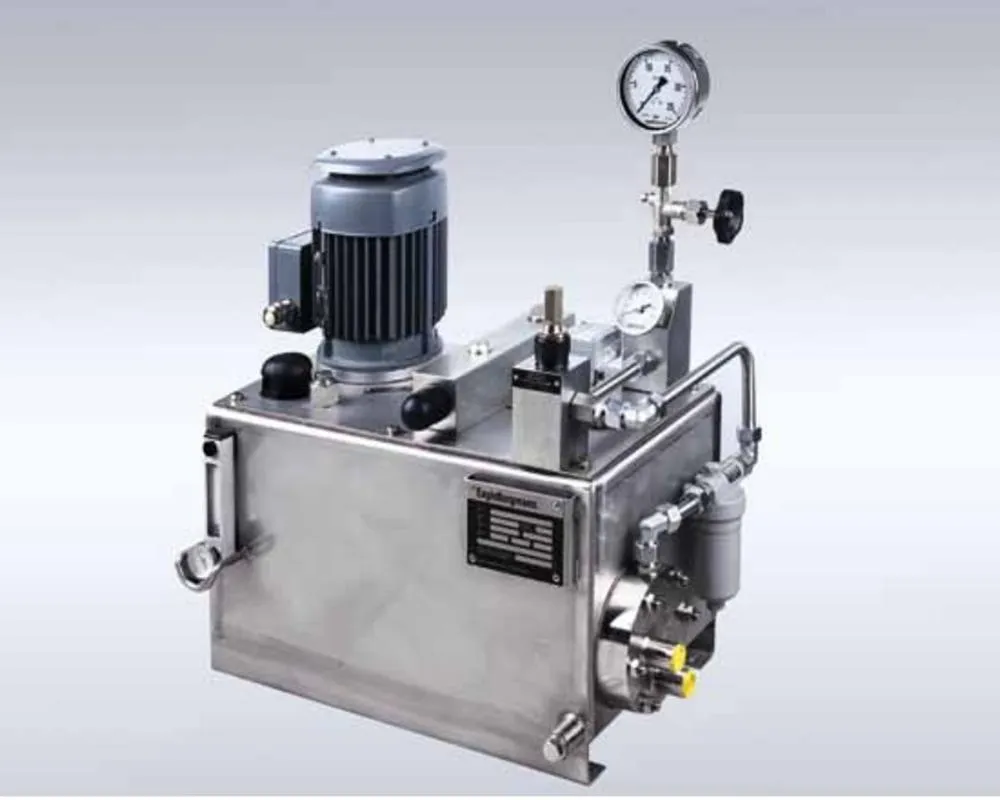

(1)Features
Barrier pressure units of the SPA range
perform all the functions of a barrier
system essential for operating double
seals (circulation and cooling of the barrier
medium, pressurization of the barrier fluid
and compensation of leakage). The SPA
range is available in 3 basic versions:
SPA1000: tank capacity 40 l, flow rate 6 l/min.
SPA2000: tank capacity 100 l, flow rate 12 l/min.
SPA3000: tank capacity 100 l, flow rate 23 l/min.
The three SPA ranges are designed for
hydraulic oil with viscosity values of 12 to
90 mm2/s at operating temperature (tank
temperature). The optimum viscosity of
the class of the oil to be used has to be
determined separately in accordance with
the respective application.
(2)Advantages
• Max. operating temperature in the tank 80 °C (return line max. 90 °C)
• Temperature monitoring with a return line and tank thermometer
• Barrier fluid directed through oil cooler
• Reversible double filter (SPA1000: single filter)
• Manual control of barrier fluid pressure
• Relief valve for reducing barrier fluid pressure at standstill
• Level switch with contact for MIN level
• Measuring instrument connections suitable for fitting contact switching devices (NG160)
• Provision of an additional pressure connection for monitoring the pump discharge pressure (outside the circuit)

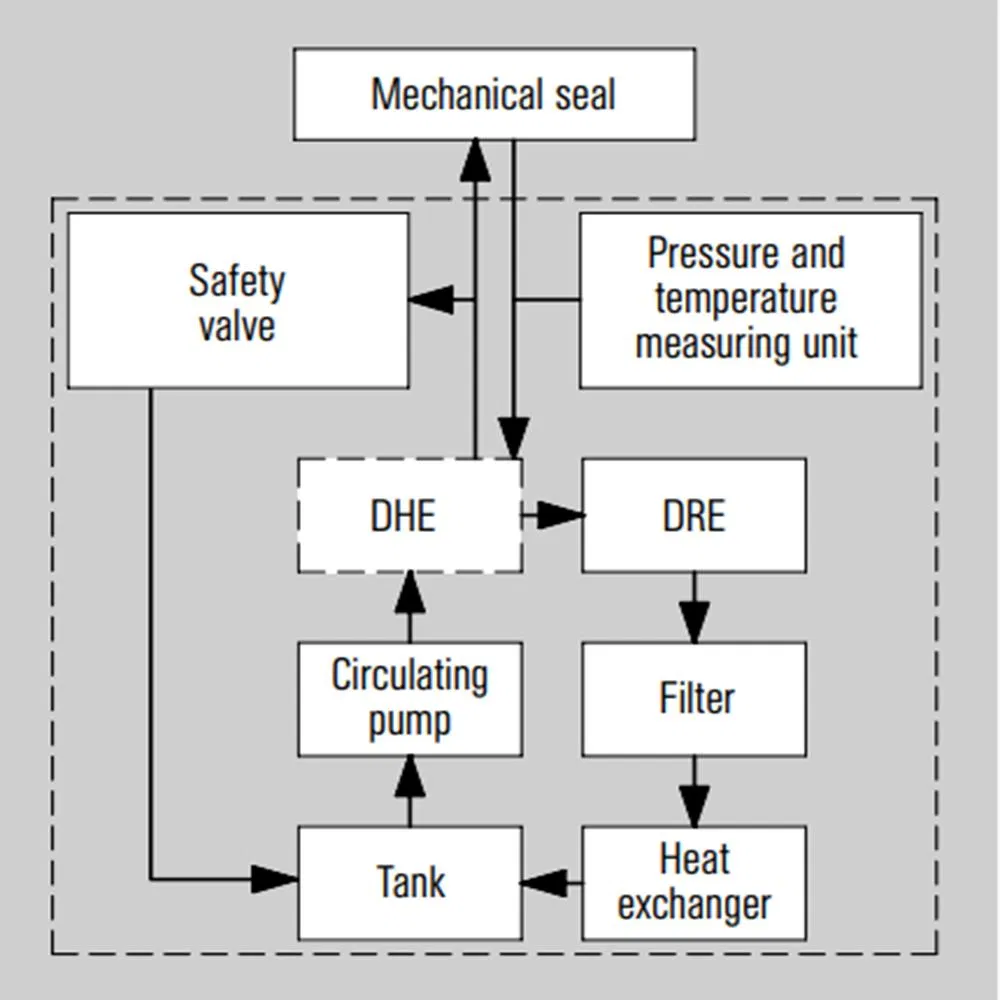

(3)Functional description
The barrier pressure for circulation is
generated by a gear pump. The setpoint
barrier pressure is set on an overflow
valve in the mechanical seal return line.
From this point on the barrier fluid flows
back without pressure through a filter and
a heat exchanger to the storage tank. To
enable systems (pump, agitator) to be
stopped without causing damage to the
seal in the event of a malfunction (e.g.
power failure, damaged motor, etc.), the
barrier pressure unit can be fitted with a
pressure accumulator unit. To prevent the
pressure in the accumulator discharging to
the pressureless storage tank, the return
line has a pilot-operated check valve, and
the supply line also has a simple check
valve. The barrier pressure is retained for a
limited time. However, no circulation takes
place and no heat is dissipated from the
mechanical seal.
(4)Materials
• Storage tank, measuring instruments, cooler and piping are made of stainless steel
• Fittings, distributor units, shut-off valves and tank lid are made of galvanized steel
(5)Recommended applications
• Chemical industry
• Petrochemical industry
• Refining technology
• Oil and gas industr
(6)Product variants
SPA4000 versions for water and other media available as an option.
| Version, designation | Nominal pressure, max. barrier pressure | Flow rate (l/min) | Cooling capacity (kW) with hydraulic oil t = 10K | Pressure accumulator DHE | Tank | Dimensions overall (mm) | Net weight approx. | Motor data | ||||||
| Nominal capacity (liters) | Usable volume (liters) | Height | Width | Depth | Nominal power (kW) | power (kW) Voltage, frequency | Speed (min-1) | ExProtection | ||||||
| SPA1015/A01 | 15 bar (218 PSI) | 6 | 1.8 | 40 | 12 | 650 | 610 | 380 | 125 kg (276 lb) | 1 | 400 V 50 Hz | 1,500 | Atex II2G EEPe II T3 IP54 | |
| SPA1015/A02 | 15 bar (218 PSI) | 6 | 1.8 | √ | 40 | 12 | 650 | 610 | 380 | 125 kg (276 lb) | 1 | |||
| SPA1040/A01 | 40 bar (580 PSI) | 6 | 1.8 | 40 | 12 | 650 | 610 | 380 | 125 kg (276 lb) | 1 | ||||
| SPA1040/A02 | 41 bar (580 PSI) | 6 | 1.8 | √ | 40 | 12 | 650 | 610 | 380 | 125 kg (276 lb) | 1 | |||
| SPA1090/A01 | 90 bar (1,305 PSI) | 6 | 1.8 | 40 | 12 | 650 | 610 | 380 | 125 kg (276 lb) | 2 | ||||
| SPA1090/A02 | 90 bar (1,305 PSI) | 6 | 1.8 | √ | 40 | 12 | 650 | 610 | 380 | 125 kg (276 lb) | 2 | |||
| SPA2020/A01 | 20 bar (290 PSI) | 12 | 3.6 | 100 | 20 | 750 | 800 | 555 | 140 kg (309 lb) | 1 | ||||
| SPA2020/A02 | 20 bar (290 PSI) | 12 | 3.6 | √ | 100 | 20 | 750 | 800 | 555 | 140 kg (309 lb) | 1 | |||
| SPA2050/A01 | 50 bar (725 PSI) | 12 | 3.6 | 100 | 20 | 750 | 800 | 555 | 140 kg (309 lb) | 2 | ||||
| SPA2050/A02 | 50 bar (725 PSI) | 12 | 3.6 | √ | 100 | 20 | 750 | 800 | 555 | 140 kg (309 lb) | 2 | |||
| SPA2120/A01 | 120 bar (1,740 PSI) | 12 | 3.6 | 100 | 20 | 750 | 800 | 555 | 140 kg (309 lb) | 3.6 | ||||
| SPA2120/A02 | 120 bar (1,740 PSI) | 12 | 3.6 | √ | 100 | 20 | 750 | 800 | 555 | 140 kg (309 lb) | 3.6 | |||
| SPA3020/A01 | 20 bar (290 PSI) | 23 | 6.9 | 100 | 20 | 750 | 800 | 555 | 140 kg (309 lb) | 2 | ||||
| SPA3020/A02 | 20 bar (290 PSI) | 23 | 6.9 | √ | 100 | 20 | 750 | 800 | 555 | 140 kg (309 lb) | 2 | |||
| SPA3050/A01 | 50 bar (725 PSI) | 23 | 6.9 | 100 | 20 | 750 | 800 | 555 | 140 kg (309 lb) | 3.6 | ||||
| SPA3050/A02 | 50 bar (725 PSI) | 23 | 6.9 | √ | 100 | 20 | 750 | 800 | 555 | 140 kg (309 lb) | 3.6 | |||
| SPA3120/A01 | 120 bar (1,740 PSI) | 23 | 6.9 | 100 | 20 | 750 | 800 | 555 | 140 kg (309 lb) | 6.8 | ||||
| SPA3120/A02 | 120 bar (1,740 PSI) | 23 | 6.9 | √ | 100 | 20 | 750 | 800 | 555 | 140 kg (309 lb) | 6.8 | |||
We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.
Question1: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is displayed on the website is only the average market price. For specific models, you can contact us for further consultation and negotiation.
Question 2: Are you a factory or a trade company?
Answer: We are a factory with top sales for the trade service.
Question 3: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and services through placing trial orders. Looking forward to the long-term cooperation with you.
Question4: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product, or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.
Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company will provide you with samples for free, but you will have to pay for the international delivery (freight collect payment).
