| Customization: | Available |
|---|---|
| Structure: | Single End |
| Pressure: | High Pressure Mechanical Seals |
| Quantity: | |
|---|---|

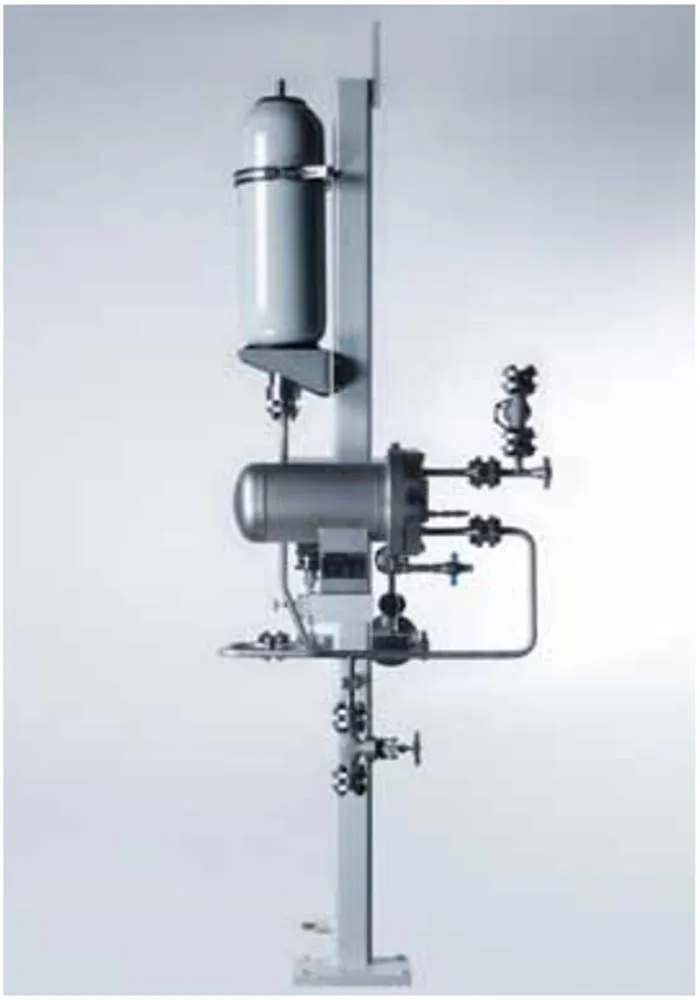

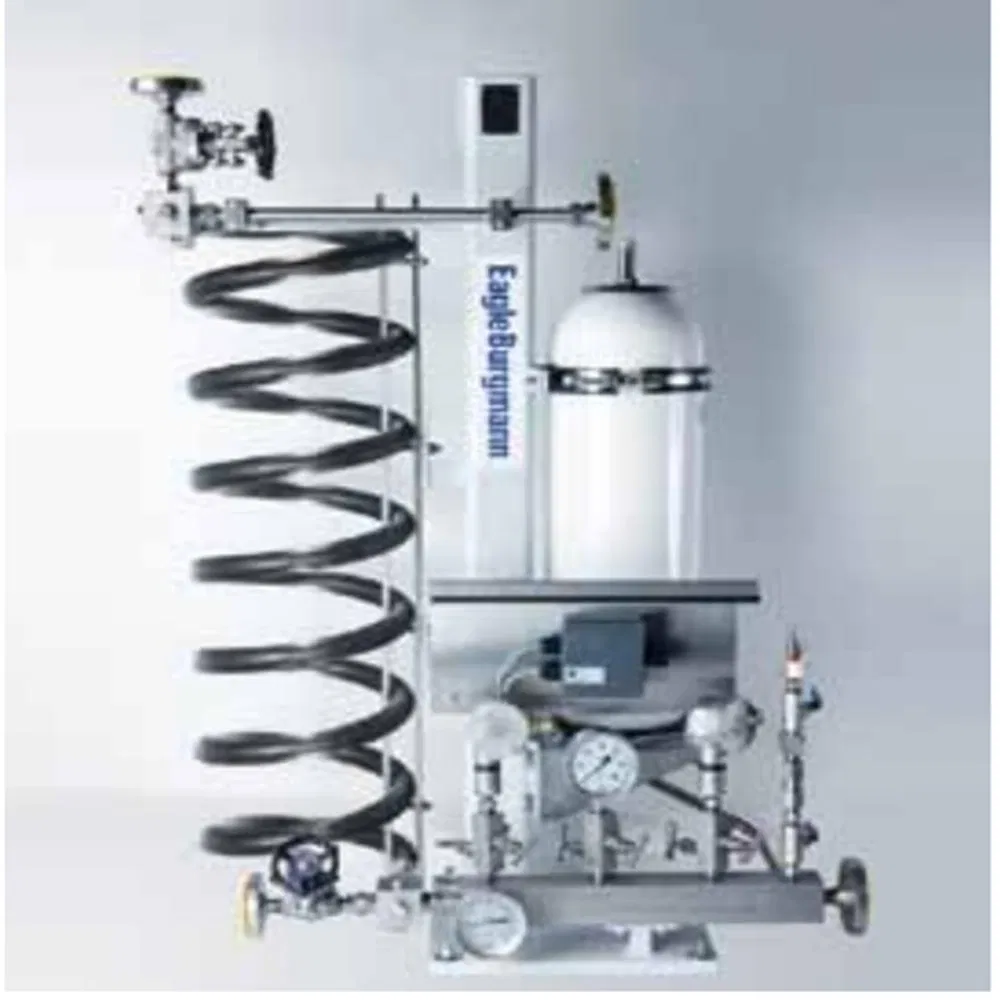

(1)Features
Pressurized barrier system (closed circuit)
for use in seal systems with high pressures
and/or for hazardous/environmentally
harmful processes. The SPO (Plan 53B)
range is available with a pressure
accumulator, cooler (finned tube, water or
air cooler with fan) and a wide range of
instruments.
Circulation in accordance with API 682/
ISO 21 049: Plan 53B
(2)Advantages
• Pressurization is by means of a pre-loaded bladder accumulator
• The nitrogen is separated from the barrier medium by membranes in the accumulator:
nitrogen cannot get into the barrier medium or process medium
• Barrier pressure is created without any need for connection to a nitrogen supply
• Available with finned tube, water or air coolers with fan
• Modular system: combination with a wide range of system components/instruments possible
(3)Functional description
The SPO is designed to perform the
following functions of a barrier system:
• to pressurize the buffer chamber
• leakage compensation
• to cool the seal
Pressurization (> process pressure)
prevents the process medium from getting
into the barrier circuit or the atmosphere.
Pressurization is supplied by a pressure
accumulator which is pre-loaded with
nitrogen. Circulation in the barrier circuit
takes place by the thermosiphon principle
or by forced circulation, e.g. with a
pumping screw.
(4)Standards and approvals
• PED 97/23 EC (Design and production in accordance with EU Pressure Equipment Directive)
• ASME VIII, Div. 1 (Design, calculation and production)
(5)Recommended applications
• Petrochemical industry
• Chemical industry
• Oil and gas industry
• Refining technology
(6)Notes
A refilling unit has to be provided.
(7)Product variant
We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.
Question1: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is displayed on the website is only the average market price. For specific models, you can contact us for further consultation and negotiation.
Question 2: Are you a factory or a trade company?
Answer: We are a factory with top sales for the trade service.
Question 3: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and services through placing trial orders. Looking forward to the long-term cooperation with you.
Question4: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product, or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.
Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company will provide you with samples for free, but you will have to pay for the international delivery (freight collect payment).
