| Customization: | Available |
|---|---|
| Structure: | Single End |
| Pressure: | High Pressure Mechanical Seals |
| Quantity: | |
|---|---|
(1)Features

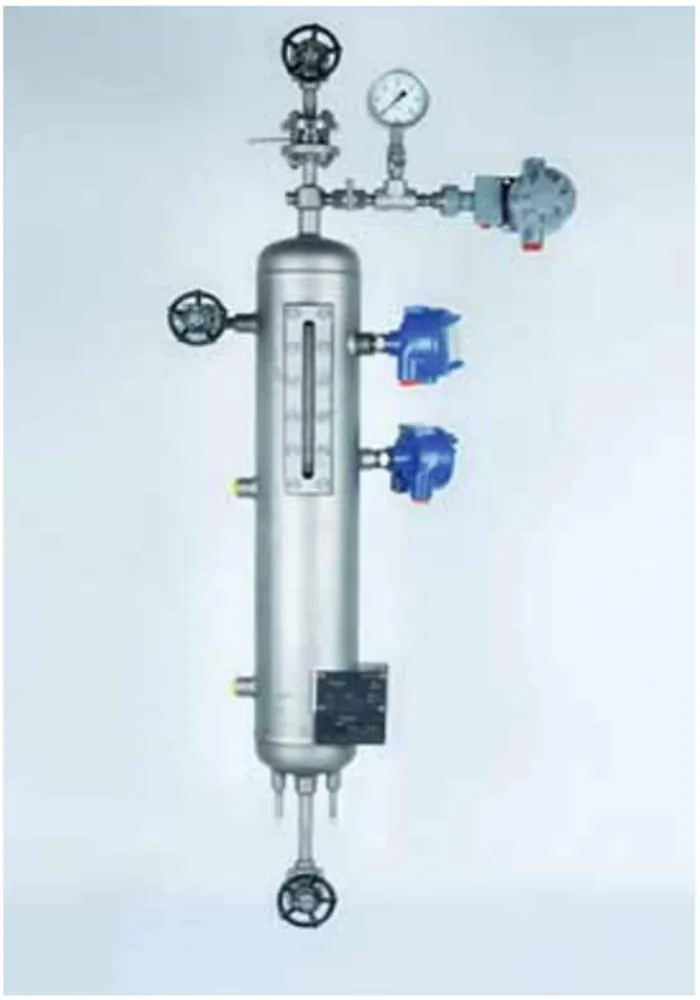

The EgleBergman Thermosiphon
systems of the TS6000 range meet all the
requirements to supply mechanical seals
in accordance with the API 682 guidelines.
The vessels are equipped with all essential
connections for fitting additional components.

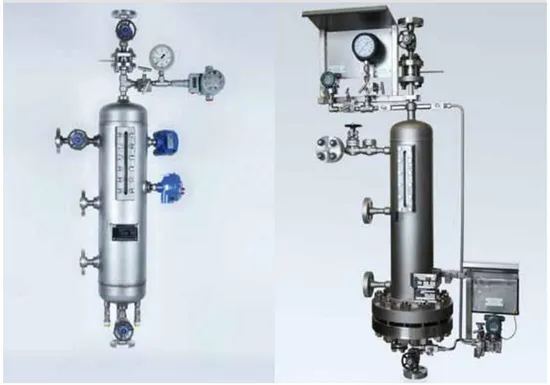

The range is available in two standard
vessel sizes (shown above: TS6000) with
dished heads; a version which can be
dismantled is also available as an option.
The modular system allows the TS6000
vessels to be combined with a wide range
of system components such as, level
switch/transmitter, pressure switch/
transmitter, base frame, etc.
Circulation in accordance with API 682/
ISO 21 049: Plan 52, Plan 53A
(2)Advantages
• Operating limits up to 50 bar/200 °C:
suitable for a wide range of demanding operating conditions
• Robust design with weld-pad type sightglass for optimum visual level monitoring
• Modular system: combination with a wide range of system components possible
• A version which can be dismantled is also available as an option: for optimum and simple cleaning of the vessel interior
(3)Functional description
The TS system performs all the basic
functions of a buffer/barrier system for the
operation of double seals:
• to pressurize the buffer/barrier chamber
• leakage compensation
• buffer/barrier fluid is circulated by thermosiphon effect or forced circulation system
• to cool the seal
• to selectively absorb product leakage and prevent dry running (tandem arrangement)
Use compressed air or nitrogen for
pressurization; pressurization is monitored
by a pressure switch. The incorporated
level switch issues a signal whenever the
level of buffer/barrier fluid is too low.
(4)Standards and approvals
• PED 97/23 EC (TS6001/TS6003: design and production in accordance with EU Pressure Equipment Directive)
• ASME VIII, Div. 1 (TS6000/TS6002: design, calculation and production)
(5)Recommended applications
• Refining technology
• Oil and gas industry
• Chemical Industry
• Petrochemical industry

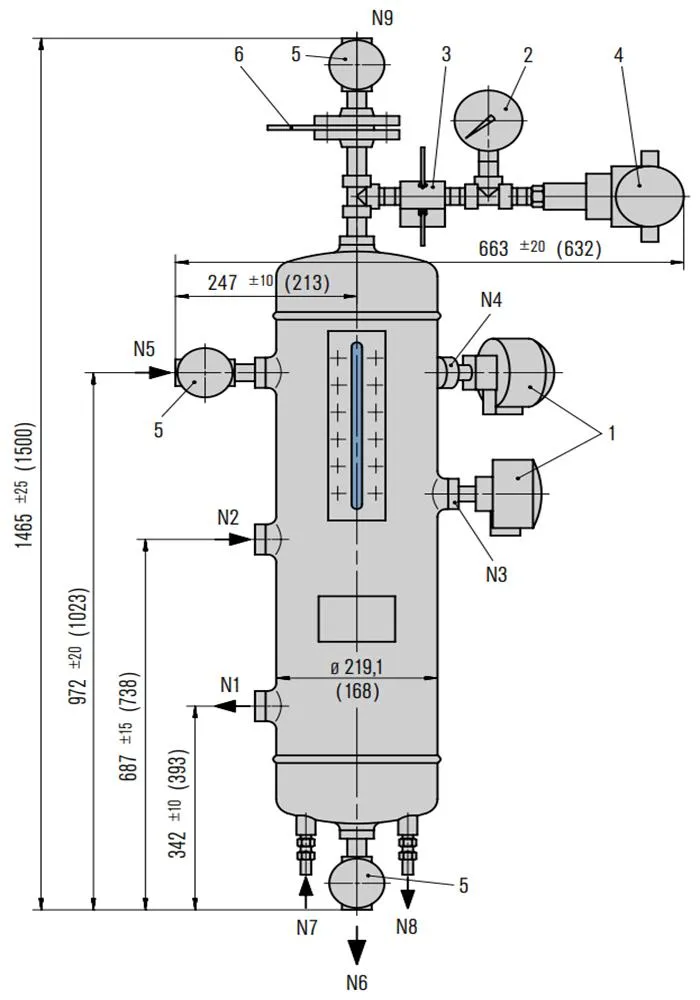

(6)Item Description
Thermosiphon system (API Plan 52)
1 Level switch
2 Manometer
3 Manifold
4 Pressure switch
5 Shut-off valve
6 Orifice
N1 to the mechanical seal
N2 from the mechanical seal
N3 Level switch
N4 Level switch
N5 Filling connection
Bottom
N6 Drain
N7 Cooling water IN
N8 Cooling water OUT
Cover
N9 Connection to flare
Dimensions for TS6002/TS6003, values in brackets for TS6000/TS6001

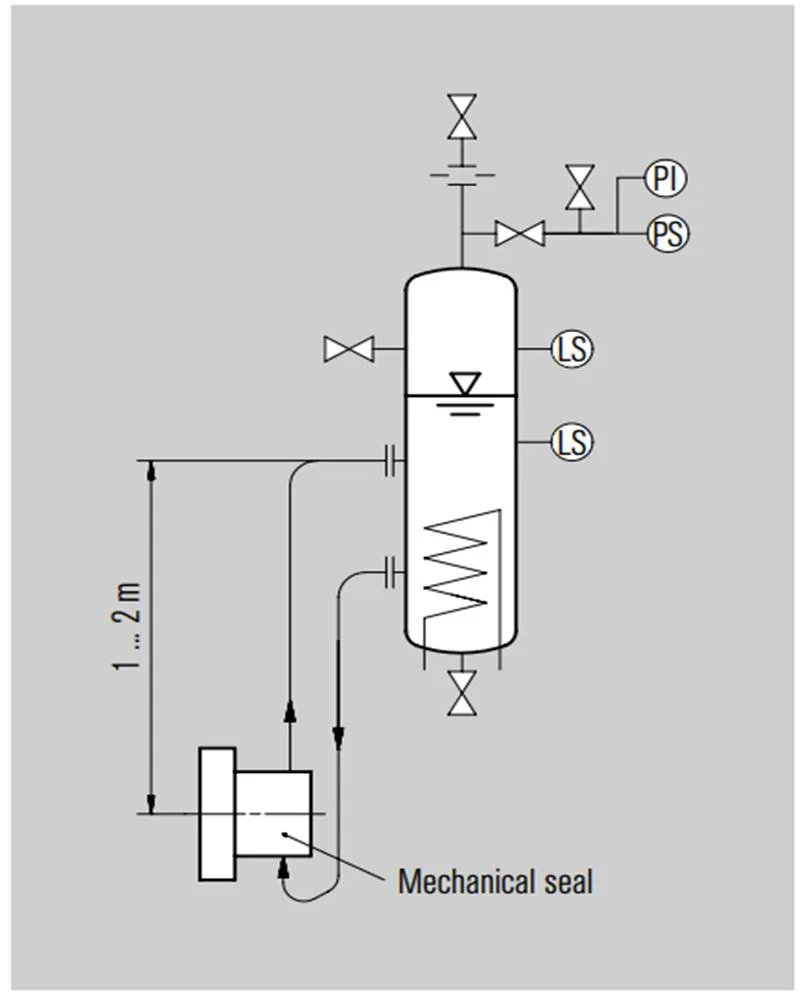

The TS vessel must always be installed
higher than the mechanical seal. The
buffer/barrier fluid flows via the return
pipe into the vessel and is cooled. The
exchange of fluid takes place by the
thermosiphon principle or by forced
circulation, e.g. with a pumping screw.
Connection pipes to the seal should be
designed with as little resistance as
possible.
| Designation | TS6000 | TS6001 | TS6002 | TS6003 |
| Pressure Equipment Directive | ASME | PED | ASME | PED |
| For shaft diameters ≤ 60 mm (acc. to API 682) | √ | √ | ||
| For shaft diameters > 60 mm (acc. to API 682) | √ | √ | ||
| Integrated cooling coil | √ | √ | √ | √ |
| Volume, vessel (liters) | 15 | 15 | 26 | 26 |
| Volume, tube (liters) | 0.3 | 0.3 | 0.4 | 0.4 |
| Allowable pressure - shell1) | 50 bar (725 PSI) | 50 bar (725 PSI) | 50 bar (725 PSI) | 50 bar (725 PSI) |
| Allowable pressure - tube1) | 16 bar (232 PSI) | 16 bar (232 PSI) | 16 bar (232 PSI) | 16 bar (232 PSI) |
| Allowable temperature1) | 200 °C (392 °F | 200 °C (392 °F | 200 °C (392 °F | 200 °C (392 °F |
| Liquid volume at NLL - Normal Liquid Level (liters) | 12 | 12 | 20 | 20 |
| Working volume MAX-MIN (liters) | 4 | 4 | 6.5 | 6.5 |
| Cooling capacity - without cooling water (kW)3) | 0.75 | 0.75 | 1 | 1 |
| Cooling capacity - natural circulation (kW)2) | 1.9 | 1.9 | 2.5 | 2.5 |
| Cooling capacity - forced circulation (kW)2) | 5 | 5 | 6.5 | 6.5 |
| Required cooling water quantity (m 3/h) | 0.4 | 0.4 | 0.7 | 0.7 |
| Metal parts | 1.4404 | 1.4404 | 1.4404 | 1.4404 |
| Sight-glass | Borosilicate | Borosilicate | Borosilicate | Borosilicate |
| Seal | PTFE | PTFE | PTFE | PTFE |
| Net weight (approx.) | 68 kg (150 lb) | 68 kg (150 lb) | 75 kg (165 lb) | 75 kg (165 lb) |
| Other versions on request. 1) Design data, permissible working values depend on the actual conditions of service 2) Guidelines with buffer/barrier fluid water 60 °C - cooling water 20 °C 3) Guidelines with buffer/barrier fluid water 60 °C - ambient temperature 20 °C (valid for thermosiphon systems without cooling water with natural circulation resp. forced circulation) | ||||
We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.
Question1: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is displayed on the website is only the average market price. For specific models, you can contact us for further consultation and negotiation.
Question 2: Are you a factory or a trade company?
Answer: We are a factory with top sales for the trade service.
Question 3: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and services through placing trial orders. Looking forward to the long-term cooperation with you.
Question4: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product, or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.
Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company will provide you with samples for free, but you will have to pay for the international delivery (freight collect payment).
(1)Features
The EgleBergman Thermosiphon
systems of the TS6000 range meet all the
requirements to supply mechanical seals
in accordance with the API 682 guidelines.
The vessels are equipped with all essential
connections for fitting additional components.
The range is available in two standard
vessel sizes (shown above: TS6000) with
dished heads; a version which can be
dismantled is also available as an option.
The modular system allows the TS6000
vessels to be combined with a wide range
of system components such as, level
switch/transmitter, pressure switch/
transmitter, base frame, etc.
Circulation in accordance with API 682/
ISO 21 049: Plan 52, Plan 53A
(2)Advantages
• Operating limits up to 50 bar/200 °C:
suitable for a wide range of demanding operating conditions
• Robust design with weld-pad type sightglass for optimum visual level monitoring
• Modular system: combination with a wide range of system components possible
• A version which can be dismantled is also available as an option: for optimum and simple cleaning of the vessel interior
(3)Functional description
The TS system performs all the basic
functions of a buffer/barrier system for the
operation of double seals:
• to pressurize the buffer/barrier chamber
• leakage compensation
• buffer/barrier fluid is circulated by thermosiphon effect or forced circulation system
• to cool the seal
• to selectively absorb product leakage and prevent dry running (tandem arrangement)
Use compressed air or nitrogen for
pressurization; pressurization is monitored
by a pressure switch. The incorporated
level switch issues a signal whenever the
level of buffer/barrier fluid is too low.
(4)Standards and approvals
• PED 97/23 EC (TS6001/TS6003: design and production in accordance with EU Pressure Equipment Directive)
• ASME VIII, Div. 1 (TS6000/TS6002: design, calculation and production)
(5)Recommended applications
• Refining technology
• Oil and gas industry
• Chemical Industry
• Petrochemical industry

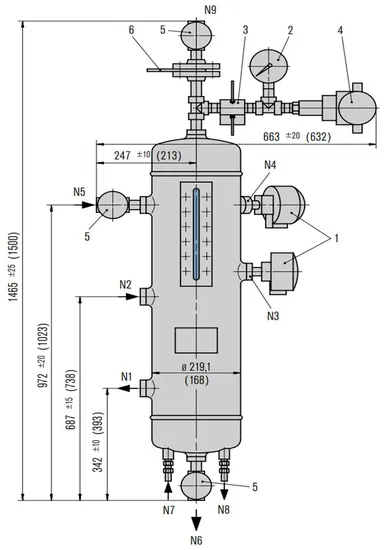

(6)Item Description
