| Customization: | Available |
|---|---|
| Structure: | Single End |
| Pressure: | High Pressure Mechanical Seals |
| Quantity: | |
|---|---|

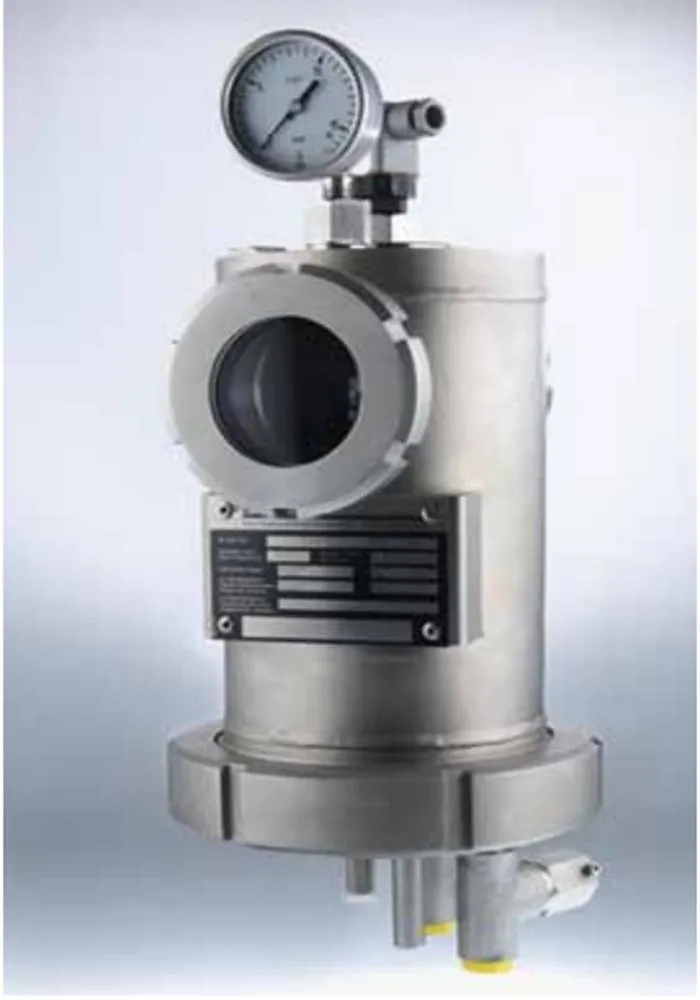

(1)Features
The EagleBurgman TS3016 thermosiphon
system presents a simple and quick way to
clean the vessel interior. For this purpose
it is designed for easy dismantling.
A quick-release coupling should therefore
be used to connect the pressure gas to
the vessel. The modular system allows the
TS3016 vessels to be combined with a
wide range of system components.
Circulation in accordance with API 682/
ISO 21 049: Plan 52, Plan 53A
(2)Advantages
• Vessel can be dismantled: for optimum and simple cleaning of the vessel interior
• Innovative design: Vessel is designed for quick and simple dismantling
• Two sight-glasses fitted on opposite sides enable optimum reading of the fluid level
• Piping system and seal can be flushed without dismantling
• Modular system: combination with a wide range of system components possible
(3)Functional description
The TS system performs all the basic
functions of a buffer/barrier system for the
operation of double seals:
• to pressurize the buffer/barrier chamber
• leakage compensation
• buffer/barrier fluid is circulated by thermosiphon effect or forced circulation system
• to cool the seal
• to selectively absorb product leakage and prevent dry running (tandem arrangement)
Use compressed air or nitrogen for pressurization.
(4)Standards and approvals
• PED 97/23 EC (Design and production in accordance with EU Pressure Equipment Directive)

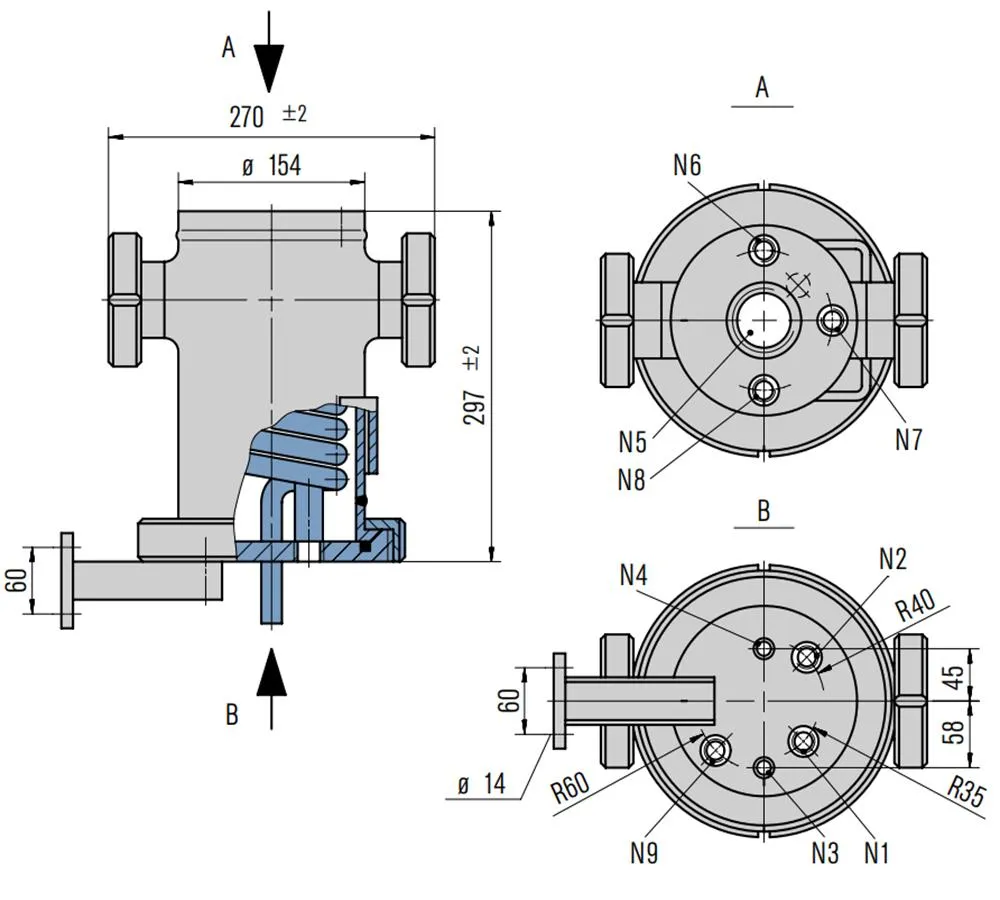

(5)Item Description
N1 Buffer/barrier fluid IN (G1/2")
N2 Buffer/barrier fluid OUT (G1/2")
N3 Cooling water IN, pipe 15 x 1.5 mm
N4 Cooling water OUT, pipe 15 x 1.5 mm
N5 Level switch (G2")
N6 Auxiliary components (G1/2")
N7 Auxiliary components (G1/2")
N8 Filling connection (G1/2")
N9 Drain (G1/2")
(6)Recommended applications
• Food and beverage industry
• Pharmaceutical industry
• Chemical industr
(7)Notes
Cleaning:
To clean the inside of the vessel you simply
have to open the union nut, disconnect the
gas supply and level switch, and lift the
vessel case.
There is no need to dismantle the seal and
cooler connections or the lase.
The TS vessel must always be installed
higher than the mechanical seal. The
buffer/barrier fluid flows via the rising pipe
into the vessel and is cooled. Particularly
with natural circulation, the fluid level must
always be higher than the rising pipe to
maintain the circulation and to provide
the specified cooling capacity. Connection
pipes to the seal should be designed with
as little resistance as possible.

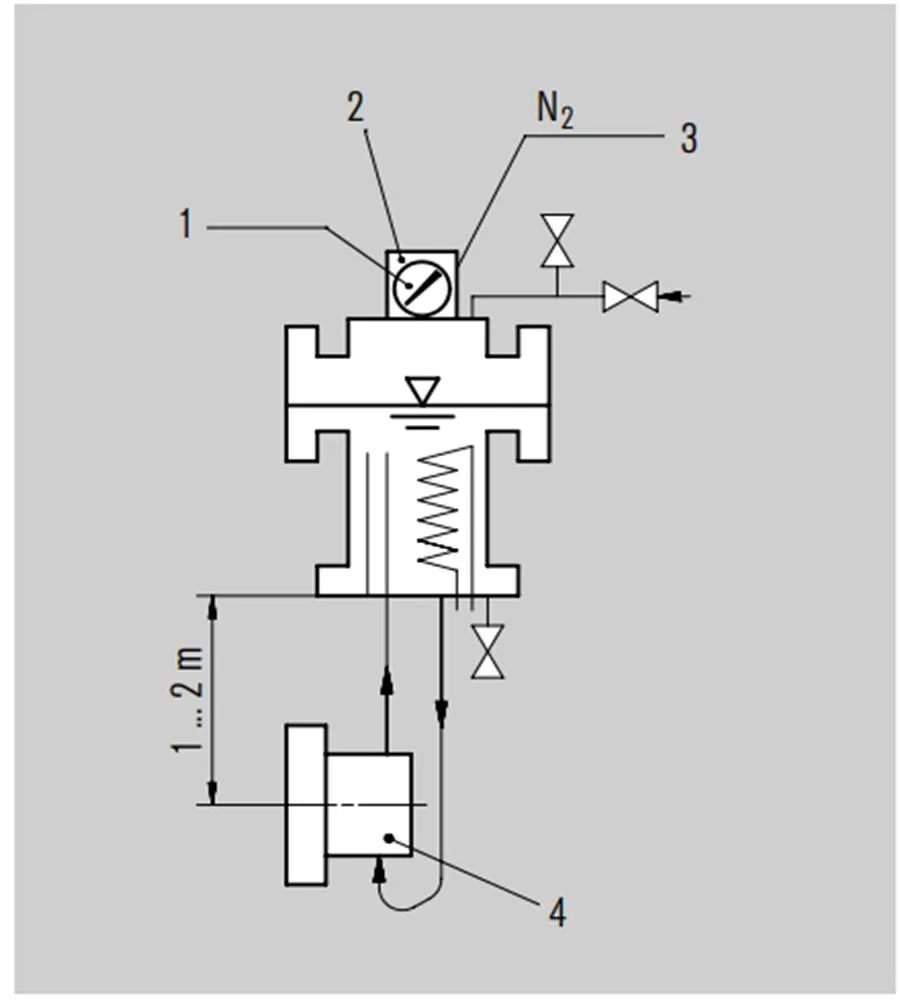

1 Pressure gauge
2 SPS Level switch
3 From PCV, we recommend using a reverse controlled pressure control valve (PCV)
4 Mechanical seal
| Designation | TS3016 |
| Pressure Equipment Directive | PED |
| Integrated cooling coil | √ |
| Volume, vessel (liters) | 4 |
| Volume, tube (liters) | 0.4 |
| Allowable pressure1) | 16 bar (232 PSI) |
| Allowable temperature1) | 150 °C (302 °F) |
| Working volume, MAX-MIN (liters) | 1.1 |
| Cooling capacity - natural circulation (kW)2) | 1.0 |
| Cooling capacity - forced circulation (kW)2) | 2.0 |
| Metal parts | 1.4571 |
| Sight-glass | Sight-glass, round Borosilicate |
| Seal | PTFE |
| Additional welding material | 1.4576/1.4430 |
| Net weight (approx.) | 12 kg (26.5 lb) |
| 1) Design data, permissible working values depend on the actual conditions of service 2) Guidelines with buffer/barrier fluid water 60 °C - cooling water 20 °C | |
We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.
Question1: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is displayed on the website is only the average market price. For specific models, you can contact us for further consultation and negotiation.
Question 2: Are you a factory or a trade company?
Answer: We are a factory with top sales for the trade service.
Question 3: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and services through placing trial orders. Looking forward to the long-term cooperation with you.
Question4: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product, or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.
Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company will provide you with samples for free, but you will have to pay for the international delivery (freight collect payment).
