| Customization: | Available |
|---|---|
| Structure: | Single End |
| Pressure: | High Pressure Mechanical Seals |
| Quantity: | |
|---|---|
(1)Features

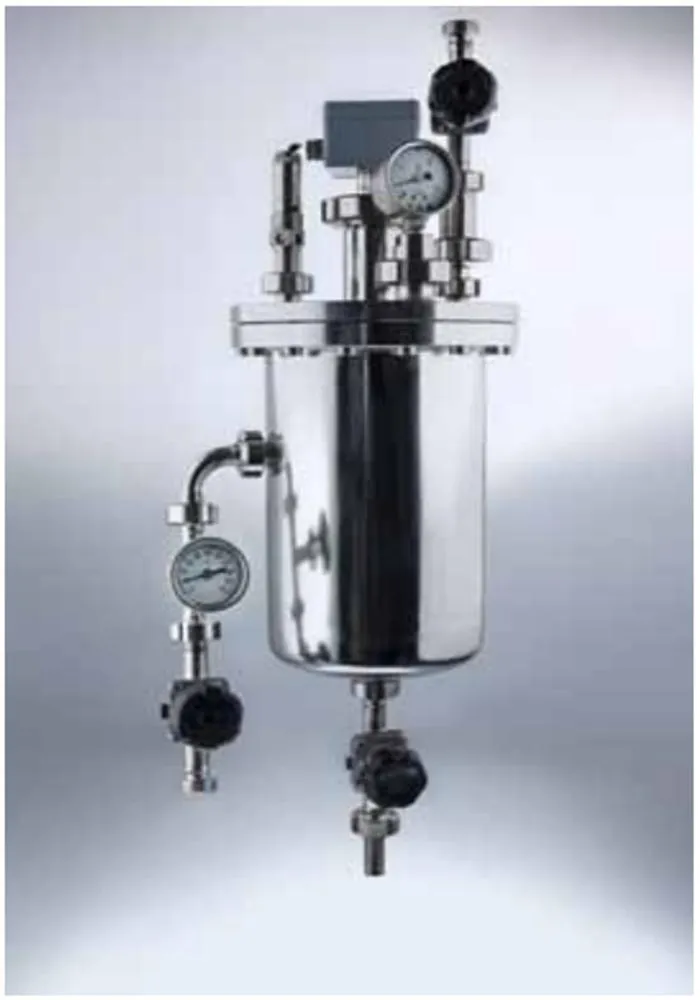

Thermosiphon systems of the TS3000
range designed specifically for the operation
and supply of mechanical seals in sterile
processes. The TS3000 thermosiphon
vessel is available in two standard sizes,
designed for dismantling, with cooling coil.
The modular system allows the TS3000
vessels to be combined with a wide range
of system components.
Circulation in accordance with API 682/
ISO 21 049: Plan 52, Plan 53A
(2)Advantages
• Can be fully sterilized: TS3000 thermosiphon system, including all components and pipe couplings
• Surfaces are electropolished on all sides: effective cleaning and reduction of bacteria growth
• Vessel can be dismantled: the joint is sealed at the inner diameter by an O-Ring without any gaps
• FDA-conform materials, therefore suitable for hygienic applications
(3)Functional description
The TS system performs all the basic
functions of a buffer/barrier system for the
operation of double seals:
• to pressurize the buffer chamber
• leakage compensation
• buffer/barrier fluid is circulated by thermosiphon effects or forced circulation system
• to cool the seal
• to selectively absorb product leakage and prevent dry running (tandem arrangement)
In addition to performing the basic
functions of a buffer/barrier system, the
TS3000 system can also be used to make
condensate, provided the TS system is
connected up to a steam pipe.
(4)Standards and approvals
• PED 97/23 EC (Design and production in accordance with EU Pressure Equipment Directive)

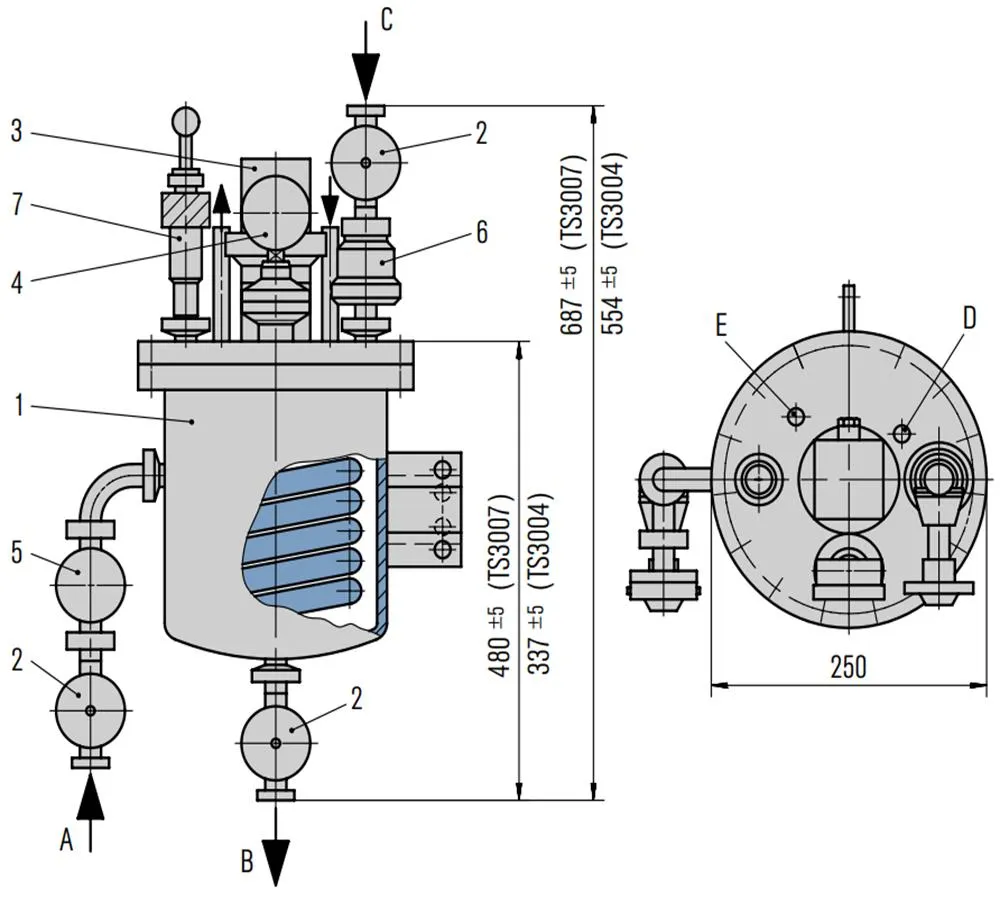

(5)Item Description
1 TS vessel with cooling coil
2 Shut-off valve
3 Level switch
4 Pressure gauge
(membrane transducer)
5 Thermometer
6 Check valve
7 Safety valve (set pressure 8 bar)
(6)Recommended applications
• Food and beverage industry
• Pharmaceutical industry
(7)Notes
Sterilization:
CIP and SIP is possible.

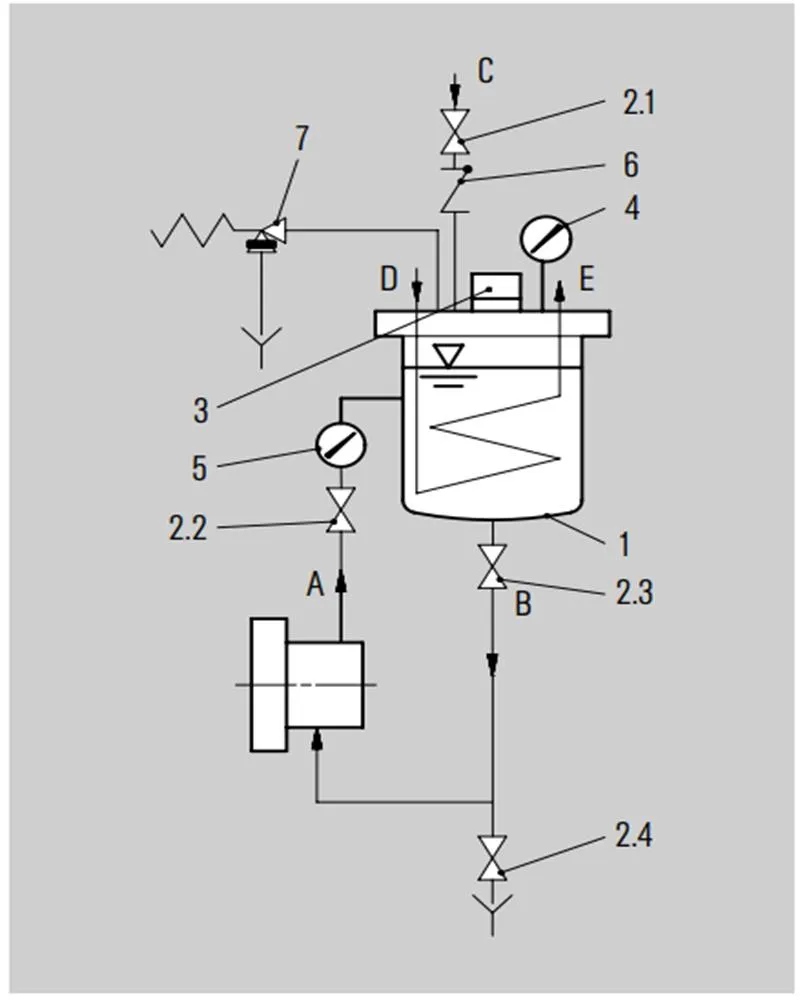

Making condensate:
At the end of the sterilization cycle, valve
2.4 is closed, valve 2.3 is fully opened and
the cooling water supply is switched on
again - condensate will be made.
The level switch (3) responds when the TS
vessel is full. The agitator can be startet
up again.
The TS vessel must always be installed
higher than the mechanical seal. The
buffer/barrier fluid flows via the return
pipe into the vessel and is cooled. The
exchange of fluid takes place by the
thermosiphon principle or by forced
circulation, e.g. with a pumping screw.
Connection pipes to the seal should be
designed with as little resistance as
possible.
| Designation | TS3004 | TS3007 |
| Pressure Equipment Directive | PED | PED |
| Integrated cooling coil | √ | √ |
| Volume, vessel (liters) | 3.5 | 6.7 |
| Volume, tube (liters) | 0.2 | 0.5 |
| Allowable pressure1) | 8 bar (116 PSI) | 8 bar (116 PSI) |
| Allowable temperature1) | -10 °C ... +140 °C (14 °F ... 284 °F) | -10 °C ... +140 °C (14 °F ... 284 °F) |
| Cooling capacity - natural circulation (kW)2) | 1 | 2 |
| Cooling capacity - forced circulation (kW)2) | 2 | 4 |
| Metal parts | 1.4571 | 1.4571 |
| Seal | EPDM | EPDM |
| 1) Design data, permissible working values depend on the actual conditions of service 2) Guidelines with buffer/barrier fluid water 60 °C - cooling water 20 °C | ||
We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.
Question1: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is displayed on the website is only the average market price. For specific models, you can contact us for further consultation and negotiation.
Question 2: Are you a factory or a trade company?
Answer: We are a factory with top sales for the trade service.
Question 3: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and services through placing trial orders. Looking forward to the long-term cooperation with you.
Question4: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product, or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.
Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company will provide you with samples for free, but you will have to pay for the international delivery (freight collect payment).
