192 QFT6000 Mechanical Seals for Pumps Pusher Seals

(1)Features
Quench fluid supply systems are used to
supply single mechanical seals. They act
as a convenient fluid reservoir. The QFT6000
stainless steel tank is equipped with a
sight-glass for monitoring the MIN/MAX
filling level and can be fastened with a lug fixture.

Circulation in accordance with API 682/
ISO 21 049: Plan 51

(2)Functional description
Quench fluid systems (Plan 51) are
employed:
• to absorb leakage
• to monitor the leakage rate (e.g. through
periodic reading of the level in the tank)
• to prevent icing
• to protect against dry running
• to stabilize the lubricating film
• to exclude air from the media in order to
prevent a reaction with oxygen in the air

(3)Advantages
• Sight-glass for MIN/MAX monitoring has a large indicator area
• Filling is possible via a filling filter or a separate pipe connection
• Combined filling and ventilation filter in the quench fluid tank for reliable operation
• Tank made of 1.4571: high resistance to corrosive media

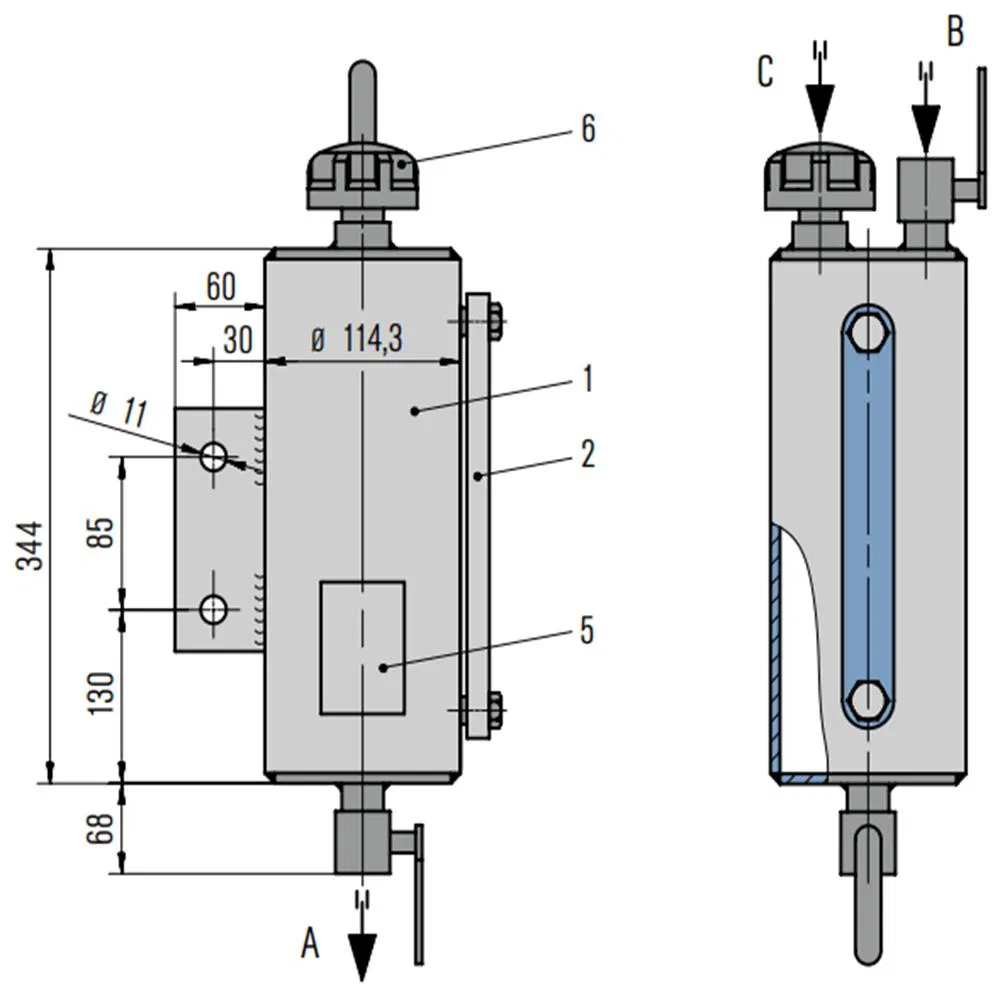

(4)Item        Description
1              Storage tank (capacity 3 l)
2              Sight-glass
5              Name plate
6              Filter and breather

Connections
A              to the mechanical seal
B              filling via pipe connection
C              filling via filling filter

(5)Recommended applications
• Refining technology
• Oil and gas industry
• Chemical industry
• Petrochemical industry

Install the quench fluid tank above the
mechanical seal. Install connection pipes
to the mechanical seal with low flow
resistance. Pipes must vent automatically
in the direction of the tank. It is imperative
that air pockets are prevented.

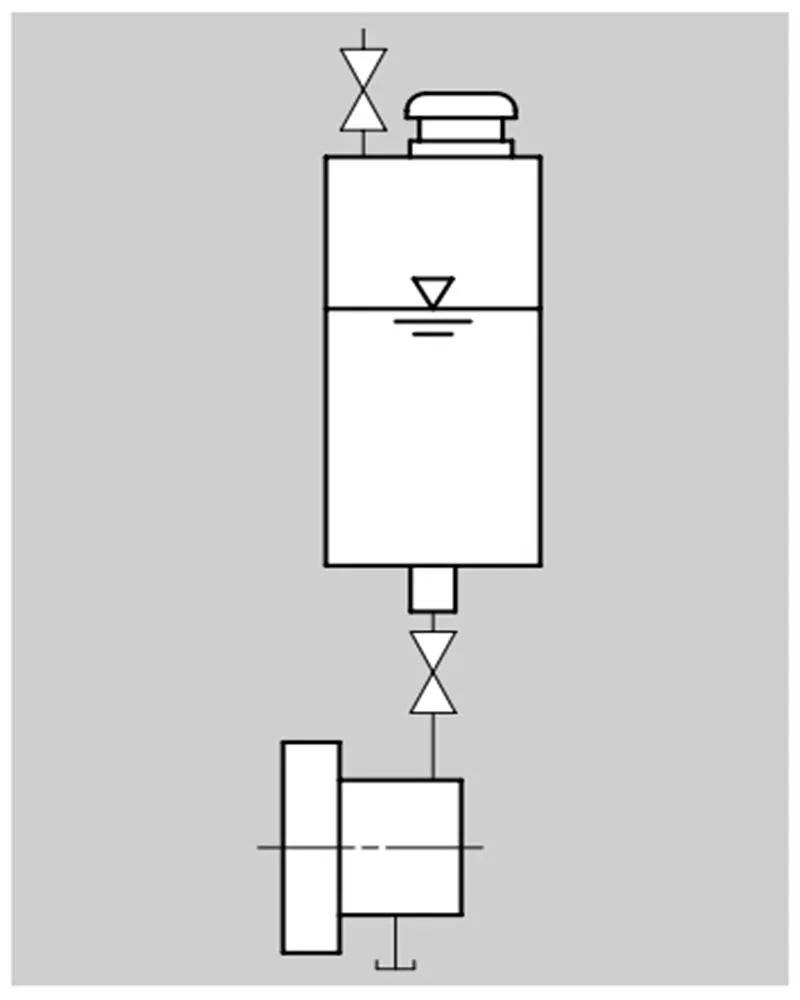

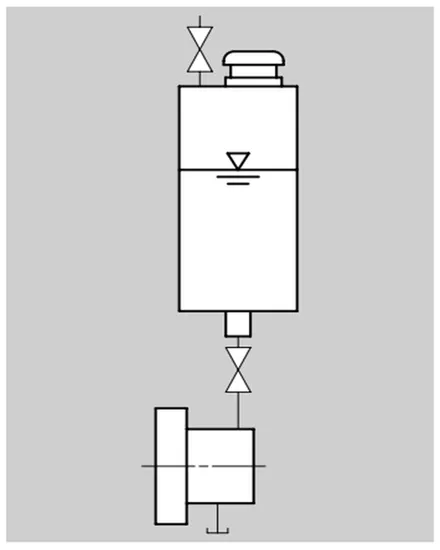

The QFT6000 quench fluid system can
be operated in accordance with Plan 51
(dead-end quench). Quench fluid from
elevated tank. The characteristic feature of
this principle is that no heat is dissipated
by the system.
