188 QFT2000 Mechanical Seals for Pumps Pusher Seals

(1)Features
Quench fluid supply systems are used to
supply single or tandem mechanical seals.
They act as a convenient fluid reservoir.
The exchange of fluid takes place by
the thermosiphon principle or by forced
circulation, e.g. with a pumping screw. The
QFT2000 stainless steel tank is equipped
with sight-glasses for monitoring the MIN/
MAX level and can be fastened with a
lug fixture. The leakage overflow can be
selectively discharged.
Circulation in accordance with API 682/
ISO 21 049: Plan 51, Plan 52

(2)Functional description
Quench fluid systems are employed:
• to absorb leakage
• to monitor the leakage rate (e.g. through periodic reading of the level in the tank)
• to lubricate and to cool the outboard mechanical seal in a tandem arrangement
• to prevent icing
• to protect against dry running
• to stabilize the lubricating film
• to exclude air from the media in order to prevent a reaction with oxygen in the air

(3)Advantages
• Available in a range of different material combinations: suitable for a wide range of demanding operating conditions
• Design for medium temperatures of up to +200 °C (+392 °F)
• Tank made of 1.4571: high resistance to corrosive media
• Integrated overflow for selective discharge of leakage
• Instead of the sight-glass it is possible to use a level switch to monitor the fluid volume
• Combined filling and ventilation filter in the quench fluid tank for reliable operation

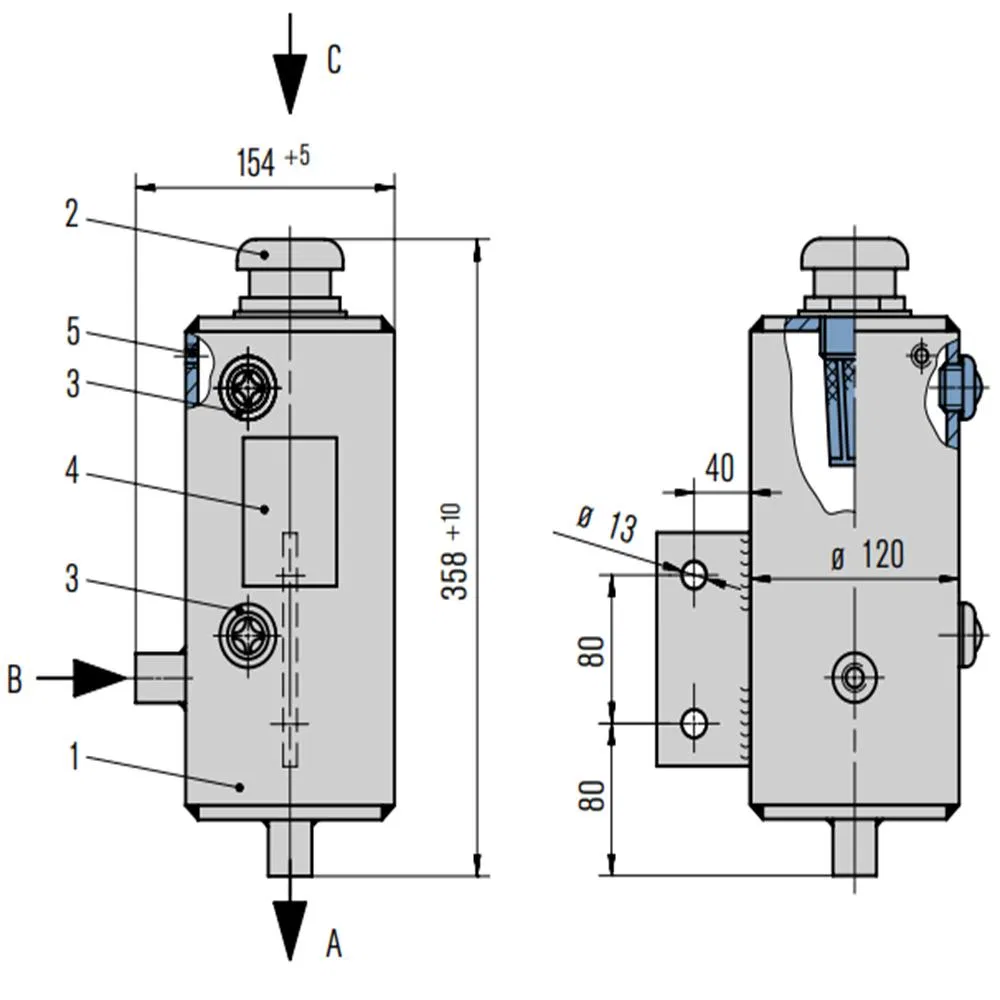

(4)Item Description

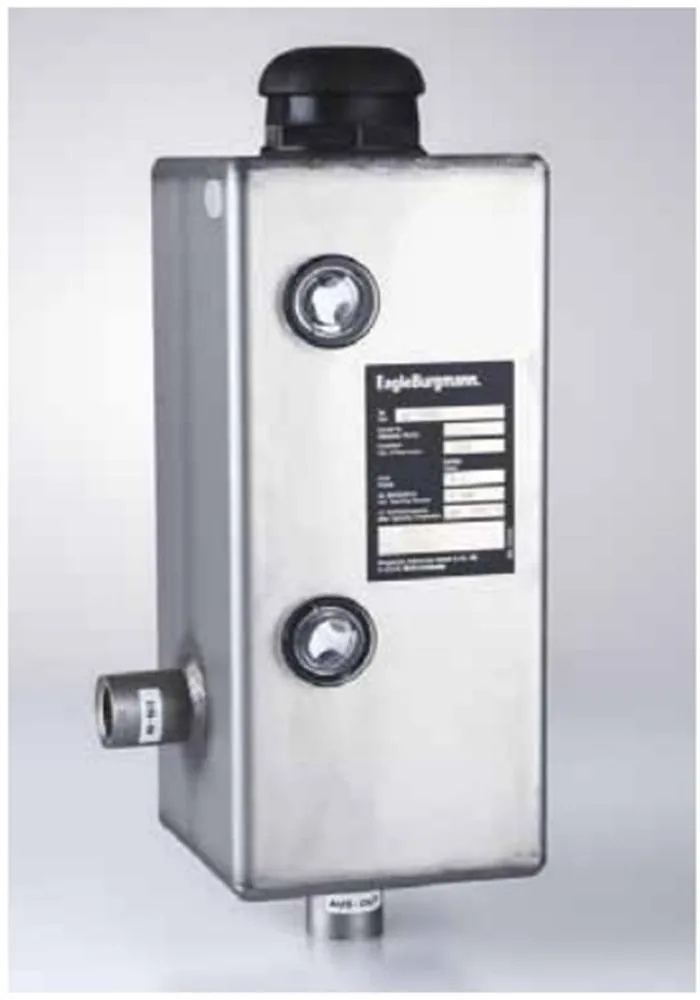

1 Storage tank (capacity 3 l)
2 Inlet filter with vented cap
3 Sight-glass or level switch
4 Name plate
5 Overflow G1/8"

Connections
A to the mechanical seal
B from the mechanical seal
C filling

(5)Recommended applications
• Chemical industry
• Food and beverage industry
• Pharmaceutical industry

(6)Product variant
Instead of the inspection glass, a level
switch can be used for monitoring the fluid
volume:
MIN level: SPS2000/A051-00
MAX level: SPS2000/A052-00
MIN/MAX level: SPS2000/A053-00

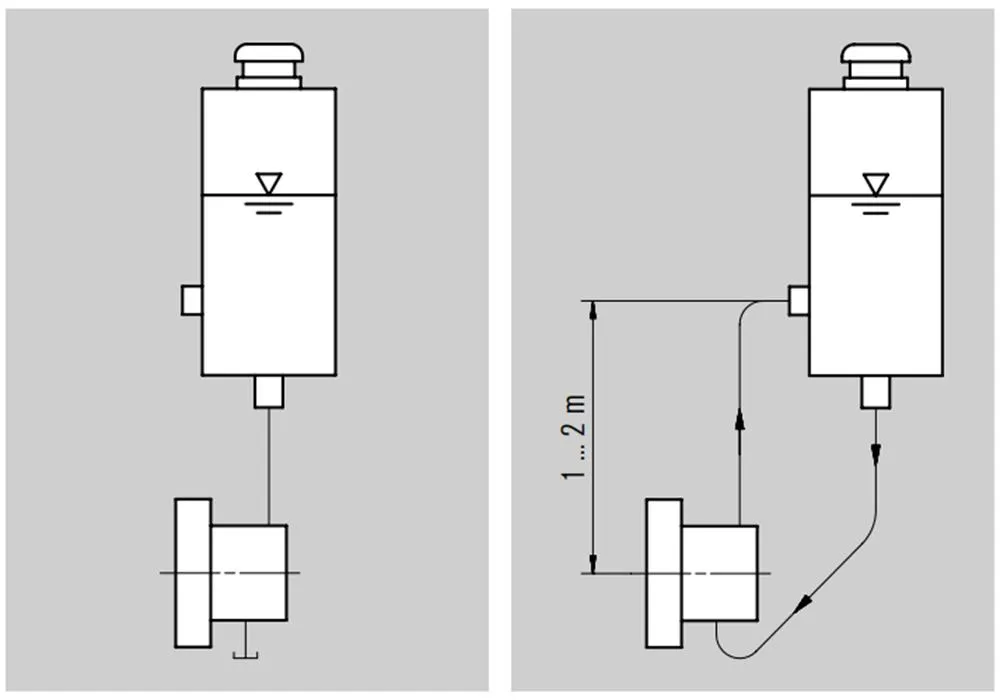

Dead-end quench (Plan 51):
Quench fluid from an elevated tank. The
characteristic feature of this principle is
that no heat is dissipated by the system.

Circulation (Plan 52):
Quench fluid from an elevated tank;
external tank, pressureless; thermosiphon
or forced circulation. In this case heat
is dissipated by the circulation. Cooling
capacity by convection is minimal,
however.

Install the quench fluid tank approx. 1 ... 2 m
(3.3 ... 6.6 ft) above the mechanical seal.
Install connection pipes to the mechanical
seal with low flow resistance. Pipes must
vent automatically in the direction of the
tank. It is imperative that air pockets are
prevented. The minimum filling level must
always be above the connection socket at
the side (in the case of the thermosiphon
principle). Quench fluid systems can be
operated in two different modes.
