186 QFT1000 Mechanical Seals for Pumps Pusher Seals

(1)Features
Quench fluid supply systems are used to
supply single or tandem mechanical seals.
They act as a convenient fluid reservoir.
The exchange of fluid takes place by
the thermosiphon principle or by forced
circulation, e.g. with a pumping screw.

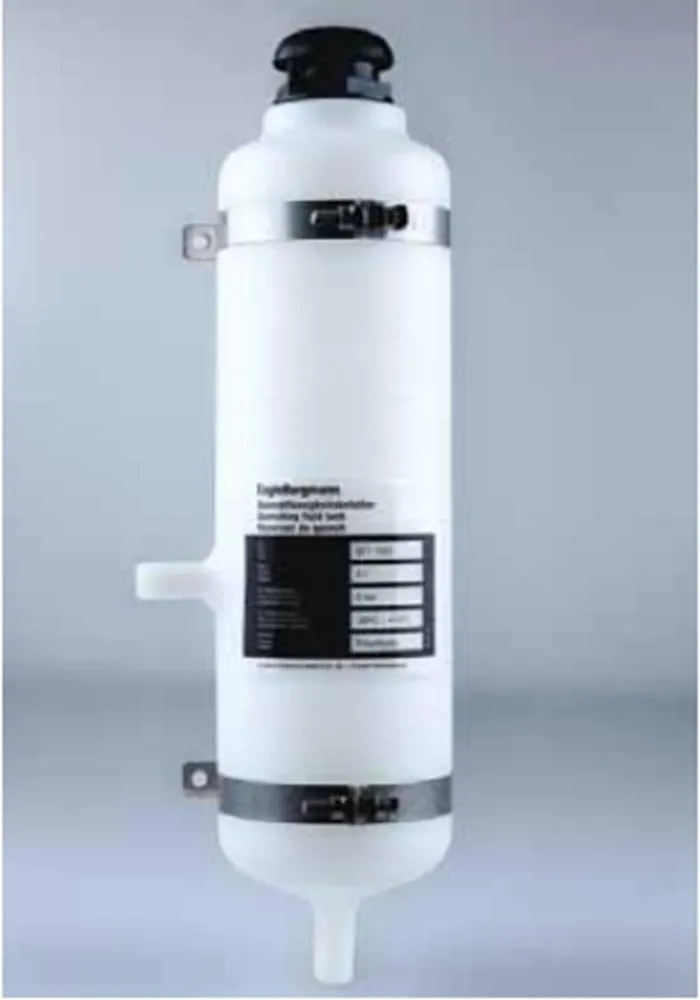

The QFT1000 is made of transparent
polyethylene, complete with clips made of
stainless steel. The QFT1000 is resistant
to water, glycerine, glycols and methanol;
not resistant to mineral oils and toluene.
Circulation in accordance with API 682/
ISO 21 049: Plan 51, Plan 52

(2)Advantages
• Excellent value for money
• Transparent polyethylene: fluid level is read off directly on the quench fluid tank
• Resistant to a wide range of quench media
• Quickly and easily installed
• Combined filling and ventilation filter in the quench fluid tank for reliable operation

(3)Functional description
Quench fluid systems are employed:
• to absorb leakage
• to monitor the leakage rate (e.g. through periodic reading of the level in the tank)
• to lubricate and to cool the outboard mechanical seal in a tandem arrangement
• to prevent icing
• to protect against dry running
• to stabilize the lubricating film
• to exclude air from the media in order to prevent a reaction with oxygen in the air

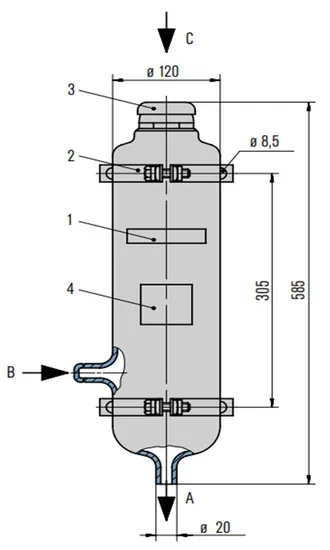

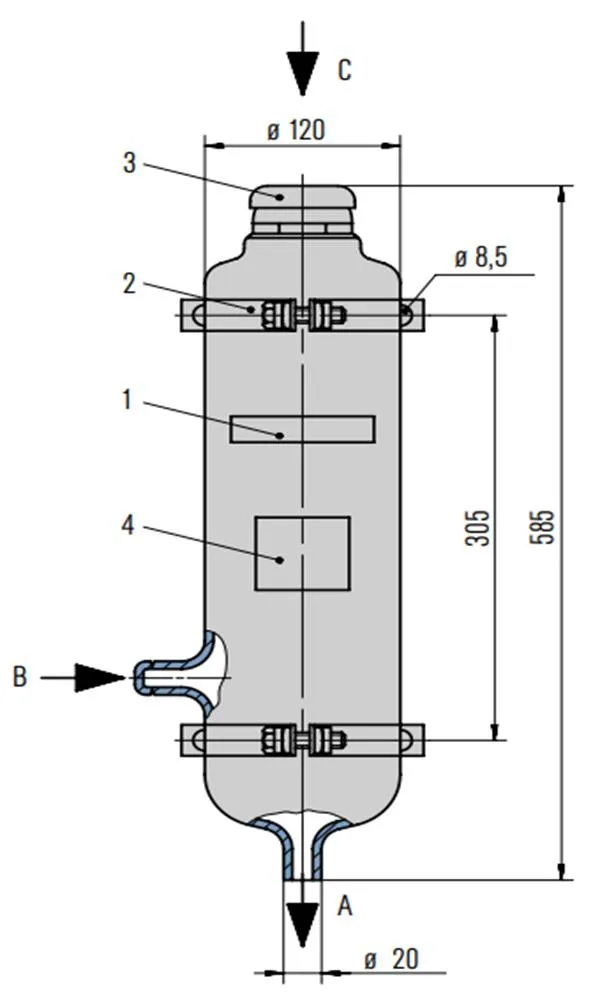

(4)Item Description
1 Storage tank (capacity 4 l)
2 Clip
3 Inlet filter with vented cap
4 Name plate
Connections
A to the mechanical seal
B from the mechanical seal (optional)
C filling

(5)Recommended applications
• Chemical industry
• Food and beverage industry
• Pharmaceutical industry

(6)Product variants
QFT1000/A004-00
Version with external level indicator.

QFT1000/M001-00
Version with threaded coupling for connecting a tube dia. 10 mm

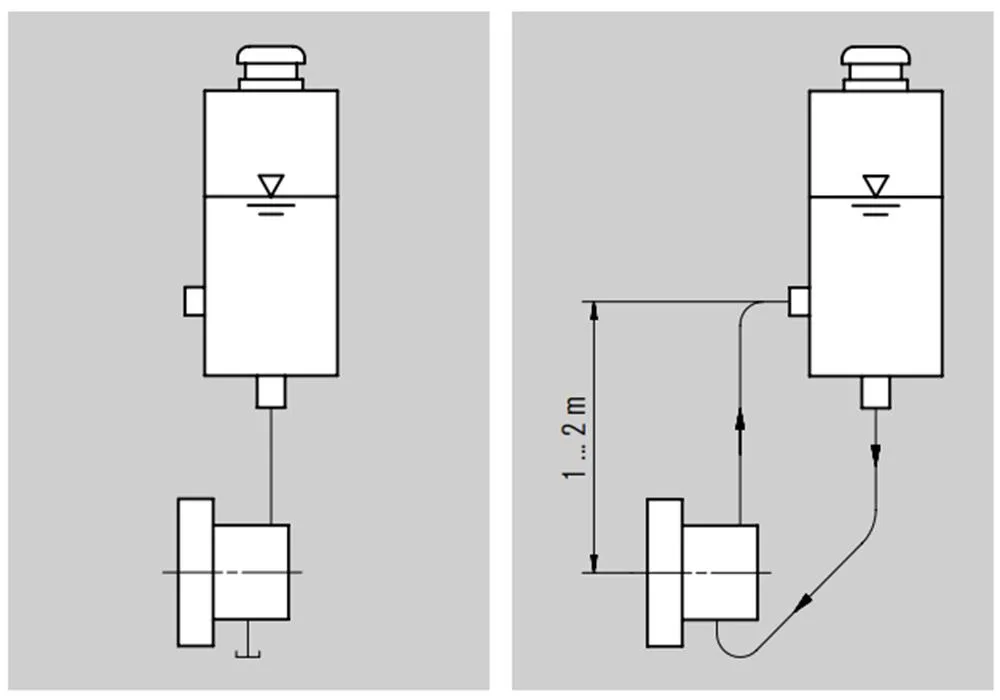

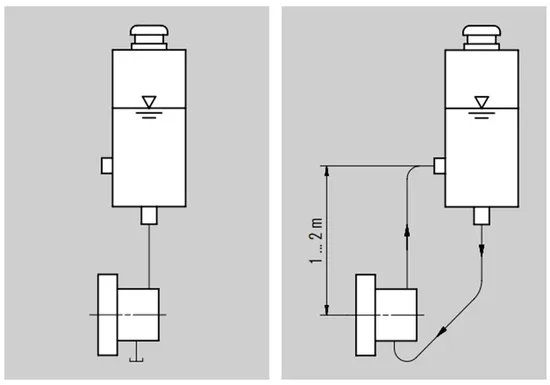

Dead-end quench (Plan 51):
Quench fluid from an elevated tank. The
characteristic feature of this principle is
that no heat is dissipated by the sys

Circulation (Plan 52):
Quench fluid from an elevated tank; external tank, pressureless; thermosiphon or forced circulation. In this case heat
is dissipated by the circulation. Cooling capacity by convection is minimal, however.

Install the quench fluid tank approx. 1 ... 2 m
(3.3 ... 6.6 ft) above the mechanical seal.
Install connection pipes to the mechanical
seal with low flow resistance. Pipes must
vent automatically in the direction of the
tank. It is imperative that air pockets are
prevented. The minimum filling level must
always be above the connection socket at
the side (in the case of the thermosiphon
principle). Quench fluid systems can be
operated in two different modes.
