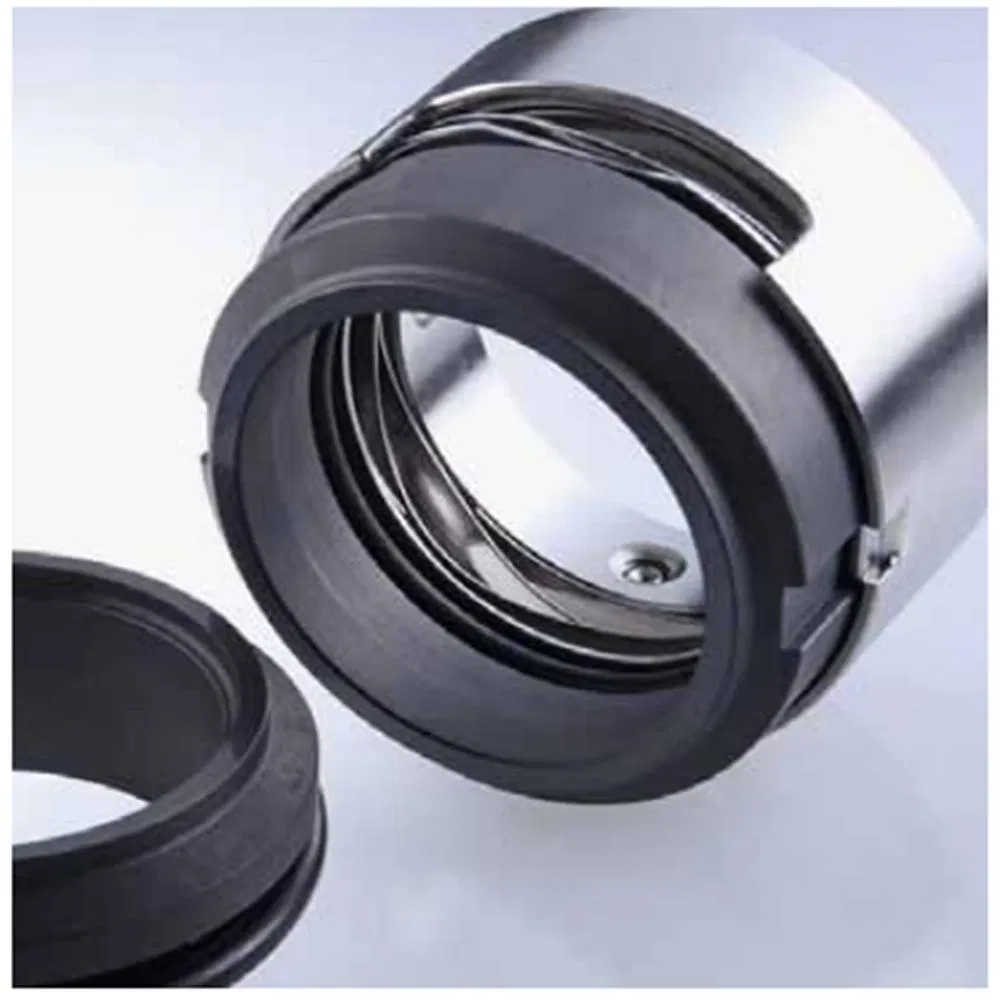

16 H7N Mechanical Seals for Pumps Pusher Seals

Share to:

16 H7N Mechanical Seals for Pumps Pusher Seals

Customization:	Available
Structure:	Single End
Pressure:	High Pressure Mechanical Seals

Availability:

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

16 H7N

Speed

Ultra-High-Speed Mechanical Seal

Temperature

High Temperature Mechanical Seal

Performance

Corrosion

Standard

Type

Customization

Balance

Balanced

Payment Method

T/T, Western Union, L/C etc

Replace

Bergman Seals

Export Port

Ningbo Port, Shanghai Port

Products Packaging

White Box

Min Order Qty

5 Pcs

Transport Package

Carton Packing

Specification

Diameter Size 14-200mm

Trademark

Customer Provide

Origin

Made in China

HS Code

8484200090

Production Capacity

1000000 PCS/Year

Packaging & Delivery

Package Size

38.00cm * 38.00cm * 32.00cm

Package Gross Weight

22.000kg

Product Description

(1)Features

• For stepped shafts
• Single seal
• Balanced
• Super-Sinus-spring or multiple springs rotating
• Independent of direction of rotation
• Integrated pumping device available (H7F, H75F)

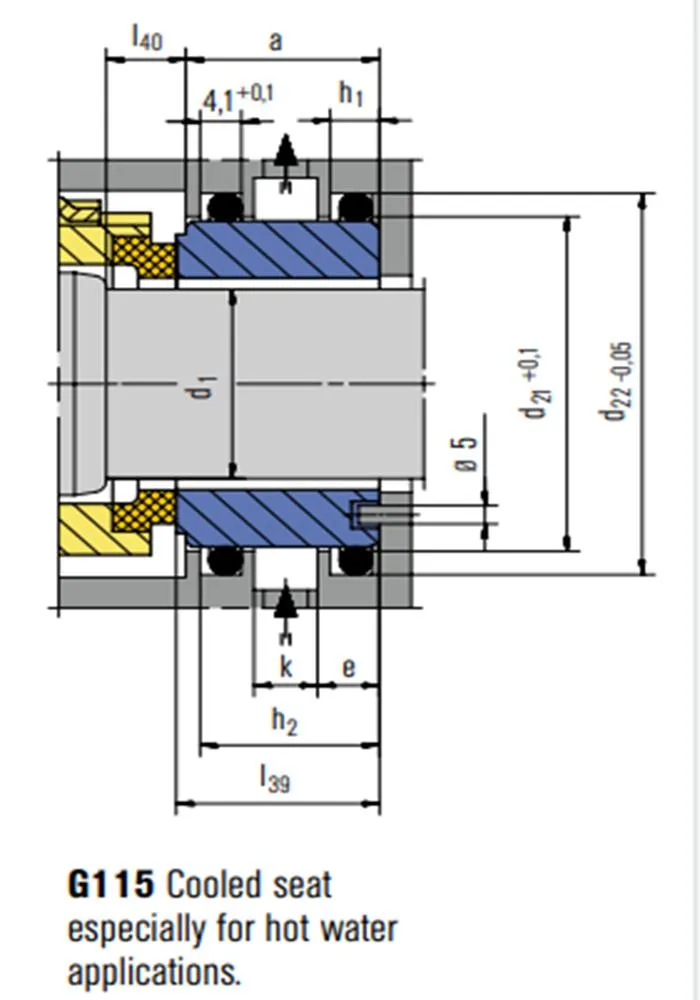

• Variant with seat cooling available (H75G115)

(2)Advantages
• Universal application opportunities (standardization)
• Efficient stock keeping due to easily interchangeable faces
• Extended selection of materials

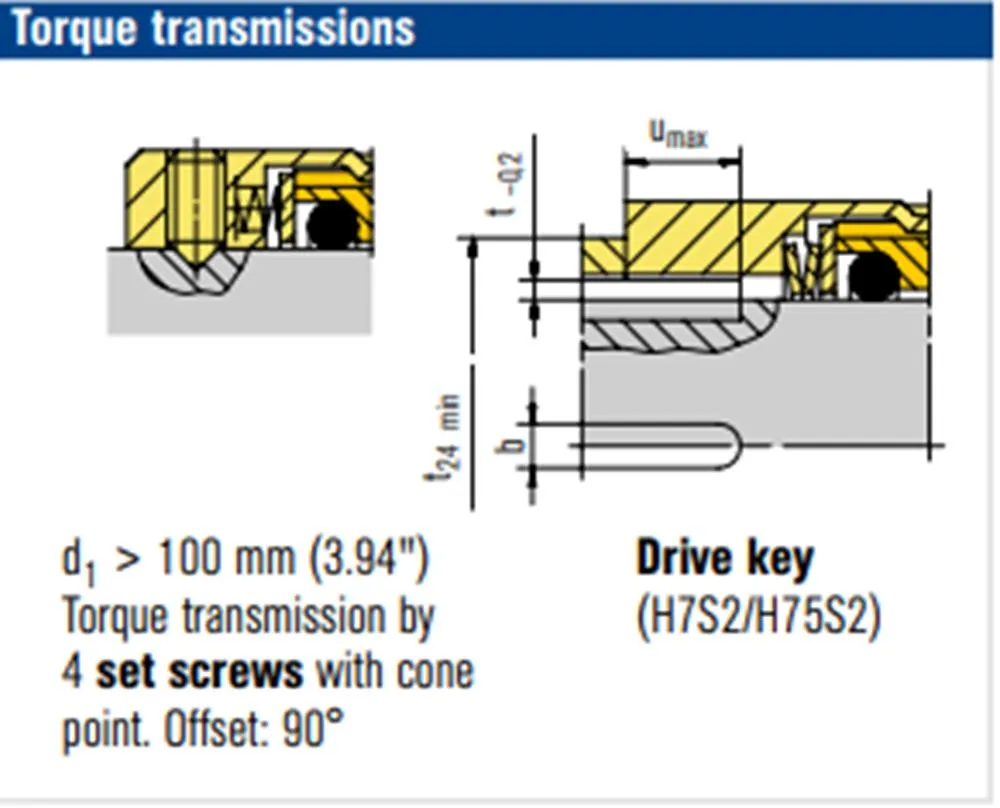

• Flexibility in torque transmissions
• Self cleaning effect
• Short Installation length possible (G16)

(3)Operating range (see note on page 1)
Shaft diameter: d1 = 14 ... 100 mm (0.55" ... 3.94")
(Single spring: d1 = max. 100 mm (3.94"))
Pressure:
p1 = 80 bar (1,160 PSI) for d1 = 14 ... 100 mm,
p1 = 25 bar (363 PSI) for d1 = 100 ... 200 mm,
p1 = 16 bar (232 PSI) for d1 > 200 mm
Temperature: t = -50 °C ... +220 °C (-58 °F ... +428 °F)
Sliding velocity: vg = 20 m/s (66 ft/s)
Axial movement:
d1 ... 22 mm: ±1.0 mm
d1 24 ... 58 mm: ±1.5 mm
d1 from 60 mm: ±2.0 mm

(4)Materials
Seal face: Silicon carbide (Q1, Q2), Carbon graphite
antimony impregnated (A), Aluminium oxide (V),
Special cast CrMo steel (S)
Seat G9: Carbon graphite antimony impregnated (A),
Carbon graphite resin impregnated (B),
Silicon carbide (Q1*, Q2*)
Secondary seals: EPDM (E), NBR (P), FKM (V), FFKM (K)
Springs: CrNiMo steel (G)
Metal parts: CrNiMo steel (G), Duplex (G1)
* Cannot be combined with seal face in S

(5)Standards and approvals
• EN 12756

(6)Recommended applications
• Refining technology
• Power plant technology
• Petrochemical industry
• Oil and Gas industry
• Hot water applications
• Light hydrocarbons
• Boiler feed pumps
• Process pumps

(7)Item Part no.to DIN 24250 Description
1.1 472 Seal face
1.2 485 Drive collar
1.3 474 Thrust ring
1.4 412.1 O-Ring
1.5 477 Spring
1.6 904 Set screw
2 475 Seat G9
3 412.2 O-Ring

(8)Product variants

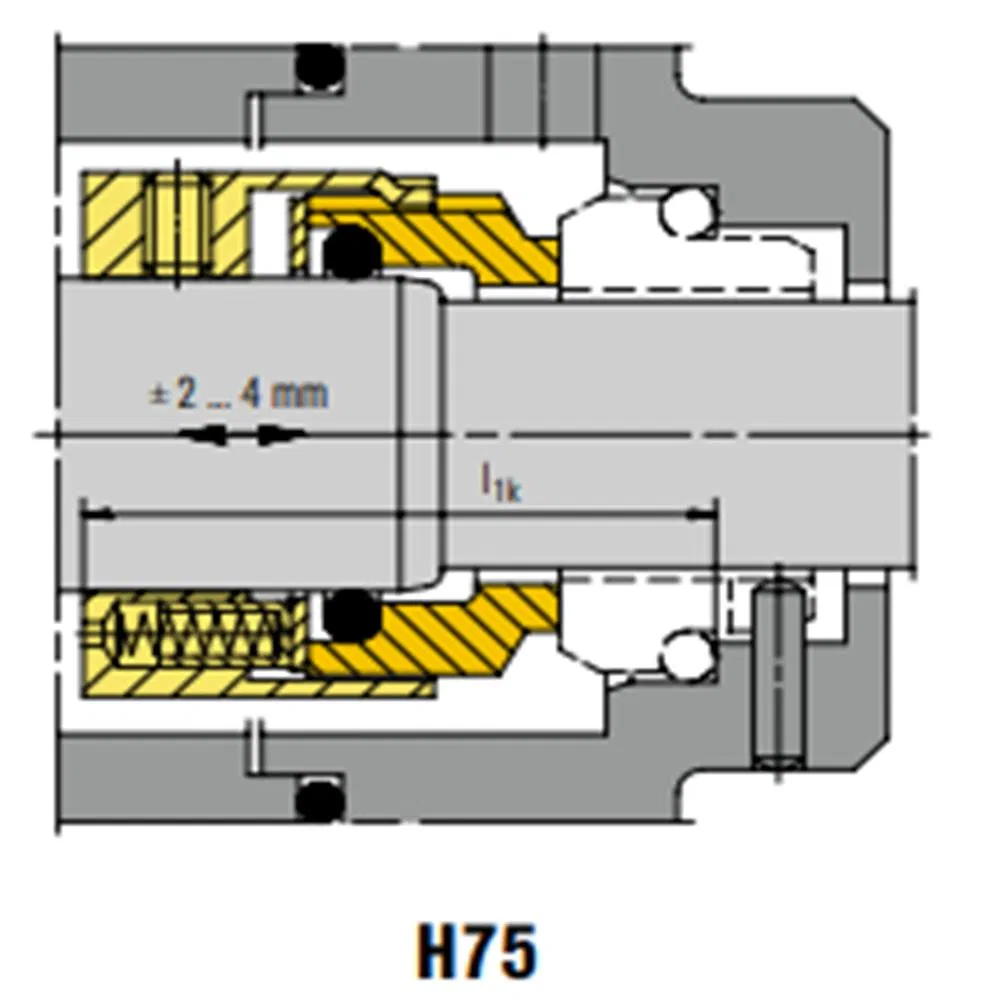

H75
Shaft diameter: d1 = 28 ... 200 mm (1.10" ... 7.87")
As H7N, but with multiple springs in sleeves (Item no. 1.5)
Axial movement: ±2 ... 4 mm, dependent on diameter.

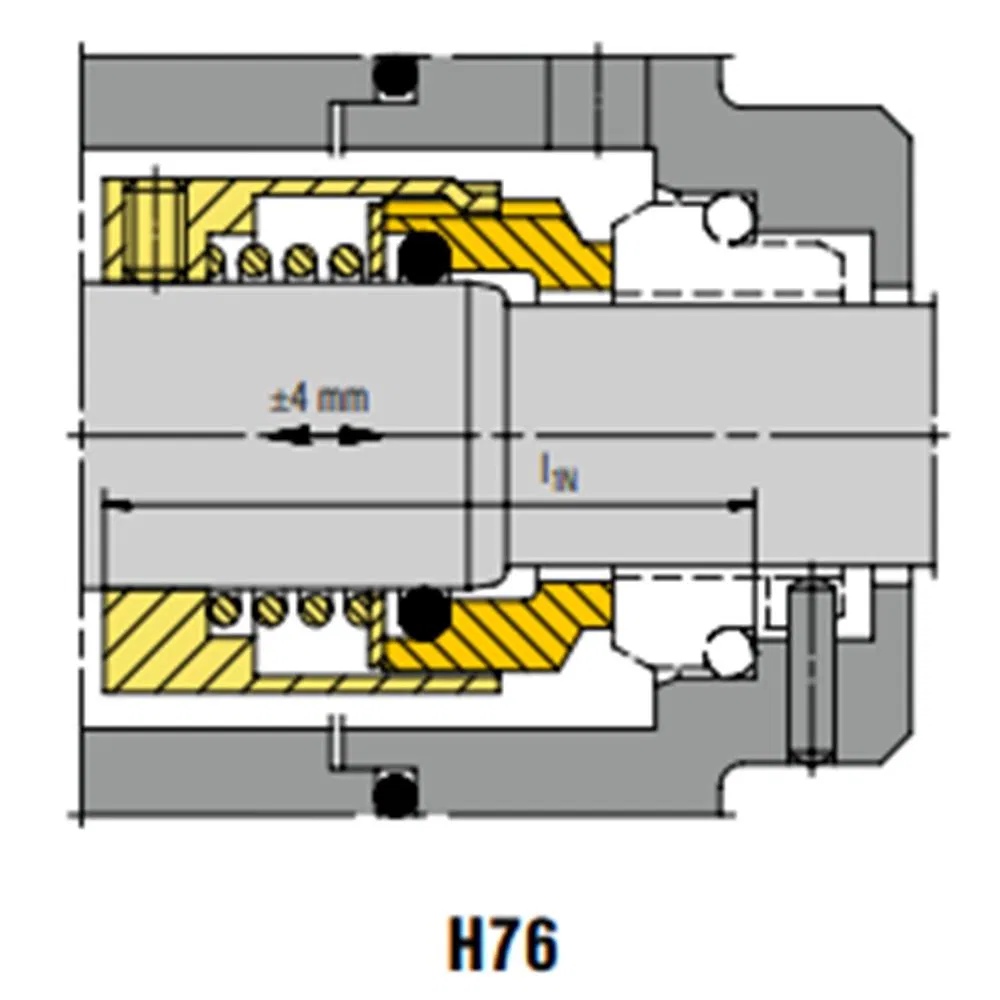

H76
Shaft diameter: d1 = 14 ... 100 mm (0.55" ... 3.94")
Dimensions, items and descriptions as for H7N, but with
special single spring (Item no. 1.5) for compensating large
axial movements (±4 mm).

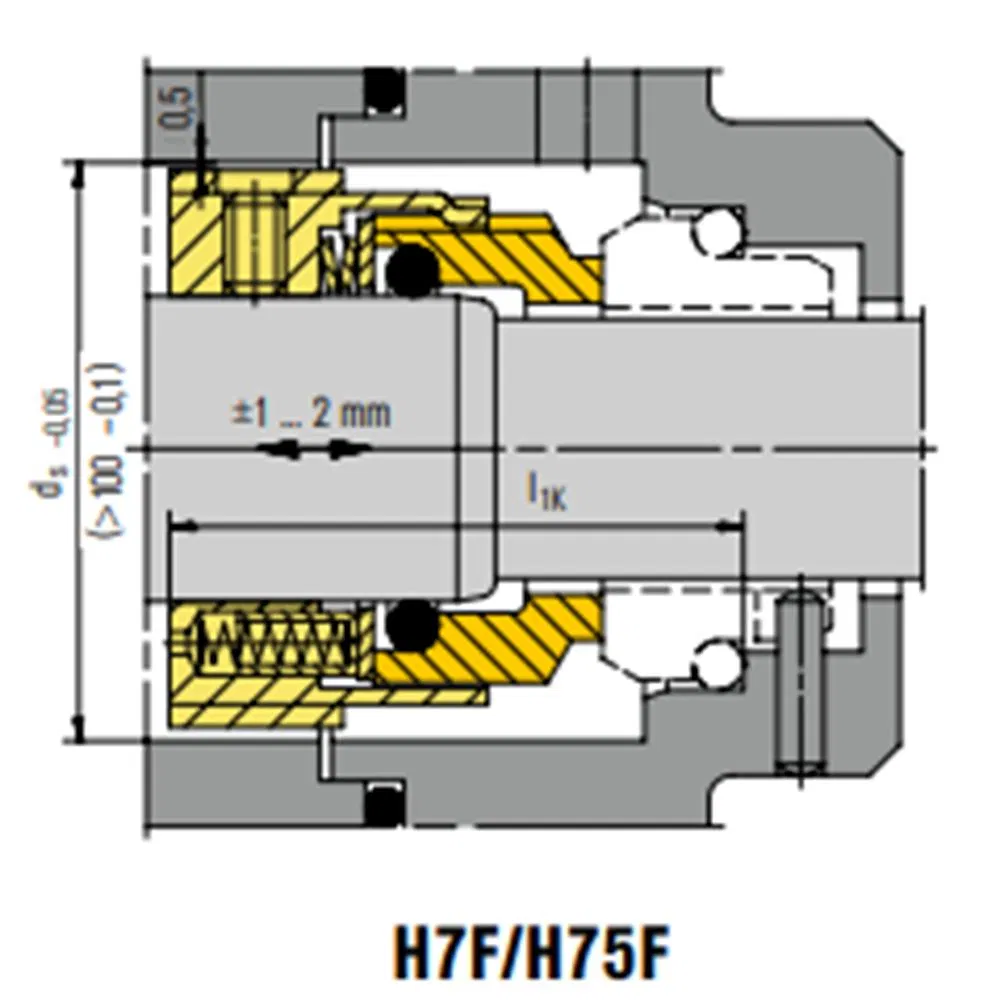

H7F
Shaft diameter: d1 = max. 100 mm (3.94")
Dimensions, items and descriptions as for H7N, but with
single spring and pumping screw. Dependent on direction
of rotation! (Viscosity ≤ ISO VG10).

H75F
Shaft diameter: d1 = 28 ... 200 mm (1.10" ... 7.87")
Dimensions, items and descriptions as for H7N, but
with multiple springs and pumping screw. Dependent on
direction of rotation! (Viscosity ≤ ISO VG10).

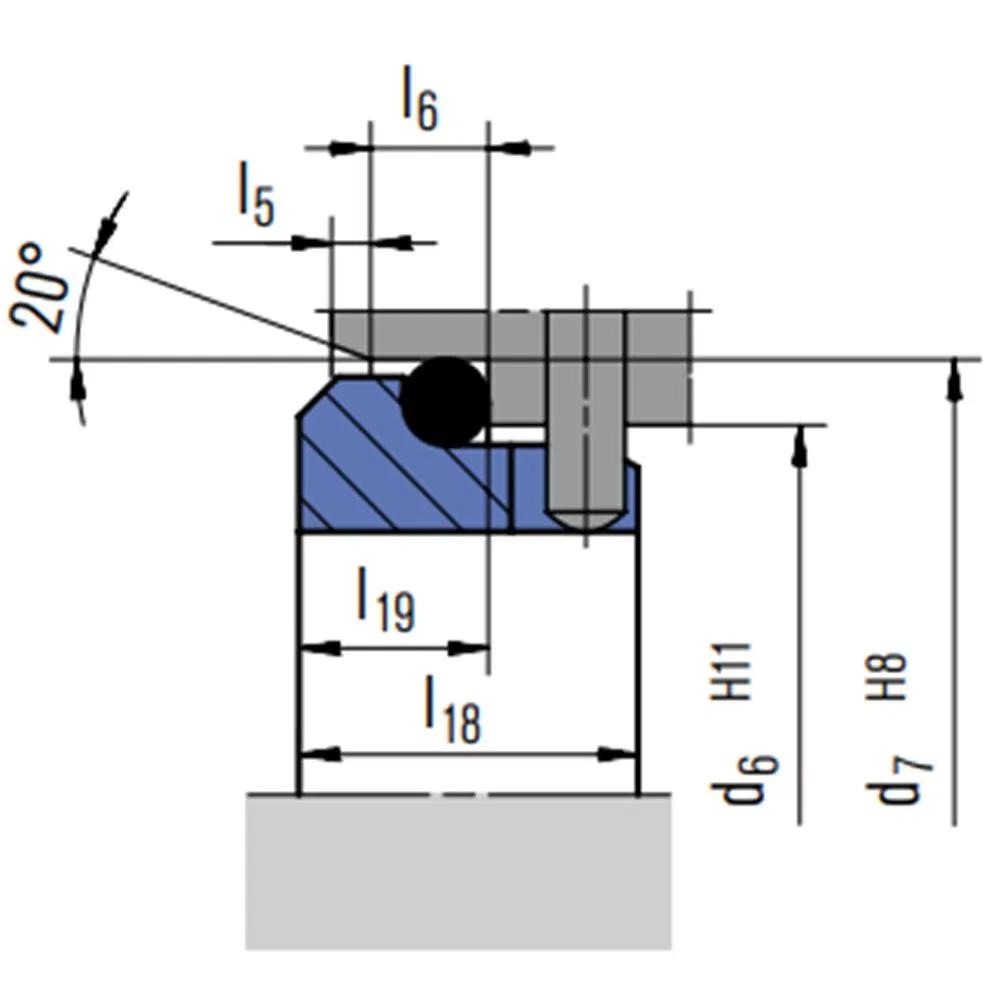

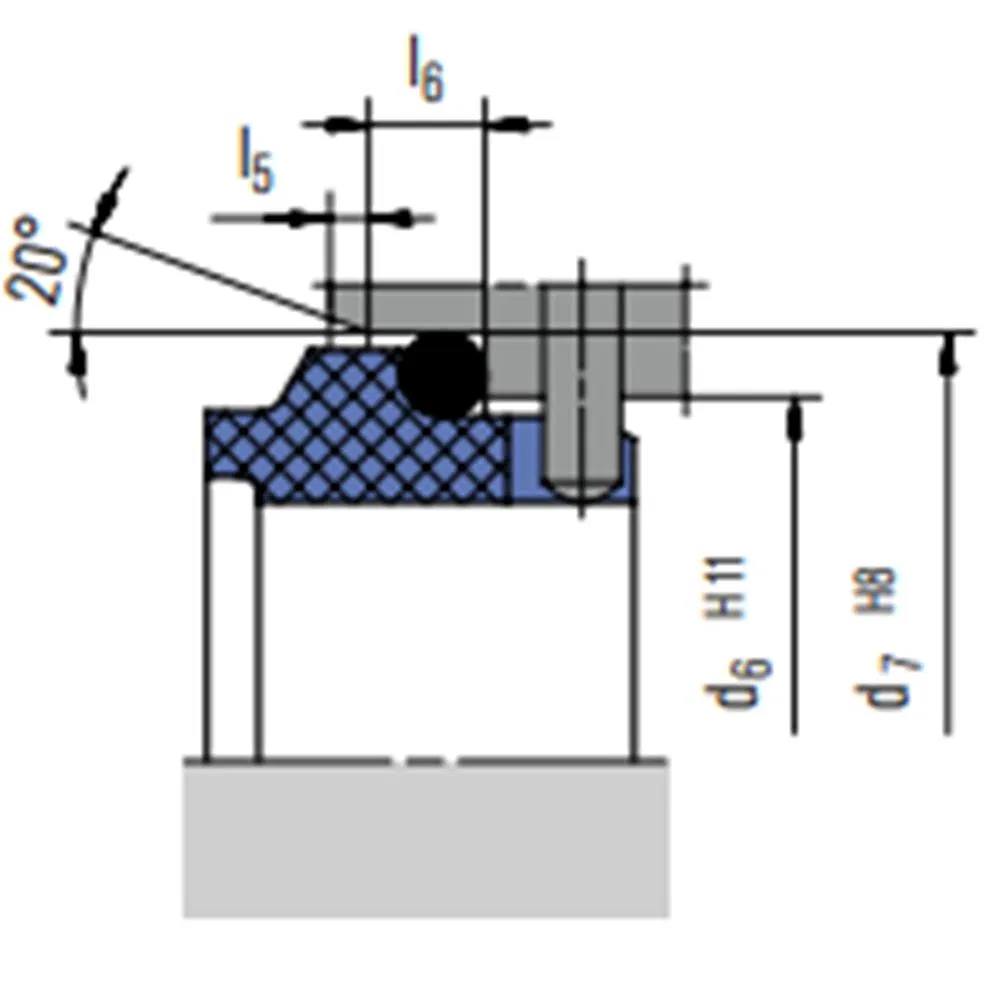

(9)Seat alternatives

H7N

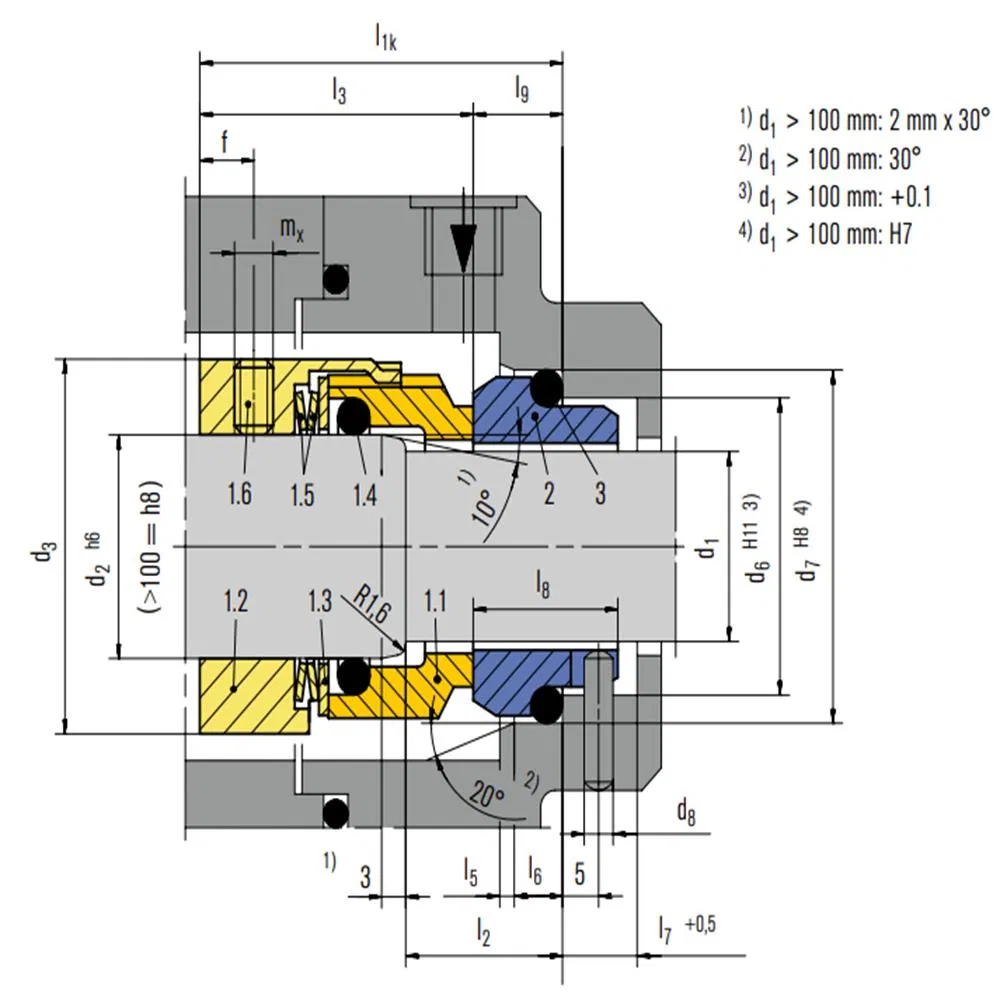

Dimensions in mm

d₁	d₂	d₃	d₆	d₇	d₈	d₂₄	d₂₁	d₂₂	ds	L_1k	L_1n	L₂	L₃	L₅	L₆	L₇	L₈	L₉	L₃₉	L₄₀	a	b	e	f	h₁	h₂	k	m_x	u_max.	t
14*	18.0	33.0	21.0	25.0	3.0	20.0	-	-	38.0	42.5	-	18.0	32.5	1.5	4.0	8.5	17.5	10.0				5.0		6.0				M5	9.0	1.1
16*	20.0	35.0	23.0	27.0	3.0	22.0	-	-	40.0	42.5	-	18.0	32.5	1.5	4.0	8.5	17.5	10.0	-	-	-	5.0	-	6.0	-	-	-	M5	9.0	1.1
18*	22.0	37.0	27.0	33.0	3.0	24.0	-	-	42.0	45.0	55.0	20.0	33.5	2.0	5.0	9.0	19.5	11.5	-	-	-	6.0	-	7.0	-	-	-	M5	9.0	1.5
20*	24.0	39.0	29.0	35.0	3.0	26.0	-	-	44.0	45.0	60.0	20.0	33.5	2.0	5.0	9.0	19.5	11.5	-	-	-	6.0	-	5.5	-	-	-	M5	9.0	1.5
22*	26.0	41.0	31.0	37.0	3.0	28.0	-	-	45.0	45.0	60.0	20.0	33.5	2.0	5.0	9.0	19.5	11.5	-	-	-	6.0	-	8.0	-	-	-	M5	9.0	1.5
24*	28.0	43.0	33.0	39.0	3.0	30.0	-	-	47.0	47.5	60.0	20.0	36.0	2.0	5.0	9.0	19.5	11.5	-	-	-	6.0	-	5.5	-	-	-	M6	9.0	1.5
25*	30.0	45.0	34.0	40.0	3.0	32.0	-	-	49.0	47.5	60.0	20.0	36.0	2.0	5.0	9.0	19.5	11.5	-	-	-	6.0	-	5.5	-	-	-	M6	9.0	1.5
28*	33.0	48.0	37.0	43.0	3.0	35.0	44.65	50.57	51.0	50.0	65.0	20.0	38.5	2.0	5.0	9.0	19.5	11.5	24.0	8.5	24.0	6.0	8.0	8.0	6.6	22.6	9.0	M6	12.0	1.5
30*	35.0	50.0	39.0	45.0	3.0	37.0	47.83	53.75	54.0	50.0	65.0	20.0	38.5	2.0	5.0	9.0	19.5	11.5	24.5	9.0	24.0	6.0	8.0	8.0	6.6	22.6	9.0	M6	12.0	1.5
32*	38.0	55.0	42.0	48.0	3.0	40.0	47.83	53.75	59.0	50.0	65.0	20.0	38.5	2.0	5.0	9.0	19.5	11.5	24.5	9.0	24.0	6.0	8.0	8.0	6.6	22.6	9.0	M6	12.0	1.5
33*	38.0	55.0	42.0	48.0	3.0	40.0	47.83	53.75	59.0	50.0	65.0	20.0	38.5	2.0	5.0	9.0	19.5	11.5	24.5	9.0	24.0	6.0	8.0	8.0	6.6	22.6	9.0	M6	12.0	1.5
35*	40.0	57.0	44.0	50.0	3.0	42.0	51.00	56.92	61.0	50.0	65.0	20.0	38.5	2.0	5.0	9.0	19.5	11.5	24.5	9.0	24.0	6.0	8.0	8.0	6.6	22.6	9.0	M6	12.0	1.5
38*	43.0	60.0	49.0	56.0	4.0	45.0	54.18	60.10	65.0	52.5	75.0	23.0	38.5	2.0	6.0	9.0	22.0	14.0	26.0	11.0	24.0	6.0	8.0	8.0	6.6	22.6	9.0	M6	12.0	1.5
40*	45.0	62.0	51.0	58.0	4.0	47.0	60.53	66.45	66.0	52.5	75.0	23.0	38.5	2.0	6.0	9.0	22.0	14.0	26.0	11.0	24.0	6.0	8.0	8.0	6.6	22.6	9.0	M6	12.0	1.5
43*	48.0	65.0	54.0	61.0	4.0	50.0	63.70	69.62	69.0	52.5	75.0	23.0	38.5	2.0	6.0	9.0	22.0	14.0	26.0	11.0	24.0	6.0	8.0	8.0	6.6	22.6	9.0	M6	12.0	1.5
45*	50.0	67.0	56.0	63.0	4.0	52.0	63.70	69.62	71.0	52.5	75.0	23.0	38.5	2.0	6.0	9.0	22.0	14.0	26.0	11.0	24.0	6.0	8.0	8.0	6.6	22.6	9.0	M6	12.0	1.5
48*	53.0	70.0	59.0	66.0	4.0	55.0	66.88	72.80	75.0	52.5	85.0	23.0	38.5	2.0	6.0	9.0	22.0	14.0	26.0	11.0	24.0	6.0	8.0	8.0	6.6	22.6	9.0	M6	12.0	1.5
50*	55.0	72.0	62.0	70.0	4.0	57.0	70.05	75.97	76.0	57.5	85.0	25.0	42.5	2.5	6.0	9.0	23.0	15.0	26.5	12.5	24.0	6.0	8.0	8.0	6.6	22.6	9.0	M6	12.0	1.5
53*	58.0	79.0	65.0	73.0	4.0	60.0	76.40	82.32	83.0	57.5	85.0	25.0	42.5	2.5	6.0	9.0	23.0	15.0	26.5	12.5	24.0	8.0	8.0	9.0	6.6	22.6	9.0	M8	12.0	1.9
55*	60.0	81.0	67.0	75.0	4.0	62.0	76.40	82.32	85.0	57.5	85.0	25.0	42.5	2.5	6.0	9.0	23.0	15.0	28.5	12.5	26.0	8.0	8.0	9.0	6.6	24.6	11.0	M8	12.0	1.9
58*	63.0	84.0	70.0	78.0	4.0	65.0	79.58	85.50	88.0	62.5	85.0	25.0	47.5	2.5	6.0	9.0	23.0	15.0	28.5	12.5	26.0	8.0	8.0	9.0	6.6	24.6	11.0	M8	15.0	1.9
60*	65.0	86.0	72.0	80.0	4.0	67.0	82.75	88.67	95.0	62.5	95.0	25.0	47.5	2.5	6.0	9.0	23.0	15.0	28.5	12.5	26.0	8.0	8.0	9.0	6.6	24.6	11.0	M8	15.0	1.9
63*	68.0	89.0	75.0	83.0	4.0	70.0	85.93	91.85	93.0	62.5	95.0	25.0	47.5	2.5	6.0	9.0	23.0	15.0	28.5	12.5	26.0	8.0	8.0	9.0	6.6	24.6	11.0	M8	14.0	1.9
65*	70.0	91.0	77.0	85.0	4.0	72.0	85.93	91.85	95.0	62.5	95.0	25.0	47.5	2.5	6.0	9.0	23.0	15.0	28.5	12.5	26.0	8.0	8.0	9.0	6.6	24.6	11.0	M8	15.0	1.9
70*	75.0	99.0	83.0	92.0	4.0	77.0	89.10	95.02	105.0	70.0	95.0	28.0	52.0	2.5	7.0	9.0	26.0	18.0	30.5	14.5	26.0	8.0	8.0	10.0	6.6	24.6	11.0	M8	15.0	1.9
75*	80.0	104.0	88.0	97.0	4.0	82.0	98.63	104.55	109.0	70.0	105.0	28.0	52.0	2.5	7.0	9.0	26.0	18.0	30.5	14.5	26.0	8.0	8.0	10.0	6.6	24.6	11.0	M8	15.0	1.9
80*	85.0	109.0	95.0	105.0	4.0	87.0	101.80	107.72	114.0	70.0	105.0	28.0	51.8	3.0	7.0	9.0	26.2	18.2	30.2	14.0	26.0	8.0	8.0	10.0	6.6	24.6	11.0	M8	15.0	1.9
85*	90.0	114.0	100.0	110.0	4.0	92.0	108.15	114.07	119.0	75.0	105.0	28.0	56.8	3.0	7.0	9.0	26.2	18.2	30.2	14.0	26.0	10.0	8.0	10.0	6.6	24.6	11.0	M8	18.0	2.3
90*	95.0	119.0	105.0	115.0	4.0	97.0	114.50	120.42	124.0	75.0	105.0	28.0	56.8	3.0	7.0	9.0	26.2	18.2	30.2	14.0	26.0	10.0	8.0	10.0	6.6	24.6	11.0	M8	18.0	2.3
95*	100.0	124.0	110.0	120.0	4.0	102.0	117.68	123.60	129.0	75.0	105.0	28.0	57.8	3.0	7.0	9.0	25.2	17.2	29.2	14.0	26.0	10.0	8.0	10.0	6.6	24.6	11.0	M8	18.0	2.3
100*	105.0	129.0	115.0	125.0	4.0	107.0	124.03	129.95	134.0	75.0	105.0	28.0	57.8	3.0	7.0	9.0	25.2	17.2	29.2	14.0	26.0	10.0	8.0	10.0	6.6	24.6	11.0	M8	18.0	2.3
105*	115.0	148.0	122.2	134.3	5.0	118.0	128.98	134.90	153.0	73.0	-	32.0	53.0	2.0	10.0	-	30.0	20.0	29.2	15.2	26.0	10.0	8.0	10.0	6.6	24.6	11.0	M8	18.0	2.3
110*	120.0	153.0	128.2	140.3	5.0	123.0	135.30	141.20	158.0	73.0	-	32.0	53.0	2.0	10.0	-	30.0	20.0	32.5	14.5	30.0	10.0	9.5	10.0	6.6	28.6	13.0	M8	18.0	2.3
115*	125.0	158.0	136.2	148.3	5.0	128.0	140.30	146.20	163.0	73.0	-	32.0	53.0	2.0	10.0	-	30.0	20.0	32.5	14.5	30.0	10.0	9.5	10.0	6.6	28.6	13.0	M8	18.0	2.3
120*	130.0	163.0	138.2	150.3	5.0	133.0	145.30	151.20	168.0	73.0	-	32.0	53.0	2.0	10.0	-	30.0	20.0	32.5	14.5	30.0	10.0	9.5	10.0	6.6	28.6	13.0	M8	18.0	2.3
125*	135.0	168.0	142.2	154.3	5.0	138.0	150.30	156.20	173.0	73.0	-	32.0	53.0	2.0	10.0	-	30.0	20.0	32.5	14.5	30.0	10.0	9.5	10.0	6.6	28.6	13.0	M8	18.0	2.3
130*	140.0	173.0	146.2	158.3	5.0	143.0	155.30	161.20	178.0	73.0	-	32.0	53.0	2.0	10.0	-	30.0	20.0	32.5	14.5	30.0	10.0	9.5	10.0	6.6	28.6	13.0	M8	18.0	2.3
135*	145.0	178.0	152.2	164.3	5.0	148.0	160.30	166.20	183.0	73.0	-	32.0	53.0	2.0	10.0	-	30.0	20.0	32.5	14.5	30.0	10.0	9.5	10.0	6.6	28.6	13.0	M8	18.0	2.3
140*	150.0	183.0	156.2	168.3	5.0	153.0	165.30	171.20	188.0	73.0	-	32.0	53.0	2.0	10.0	-	30.0	20.0	32.5	14.5	30.0	10.0	9.5	10.0	6.6	28.6	13.0	M8	18.0	2.3
145*	155.0	191.0	161.2	173.3	5.0	158.0	172.30	178.20	196.0	83.0	-	34.0	63.0	2.0	10.0	-	30.0	20.0	34.5	16.5	32.0	12.0	10.0	12.0	7.1	30.1	14.0	M8	22.0	2.1
150*	160.0	196.0	168.2	180.3	5.0	163.0	177.30	183.20	201.0	85.0	-	36.0	63.0	2.0	10.0	-	32.0	22.0	34.5	16.5	32.0	12.0	10.0	12.0	7.1	30.1	14.0	M8	22.0	2.1
155*	165.0	201.0	173.2	185.3	5.0	168.0	182.30	188.20	206.0	87.0	-	38.0	63.0	2.0	12.0	-	34.0	24.0	34.5	16.5	32.0	12.0	10.0	12.0	7.1	30.1	14.0	M8	22.0	2.1
160*	170.0	206.0	178.2	190.3	5.0	173.0	187.30	193.20	211.0	87.0	-	38.0	63.0	2.0	12.0	-	34.0	24.0	34.5	16.5	32.0	12.0	10.0	12.0	7.1	30.1	14.0	M8	22.0	2.1
165*	175.0	211.0	183.2	195.3	5.0	178.0	192.30	198.20	216.0	87.0	-	38.0	63.0	2.0	12.0	-	34.0	24.0	34.5	16.5	32.0	12.0	10.0	12.0	7.1	30.1	14.0	M8	22.0	2.1
170*	180.0	216.0	188.2	200.3	5.0	183.0	197.30	203.20	221.0	87.0	-	38.0	63.0	2.0	12.0	-	34.0	24.0	37.0	16.5	34.5	12.0	10.0	12.0	7.1	32.1	16.0	M8	22.0	2.1
175*	185.0	221.0	193.2	205.3	5.0	188.0	202.30	208.20	226.0	87.0	-	38.0	63.0	2.0	12.0	-	34.0	24.0	37.0	16.5	34.5	12.0	10.0	12.0	7.1	32.1	16.0	M8	22.0	2.1
180*	190.0	226.0	207.5	219.3	5.0	193.0	207.30	213.20	231.0	91.0	-	42.0	63.0	2.0	12.0	-	38.0	28.0	37.0	16.5	34.5	12.0	10.0	12.0	7.1	32.1	16.0	M8	22.0	2.1
185*	195.0	231.0	212.5	224.3	5.0	198.0	212.30	218.20	236.0	91.0	-	42.0	63.0	2.0	12.0	-	38.0	28.0	37.0	16.5	34.5	12.0	10.0	12.0	7.1	32.1	16.0	M8	22.0	2.1
190*	200.0	236.0	217.5	229.3	5.0	203.0	217.30	223.20	241.0	91.0	-	42.0	63.0	2.0	12.0	-	38.0	28.0	37.0	16.5	34.5	12.0	10.0	12.0	7.1	32.1	16.0	M8	22.0	2.1
195*	205.0	245.0	222.5	234.2	5.0	208.0	225.30	231.20	250.0	94.0	-	43.0	66.0	2.0	12.0	-	38.0	28.0	37.0	17.5	34.5	12.0	10.0	14.0	7.1	32.1	16.0	M10	22.0	2.1
200*	210.0	250.0	227.5	239.3	5.0	213.0	230.30	236.20	255.0	94.0	-	43.0	66.0	2.0	12.0	-	38.0	28.0	37.0	17.5	34.5	12.0	10.0	14.0	7.1	32.1	16.0	M10	22.0	2.1
