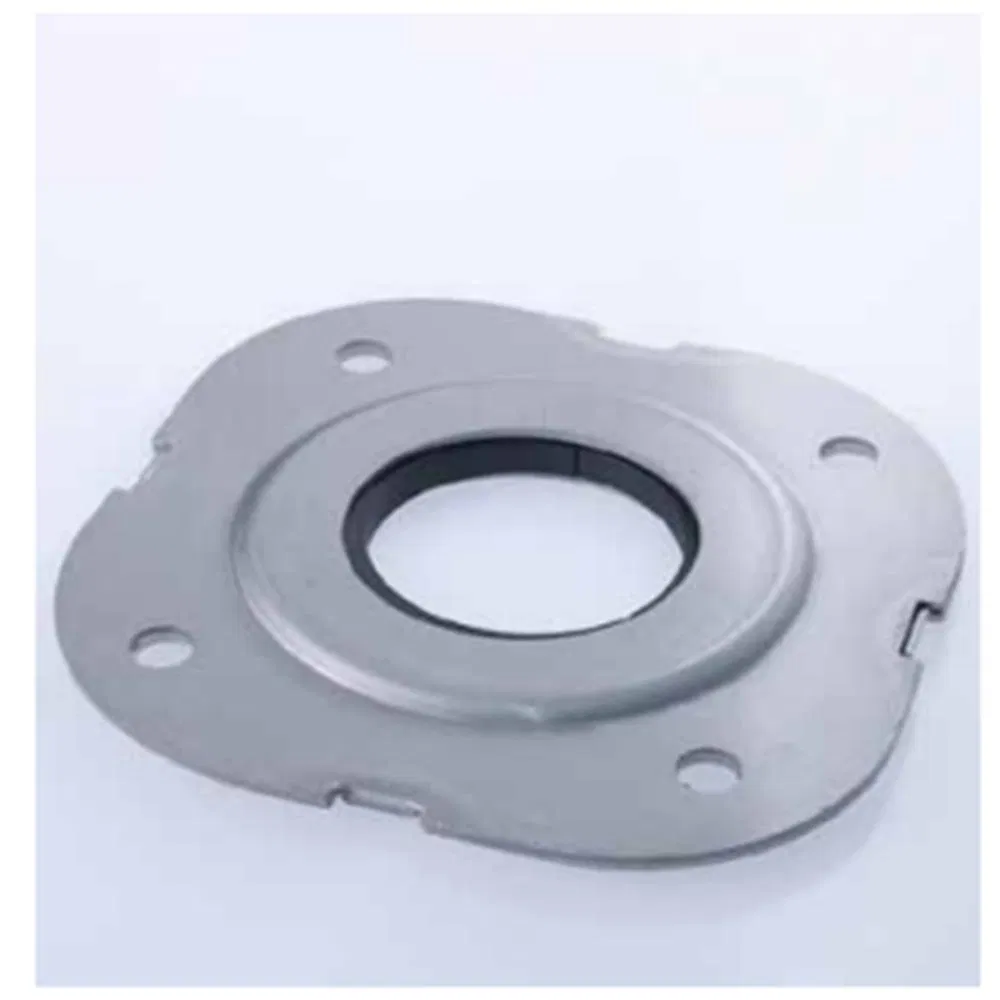

(1)Features
• Cartridge seal
• Standardized dimensions
• Short axial installation length (8.4 mm)
• Dry running
• Compensation of radial and axial shaft deflections
• No sealing components mounted on the shaft and hence no additional shaft vibrations
• Seal rings running contact-free - sliding faces and machine consume no additional power
• One-piece seal ring (initial delivery)
(2)Advantages
• Easy installation
• High reliability
• Maintainability
• Long-term operating time
• Alternative to radial shaft seal ring
(3)Operating range (see note on page 1)
Shaft diameter: d = 28 ... 80 mm (1.10" ... 3.15")
Operating pressure: p = 1.075 bar (15 PSI) abs.
Operating temperature: t = max. +200 °C (392 °F)
Sliding velocity: vg = max. 40 m/s (131 ft/s)
Radial play: ±2.0 ... 4.0 mm (±0.08" ... 0.16")
Axial movement: theoretically unlimited

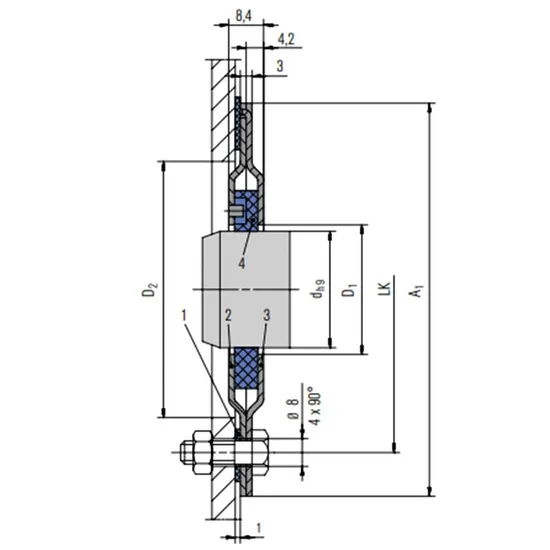

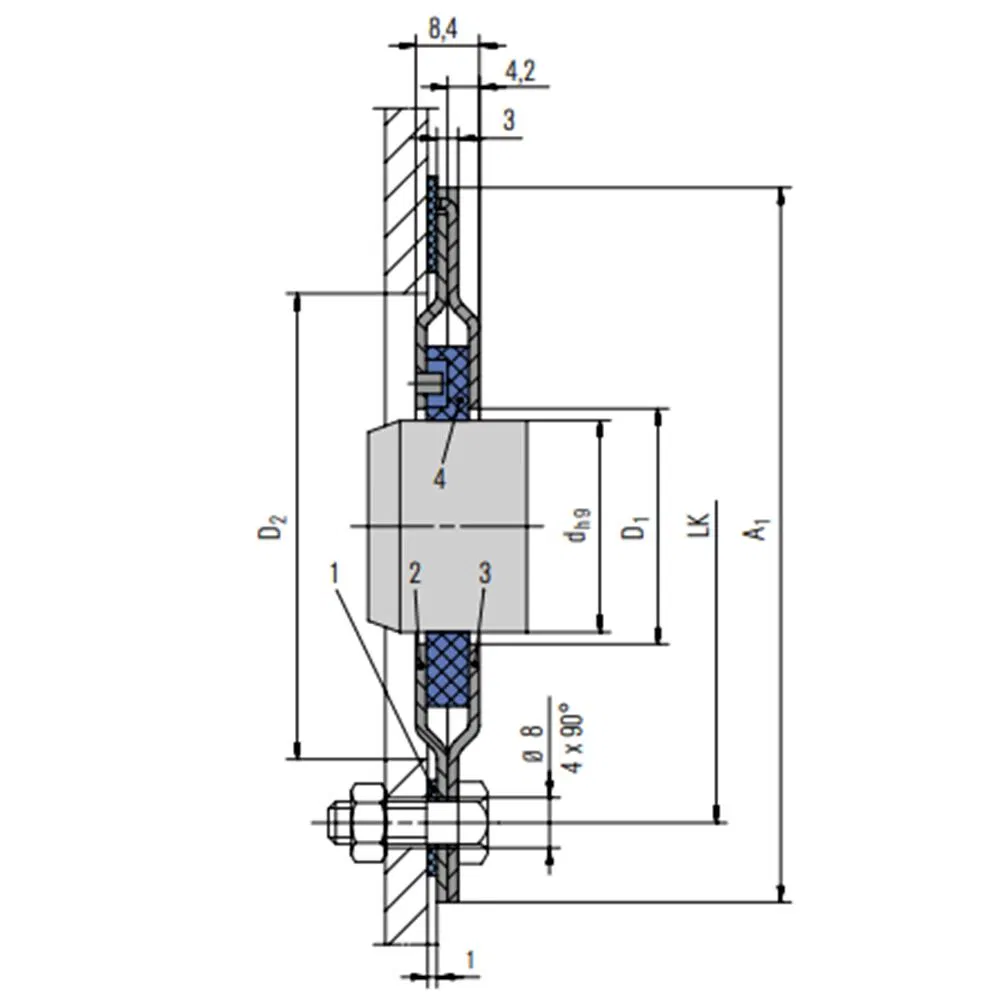

(4)Item Description
1 Flat seal
2 Housing half
3 Housing half
4 Seal ring
(5)Materials
Seal ring: PTFE compound
Housing: 1.4301
Tension spring: 1.4571
(6)Standards and approvals
• Material approvals: FDA
(7)Recommended applications
• Chemical industry
• Food processing industry
• Machinery and plant building
• Pulp and paper industry
• Metal production and processing
• Small and medium-sized fans/blowers
• Air regulating devices
• Bearing seals
• Clean gases*
* Not applicable for toxic, solids containing gases and exhaust gas
Dimensions in mm
| dh9 | D1 | D2 | A1 | LK | RB | RC |
| 28 | 36 | 70 | 100 | 90 | 35 | 30 |
| 30 | 36 | 70 | 100 | 90 | 35 | 30 |
| 32 | 36 | 70 | 100 | 90 | 35 | 30 |
| 38 | 46 | 80 | 110 | 100 | 40 | 35 |
| 40 | 46 | 80 | 110 | 100 | 40 | 35 |
| 42 | 46 | 80 | 110 | 100 | 40 | 35 |
| 50 | 56 | 94 | 130 | 120 | 45 | 40 |
| 60 | 66 | 104 | 140 | 130 | 50 | 45 |
| 70 | 76 | 114 | 150 | 140 | 55 | 50 |
| 80 | 86 | 124 | 160 | 150 | 60 | 55 |
