| Customization: | Available |
|---|---|
| Structure: | Single End |
| Pressure: | High Pressure Mechanical Seals |
| Quantity: | |
|---|---|
(1)Features
Magnetic couplings (MAK) are a hermetic sealing solution
for pumps and agitators. Dangerous or precious media
remain isolated in the closed system circuit.
(2)Advantages
• Magnetic coupling for standard applications
• Hermetically sealed
• No contact of torque transmitting elements
• No maintenance necessary
• Hastelloy can for high performance
• High efficient can optional
• Product lubricated sliding bearing included

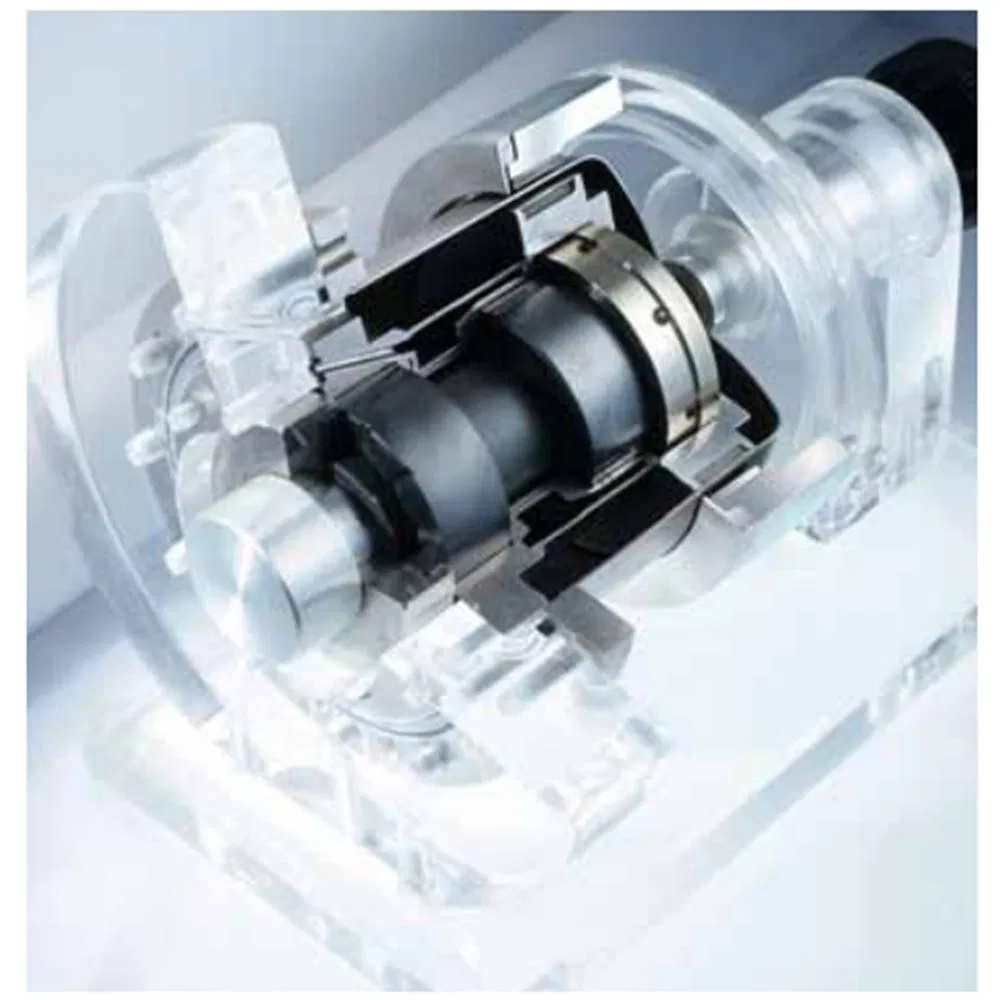

(3)Functional description
The power transmission occurs contact-free through
magnets from the drive shaft to the product-wetted output
shaft. Between the two rotating parts is the can wich is
bolted to the container.
(4)Operating range (see note on page 1)
Pressure: p = 25 bar (363 PSI)
Temperature: t = 250 °C (482 °F) (SmCo),
120 °C (248 °F) (NdFeB)
Speed: n = 3,600 min-1
Chemical resistance: pH 0 ... 14
Viscosity: 0.3 ... 5,000 mPas (SiC)
Torque: max. 462 Nm
Solids: max. 0.1 mm; max. 5 % by weight;
grain hardness max: 700 HV
(5)Materials
Sliding faces: Silicon carbide SiC (Q1), Carbon silicon
inpregnated SiC-C-Si (Q3), Carbon graphite resin
impregnated (B)
Magnets: Samarium-Cobalt (MA3),
Neodymium-Iron-Boron (MA8)
Metal parts: CrNiMo steel 1.4571 (G), CrNiMo steel 1.4462 (G1), Hastelloy C-4 2.4610 (M)

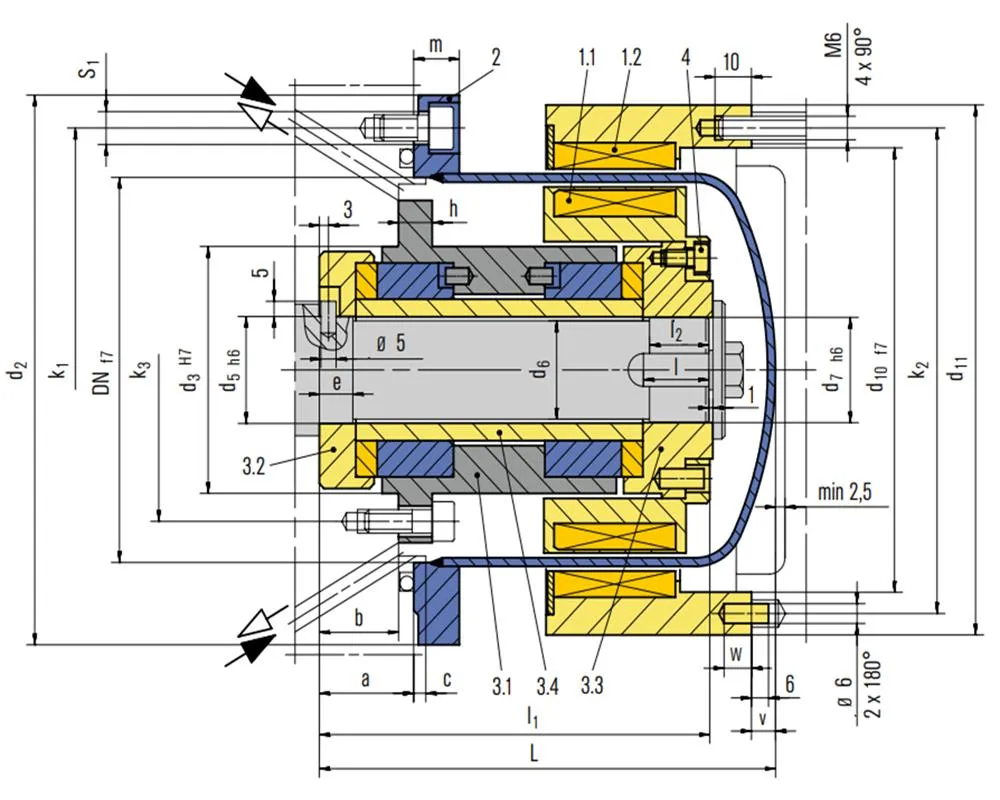

(6)Item Description
1 Coupling
1.1 Inner rotor
1.2 Outer rotor
2 Can
3 Bearing assembly
3.1 Radial journal bearing
3.2 Axial journal bearing
3.3 Axial journal bearing
3.4 Shaft sleeve
4 HSH cap screw
(7)Recommended applications
• Chemical industry
• Oil and gas industry
• Refining technology
• Pharmaceutical industry
• Food processing industry
• Centrifugal pumps
• Gear pumps
• Top drive mixers/agitators
• Fans
• Blowers
• Autoclaves

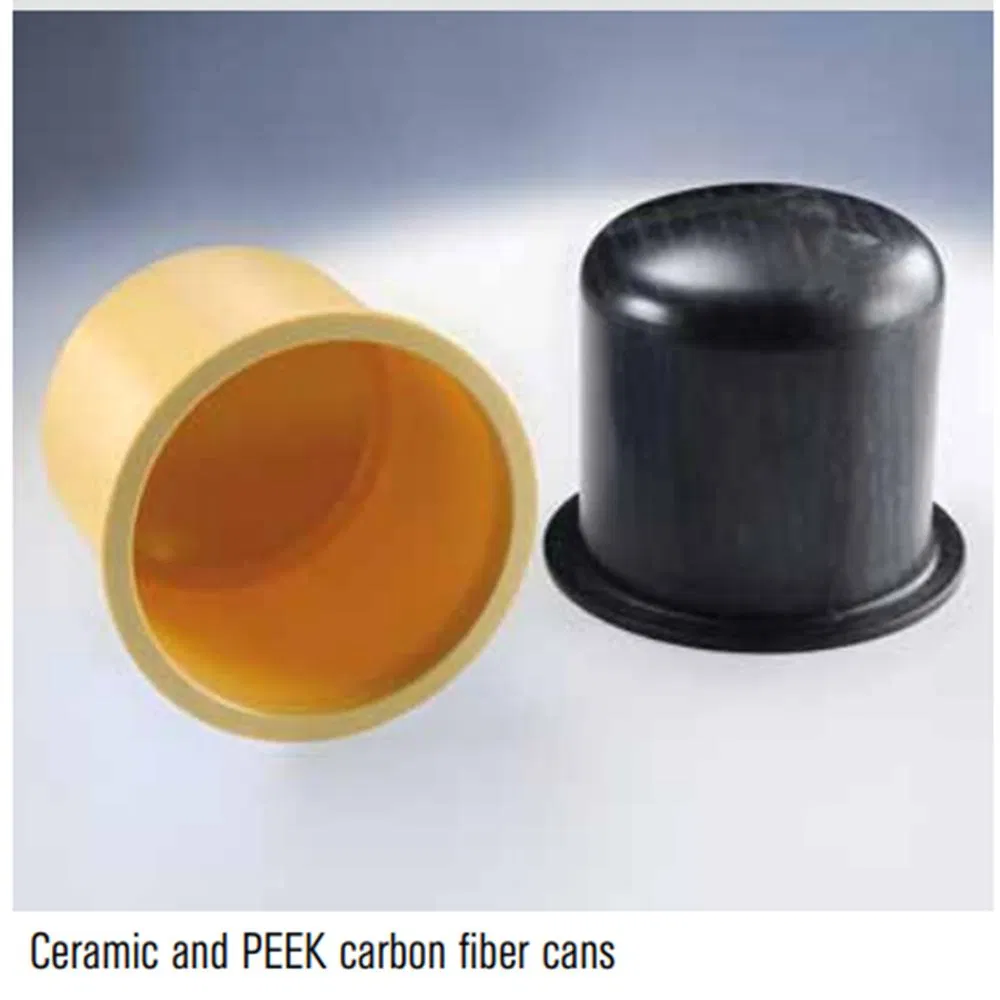

(8)Product variants
(9)Static break-away torque (Nm)
| DN | 60 | 75 | 110 | 135 | 165 | |||||
| No. of poles | 8 | 10 | 16 | 20 | 24 | |||||
| Material | MA3 | MA8 | MA3 | MA8 | MA3 | MA8 | MA3 | MA8 | MA3 | MA8 |
| 2 | 6.5 | 9 | 9 | 12.5 | 24 | _ | _ | _ | _ | _ |
| Magnet 4 | 14.5 | 20 | 21 | 29 | 53 | 74 | 85 | _ | 115 | _ |
| length 6 | 22 | 31 | 34 | 48 | 85 | 119 | 128 | 180 | 185 | 259 |
| in cm 8 | _ | _ | _ | _ | _ | _ | 176 | 247 | 260 | 364 |
| 10 | _ | _ | _ | _ | _ | _ | _ | _ | 330 | 462 |
| Static break-away torque (Nm) at room temperature. Magnet material: MA3 = SmCo, MA8 = NdFeB | ||||||||||
Dimensions in mm
| Can | Outer rotor | |||||||||||||
| DN | LK | L | DN | d2 | a | c | m | k1 | s1 | d10 | d11 | V | W | k2 |
| 75 | 2-6 | 119 | 75 | 118 | 17 | 4 | 13 | 100 | 9 | 90 | 110 | 0 | 5 | 100 |
| 110 | 2-6 | 146 | 110 | 153 | 31 | 4 | 13 | 133 | 9 | 125 | 145 | 4 | 5 | 135 |
| 135 | 4-8 | 156 | 135 | 178 | 17 | 4 | 14 | 158 | 9 | 150 | 170 | 4 | 5 | 160 |
| 165 | 4-10 | 187 | 163.5 | 218 | 17 | 5 | 16 | 192 | 11 | 178 | 198 | 5 | 8 | 188 |
| Bearing arrangement | ||||||||||||||
| DN | DNL | d3 | d5 | d6 | b | e | l1 | l2 | h | k3 | d7 | l | t | u |
| 75 | 22 | 44 | 16.5 | 15.8 | 21 | 8 | 103 | 29 | 7 | 55 | 16 | 16 | 18 | 5 |
| 110 | 43 | 75 | 32.5 | 31.5 | 26 | 11 | 128.5 | 20 | 8 | 87 | 32 | 22 | 35 | 10 |
| 135 | 43 | 75 | 32.5 | 31.5 | 26 | 11 | 138.5 | 20 | 8 | 87 | 32 | 22 | 35 | 10 |
| 165 | 55 | 92 | 40.5 | 39.5 | 27 | 12 | 169.5 | 30 | 10 | 103 | 40 | 32 | 46 | 12 |
We have large stock, so our delivery is very fast.
For example,if products are standarded, the delivery time is one week.
Our company and factory addrss: Ningbo City, Zhejiang Province,China.
Our city has a large port and an airport, so its transportation is very convenient.
Question1: What are the prices of your products?
Answer: For each model, the unit price is listed on the website, but what is displayed on the website is only the average market price. For specific models, you can contact us for further consultation and negotiation.
Question 2: Are you a factory or a trade company?
Answer: We are a factory with top sales for the trade service.
Question 3: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and services through placing trial orders. Looking forward to the long-term cooperation with you.
Question4: What is your company's service tenet?
Answer: Quality first, service upmost. We promises that if there is any problem with the quality of the product, or if the product is damaged during the transportation, our company will be responsible for compensation, regardless of the ordder turnover value.
Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company will provide you with samples for free, but you will have to pay for the international delivery (freight collect payment).
